Illumax

ILLUMAX LED Strip RAINBOW+ Series

60LEDs/m14.4W/m24Vcuttable length 100mm
SKU 5050-0602400SCX-RGBWW
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 2 variants

5050-0602400SCX-RGBWW
LED Colour
2 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
In stock
|

Specifications

ILLUMAX LED Strip RAINBOW+ SeriesSpecifications from the official datasheetDownload datasheet PDF

Variants

SKULED ColourBrightnessPower RatingLight colour
5050-0602400SCX-RGBRGB Multicolour820 lm14.4W/m / 19.2W/mRGB
5050-0602400SCX-RGBWWRGB+WW Multicolour1,000 lm14.4W/m / 19.2W/mRGB+WW

Specifications

Input Voltage
24V DC
LED Density
60LEDs/m
Roll Size
5m
Cutting Length
100mm
Max Run
5m
Beam angle
120°
Width
11mm
Lifetime
50,000 hours@25°C
Connections
200mm Wire P1J Female Connector (5m roll only)
Mounting
3M Tape
Warranty
2 Years
IP Rating
IP20

Certifications & ratings

Wty
2 Years

Technical drawings

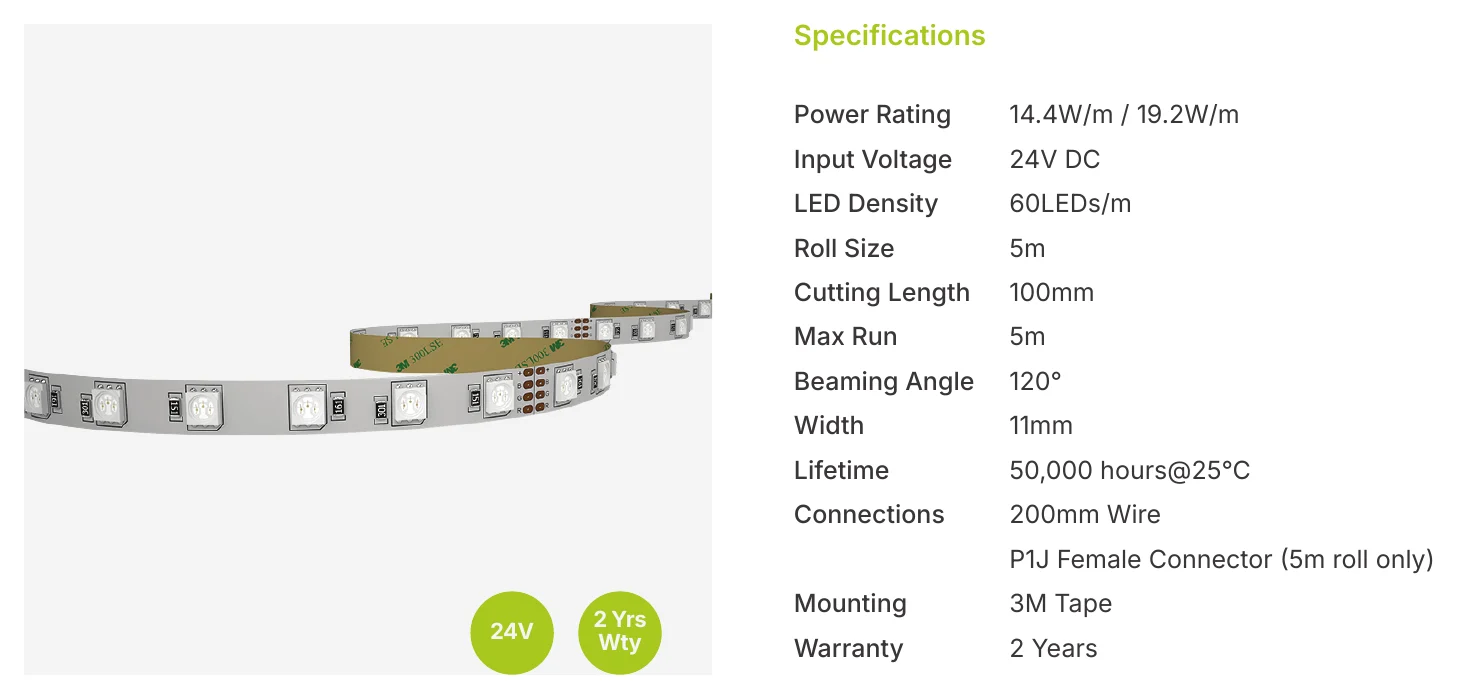

ILLUMAX LED Strip RAINBOW+ Series Specifications
Specifications

Downloads

FAQ

What are the main specifications of the iLLUMAX RAINBOW+ Series LED strip?

This LED strip family runs on 24V DC and is rated at 19.2W per metre. It uses 60 LEDs per metre, has a 120 degree beam angle, a 100mm cutting length, and an 11mm width. The listed lifetime is 50,000 hours and the standard mounting method is 3M tape.

Is a driver included with this LED strip?

No, the driver is not included with this product family. Buyers should allow for a separate compatible driver when specifying the strip. This is consistent across the parent model and the child variants shown.

What is the difference between the variants in this parent family?

The child data shows RGB and RGB+WW options within this family. The listed light output differs between those variants, with one shown at 820 lm and another at 1000 lm, while both remain 24V. This makes the family suitable when you need the same strip format with different colour-output options.

Can this LED strip be cut to shorter lengths?

Yes, the specified cutting length is 100mm. That means the strip can be selected where shorter repeated sections are needed within a project.

What types of projects is this LED strip family suited to?

Based on the product category and specification set, this family is suited to interior linear lighting applications where multicolour LED strip is required. Its 24V input, 60 LEDs per metre density, and 11mm width make it relevant for commercial and trade-focused LED strip selections. It is best considered as a flexible lighting product family rather than a complete kit, since the driver is not included.

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Other Illumax Rainbow+ Series Models

2 other models
ModelPowerLED DensityCuttableIP Rating
ILLUMAX LED Strip RAINBOW+ Series - Waterproof IP68 14.4W 60LEDs/m 100mm IP68 View
ILLUMAX LED Strip RAINBOW+ Series RGBWW - Waterproof IP68 14.4W 60LEDs/m 165mm IP68 View
View all 3 Illumax Rainbow+ Series models
