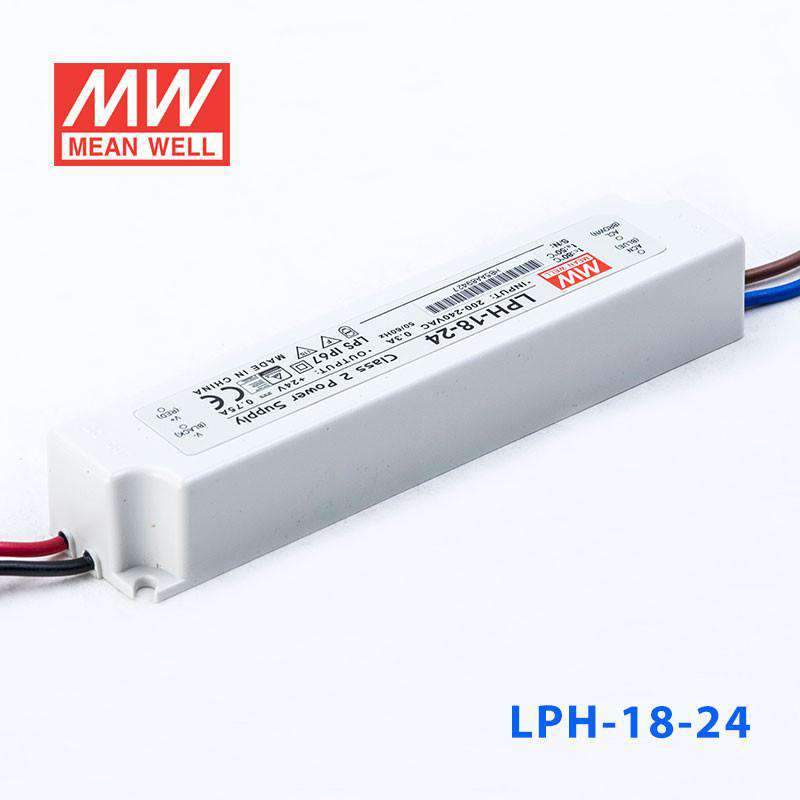

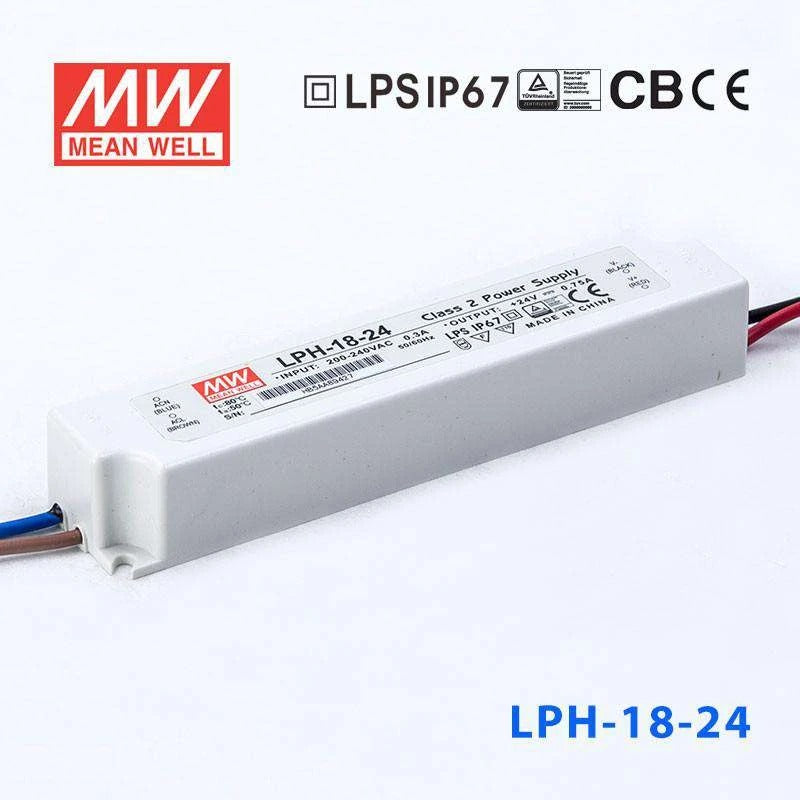

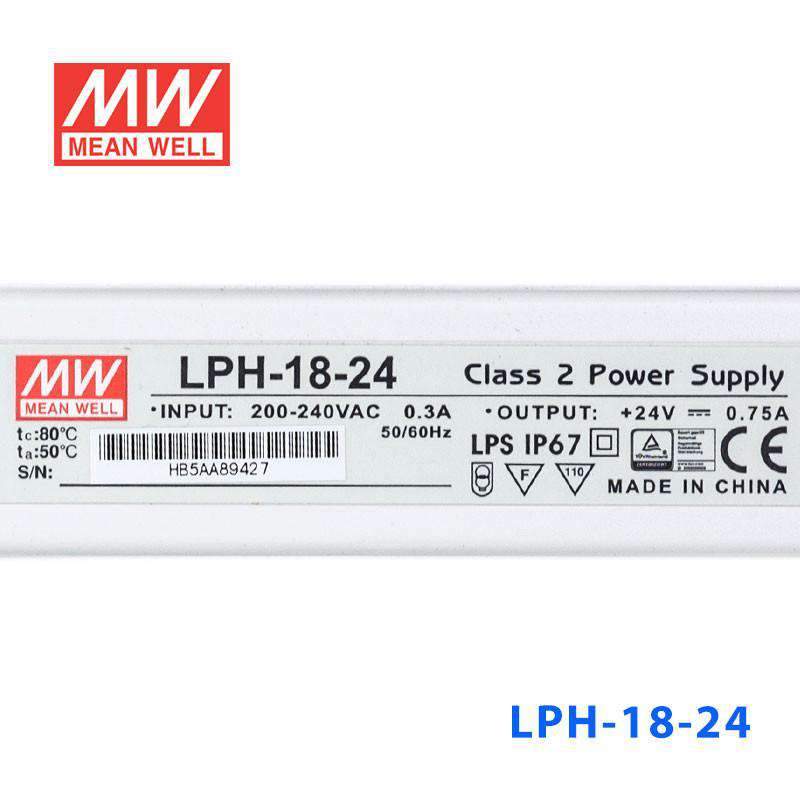

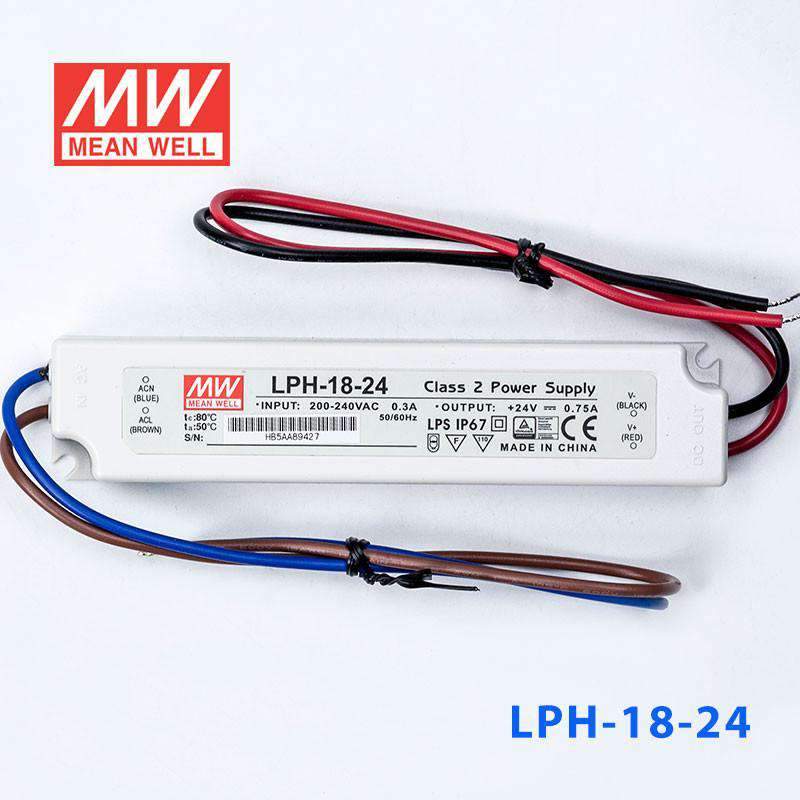

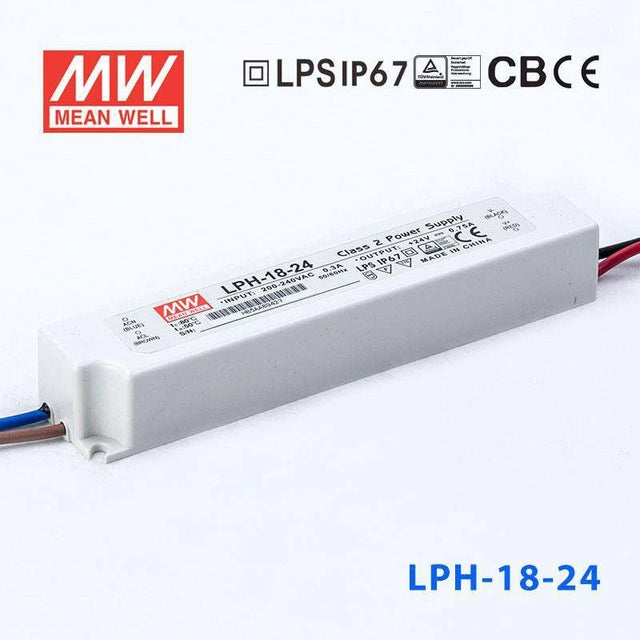

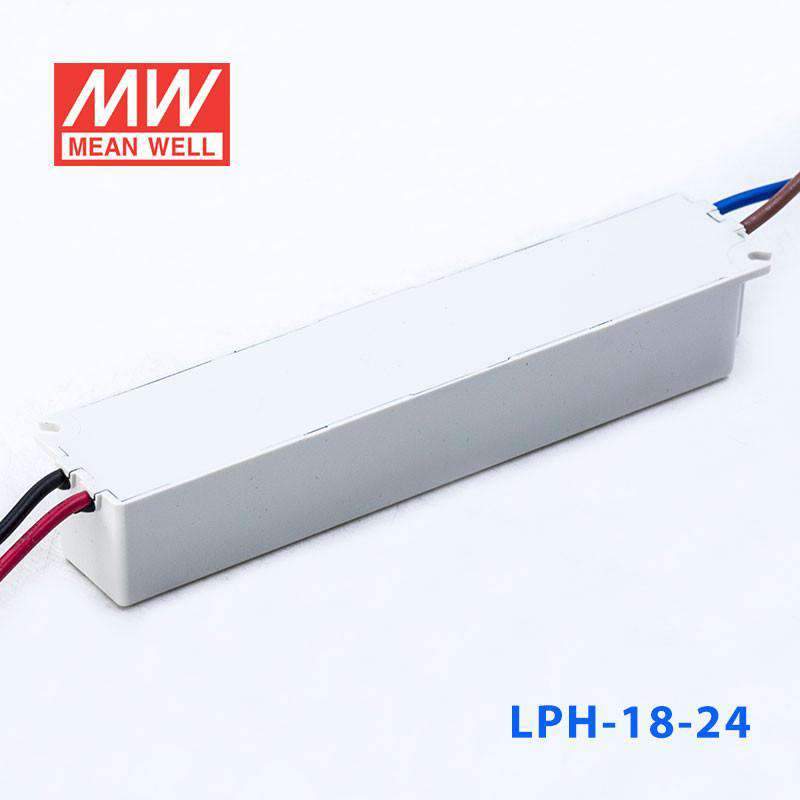

Mean Well LPH-18-24 Power Supply 18W 24V 750mA
Log in to see priceOverview
LPH-18-24 is the 24V output model of this series: rated current 0.75A, rated power 18W, typical efficiency 82%.
Features
- 180-264VAC input only
- Fully encapsulated with IP67 level (Note.5)
- Protections:Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Class Ⅱ power unit, no FG
- Pass LPS
- 100% full load burn-in test
- Display devices for decorative & advertising accessories (Note.6)
- General-purpose electronics operated in dusty or damp environments
- High reliability / Low cost
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- RATED CURRENT
- 0.75A
- CURRENT RANGE
- 0 ~ 0.75A
- RATED POWER
- 18W
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p
- VOLTAGE TOLERANCENote.3
- ±3.0%
- LINE REGULATION
- ±1.0%
- LOAD REGULATION
- ±2.0%
- SETUP, RISE TIME
- 1500ms, 30ms / 230VAC
- HOLD UP TIME (Typ.)
- 50ms/230VAC at full load
INPUT
- VOLTAGE RANGE
- 180 ~ 264VAC 254 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY(Typ.)
- 82%
- AC CURRENT
- 0.3A/230VAC
- INRUSH CURRENT(Typ.)
- COLD START 50A(twidth=155μs measured at 50% Ipeak) at 230VAC
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 17 units (circuit breaker of type B) / 28 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- 0.25mA / 240VAC
PROTECTION
- OVERLOAD
- Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 27.6~ 32.4V Protection type : Shut off o/p voltage, clamping by zener diode
- OVER TEMPERATURE
- Hiccup mode, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- -30~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- IEC/BS EN/EN 62368-1, BIS IS15885(NOTE 8), EAC TP TC 004, IP67 approved; design refer to UL1310 Class 2, CAN/CSA No. 223-M91
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC
- ISOLATION RESISTANCE
- I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A, BS EN/EN61000-3-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 7827.3K hrs min. Telcordia SR-332 (Bellcore) ; 1311.1Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 140*30*22(L*W*H)
- PACKING
- 0.175Kg; 70pcs/13.3Kgs/0.71CUFT
Test conditions and notes7
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 5. Suitable for indoor use or outdoor use without direct sunlight exposure.
- 6. This product is not intended for LED applications in the EU and China.(In the EU NPF/LPF/XLG series are recommended.)
- 7. Products sourced from the China regions may not have the BIS logo, please contact your MEAN WELL sales for more information.
Technical drawings
Downloads
FAQ
Can I use the LPH-18-24 for 24V LED strip lighting?
Yes, this model is a 24V single-output switching power supply, which suits 24V LED strip loads (the sheet notes it is not intended for LED applications in the EU and China). The load should remain within 18W total and 0.75A output current.
Is the LPH-18-24 appropriate for compact 24V sign lighting or cabinet lighting?
Yes, it can be used for small 24V sign lighting or compact lighting runs where a constant 24V output is required. The slim 140 x 30 x 22 mm case is useful where space is limited.
Can this 24V driver be used in outdoor lighting conditions?
Yes, it is fully encapsulated to IP67 and suits indoor use or outdoor use without direct sunlight exposure. The specified operating temperature range is -30°C to +70°C, with output derating at higher temperatures per the derating curve.
How do I estimate LED strip length for the LPH-18-24?
Use the power formula: maximum strip length equals 18W divided by your strip's rated watts per meter. Check your strip rated power per meter and confirm it is a 24V constant voltage strip.
How does the LPH-18-24 compare with the other LPH-18 models?
The specified LPH-18 versions are 12V at 18W and 1.5A, 24V at 18W and 0.75A, and 36V at 18W and 0.5A. This model keeps the same 18W power as the others but sits in the middle on output voltage and current.
