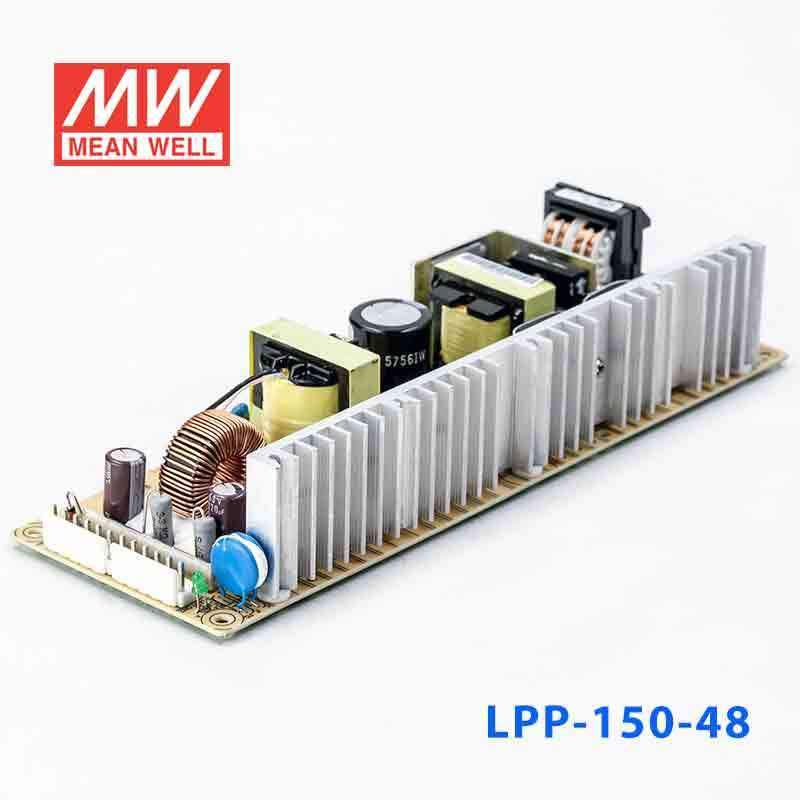

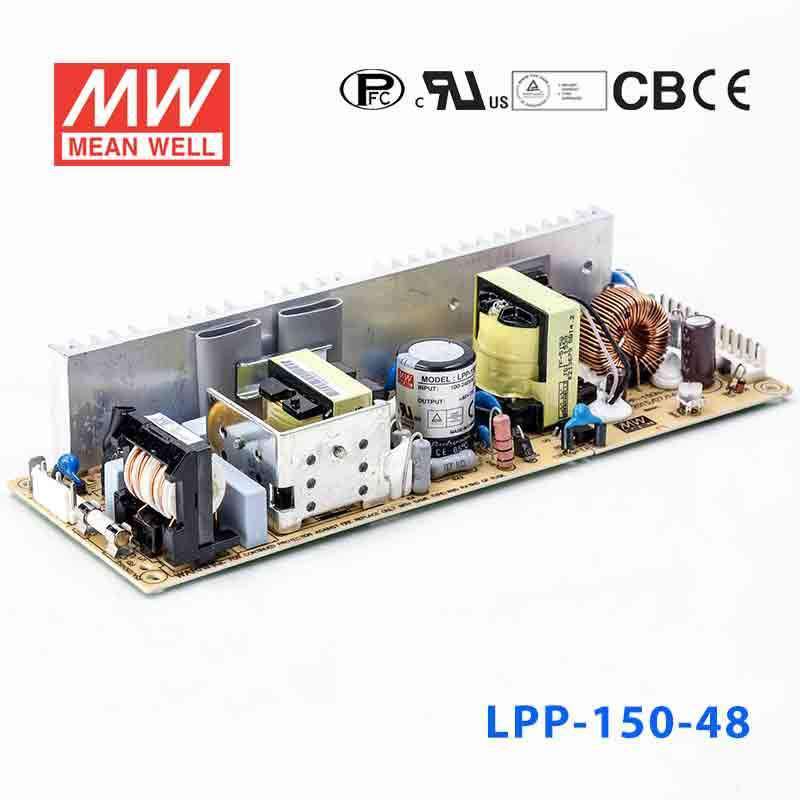

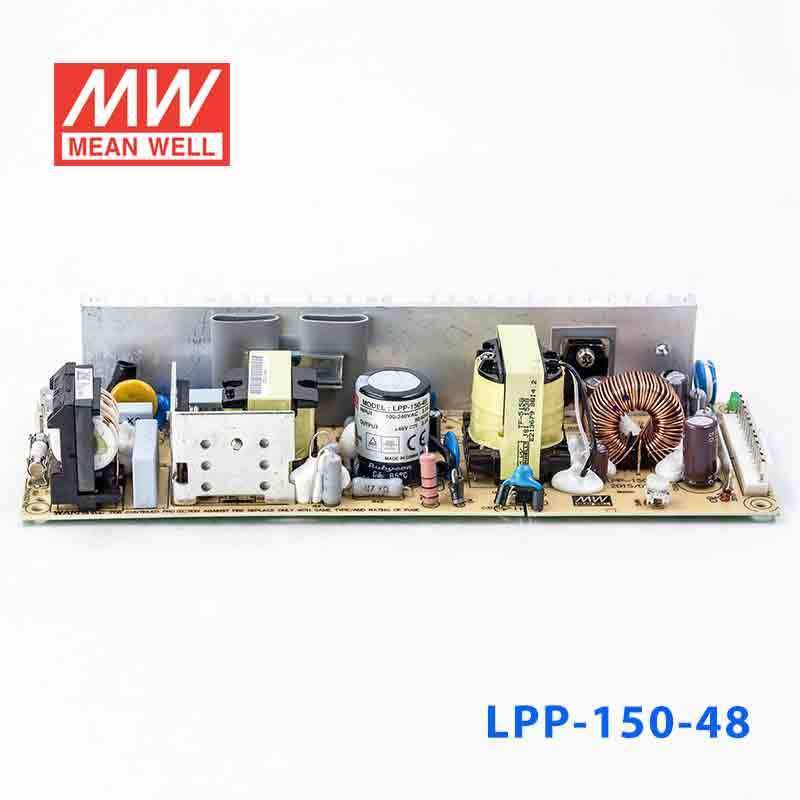

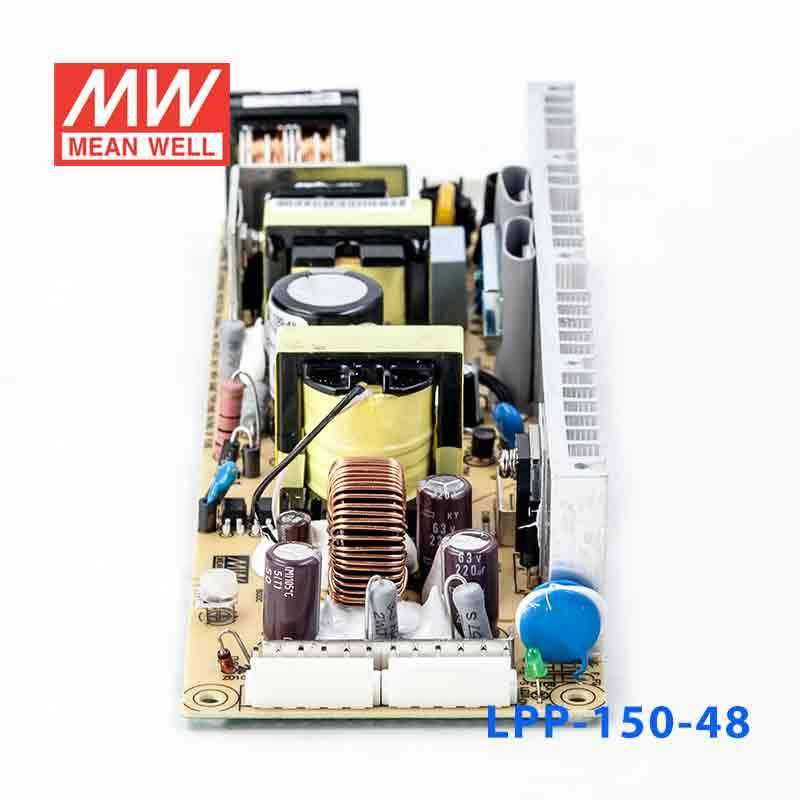

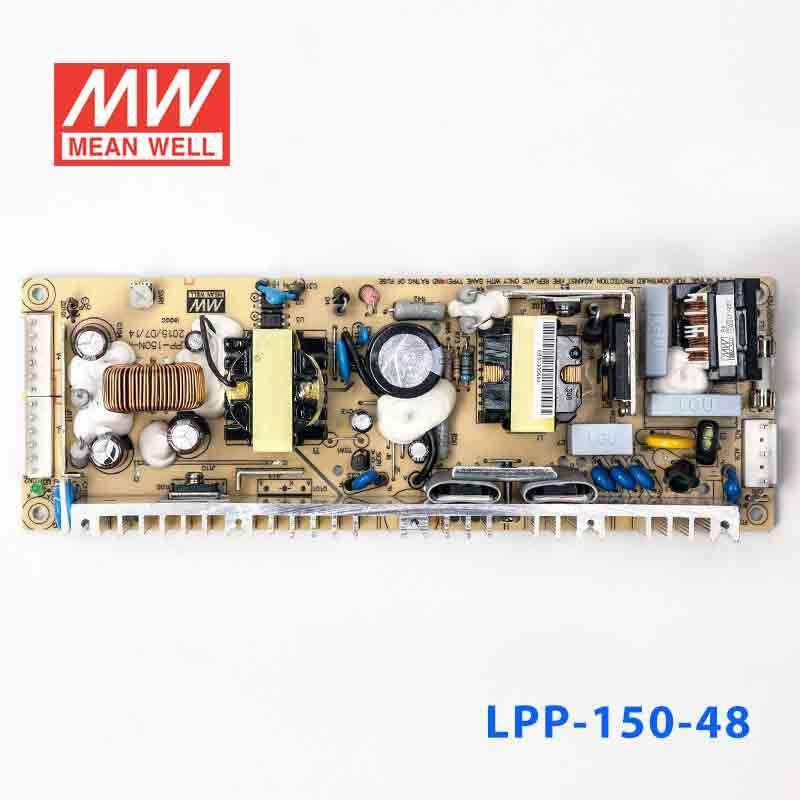

Mean Well LPP-150-48 Power Supply 153W 48V 3.2A

small and compactbuilt-in active PFC function

SKU:

lpp-150-48

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The lpp-150 is a 150W Mean Well power converter (input range: 85~264VAC).

Key Features

✓ Input voltage range: 85~264VAC
✓ DC output voltage adjustable ±10%
✓ 3KVAC reinforced I/O isolation
✓ Protections: Overload / Over voltage
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: UL60950-1, TUV EN60950-1
✓ 3 years warranty

Frequently Asked Questions

Can I use the Mean Well LPP-150-48 for a 48V industrial control or automation system?

It is intended for constant-voltage applications that need 48V output, up to 3.2A, and 153.6W. That makes it a fit for 48V industrial, embedded, or automation equipment when the load stays within those output limits.

Is the LPP-150-48 suitable for 48V embedded or IT equipment?

It can suit 48V embedded or IT equipment that needs a constant 48V supply and draws no more than 3.2A or 153.6W. The wide 85-264VAC input also helps when the equipment is used across standard AC power environments.

Can I use this 48V power supply for a higher-power 48V device than the LPP-100-48?

Yes, if the device needs more than the LPP-100-48 rating, this model provides more available output at 153.6W and 3.2A. It is still a constant-voltage 48V unit, so the load needs to match that output and stay within the rated current and power.

What is the difference between the LPP-150-48 and the other LPP-150 series models?

Within the listed LPP-150 range, the models are LPP-150-3.3 at 99W, 3.3V, 30A; LPP-150-5 at 150W, 5V, 30A; LPP-150-7.5 at 150W, 7.5V, 20A; LPP-150-12 at 150W, 12V, 12.5A; LPP-150-13.5 at 151.2W, 13.5V, 11.2A; LPP-150-15 at 150W, 15V, 10A; LPP-150-24 at 151.2W, 24V, 6.3A; LPP-150-27 at 151.2W, 27V, 5.6A; and LPP-150-48 at 153.6W, 48V, 3.2A. The series context also lists LPP-150-24-OB, but no output specs were provided for that model here.

Is the LPP-150-48 suitable for outdoor or harsh-environment use?

The provided specs list an operating temperature of -10°C to +60°C, but they do not include an IP rating. Based on that, the temperature range is stated, but outdoor or exposed-environment suitability cannot be confirmed from the provided data alone.
