Ltech LM-75-24-G1A2F 75W 24VDC CV 0-10V LED Driver 3.12A
Log in to see priceOverview
LM-75-24-G1A2F is the 24V ⎓ output model of this series: typical efficiency 92%.
Features
- Housing made from SAMSUNG/COVESTRO's V0 flame retardant PC materials.

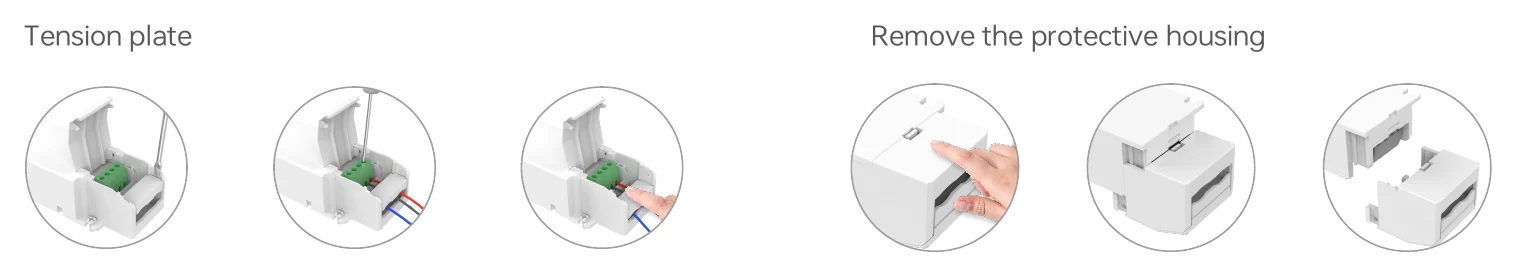

- Screwless wire-pressing flip cover design, with detachable end caps. The length of the shell can be adjusted as needed.

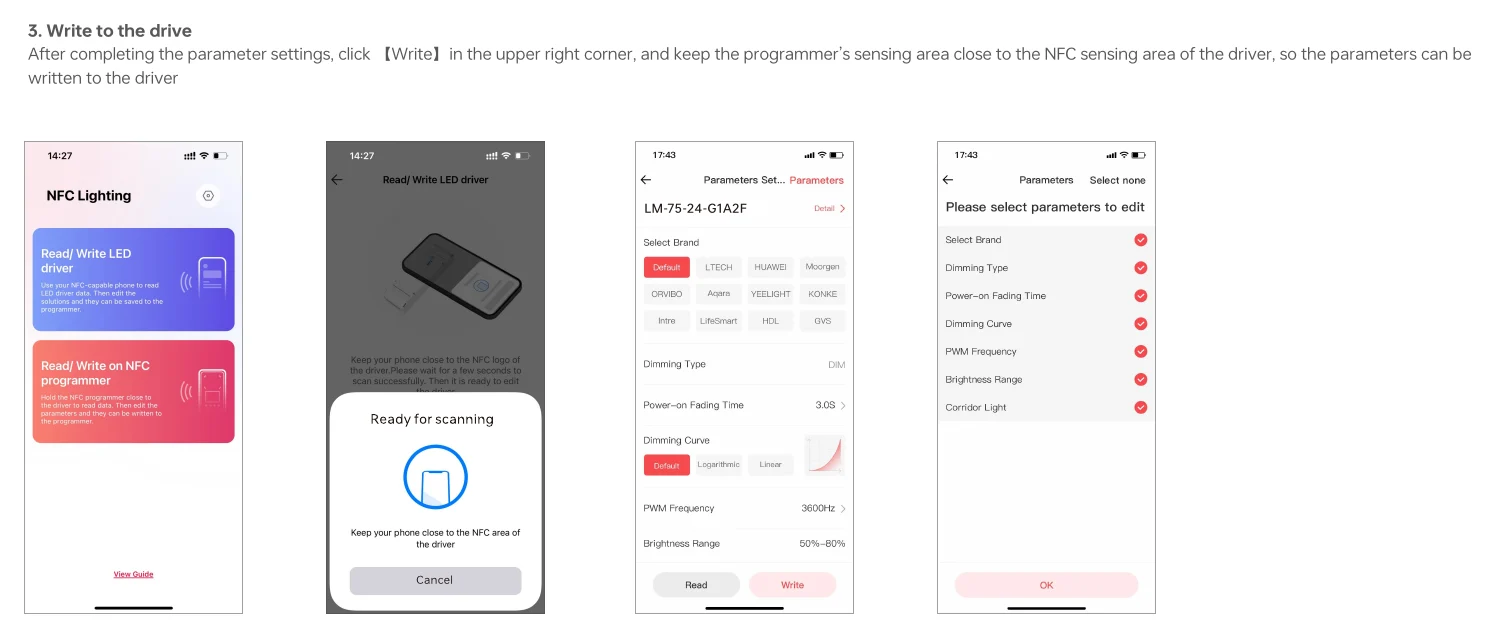

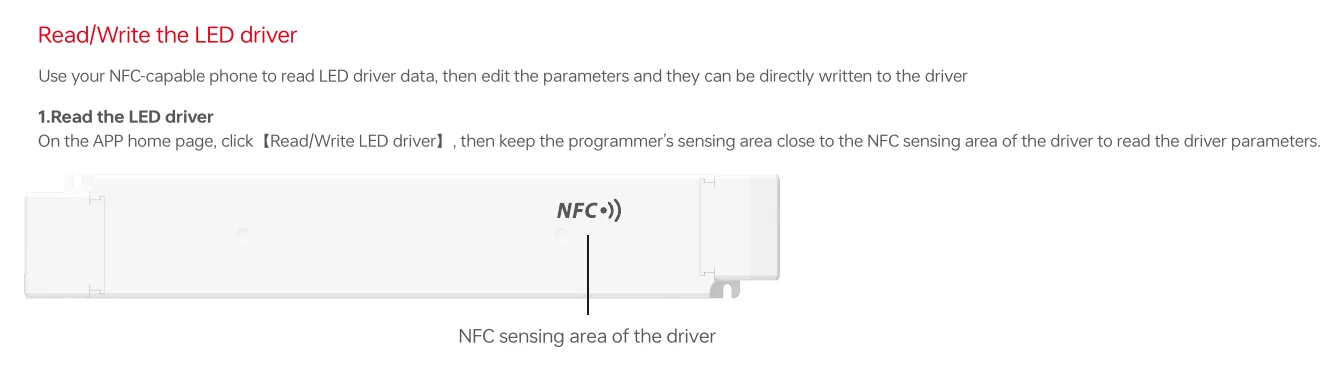

- Supports full-command NFC fast programming; the mobile APP can be used to change dimming modes, PWM, brightness range, etc., via NFC, realizing the data interaction function of the driver.

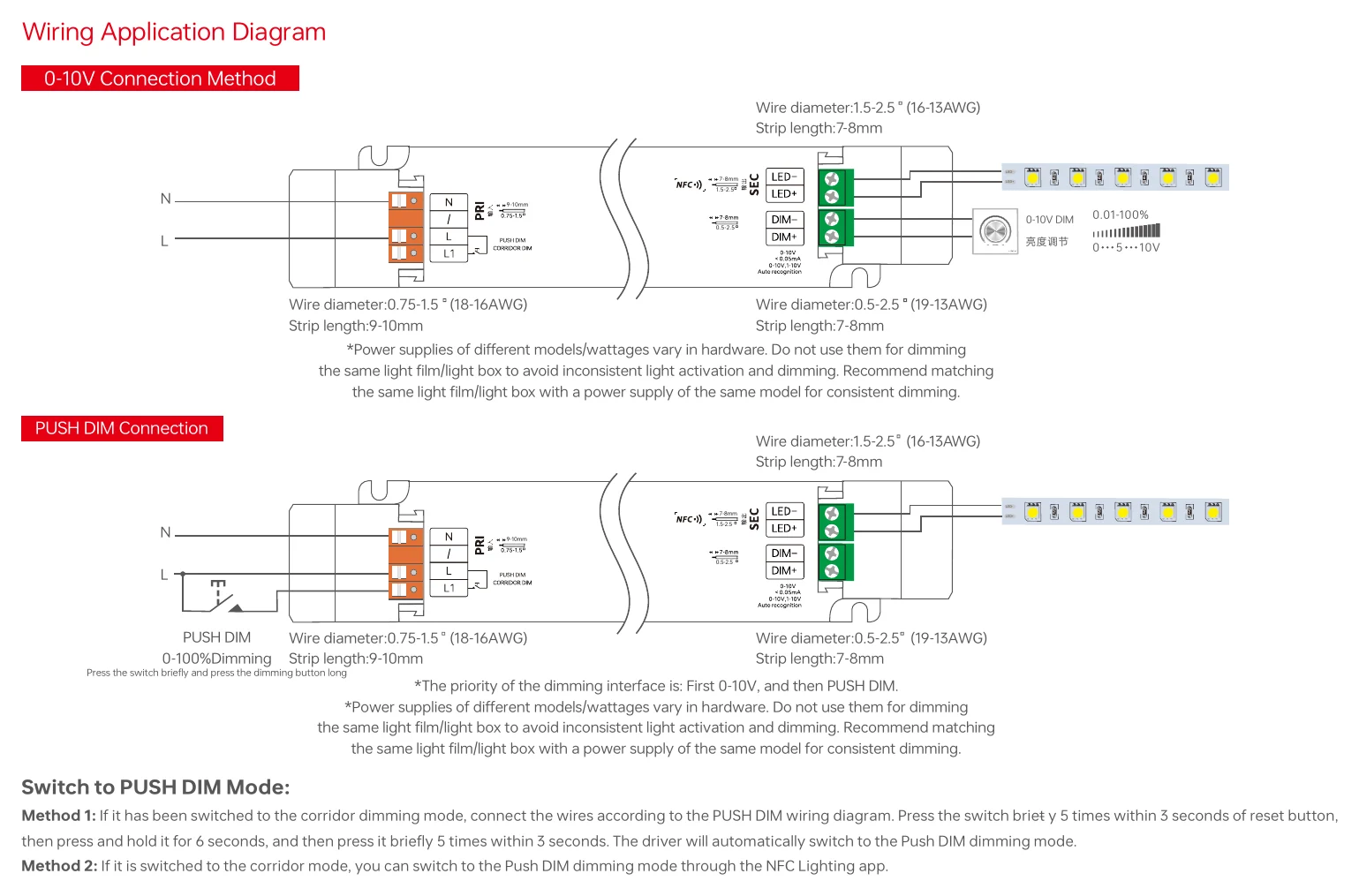

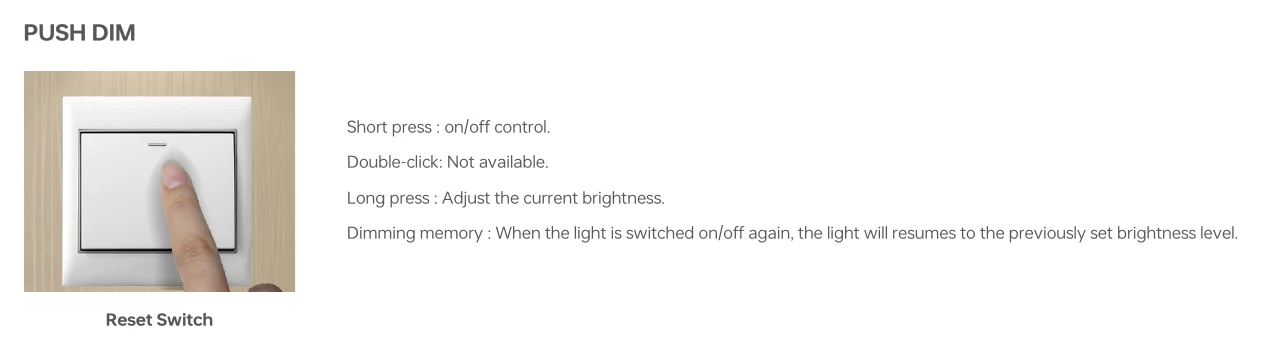

- Supports 0-10V, PUSH DIM, and corridor light dimming
- 0-10V port ultra-low power consumption <0.05mA.
- Dimming range: 0-100%, and the LED starts dimming from 0.01%.
- Soft-on and fade-in dimming function enhances your visual comfort.
- The dimming interface is equipped with photoelectric isolation, complies with the latest safety standards, and is more safe and reliable.
- Complies with the EU ERP Directive on energy efficiency, with no-load power consumption < 0.5W and network standby power consumption < 0.5W.
- Innovative thermal management technology for intelligent protection of power supply lifespan.
- Overheat, over voltage, overload, short circuit protection and automatic recovery.
- Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
- Normal service life can reach 100,000 hours.
- 5-year warranty (Rubycon capacitor).
Specifications
LM-75-24-G1A2FSpecifications from the official datasheetDownload datasheet PDF
Features
- Output Type
- Constant voltage
- Dimming Interface
- 0/1-10V, Push DIM
- Output Feature
- Isolation
- Protection Grade
- IP20
- Insulation Grade
- Class II (Suitable for class I/ II /III light fixtures)
OUTPUT
- Output Voltage
- 24V ⎓
- Output Voltage Range
- 24V ± 0.5V ⎓
- Output Current
- Max. 3.125A
- Output Power
- Max. 75W
- Output Power Range
- 0-75W
- Strobe Level
- High frequency exemption level
- Dimming Range
- 0-100%, down to 0.01%
- Overload Power Limitation
- ≥102%
- Ripple
- ≤300mV
- PWM Frequency
- 300-22000Hz
INPUT
- Input AC Voltage
- 220-240V~
- Input DC Voltage
- 220-240V ⎓ (EMI needs to be evaluated after the lamp is equipped.)
- Frequency
- 50/60Hz
- Input Current
- Max. 0.4A/230V~
- Power Factor
- PF>0.98/230V~ (at full load)
- THD
- THD<10%@ 230V~(at full load)
- Efficiency (Typ.)
- 92%

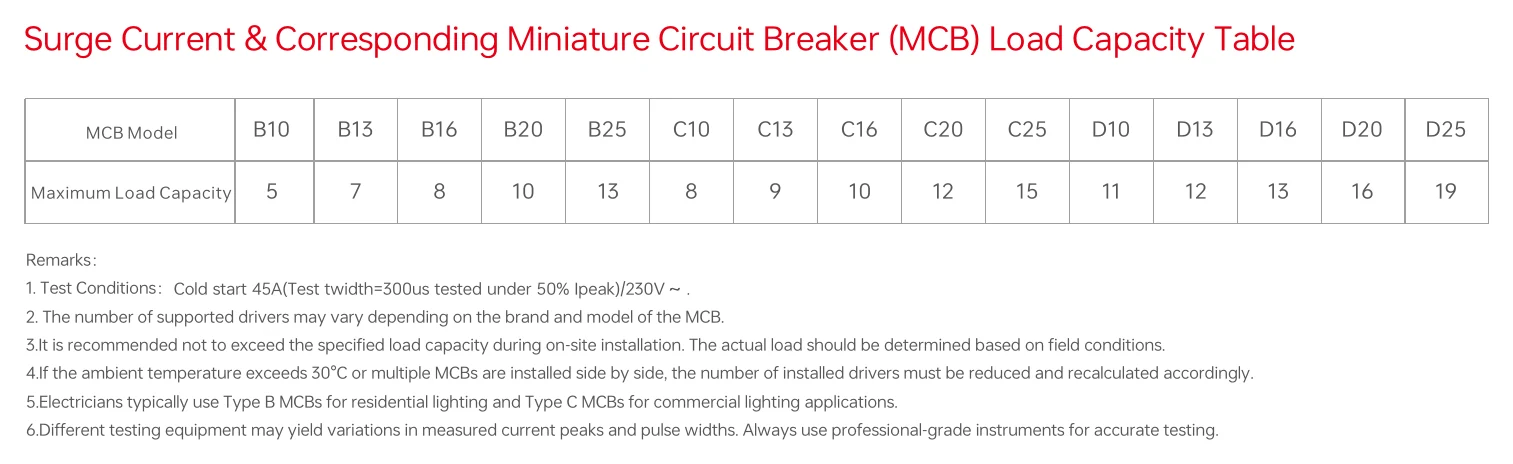

- Inrush Current
- 45A (twidth=300us, tested under 50% Ipeak) / 230Vac
- Anti Surge
- L-N: 2KV
- Leakage Current
- Max. 0.5mA
ENVIRONMENT
- Working Temperature
- ta: -20 ~ 50°C tc: 80°C
- Working Humidity
- 20 ~ 95%RH, non-condensing
- Storage Temperature/Humidity
- -40 ~ 80°C, 10~95%RH
- Temperature Coefficient
- ±0.03%/°C(-20℃-50°C)
- Vibration
- 10~500Hz, 2G 12mins/cycle, 72 min for X, Y and Z axes respectively
PROTECTION
- Overheat Protection
- Intelligently adjust or turn off the current output if the PCB temperature ≥110°C. When the PCB temperature <90°C, automatically recover normal output
- Overload Protection
- Automatically protect the device when the load exceeds 102% of the rated power. Automatically recover once load is reduced
- Short Circuit Protection
- Enter hiccup mode if short circuit occurs, and recover automatically
- Overvoltage Protection
- No-load voltage ≥ 28V; output turns off and can recover automatically.
- Withstand Voltage
- I/P-O/P:3750V~
- Insulation Resistance
- I/P-O/P: 100MΩ/500VDC/25°C/70%RH
SAFETY & EMC
- Safety Standards
-
Parameter Standard Test Level CCC China GB19510.1，GB19510.14，GB19510.213 TUV Germany EN61347-1，EN61347-2-13，EN62493 CB CB Member States IEC61347-1，IEC61347-2-13 CE European Union EN61347-1，EN61347-2-13，EN62384 EAC Russia IEC61347-1，IEC61347-2-13 RCM Australia AS 61347-1，AS 61347-2-13 ENEC Europe EN61347-1，EN61347-2-13，EN62384 - EMC Emission
-
Parameter Standard Test Level CCC China GB/T17743，GB17625.1 CE European Union EN55015，EN61000-3-2，EN61000-3-3，EN61547 EAC Russia IEC62493，IEC61547，EH55015 RCM Australia EN55015，EN61000-3-2，EN61000-3-3，EN61547 - EMC Immunity
- EN61000-4-2,3,4,5,6,8,11,EN61547
ErP
- Power Consumption Networked standby
- < 0.5W (After switching on/off via command)
- Power Consumption No-load power consumption
- < 0.5W(When the lamp is not connected)

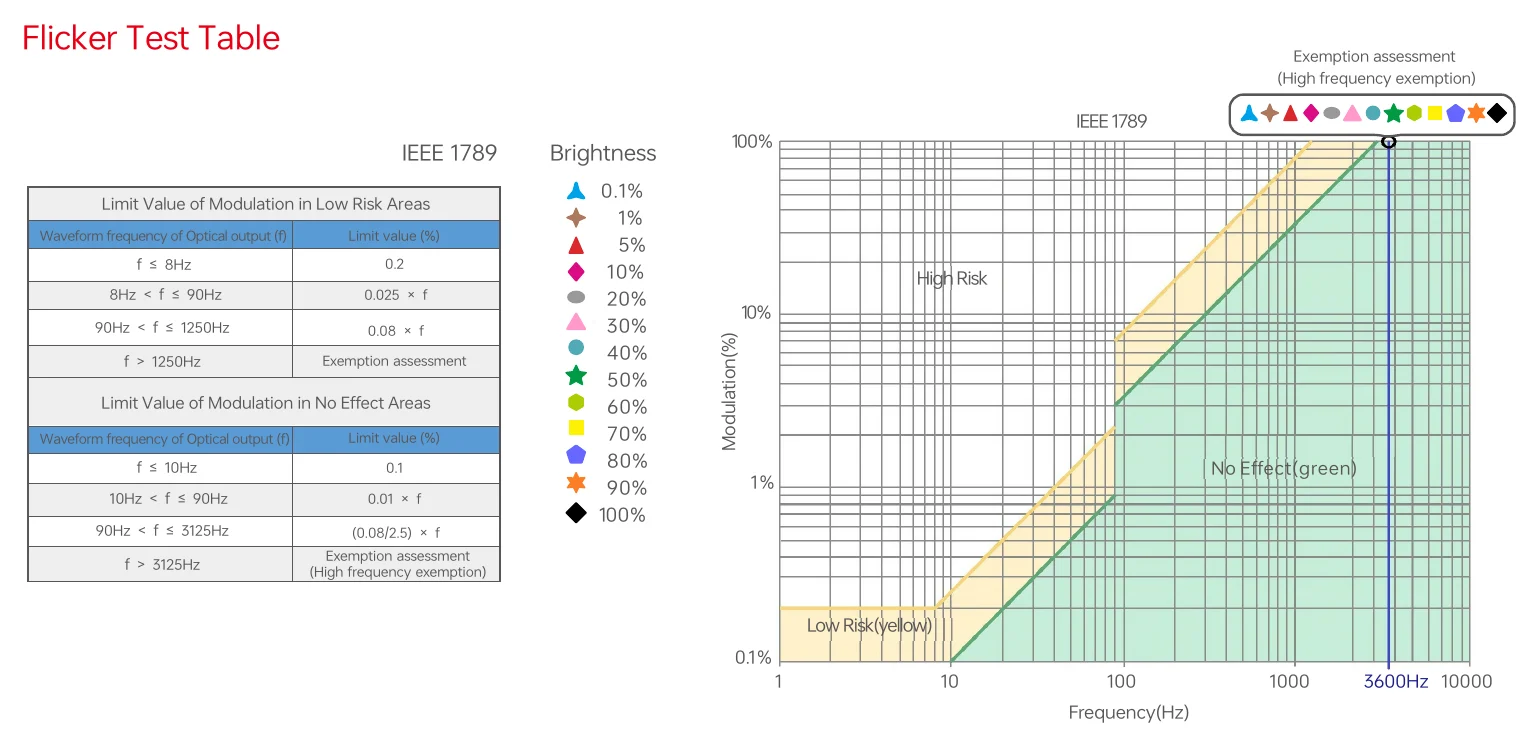

- Flicker/Stroboscopic Effect IEEE1789
- Meet IEEE 1789 standard/High frequency exemption level
- Flicker/Stroboscopic Effect CIE SVM
- PstLM≤1.0，SVM≤0.4
- DF Phase factor
- DF≥0.9
OTHERS
- Weight(N.W.)
- 290g±10g

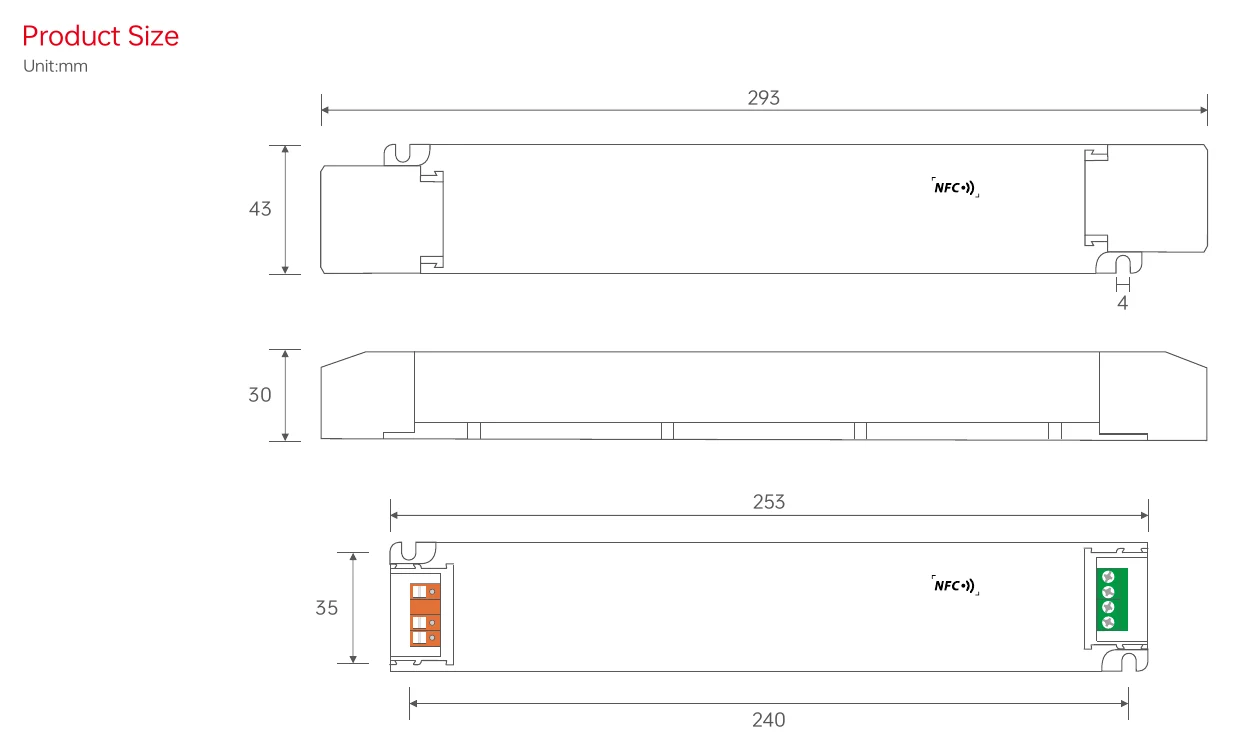

- Dimensions
- 293×42.5×30mm(L×W×H)
Certifications & ratings
- Marked features
- NFC, CORRIDOR DIM
Test conditions and notes1
- This driver is suitable for connecting LED lighting fixtures with resistor current limiting (such as LED light strips). If it is connected to a fixture with built-in constant current IC for current limiting, an instantaneous inrush current dozens of times higher will be generated, causing the driver to activate overload protection (hiccup and strobing). When placing an order, such fixtures with built-in constant current IC for current limiting (e.g., MR16 bulbs, underground lights, wall washers, constant current hard light strips, etc.) need to be specified to facilitate the burning of a special program.

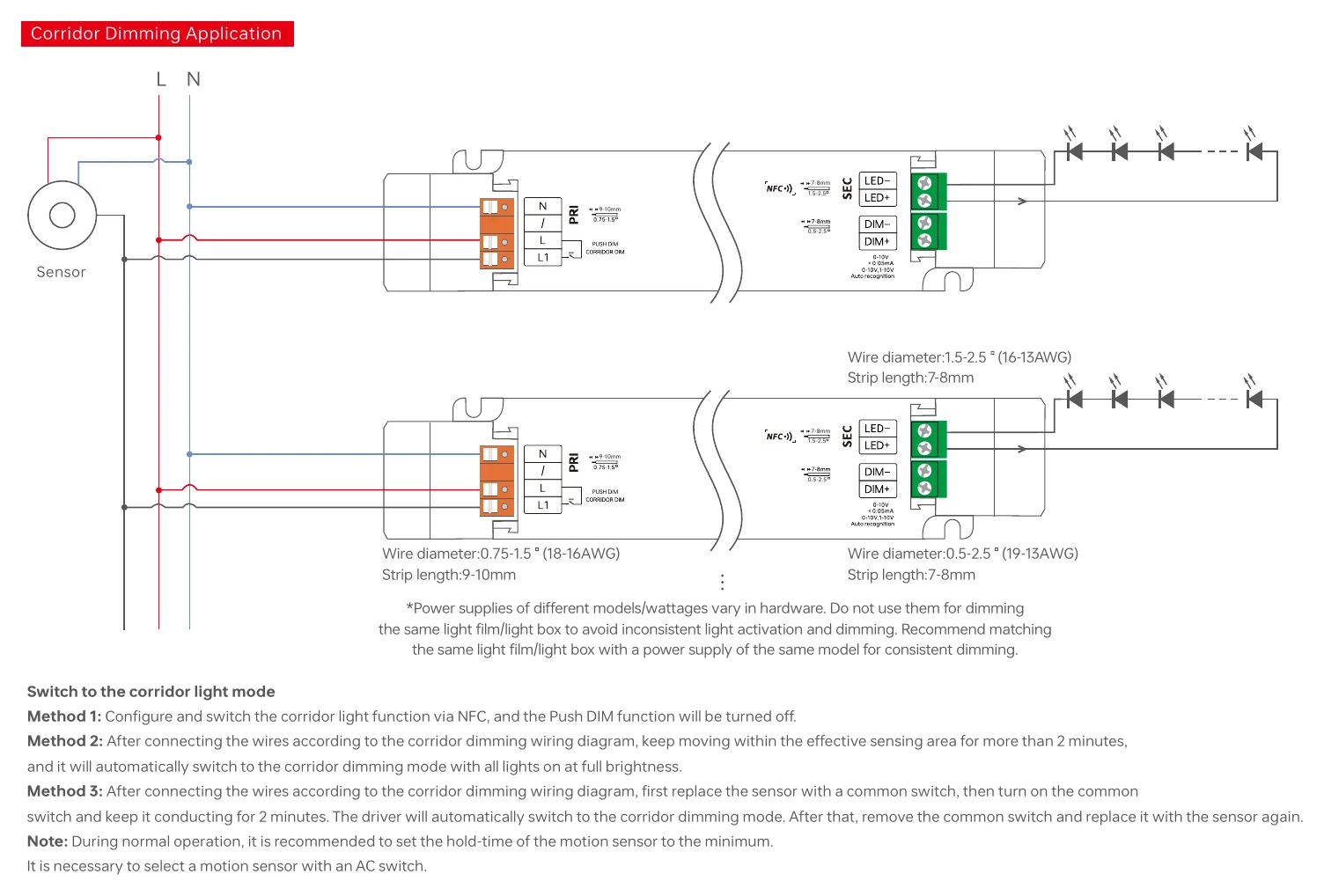

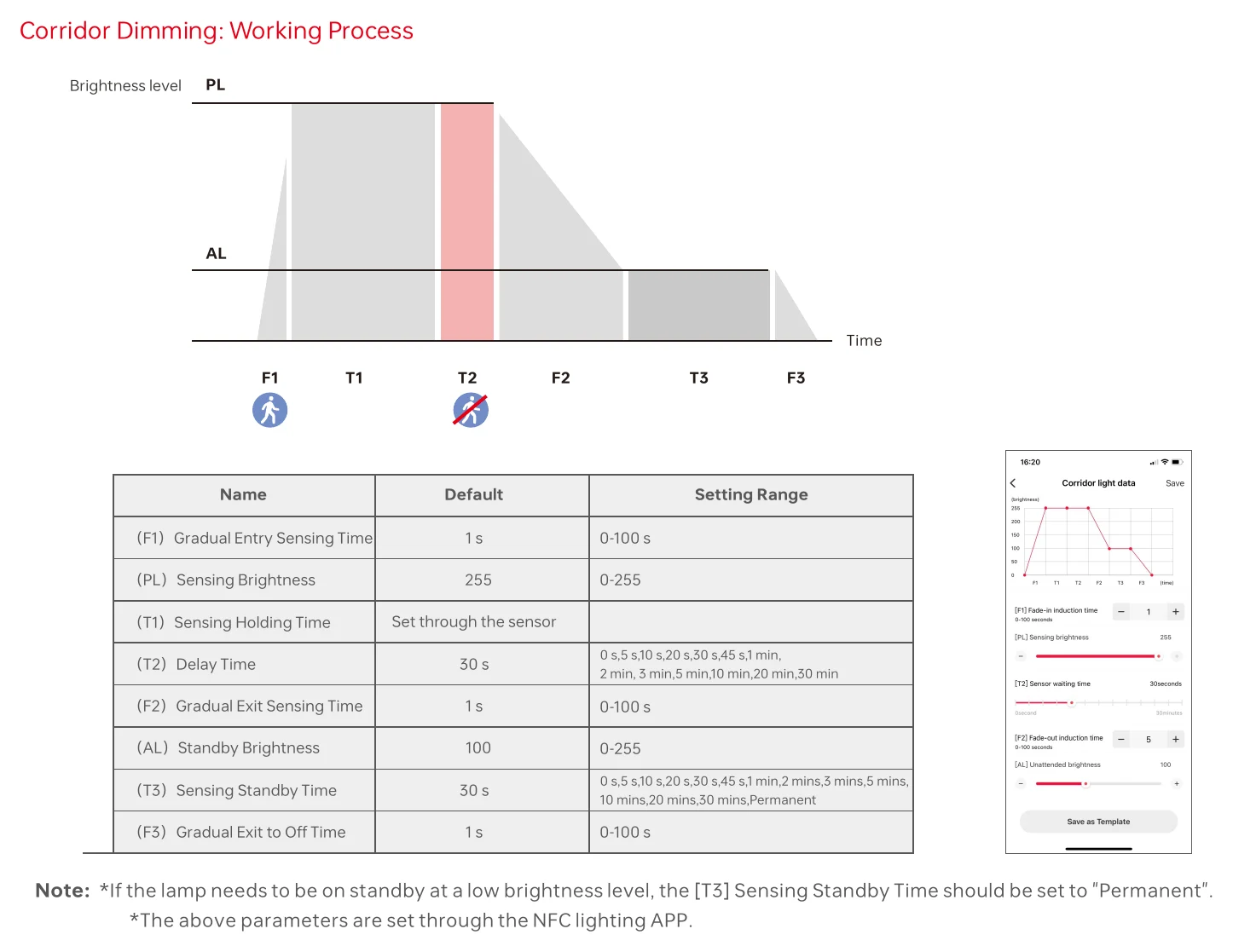

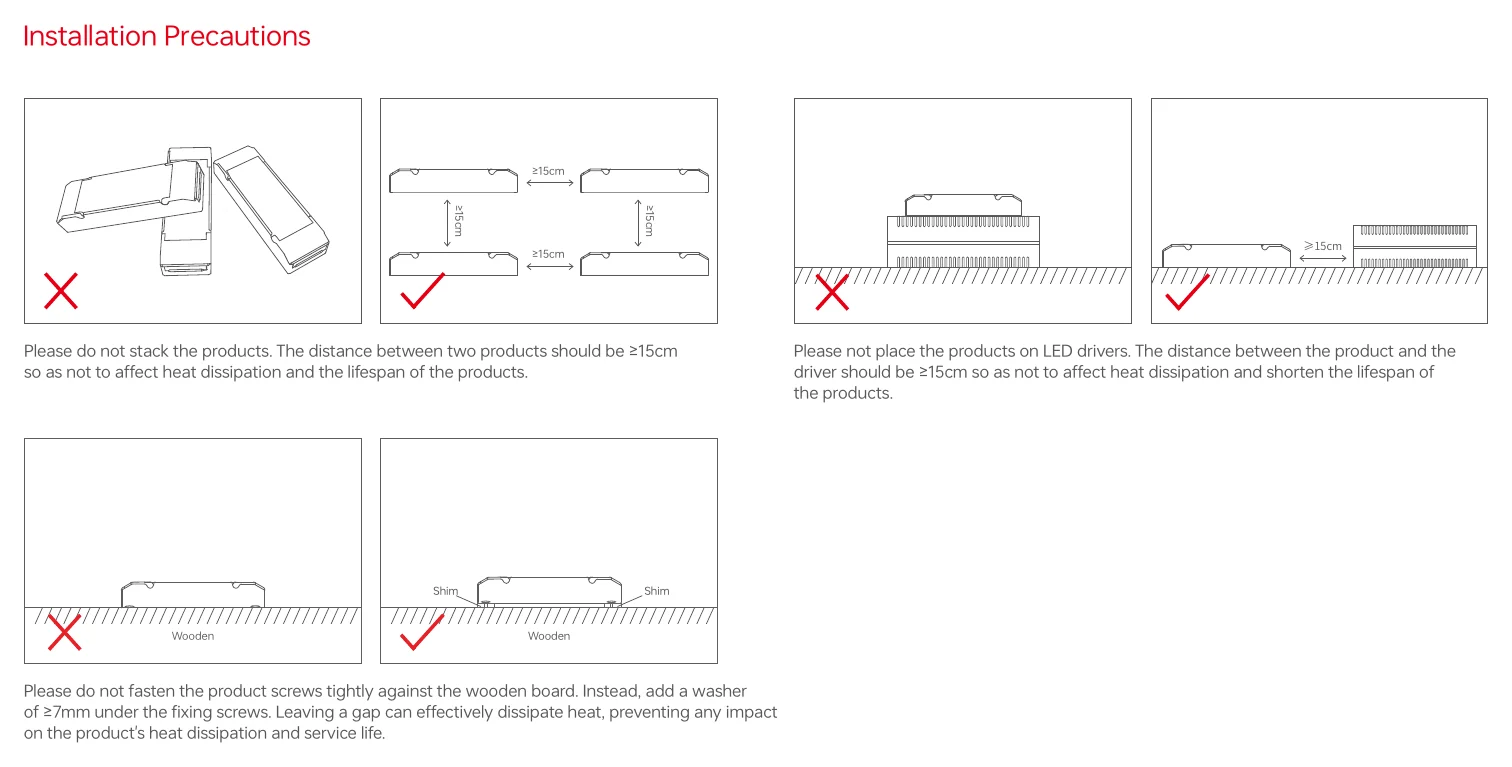

Technical drawings

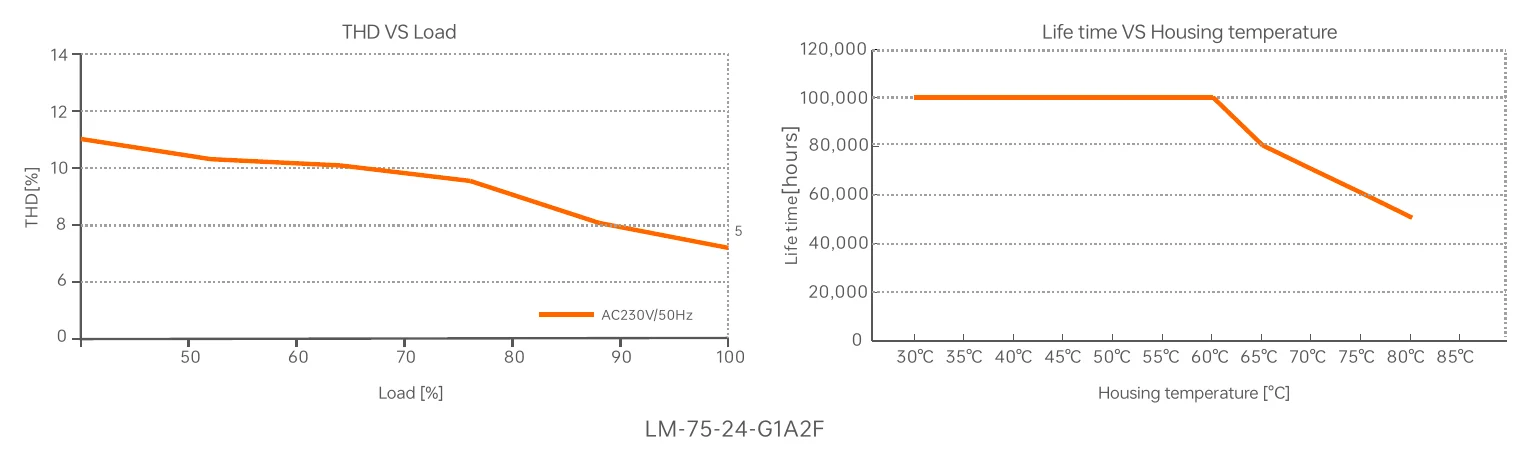

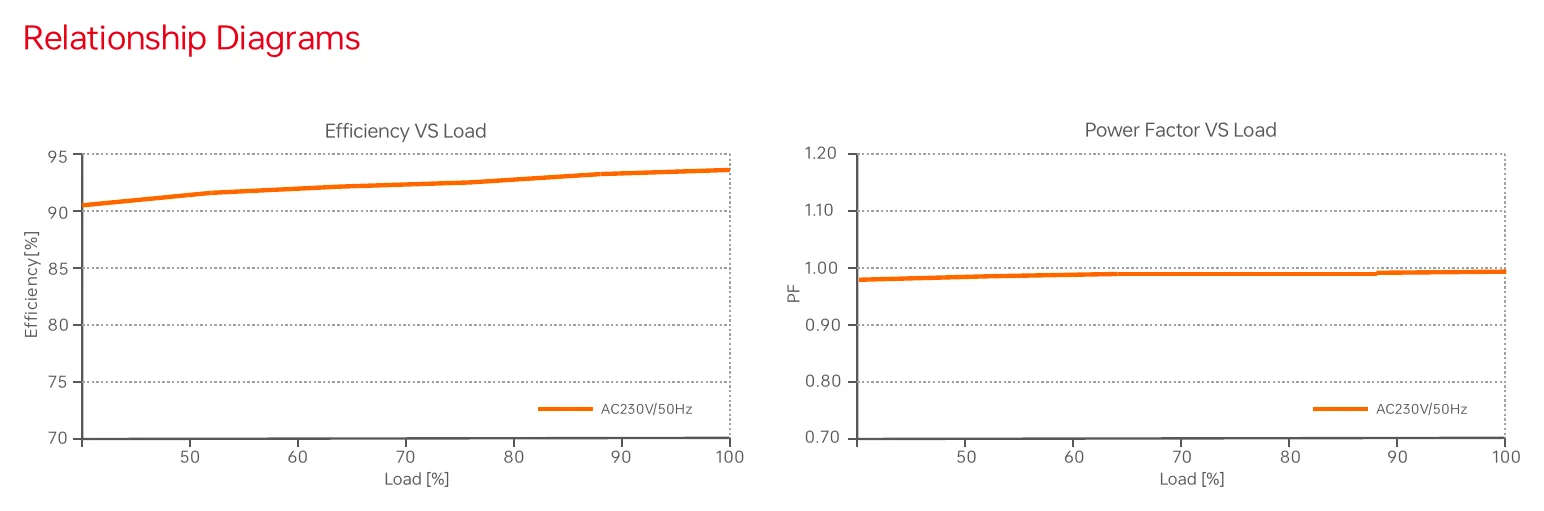

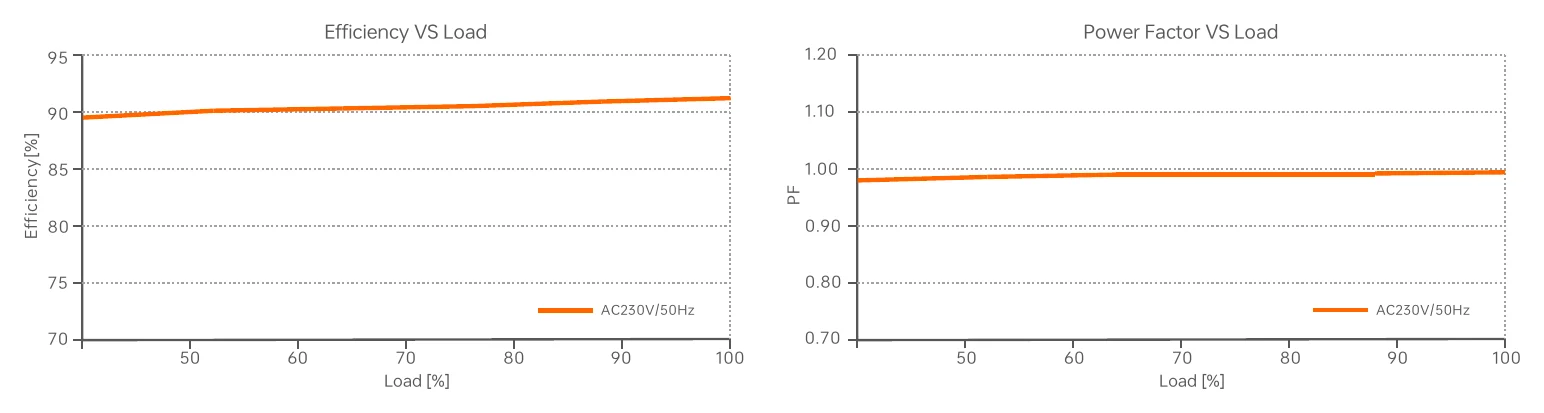

![LM-75-24-G1A2F Efficiency[%]](https://wellforces-akeneo-pim.s3.ap-southeast-2.amazonaws.com/catalog/49/1c/491cb55385d6808b6b849b53c7654de0647560ee72a0fd04d21a7d8c69e447de.webp)

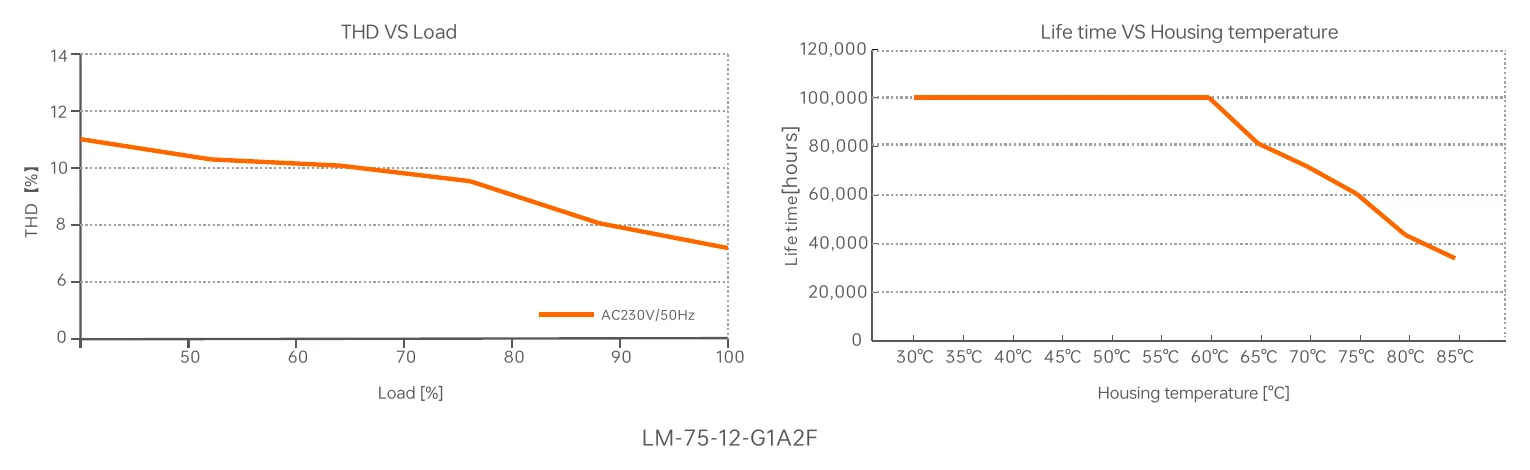

![LM-75-24-G1A2F [hours]Lifetime](https://wellforces-akeneo-pim.s3.ap-southeast-2.amazonaws.com/catalog/23/09/230928da981331bc531c45945efab7b020adb0b274e7b70a0c743fa3cb75b73d.webp)
Downloads
Datasheet1
FAQ
What is this LED driver used for?
It is a constant voltage LED driver suitable for Class I, II, and III light fixtures, including those with NFC and Corridor Dim features.
What are the output voltage and current ratings?
The output is 24V DC with a maximum current of 3.125A and a maximum power of 75W.
What is the input voltage range?
The input range is 220-240V AC or 220-240V DC at 50/60Hz.
How does the dimming work?
It supports 0-10V and Push DIM interfaces, allowing dimming from 0-100% down to 0.01%.
What is the IP rating and operating temperature?
The unit has an IP20 rating for indoor use and operates in ambient temperatures from -20°C to 50°C.
What protections are included?
It includes overload, short circuit, overvoltage, and overheat protection with automatic recovery.
What are the physical dimensions?
The dimensions are 293 x 42.5 x 30 mm (L x W x H) and it weighs approximately 290g.
