Ltech SE-10-100-500-W1A 10W 9-42VDC CC 0-10V LED Driver 0.1-0.5A

0-10V9-42VDC10W

SKU SE-10-100-500-W1A

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

SE-10-100-500-W1A is the 9-42Vdc output model of this series: typical efficiency 80%(at full load).

Features

Housing made from SAMSUNG/COVESTRO's V0 flame retardant PC materials.
Ultra small, thin and lightweight, screwless end cap.
Parameters such as output current, dimming method and other parameters via the mobile phone APP through NFC.
Current step value as low as 1mA by NFC setting, with higher compatibility and more precision.
0-10V port ultra-low power consumption <0.05mA.
T-PWM ultra-deep dimming technology, dimming depth can reach 0.01%.
Soft-on and fade-in dimming function enhances your visual comfort.
0-100% full dimming without visible flicker, high frequency exemption assessment level.
EU ERP no-load power consumption, network standby power consumption < 0.5W.
No-load 0V output to prevent damage to LED lamps due to poor contact.
Overheat, over voltage, overload, short circuit protection and automatic recovery.
Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
Normal service life can reach 100,000 hours.
5-year warranty (Rubycon capacitor).

Specifications

SE-10-100-500-W1ASpecifications from the official datasheetDownload datasheet PDF

Features

Output Type: Constant current
Dimming Interface: 0-10V(1-10V,10V PWM,RX)
Output Feature: Isolation
Protection Grade: IP20
Insulation Grade: Class II (Suitable for class I/ II /III light fixtures)

OUTPUT

Output Voltage: 9-42Vdc
Maximum output voltage: ≤50Vdc
Output Current Range: 100-500mA
Output Power Range: 0.9W-10W
Dimming Range: 0~100%, down to 0.01%
LF Current Ripple: ＜5%(Maximum current for non dimming state)
Current Accuracy: ±5%
PWM Frequency: ≤3600Hz

INPUT

DC Voltage Range: 100-240Vdc
AC Voltage Range: 100-240Vac
Rated Voltage: 115Vac/230Vac
Frequency: 50/60Hz
Input Current: ≤0.14A/115Vac(at full load) ,≤0.07A/230Vac(at full load)
Power Factor: PF≥0.95/115Vac(at full load) ,PF≥0.9/230Vac(at full load)
THD: THD≤15%/230Vac(at full load)
Efficiency (Typ.): 80%(at full load)
Inrush Current: 15A (230Vac, cold start, twidth=102us, tested under 50% Ipeak)
Anti Surge: L-N:2KV
Leakage Current: Max.0.24mA

ENVIRONMENT

Working Temperature: ta: -20°C ~ 50°C tc: 80°C
Working Humidity: 20 ~ 95%RH, non-condensing
Storage Temperature/Humidity: -40 ~ 80°C/10~95%RH
Temperature Coefficient: ±0.03%/°C(-20°C~45°C)
Vibration: 10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively

PROTECTION

Overload Protection: Automatically protect the device when the load exceeds 102% of the rated power. Automatically recover once load is reduced
Overheat Protection: Intelligently adjust or turn off the current output if the PCB temperature ≥110°C. When the PCB temperature <90°C, automatically recover normal output
Overvoltage Protection: Automatically protect the device when voltage exceeds the no-load voltage. It can be recovered automatically
Short Circuit Protection: Enter hiccup mode if short circuit occurs, and recover automatically

SAFETY & EMC

Withstand Voltage: I/P-O/P:3750Vac
Insulation Resistance: I/P-O/P: 100MΩ/500VDC/25°C/70%RH
Safety Standards: Parameter Standard Test Level

CCC China GB19510.1，GB19510.14，GB19510.213
TUV Germany EN61347-1，EN61347-2-13，EN62493
CB CB Member States IEC61347-1，IEC61347-2-13
CE European Union EN61347-1，EN61347-2-13，EN62384
KC Korea KC61347-1，KC61347-2-13
EAC Russia IEC61347-1，IEC61347-2-13
RCM Australia AS61347-1，AS61347-2-13
ENEC Europe EN61347-1，EN61347-2-13，EN62384
UKCA Britain BSEN61347-1，BSEN61347-2-13，BSEN62493
BIS India IS15885(PART2/SEC13)
EMC Emission: Parameter Standard Test Level

CCC China GB/T17743，GB17625.1
CE European Union EN55015，EN61000-3-2，EN61000-3-3，EN61547
KC Korea KN15，KN61547
EAC Russia IEC62493，IEC61547，EH55015
RCM Australia EN55015，EN61000-3-2，EN61000-3-3，EN61547
UKCA Britain BSENIEC55015，BSENIEC61000-3-2，BSEN61000-3-3，BSEN61547
EMC Immunity: EN61000-4-2,3,4,5,6,8,11,EN61547

Parameter	Standard	Test Level
CCC	China	GB19510.1，GB19510.14，GB19510.213
TUV	Germany	EN61347-1，EN61347-2-13，EN62493
CB	CB Member States	IEC61347-1，IEC61347-2-13
CE	European Union	EN61347-1，EN61347-2-13，EN62384
KC	Korea	KC61347-1，KC61347-2-13
EAC	Russia	IEC61347-1，IEC61347-2-13
RCM	Australia	AS61347-1，AS61347-2-13
ENEC	Europe	EN61347-1，EN61347-2-13，EN62384
UKCA	Britain	BSEN61347-1，BSEN61347-2-13，BSEN62493
BIS	India	IS15885(PART2/SEC13)

Parameter	Standard	Test Level
CCC	China	GB/T17743，GB17625.1
CE	European Union	EN55015，EN61000-3-2，EN61000-3-3，EN61547
KC	Korea	KN15，KN61547
EAC	Russia	IEC62493，IEC61547，EH55015
RCM	Australia	EN55015，EN61000-3-2，EN61000-3-3，EN61547
UKCA	Britain	BSENIEC55015，BSENIEC61000-3-2，BSEN61000-3-3，BSEN61547

ErP

Power Consumption: Networked standby ＜0.5W (After shutdown by command)
Power Consumption: No-load power consumption ＜0.5W(When the lamp is not connected)
Flicker/Stroboscopic Effect: Parameter Standard

IEEE1789 Meet IEEE 1789 standard/High frequency exemption level
Flicker/Stroboscopic Effect: Parameter Standard

CIE SVM PstLM≤1.0，SVM≤0.4
DF: Parameter Standard

Phase factor DF≥0.9

Parameter	Standard
IEEE1789	Meet IEEE 1789 standard/High frequency exemption level

Parameter	Standard
CIE SVM	PstLM≤1.0，SVM≤0.4

Parameter	Standard
Phase factor	DF≥0.9

OTHERS

Weight(N.W.): 80g±10g
Dimensions: 135×30×20mm(L×W×H)

Certifications & ratings

T-PWM: Dimming Technology
Flicker Free: IEEE 1789

Technical drawings

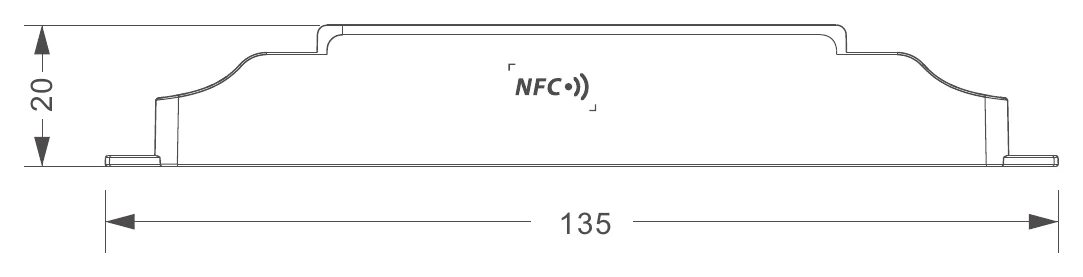

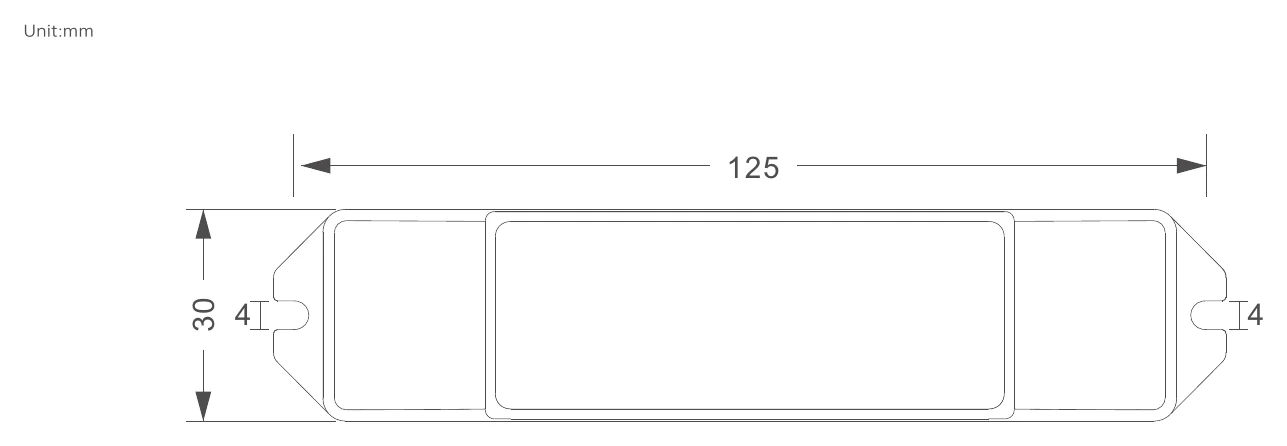

SE-10-100-500-W1A Dimensions (mm) — Dimensions (mm)

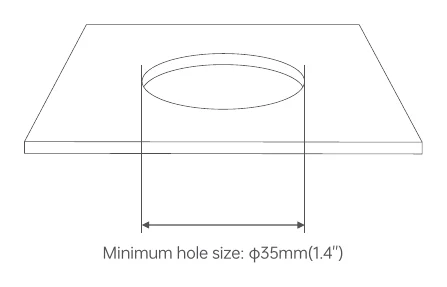

SE-10-100-500-W1A Minimum hole size: φ35mm(1.4'') — Minimum hole size: φ35mm(1.4'')

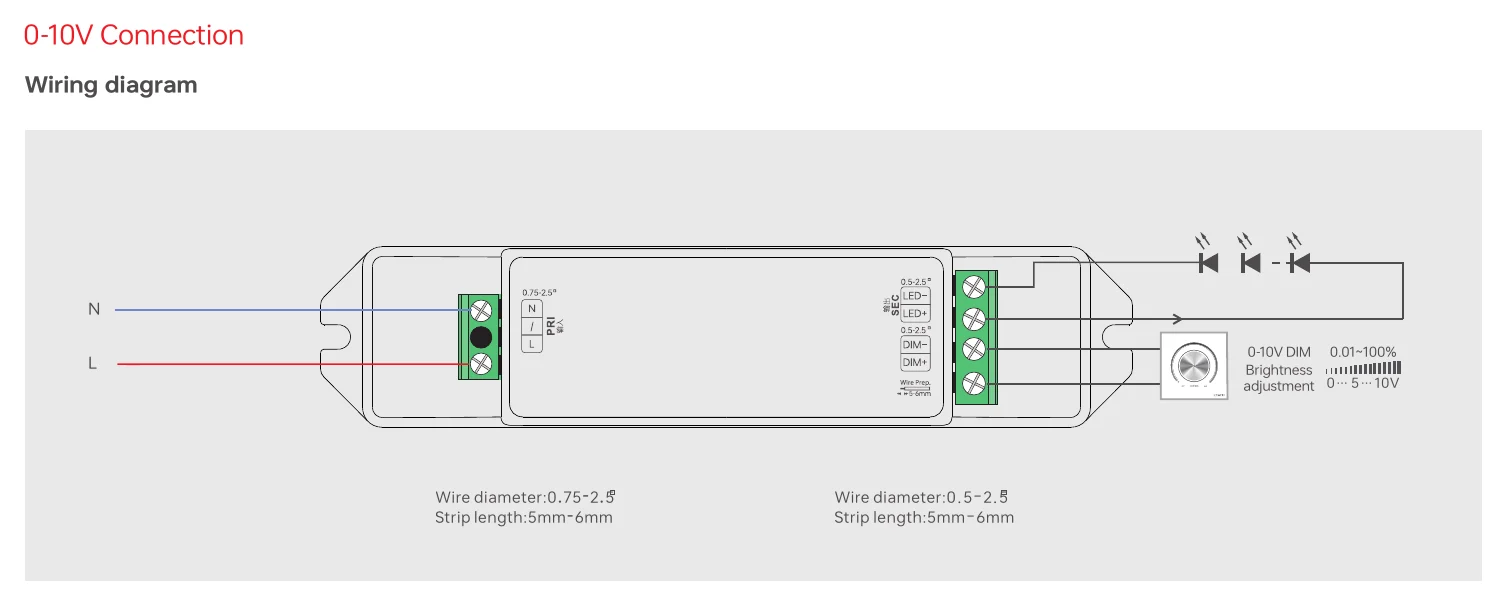

SE-10-100-500-W1A 0-10V Connection — 0-10V Connection

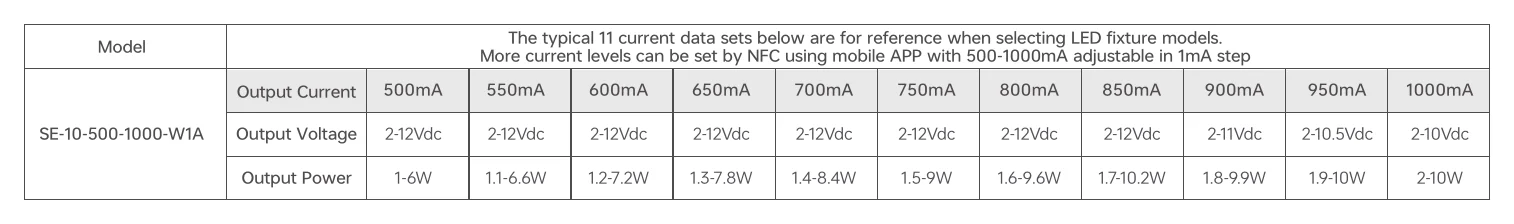

SE-10-100-500-W1A The typical 11 current data sets below are for reference… — The typical 11 current data sets below are for reference…

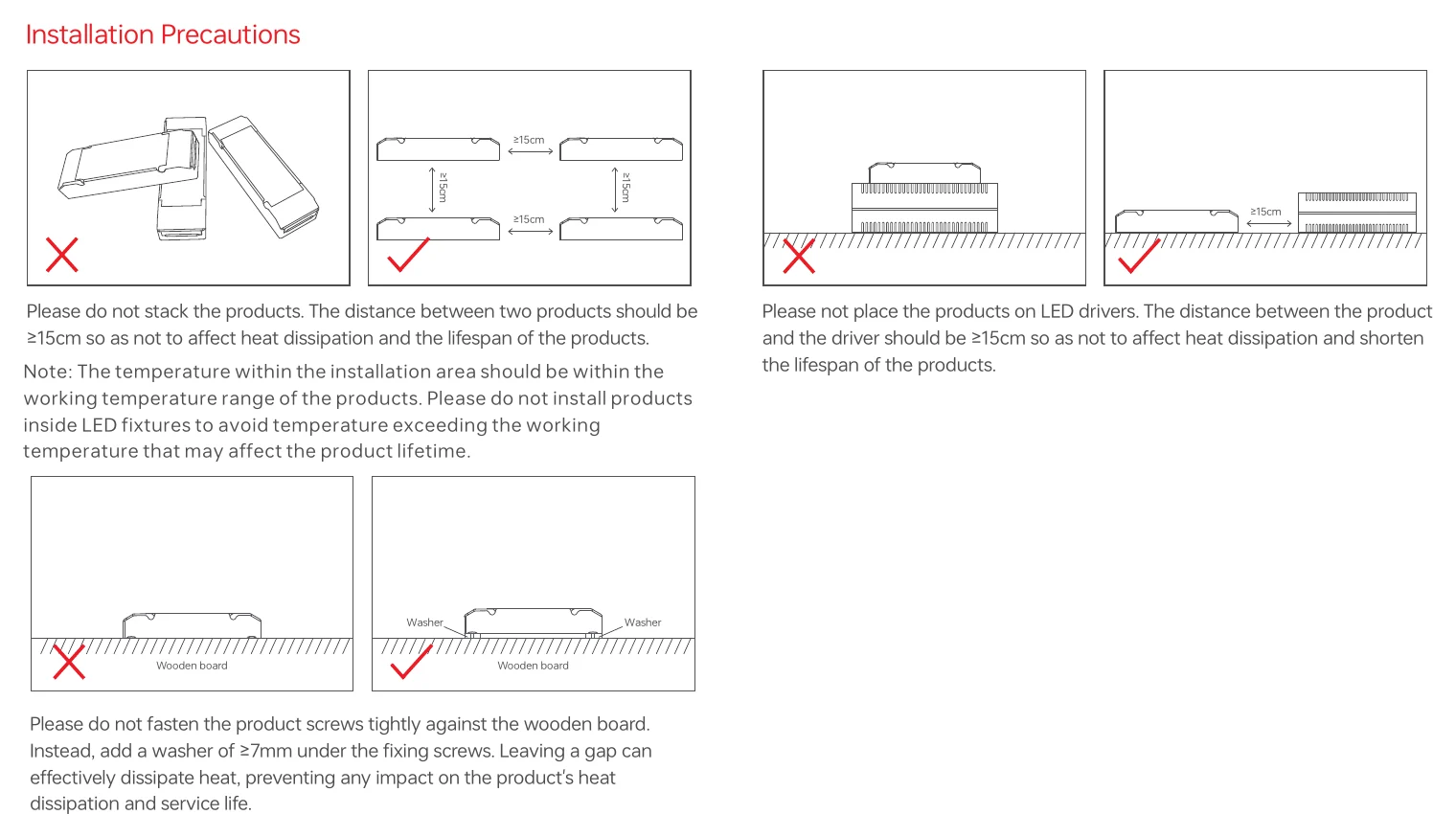

SE-10-100-500-W1A Installation Precautions — Installation Precautions

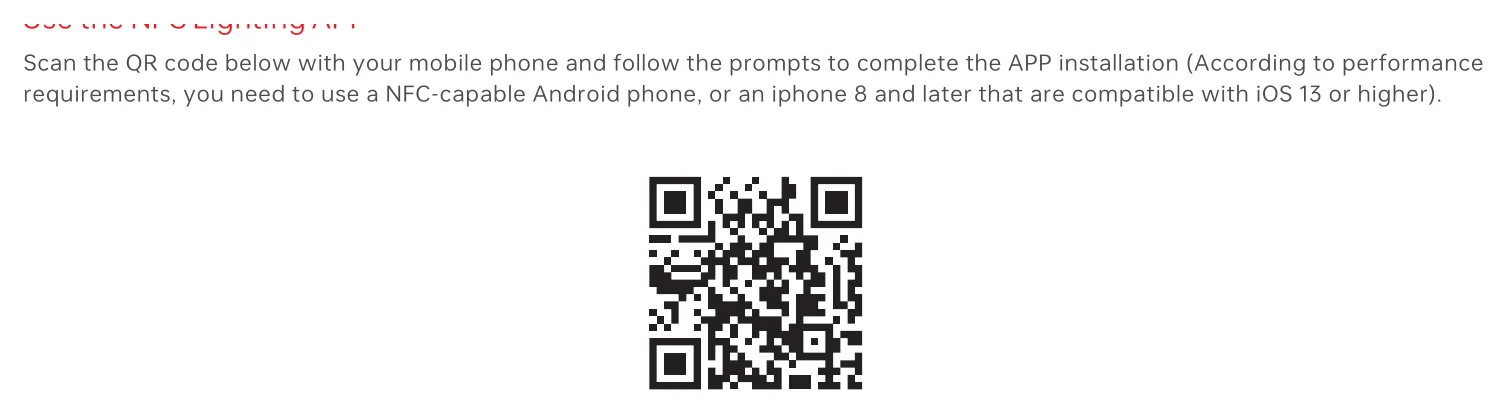

SE-10-100-500-W1A Scan the QR code below with your mobile phone and follow… — Scan the QR code below with your mobile phone and follow…

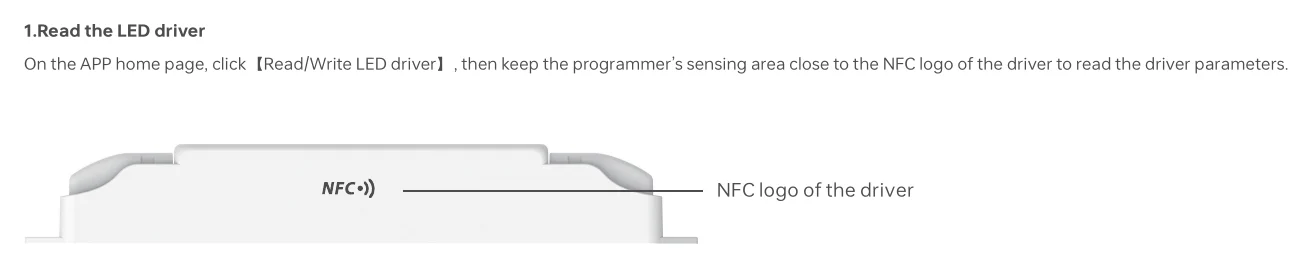

SE-10-100-500-W1A 1.Read the LED driver — 1.Read the LED driver

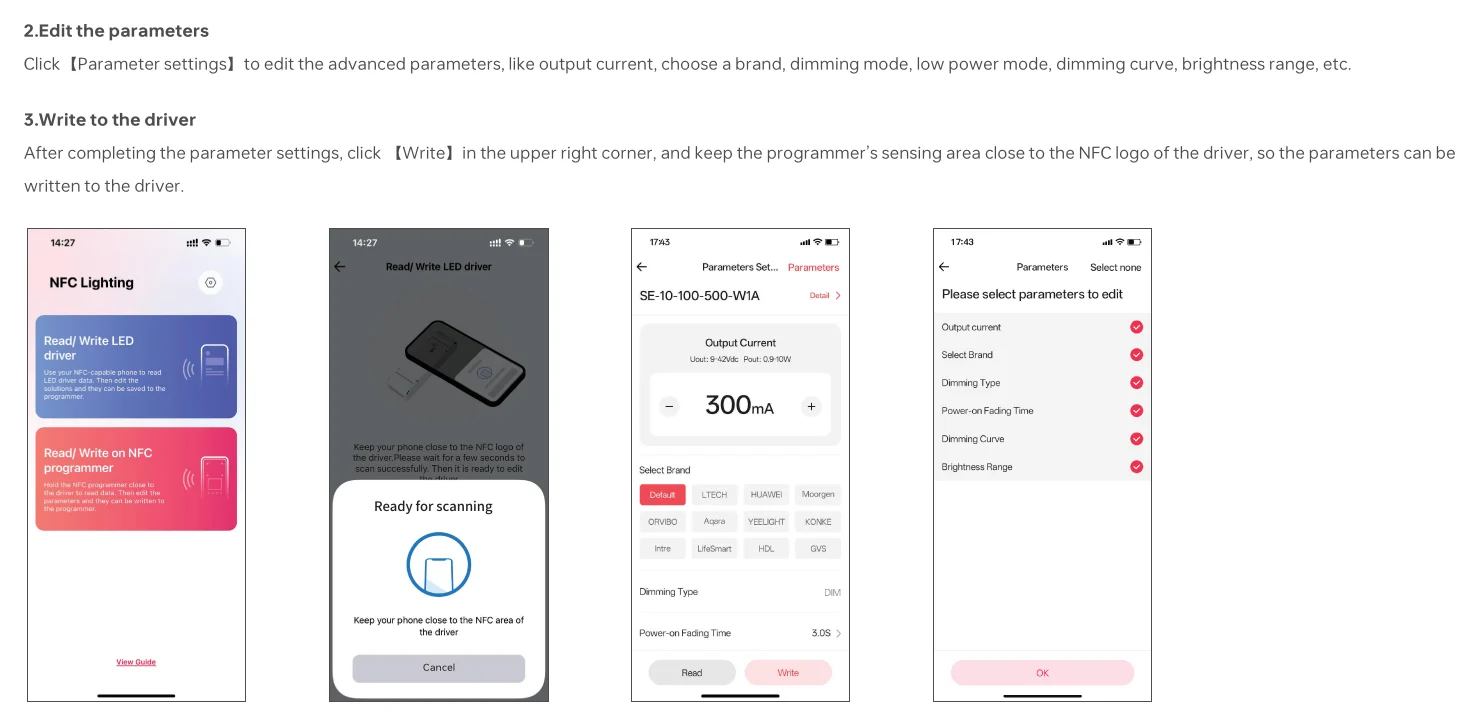

SE-10-100-500-W1A 2.Edit the parameters — 2.Edit the parameters

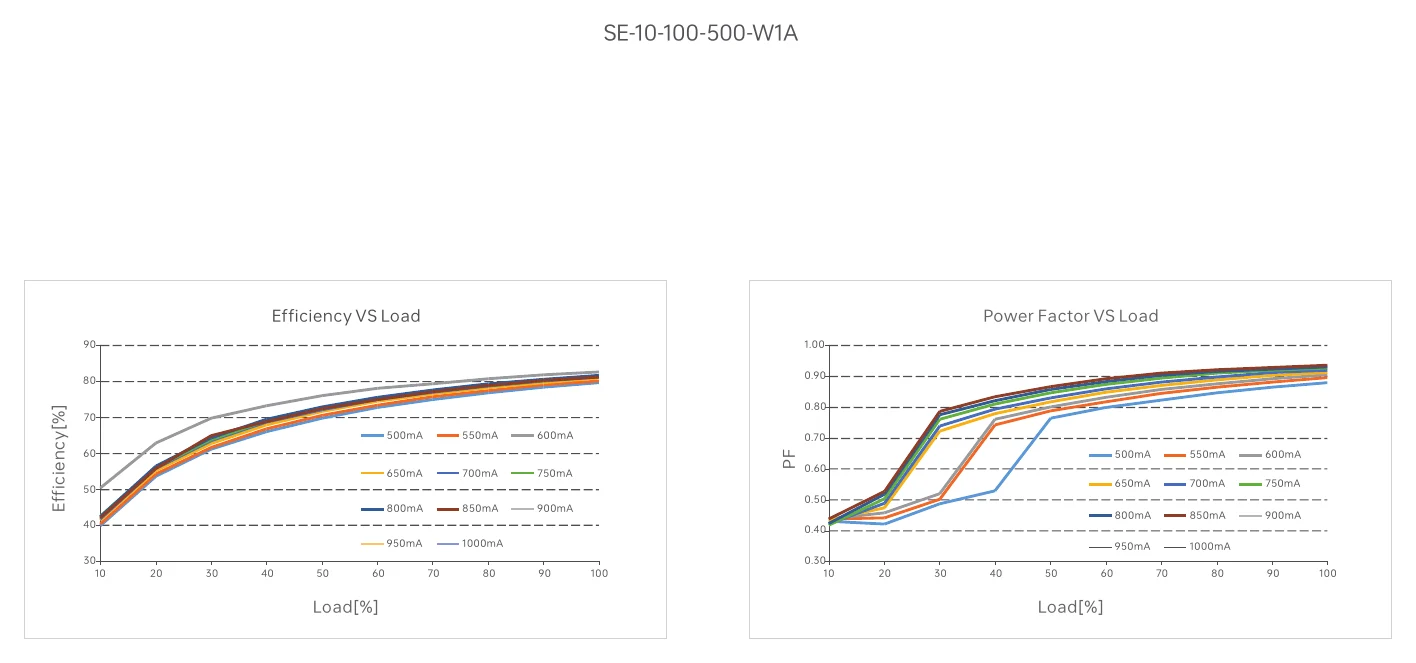

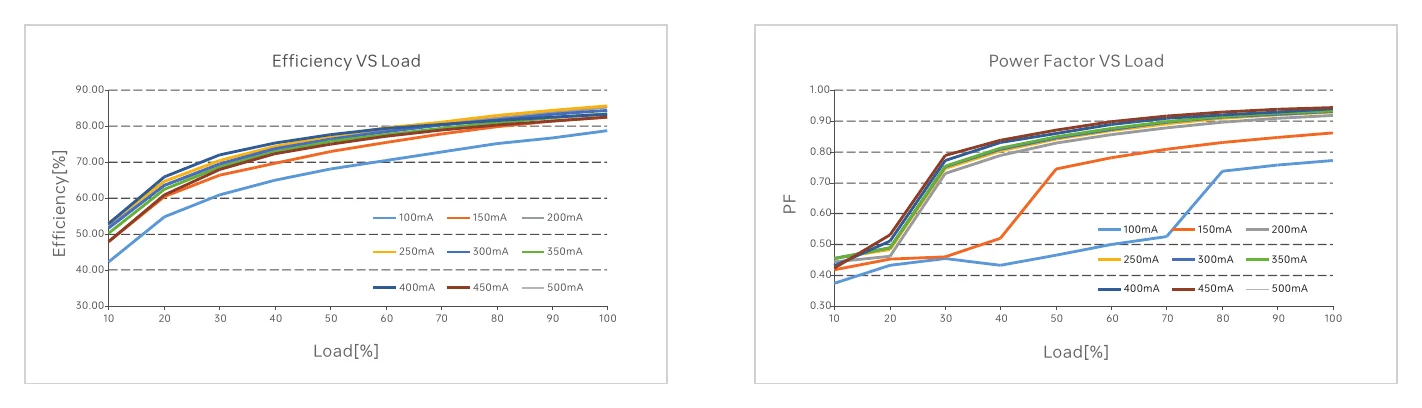

SE-10-100-500-W1A Efficiency VS Load — Efficiency VS Load

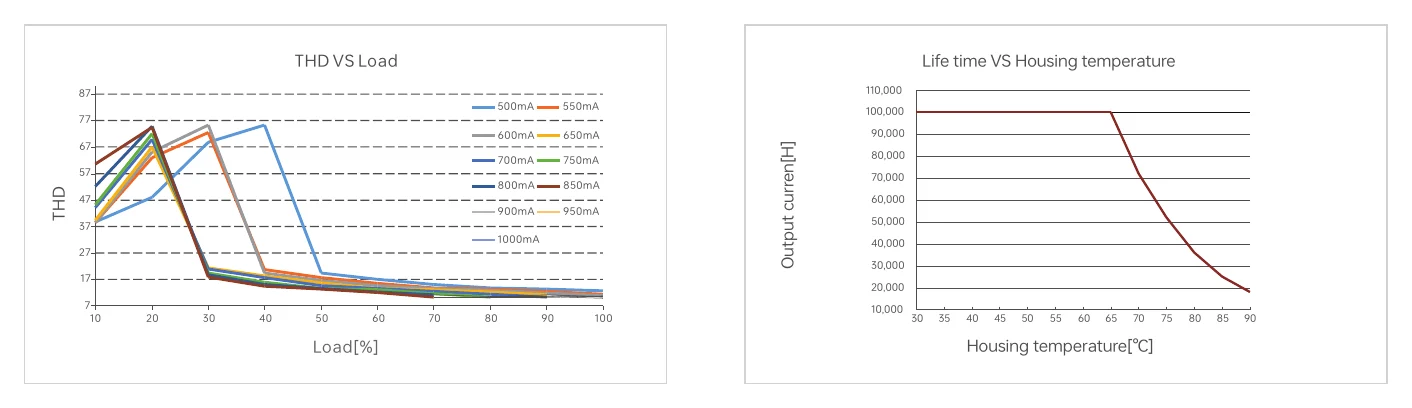

SE-10-100-500-W1A Life time VS Housing temperature — Life time VS Housing temperature

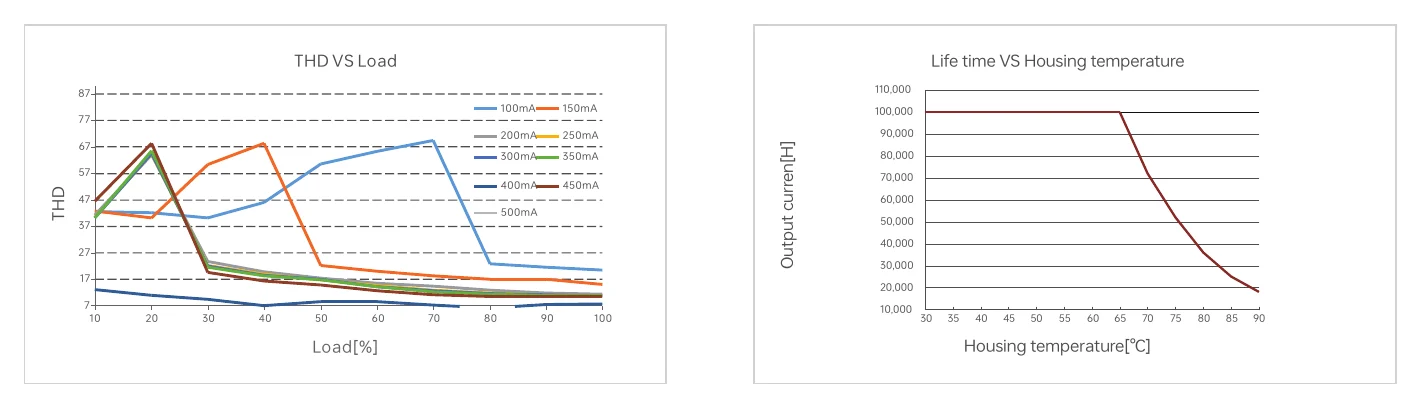

SE-10-100-500-W1A Life time VS Housing temperature (2) — Life time VS Housing temperature (2)

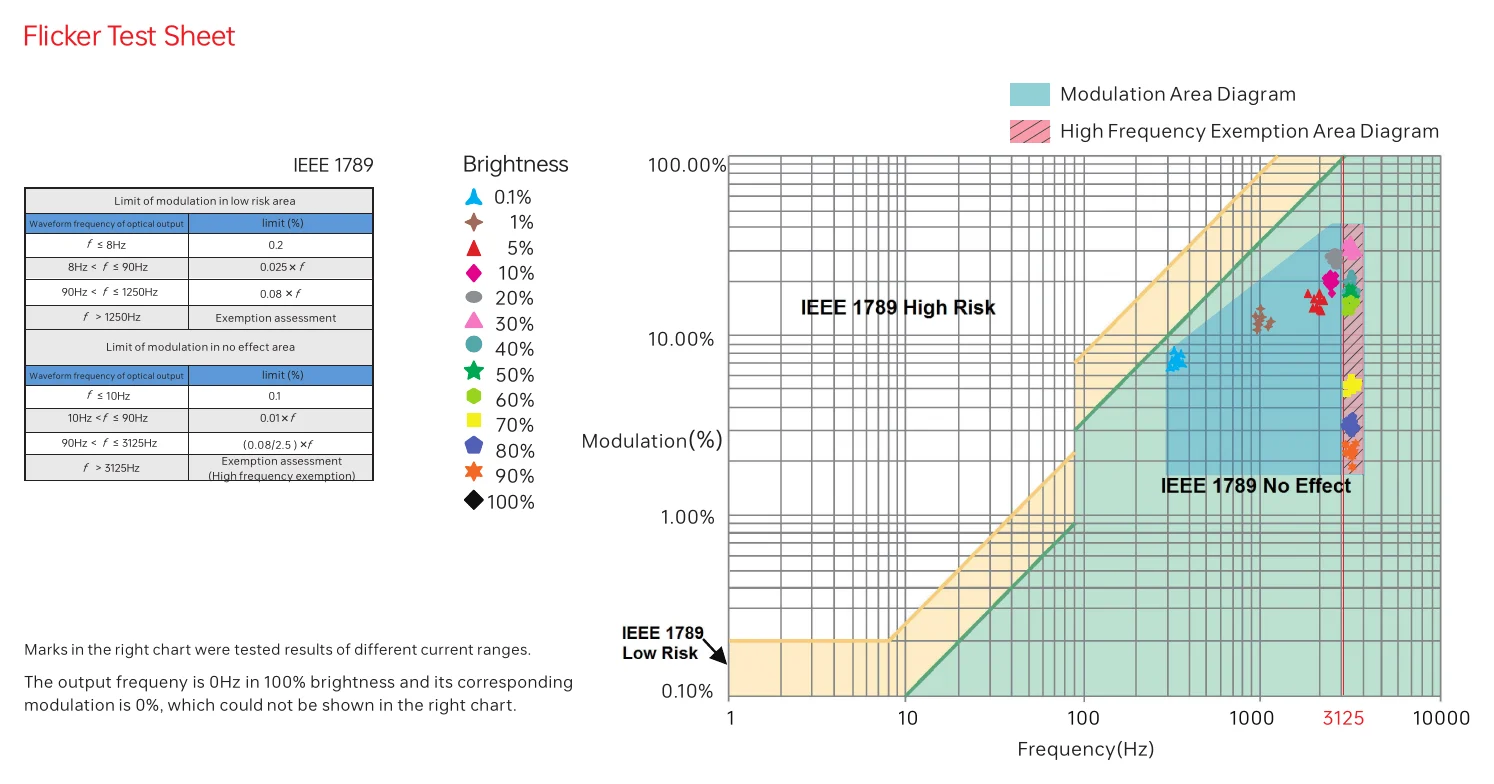

SE-10-100-500-W1A Flicker Test Sheet — Flicker Test Sheet

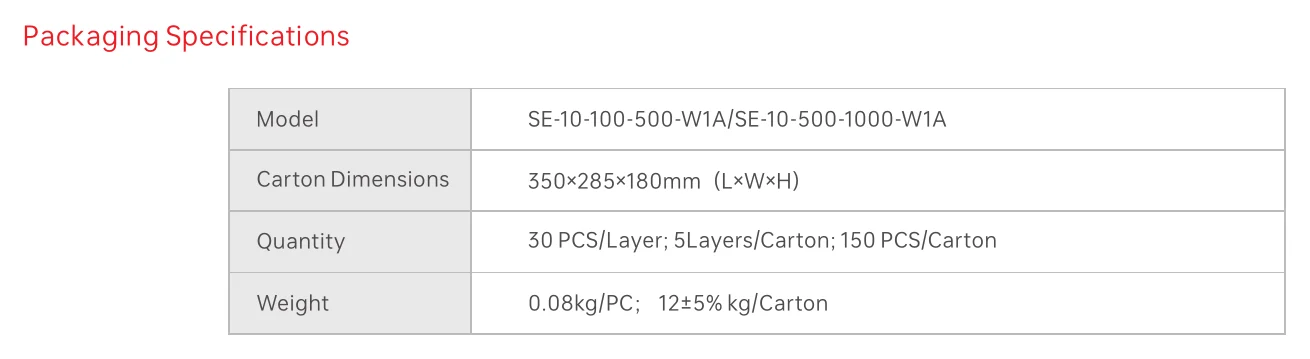

SE-10-100-500-W1A Packaging Specifications — Packaging Specifications

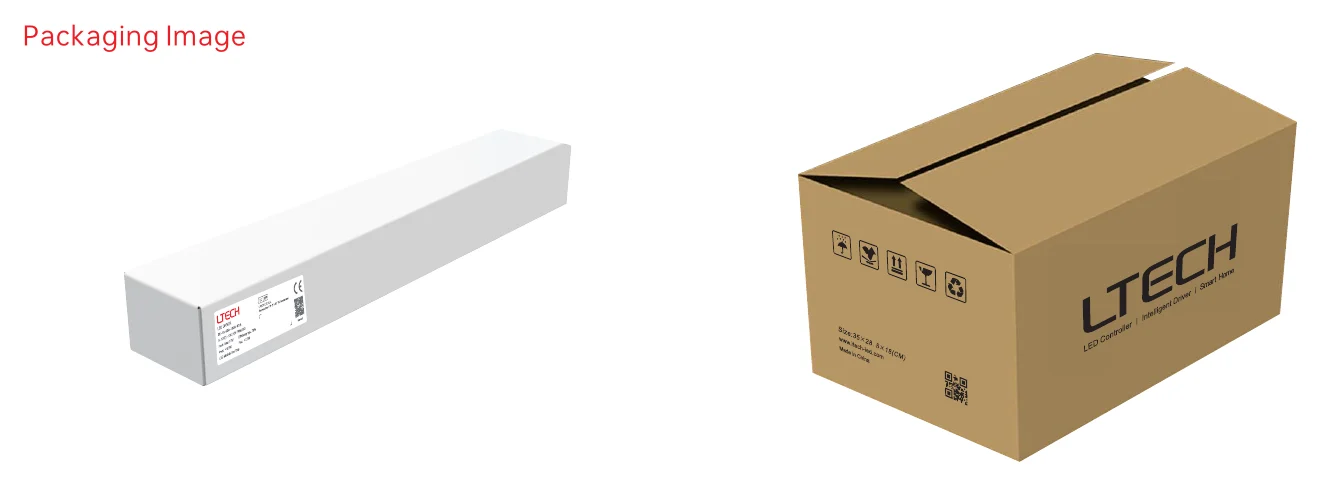

SE-10-100-500-W1A Packaging Image — Packaging Image

Downloads

Datasheet1

SE-10-100-500-W1A datasheetSE_10_100_500_W1A.pdf PDF Download

FAQ

What is this LED driver used for?

It is a constant current LED driver suitable for LED lighting fixtures, including Class I, II, and III applications.

What are the output specifications?

It provides a constant current output of 100-500mA with an output voltage range of 9-42Vdc (max 50Vdc) and a power range of 0.9W-10W.

How do I dim the light?

It supports 0-10V dimming (including 1-10V, 10V PWM, and RX interfaces) with a dimming range of 0-100%, down to 0.01%.

What is the input voltage range?

It accepts a universal input of 100-240Vac (50/60Hz) or 100-240Vdc.

What protections are included?

It includes automatic recovery for overload, overheat, overvoltage, and short circuit conditions.

Where can this driver be installed?

It has an IP20 rating, making it suitable for indoor use only. The operating temperature range is -20°C to 50°C.

What are the physical dimensions?

The unit measures 135 x 30 x 20mm (L x W x H) and weighs approximately 80g.
