Ltech SE-12-100-500-W1A 12W 9-42VDC CC 0-10V LED Driver 0.1-0.5A

4-in-1 0-10V1-10V 10V PWMRX9-42VDC12W

SKU SE-12-100-500-W1A

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

SE-12-100-500-W1A is the 9-42Vdc output model of this series: typical efficiency 84%@300mA (at full load),82%@500mA (at full load).

Intelligent LED Driver (Constant Current)

Features

Housing made from SAMSUNG/COVESTRO's V0 flame retardant PC materials.
Ultra small, thin and lightweight, screwless end cap.
Change the output current, dimming mode and other parameters via the APP.
Adjustable output current with 1mA step.
Automatically recognize 0-10V and 1-10V input signal.
Ultra-low consumption of 0-10V ports < 0.05mA.
Soft-on and fade-in dimming function enhances your visual comfort.
T-PWM super deep dimming technology, 0.01% dimming depth.
The whole dimming process is flicker-free with high frequency exemption level.
Comply with the EU’s ErP Directive, networked standby<0.5W.
When there is no load, the output will be 0V to prevent damage to LEDs due to poor contact.
Overheat, over voltage, overload, short circuit protection and automatic recovery.
Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
Normal service life can reach 100,000 hours.
5-year warranty (Rubycon capacitor).

Specifications

SE-12-100-500-W1ASpecifications from the official datasheetDownload datasheet PDF

Features

Output Type: Constant current
Dimming Interface: 0-10V (1-10V, 10V PWM, RX)
Output Feature: Isolation
Protection Grade: IP20
Insulation Grade: Class II (Suitable for class I/ II /III light fixtures)

OUTPUT

Output Voltage: 9-42Vdc
Maximum output voltage: ≤48Vdc
Output Current Range: 100-500mA
Output Power Range: 0.9W-12W
Dimming Range: 0~100%, down to 0.01%
LF Current Ripple: <3%(Maximum current for non dimming state)
Current Accuracy: ±5%
PWM Frequency: ≤3600Hz

INPUT

DC Voltage Range: 120-300Vdc
AC Voltage Range: 100-240Vac
Input Voltage: 115Vac/230Vac
Frequency: 50/60Hz
Input Current: ≤0.18A/115Vac, ≤0.08A/230Vac
Power Factor: PF>0.95/115Vac (at full load), PF>0.9C/230Vac (at full load)
THD: THD≤10%/230Vac, at full load
Efficiency (Typ.): 84%@300mA (at full load),82%@500mA (at full load)
Inrush Current: Cold start 15A (Test twidth=102us tested under 50% Ipeak)/230Vac
Anti Surge: L-N: 2KV
Leakage Current: Max. 0.24mA

ENVIRONMENT

Working Temperature: ta: -20 ~ 50°C tc: 80°C
Working Humidity: 20 ~ 95%RH, non-condensing
Storage Temperature/Humidity: -40 ~ 80°C/10~95%RH
Temperature Coefficient: ±0.03%/°C(0-50°C)
Vibration: 10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively

PROTECTION

Overload Protection: Automatically protect the device when the load exceeds 102% of the rated power. Automatically recover once load is reduced
Overheat Protection: Intelligently adjust or turn off the current output if the PCB temperature ≥110°C. When the PCB temperature <90°C, automatically recover normal output
Overvoltage Protection: Automatically protect the device when voltage exceeds the no-load voltage. It can be recovered automatically
Short Circuit Protection: Enter hiccup mode if short circuit occurs, and recover automatically
Withstand Voltage: I/P-O/P: 3750Vac
Insulation Resistance: I/P-O/P: 100MΩ/500VDC/25°C/70%RH

SAFETY & EMC

Safety Standards CCC: Parameter Standard

China GB19510.1, GB19510.14
Safety Standards TUV: Parameter Standard

Germany EN61347-1, EN61347-2-13, EN62493
Safety Standards CB: Parameter Standard

CB Member States IEC61347-1, IEC61347-2-13
Safety Standards CE: Parameter Standard

European Union EN61347-1, EN61347-2-13, EN62384
Safety Standards KC: Parameter Standard

Korea KC61347-1, KC61347-2-13
Safety Standards EAC: Parameter Standard

Russia IEC61347-1, IEC61347-2-13
Safety Standards RCM: Parameter Standard

Australia AS 61347-1, AS 61347-2-13
Safety Standards ENEC: Parameter Standard

Europe EN61347-1, EN61347-2-13, EN62384
Safety Standards UKCA: Parameter Standard

Britain BS EN 61347-1, BS EN 61347-2-13, BS EN 62493
Safety Standards BIS: Parameter Standard

India IS 15885 (PART 2/SEC 13)
Safety Standards CUL: Parameter Standard

Canada CSA C22.2 NO.250.13
Safety Standards UL: Parameter Standard

America UL 8750
EMC Emission CCC: Parameter Standard

China GB/T17743, GB17625.1
EMC Emission CE: Parameter Standard

European Union EN55015, EN61000-3-2, EN61000-3-3, EN61547
EMC Emission KC: Parameter Standard

Korea KSC 9815, KSC 9547
EMC Emission EAC: Parameter Standard

Russia IEC62493, IEC61547, EH55015
EMC Emission RCM: Parameter Standard

Australia EN55015, EN61000-3-2, EN61000-3-3, EN61547
EMC Emission UKCA: Parameter Standard

Britain BS EN IEC 55015, BS EN IEC 61000-3-2, BS EN 61000-3-3, BS EN 61547
EMC Emission CUL: Parameter Standard

Canada ICES-005
EMC Emission FCC: Parameter Standard

America FCC PART 15B
EMC Immunity: EN61000-4-2,3,4,5,6,8,11, EN61547

Parameter	Standard
China	GB19510.1, GB19510.14

Parameter	Standard
Germany	EN61347-1, EN61347-2-13, EN62493

Parameter	Standard
CB Member States	IEC61347-1, IEC61347-2-13

Parameter	Standard
European Union	EN61347-1, EN61347-2-13, EN62384

Parameter	Standard
Korea	KC61347-1, KC61347-2-13

Parameter	Standard
Russia	IEC61347-1, IEC61347-2-13

Parameter	Standard
Australia	AS 61347-1, AS 61347-2-13

Parameter	Standard
Europe	EN61347-1, EN61347-2-13, EN62384

Parameter	Standard
Britain	BS EN 61347-1, BS EN 61347-2-13, BS EN 62493

Parameter	Standard
India	IS 15885 (PART 2/SEC 13)

Parameter	Standard
Canada	CSA C22.2 NO.250.13

Parameter	Standard
America	UL 8750

Parameter	Standard
China	GB/T17743, GB17625.1

Parameter	Standard
European Union	EN55015, EN61000-3-2, EN61000-3-3, EN61547

Parameter	Standard
Korea	KSC 9815, KSC 9547

Parameter	Standard
Russia	IEC62493, IEC61547, EH55015

Parameter	Standard
Australia	EN55015, EN61000-3-2, EN61000-3-3, EN61547

Parameter	Standard
Britain	BS EN IEC 55015, BS EN IEC 61000-3-2, BS EN 61000-3-3, BS EN 61547

Parameter	Standard
Canada	ICES-005

Parameter	Standard
America	FCC PART 15B

ErP

Power Consumption Networked standby: <0.5W (After shutdown by command)
Power Consumption No-load power consumption: <0.5W (When the lamp is not connected)

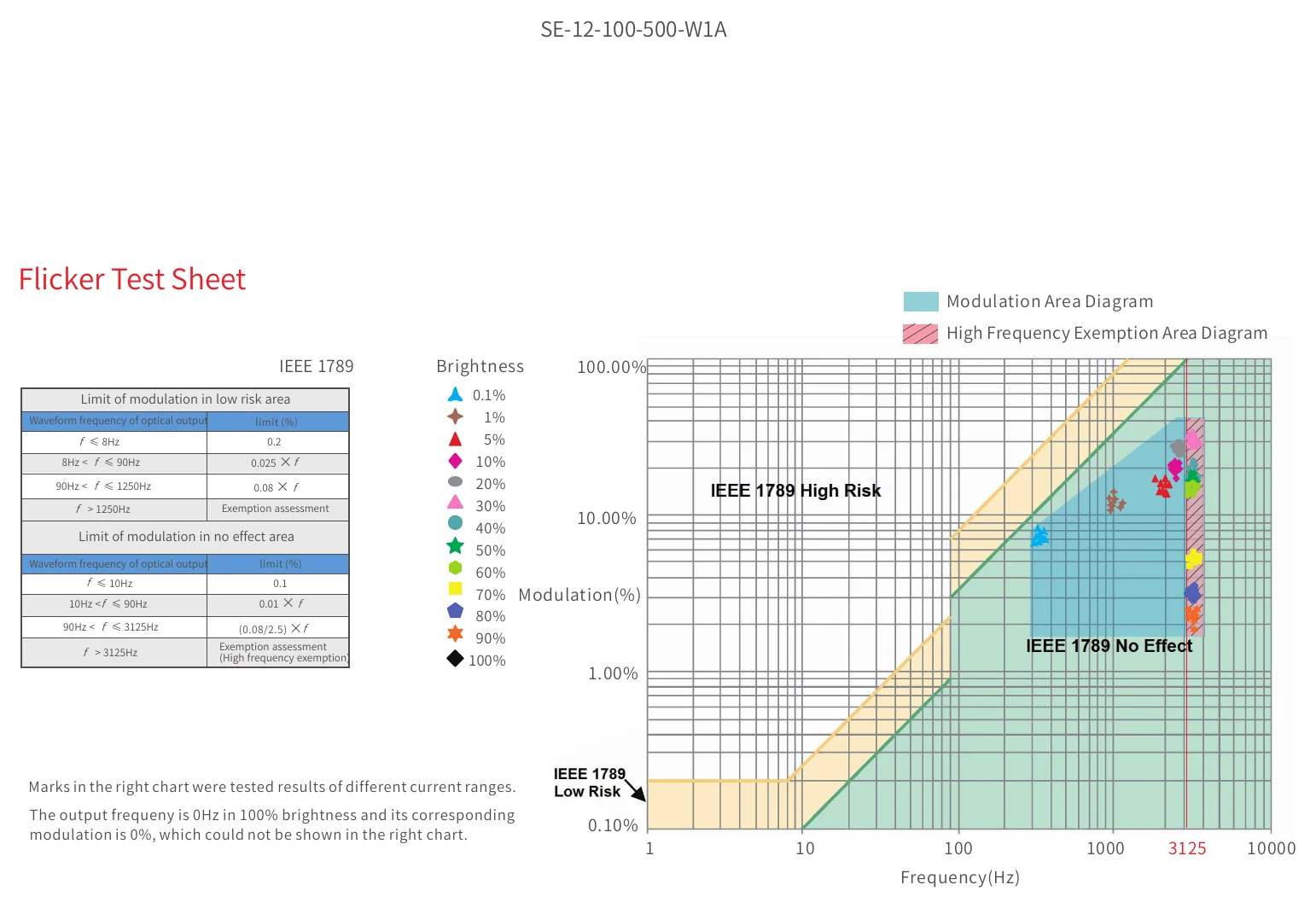

Flicker/Stroboscopic Effect IEEE 1789: Meet IEEE 1789 standard/High frequency exemption level
Flicker/Stroboscopic Effect CIE SVM: Pst LM≤1.0， SVM≤0.4
DF Phase factor: DF ≥0.9

OTHERS

Weight(N.W.): 85g±10g
Dimensions: 110×35×20mm(L×W×H)

Technical drawings

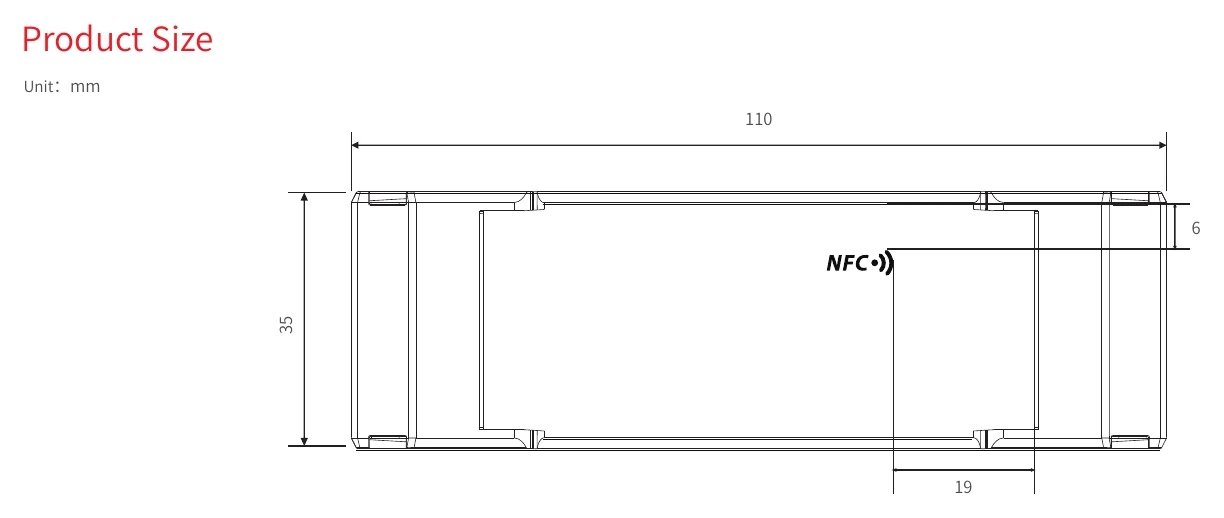

SE-12-100-500-W1A ProductSize — ProductSize

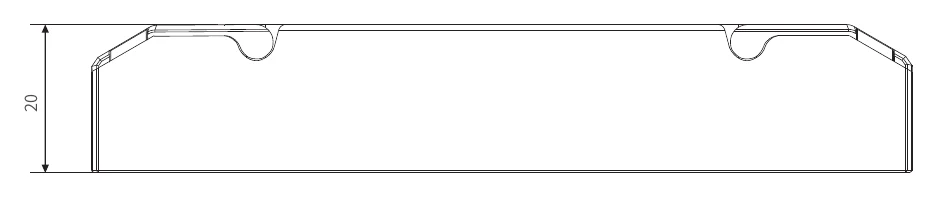

SE-12-100-500-W1A Dimensions (mm) — Dimensions (mm)

SE-12-100-500-W1A ProductSize (2) — ProductSize (2)

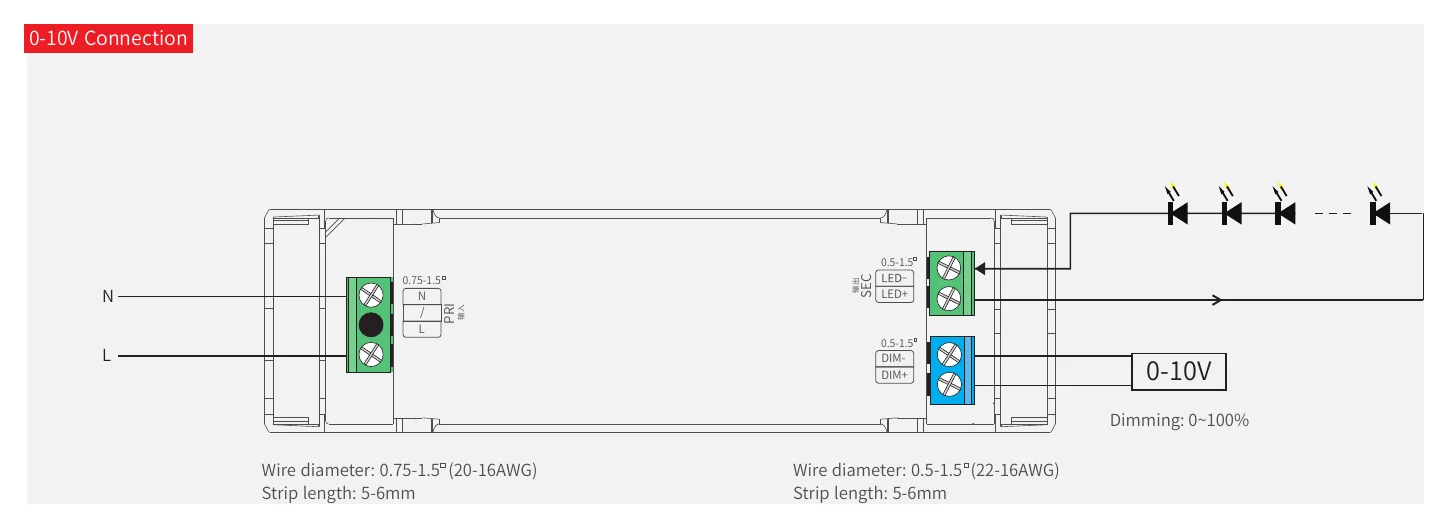

SE-12-100-500-W1A 0-10VConnection — 0-10VConnection

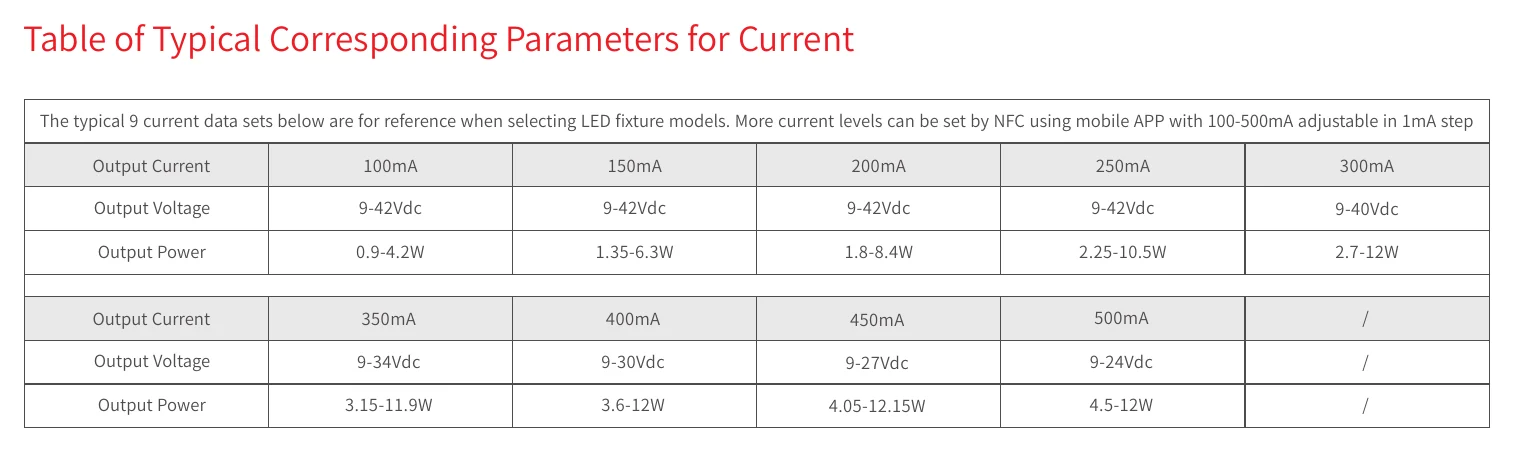

SE-12-100-500-W1A TableofTypicalCorrespondingParametersforCurrent — TableofTypicalCorrespondingParametersforCurrent

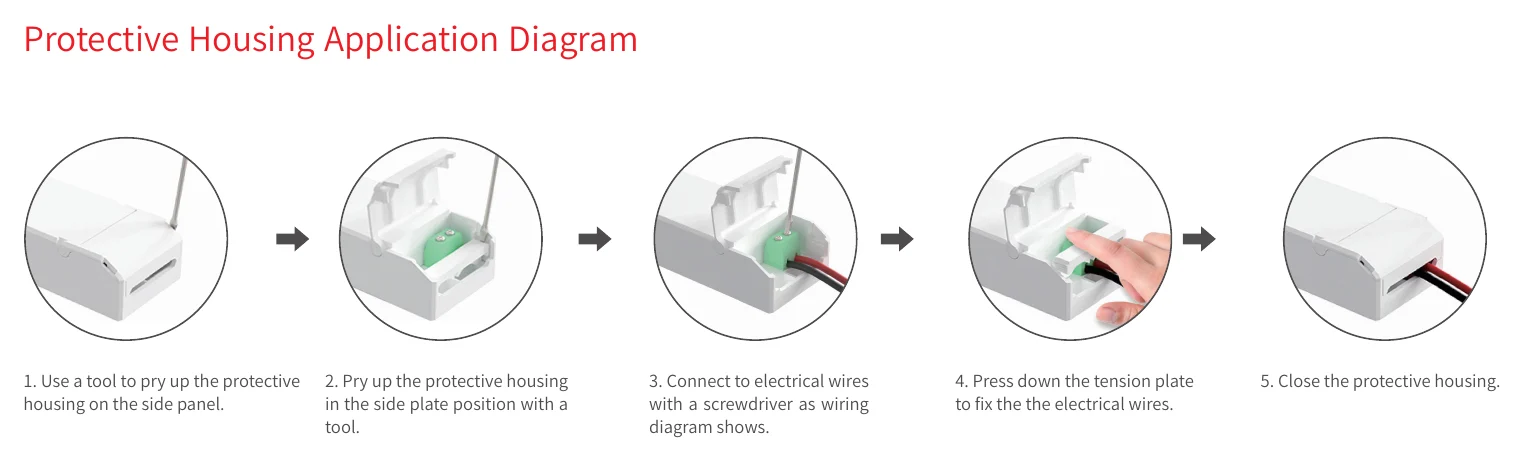

SE-12-100-500-W1A ProtectiveHousingApplicationDiagram — ProtectiveHousingApplicationDiagram

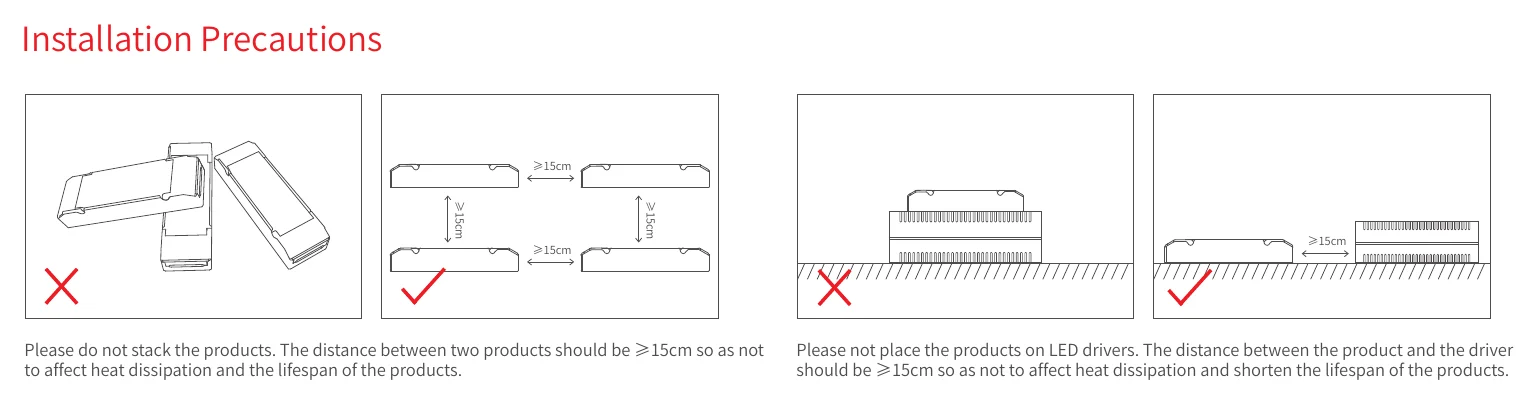

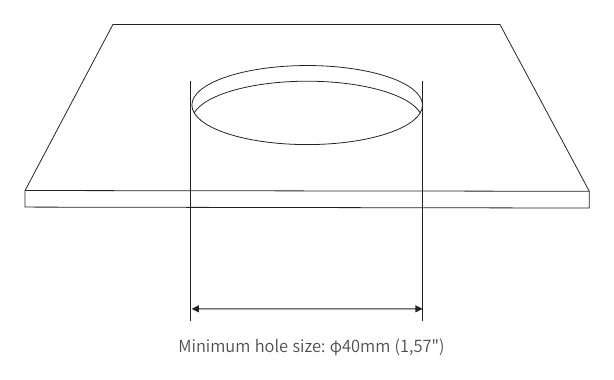

SE-12-100-500-W1A InstallationPrecautions — InstallationPrecautions

SE-12-100-500-W1A UsetheNFCLightingAPP — UsetheNFCLightingAPP

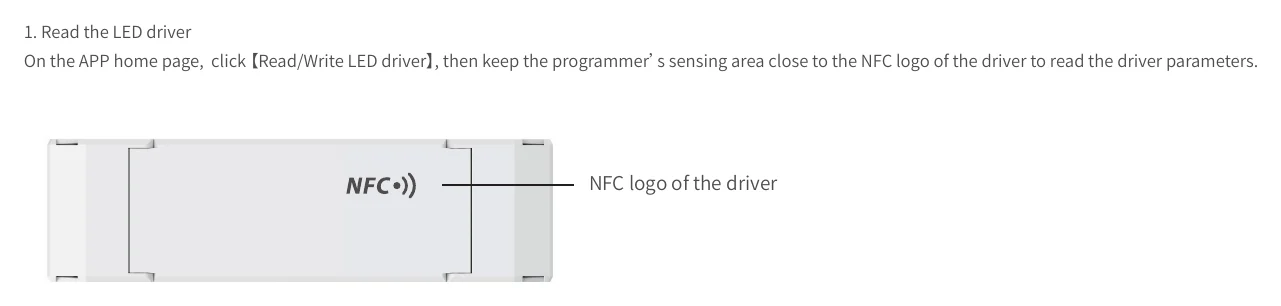

SE-12-100-500-W1A 1.ReadtheLEDdriver — 1.ReadtheLEDdriver

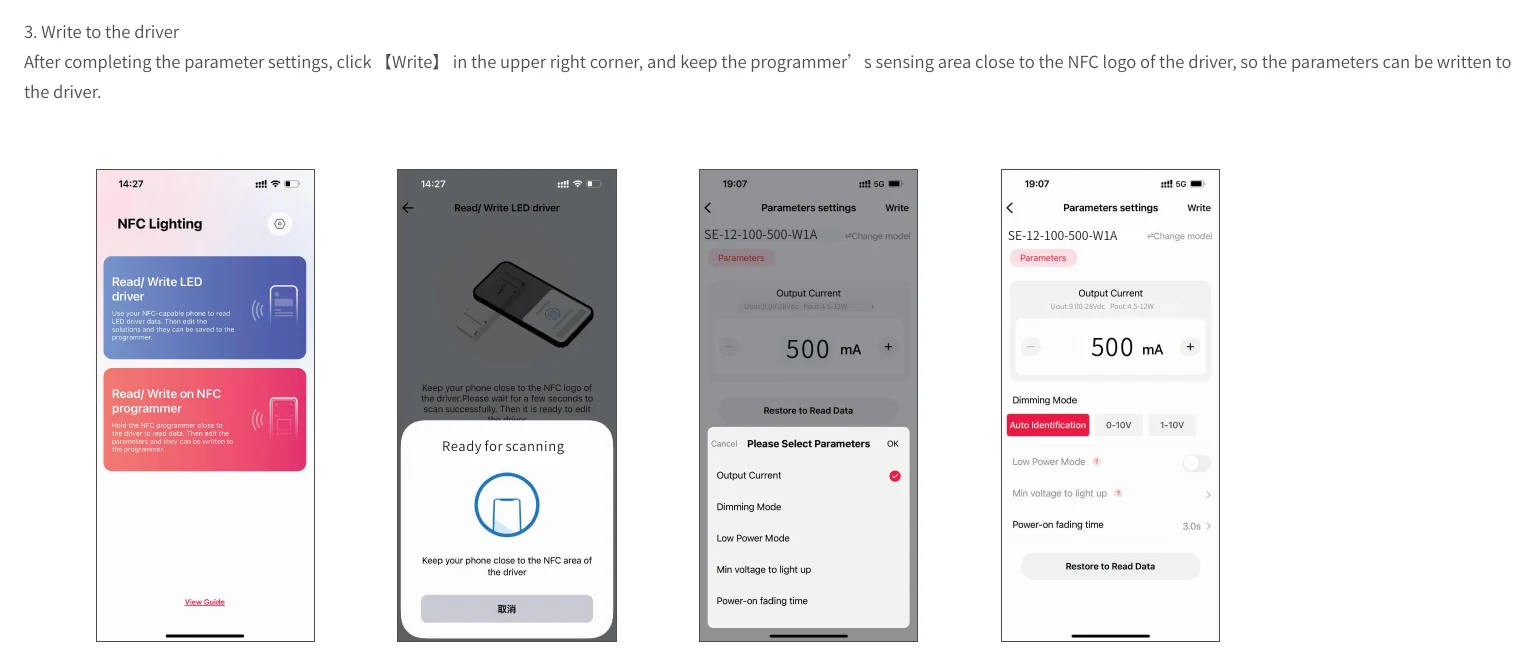

SE-12-100-500-W1A 3.Writetothedriver — 3.Writetothedriver

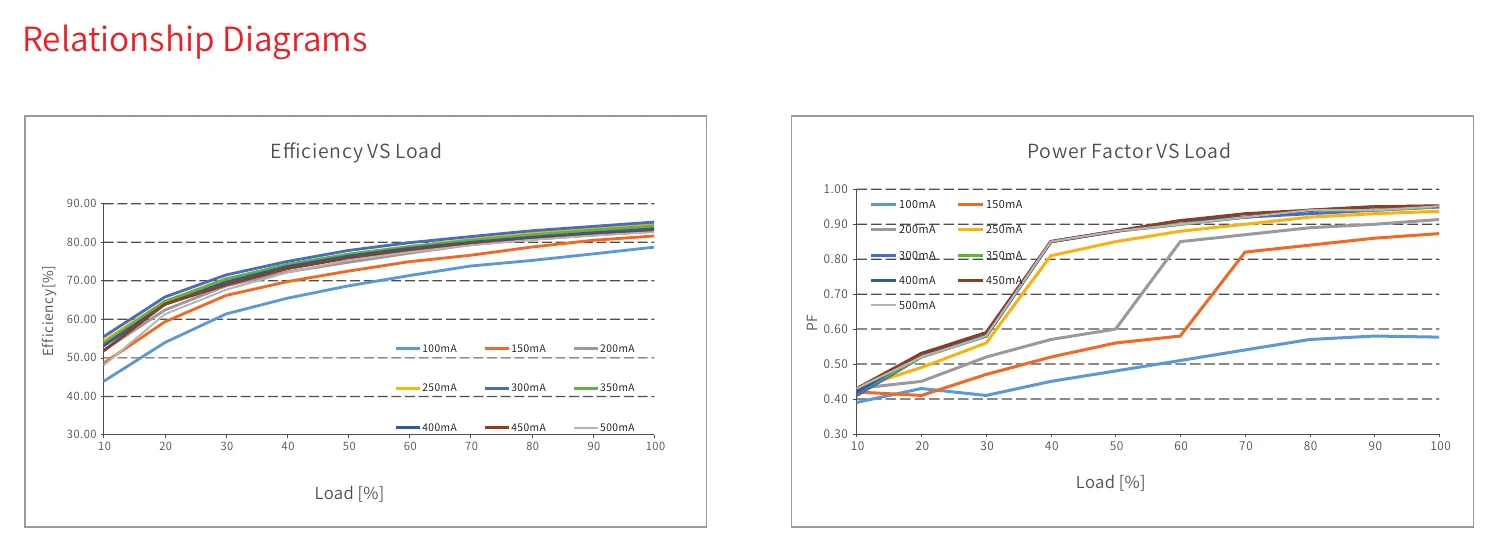

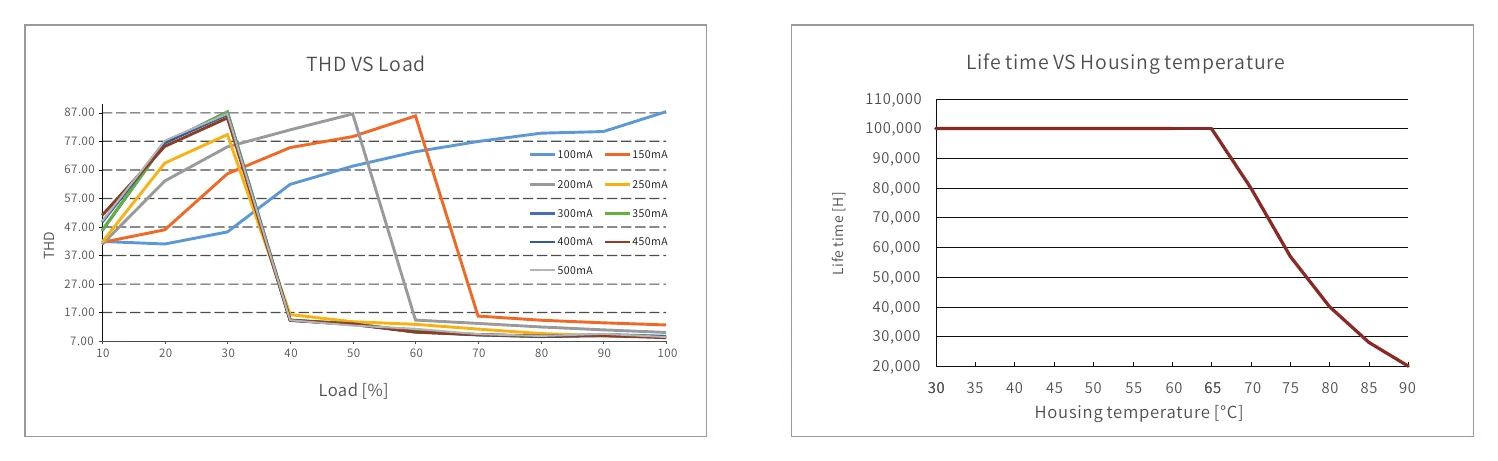

SE-12-100-500-W1A RelationshipDiagrams — RelationshipDiagrams

SE-12-100-500-W1A LifetimeVSHousingtemperature — LifetimeVSHousingtemperature

SE-12-100-500-W1A LifetimeVSHousingtemperature (2) — LifetimeVSHousingtemperature (2)

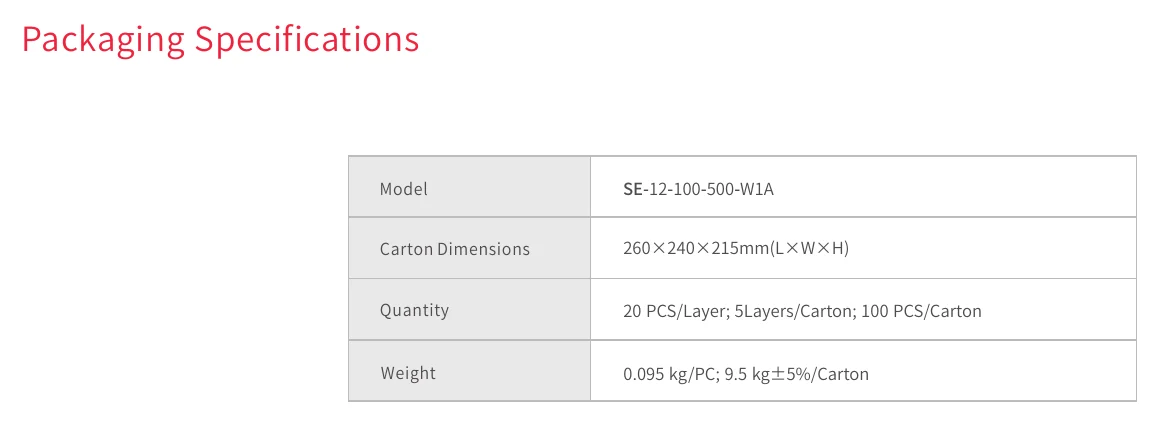

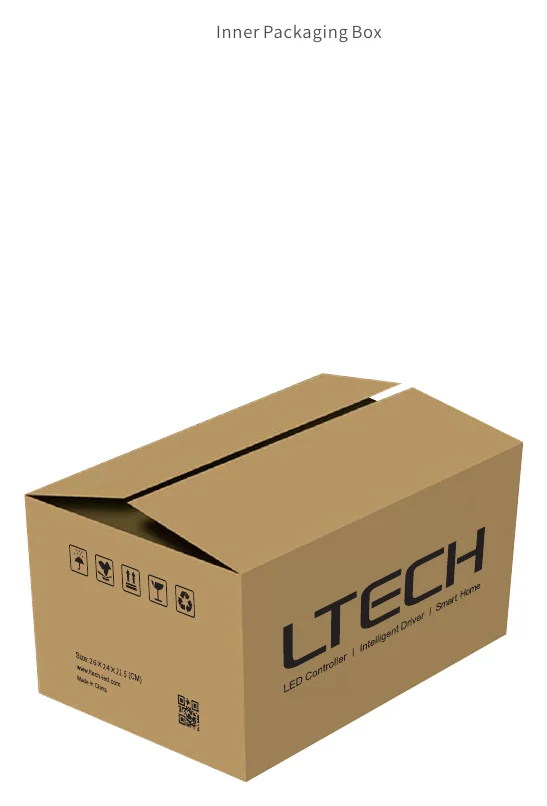

SE-12-100-500-W1A PackagingSpecifications — PackagingSpecifications

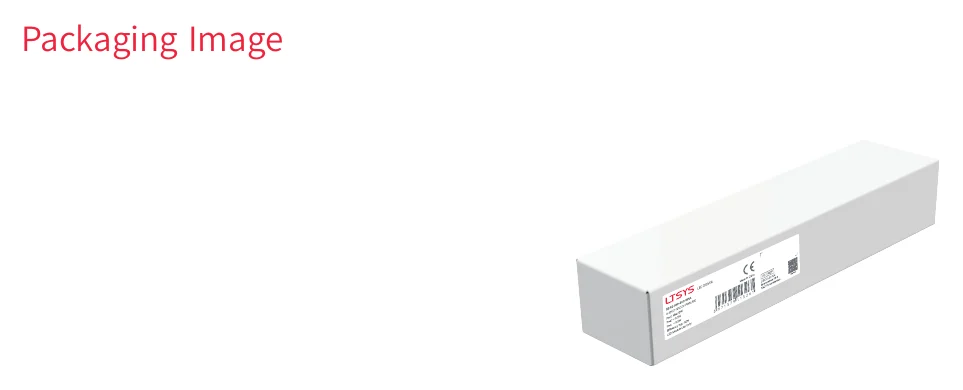

SE-12-100-500-W1A PackagingImage — PackagingImage

SE-12-100-500-W1A PackagingImage (2) — PackagingImage (2)

Downloads

Datasheet1

SE-12-100-500-W1A datasheetSE_12_100_500_W1A.pdf PDF Download

FAQ

What is this LED driver used for?

It is a constant current LED driver suitable for indoor LED lighting fixtures, such as panels and downlights, requiring 9-42Vdc output.

What are the output voltage and current specifications?

The output voltage range is 9-42Vdc (max 48Vdc) and the output current range is 100-500mA, delivering up to 12W of power.

How does the dimming control work?

It supports 0-10V dimming (including 1-10V, 10V PWM, and RX interfaces) with a dimming range from 0% to 100%, down to 0.01%.

What is the input voltage range?

The driver accepts an AC input voltage of 100-240Vac at 50/60Hz, with a DC input range of 120-300Vdc.

What are the dimensions and mounting requirements?

The unit measures 110x35x20mm and weighs approximately 85g. It is designed for Class II light fixtures and has an IP20 protection rating, meaning it is for indoor use only.

What safety protections are included?

It includes automatic recovery for overload, overheat, overvoltage, and short circuit conditions. It also features 2KV anti-surge protection on the input.

What is the operating temperature range?
