Ltech SE-20-100-700-W2A 20W 9-42VDC CC 0-10V LED Driver 0.1-0.7A

4-in-1 0-10V1-10V 10V PWMRX9-42VDC20W

SKU SE-20-100-700-W2A

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

SE-20-100-700-W2A is the 9-42Vdc output model of this series: typical efficiency 84%@700mA (at full load), 87%@500mA (at full load),.

Features

Housing made from SAMSUNG/COVESTRO's V0 flame retardant PC materials.
Ultra small, thin and lightweight, screwless end cap.
Change the output current, dimming mode and other parameters via the APP.
Adjustable output current with 1mA step.
Automatically recognize 0-10V and 1-10V input signal.
Ultra-low consumption of 0-10V ports < 0.05mA.
Soft-on and fade-in dimming function enhances your visual comfort.
T-PWM super deep dimming technology, 0.01% dimming depth.
The whole dimming process is flicker-free with high frequency exemption level.
Comply with the EU’s ErP Directive, networked standby<0.5W.
When there is no load, the output will be 0V to prevent damage to LEDs due to poor contact.
Overheat, over voltage, overload, short circuit protection and automatic recovery.
Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
Normal service life can reach 100,000 hours.
5-year warranty (Rubycon capacitor).

Specifications

SE-20-100-700-W2ASpecifications from the official datasheetDownload datasheet PDF

Features

Output Type: Constant current
Dimming Interface: 0-10V (1-10V, 10V PWM, RX)
Output Feature: Isolation
Protection Grade: IP20
Insulation Grade: Class II (Suitable for class I/ II /III light fixtures)

OUTPUT

Output Voltage: 9-42Vdc
Maximum output voltage: ≤48Vdc
Output Current Range: 100-700mA
Output Power Range: 0.9W-20W
Dimming Range: 0~100%, down to 0.01%
LF Current Ripple: <3%(Maximum current for non dimming state)
Current Accuracy: ±5%
PWM Frequency: ≤3600Hz

INPUT

DC Voltage Range: 120-300Vdc
AC Voltage Range: 100-240Vac
Input Voltage: 115Vac/230Vac
Frequency: 0/50/60Hz
Input Current: ≤0.25A/115Vac, ≤0.13A/230Vac
Power Factor: PF>0.95/115Vac (at full load), PF>0.9C/230Vac (at full load)
THD: THD≤10%/230Vac, at full load
Efficiency (Typ.): 84%@700mA (at full load), 87%@500mA (at full load)
Inrush Current: Cold start 15A (Test twidth=102us tested under 50% Ipeak)/230Vac
Anti Surge: L-N: 2KV
Leakage Current: Max. 0.24mA

ENVIRONMENT

Working Temperature: ta: -20 ~ 45°C tc: 80°C
Working Humidity: 20 ~ 95%RH, non-condensing
Storage Temperature/Humidity: -40 ~ 80°C/10~95%RH
Temperature Coefficient: ±0.03%/°C(0-50°C)
Vibration: 10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively

PROTECTION

Overload Protection: Automatically protect the device when the load exceeds 102% of the rated power. Automatically recover once load is reduced
Overheat Protection: Intelligently adjust or turn off the current output if the PCB temperature ≥110°C. When the PCB temperature <90°C, automatically recover normal output
Overvoltage Protection: Automatically protect the device when voltage exceeds the no-load voltage. It can be recovered automatically
Short Circuit Protection: Enter hiccup mode if short circuit occurs, and recover automatically

SAFETY & EMC

Withstand Voltage: I/P-O/P: 3750Vac
Insulation Resistance: I/P-O/P: 100MΩ/500VDC/25°C/70%RH
Safety Standards: Parameter Standard Test Level

CCC China GB19510.1, GB19510.14
TUV Germany EN61347-1, EN61347-2-13, EN62493
CB CB Member States IEC61347-1, IEC61347-2-13
CE European Union EN61347-1, EN61347-2-13, EN62384
KC Korea KC61347-1, KC61347-2-13
EAC Russia IEC61347-1, IEC61347-2-13
RCM Australia AS 61347-1, AS 61347-2-13
ENEC Europe EN61347-1, EN61347-2-13, EN62384
UKCA Britain BS EN 61347-1, BS EN 61347-2-13, BS EN 62493
BIS India IS 15885 (PART 2/SEC 13)
CUL Canada CSA C22.2 NO.250.13
UL America UL 8750
EMC Emission: Parameter Standard Test Level

CCC China GB/T17743, GB17625.1
CE European Union EN55015, EN61000-3-2, EN61000-3-3, EN61547
KC Korea KSC 9815, KSC 9547
EAC Russia IEC62493, IEC61547, EH55015
RCM Australia EN55015, EN61000-3-2, EN61000-3-3, EN61547
UKCA Britain BS EN IEC 55015, BS EN IEC 61000-3-2, BS EN 61000-3-3, BS EN 61547
CUL Canada ICES-005
UL America FCC PART 15B
EMC Immunity: EN61000-4-2,3,4,5,6,8,11, EN61547

Parameter	Standard	Test Level
CCC	China	GB19510.1, GB19510.14
TUV	Germany	EN61347-1, EN61347-2-13, EN62493
CB	CB Member States	IEC61347-1, IEC61347-2-13
CE	European Union	EN61347-1, EN61347-2-13, EN62384
KC	Korea	KC61347-1, KC61347-2-13
EAC	Russia	IEC61347-1, IEC61347-2-13
RCM	Australia	AS 61347-1, AS 61347-2-13
ENEC	Europe	EN61347-1, EN61347-2-13, EN62384
UKCA	Britain	BS EN 61347-1, BS EN 61347-2-13, BS EN 62493
BIS	India	IS 15885 (PART 2/SEC 13)
CUL	Canada	CSA C22.2 NO.250.13
UL	America	UL 8750

Parameter	Standard	Test Level
CCC	China	GB/T17743, GB17625.1
CE	European Union	EN55015, EN61000-3-2, EN61000-3-3, EN61547
KC	Korea	KSC 9815, KSC 9547
EAC	Russia	IEC62493, IEC61547, EH55015
RCM	Australia	EN55015, EN61000-3-2, EN61000-3-3, EN61547
UKCA	Britain	BS EN IEC 55015, BS EN IEC 61000-3-2, BS EN 61000-3-3, BS EN 61547
CUL	Canada	ICES-005
UL	America	FCC PART 15B

ErP

Power Consumption Networked standby: <0.5W (After shutdown by command)
Power Consumption No-load power consumption: <0.5W (When the lamp is not connected)
Flicker/Stroboscopic Effect IEEE 1789: Meet IEEE 1789 standard/High frequency exemption level
Flicker/Stroboscopic Effect CIE SVM: Pst LM≤1.0，SVM≤0.4
DF Phase factor: DF≥0.9

OTHERS

Weight(N.W.): 105g±10g
Dimensions: 127×40×23mm(L×W×H)

Certifications & ratings

Marked features: NFC

Technical drawings

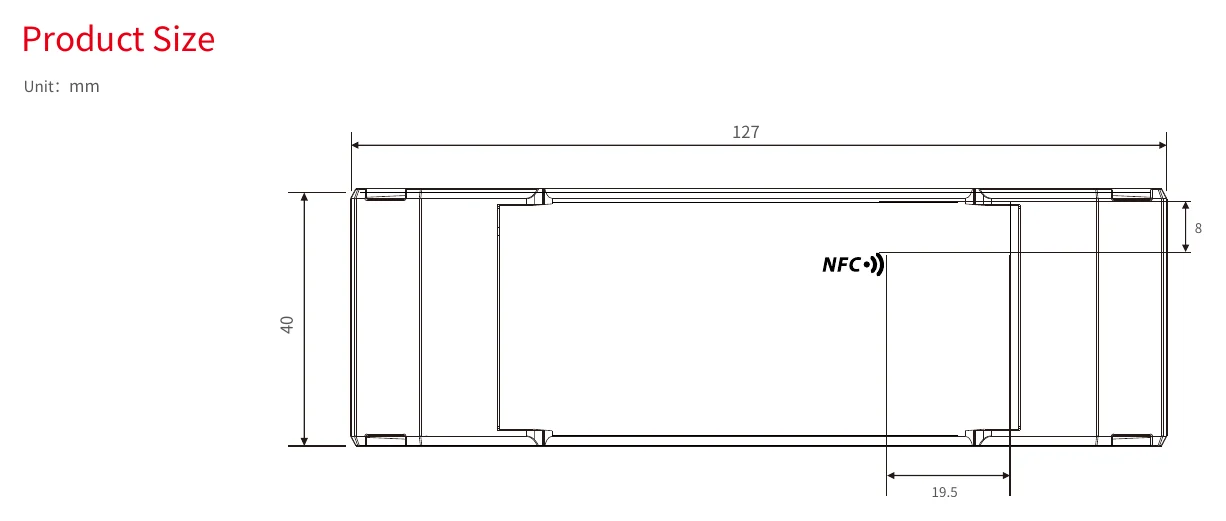

SE-20-100-700-W2A ProductSize — ProductSize

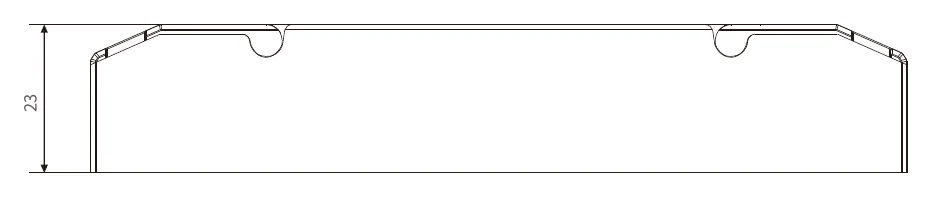

SE-20-100-700-W2A Dimensions (mm) — Dimensions (mm)

SE-20-100-700-W2A ProductSize (2) — ProductSize (2)

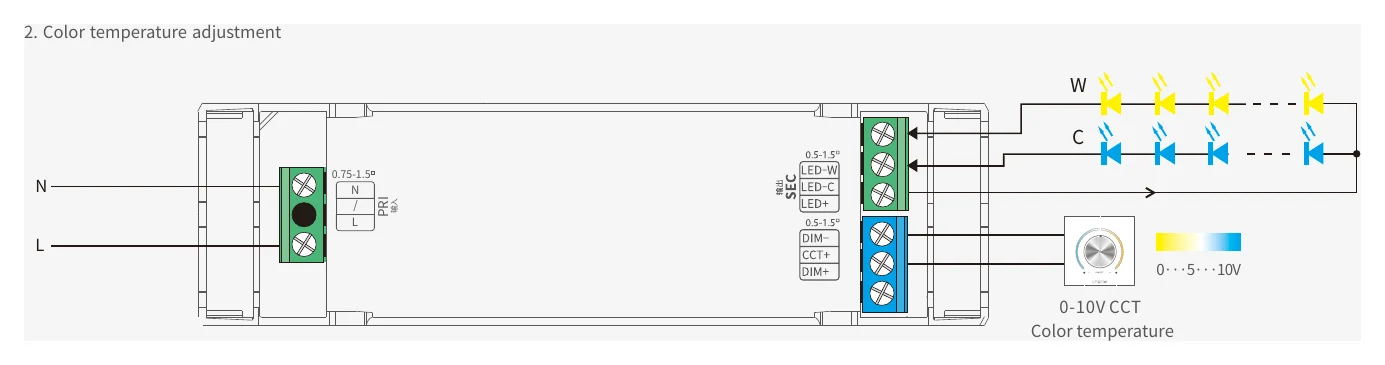

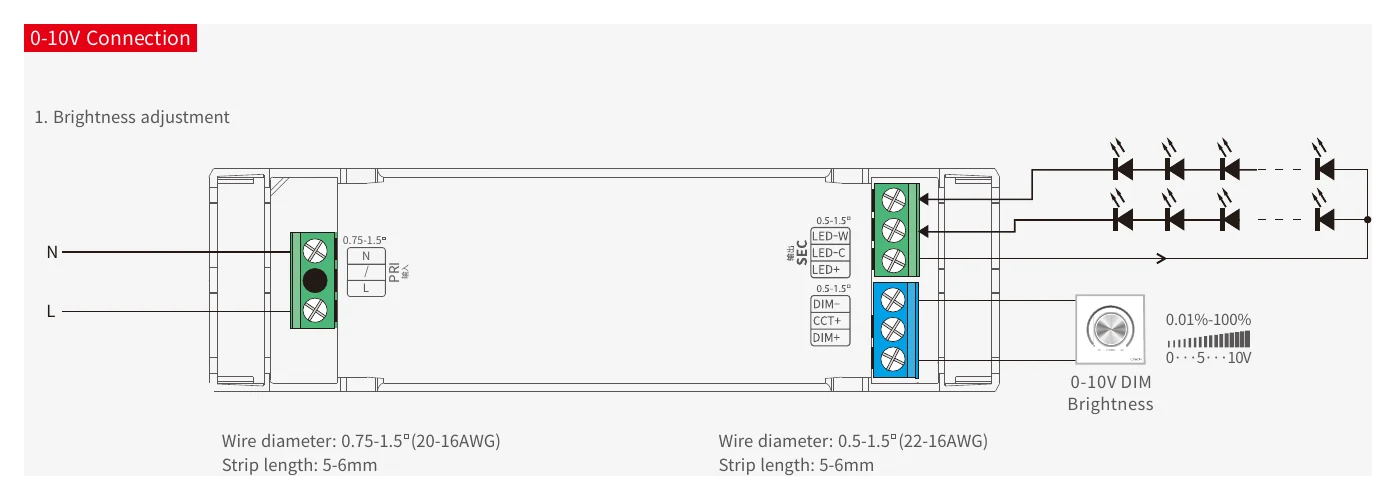

SE-20-100-700-W2A 0-10VConnection — 0-10VConnection

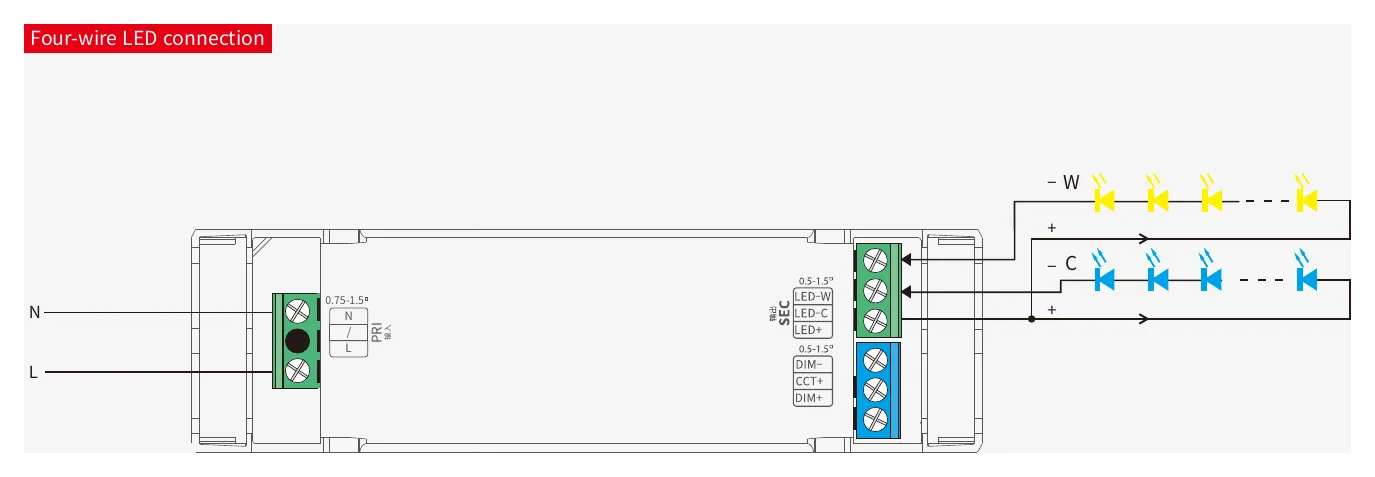

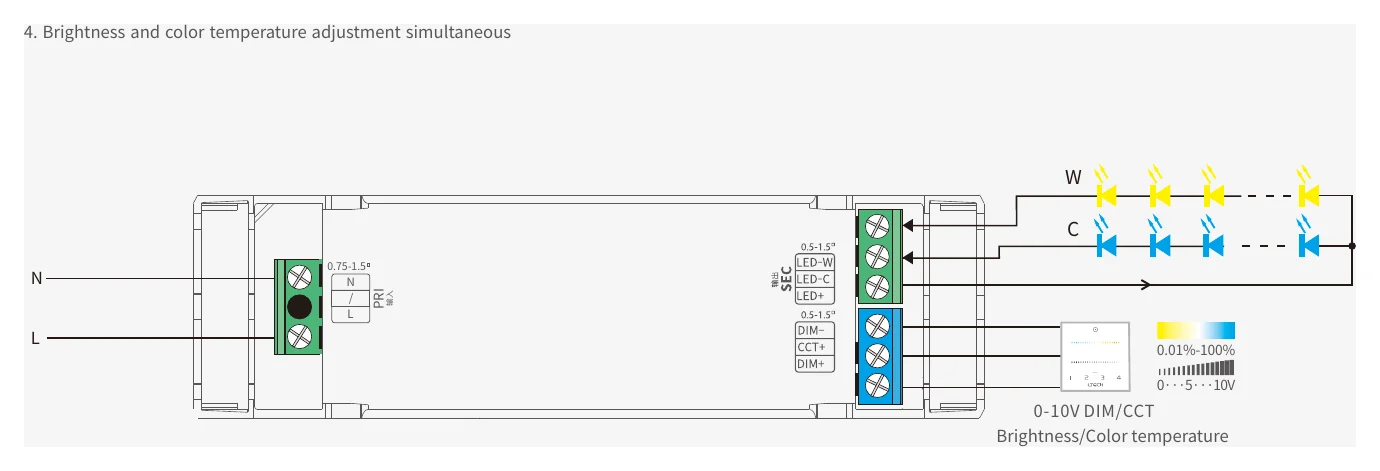

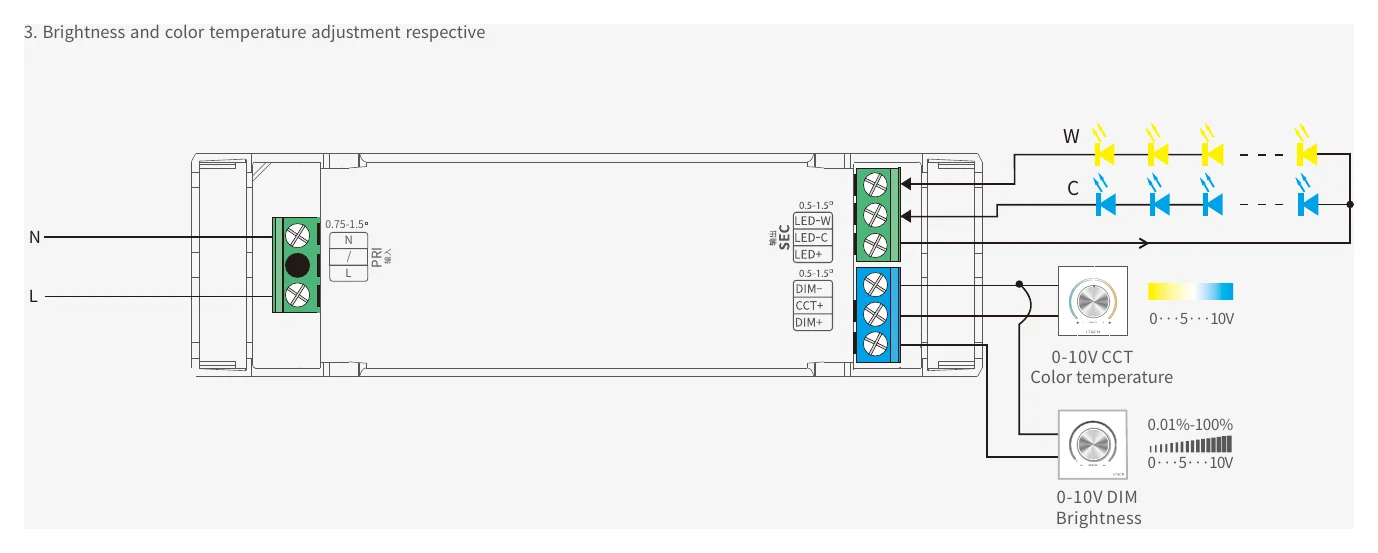

SE-20-100-700-W2A Four-wireLEDconnection — Four-wireLEDconnection

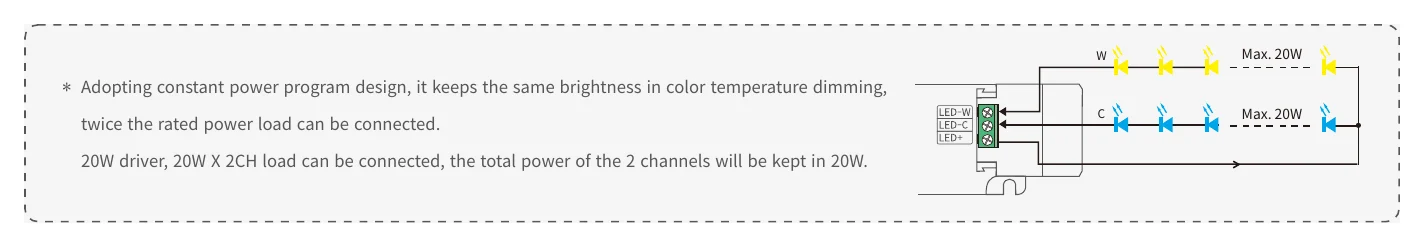

SE-20-100-700-W2A Four-wireLEDconnection (2) — Four-wireLEDconnection (2)

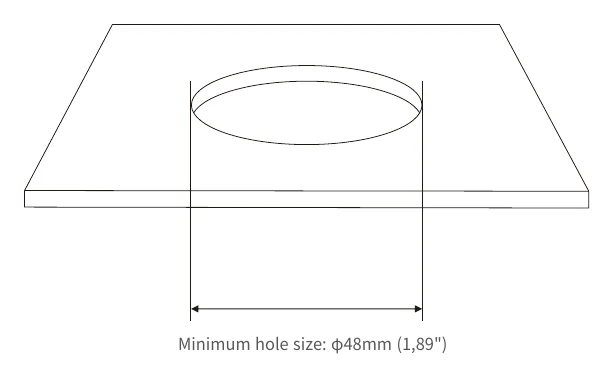

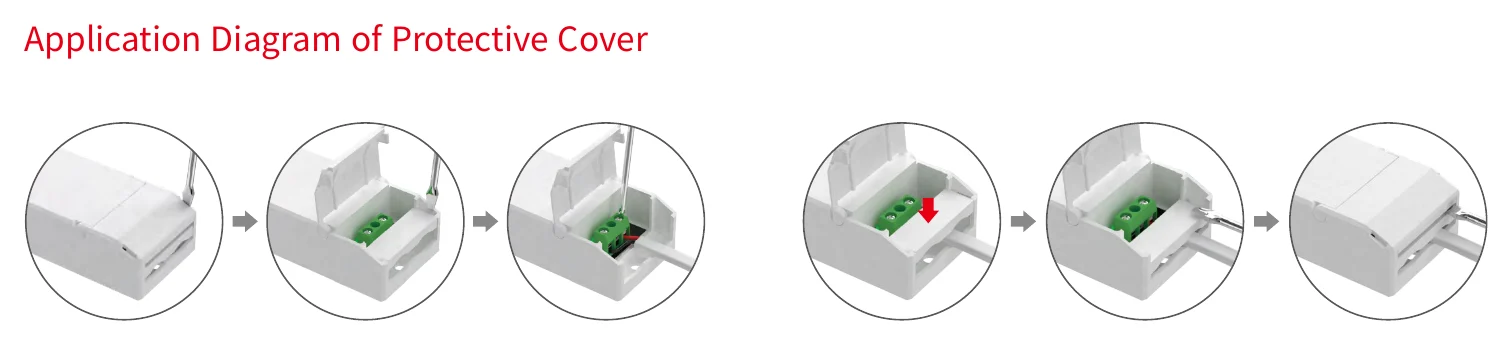

SE-20-100-700-W2A ApplicationDiagramofProtectiveCover — ApplicationDiagramofProtectiveCover

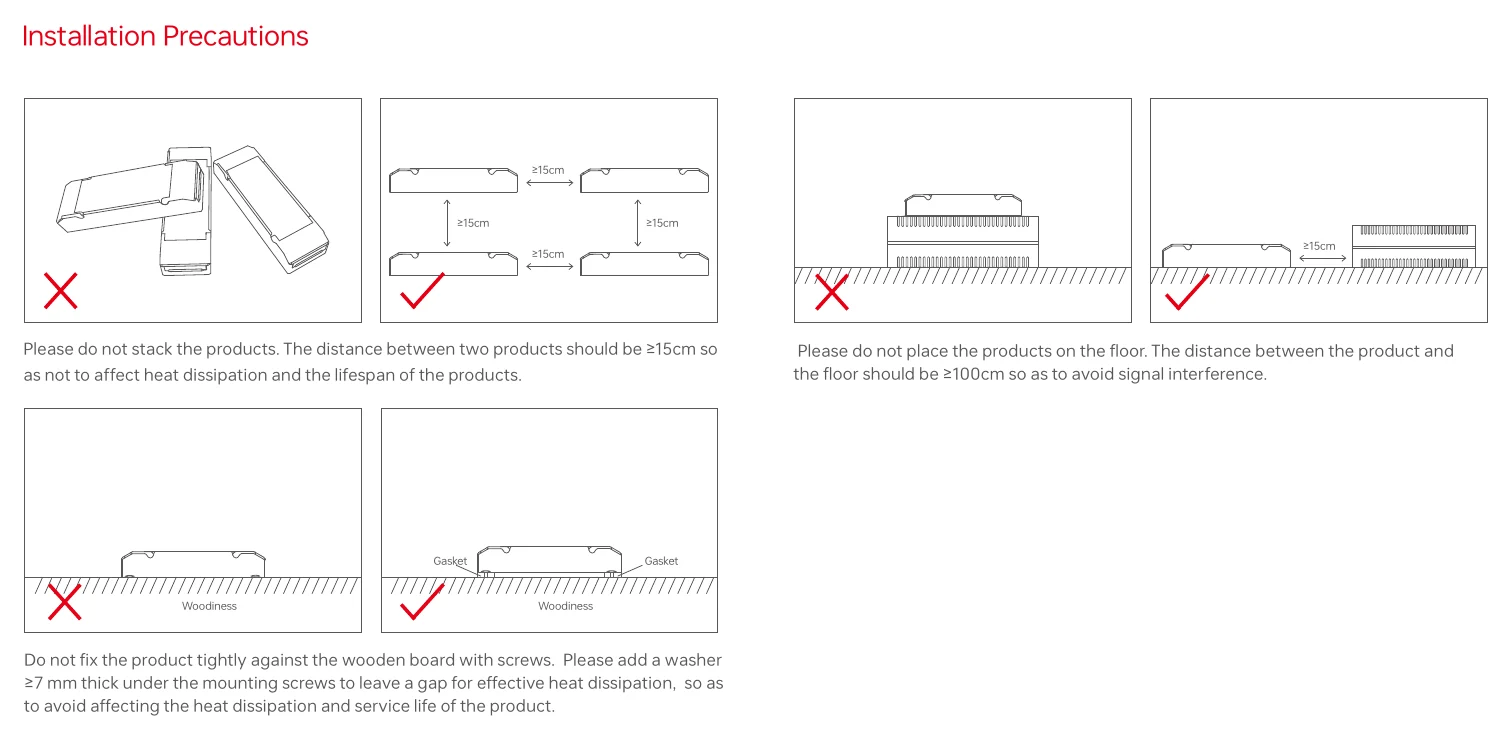

SE-20-100-700-W2A Installation Precautions — Installation Precautions

SE-20-100-700-W2A UsetheNFCLightingAPP — UsetheNFCLightingAPP

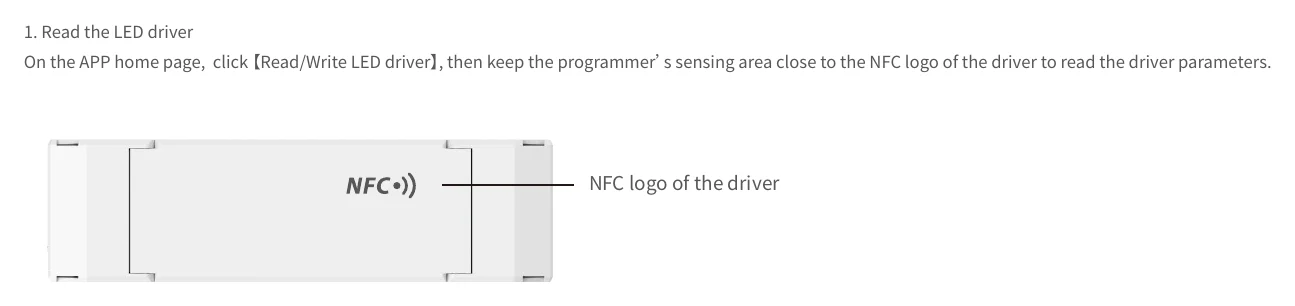

SE-20-100-700-W2A 1.ReadtheLEDdriver — 1.ReadtheLEDdriver

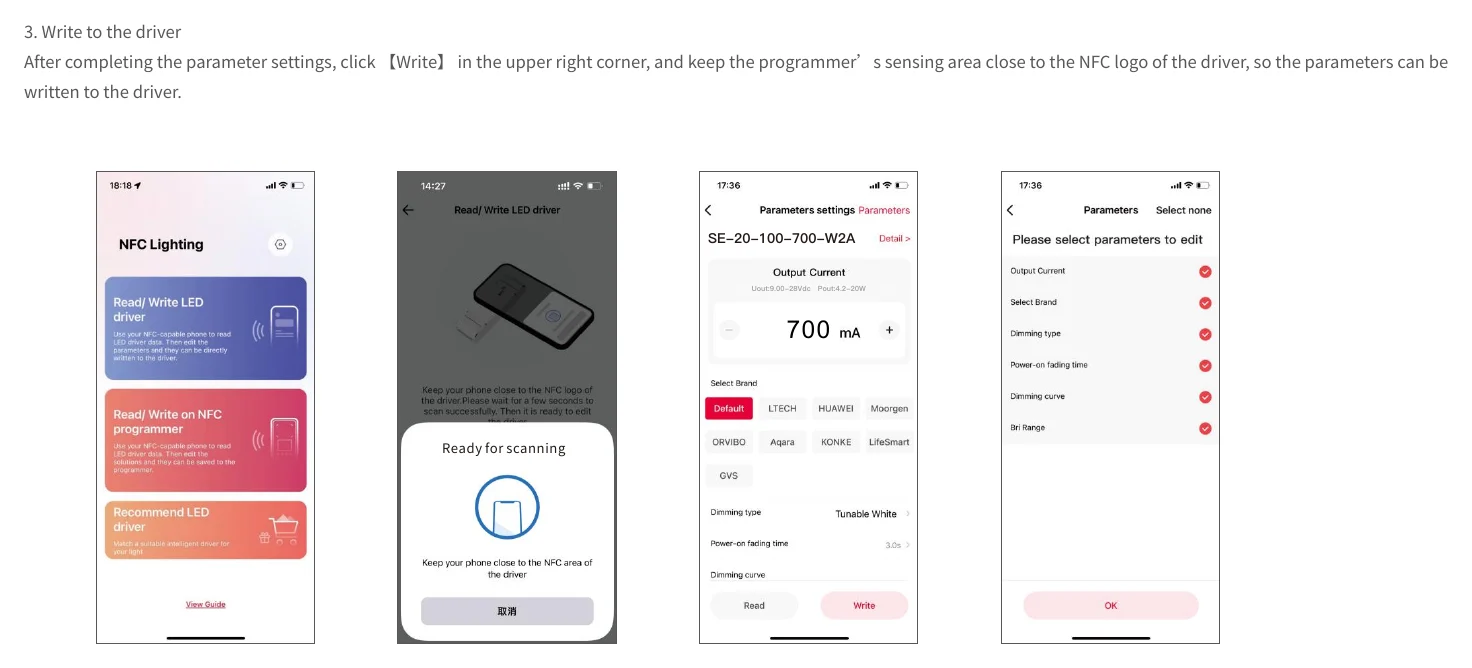

SE-20-100-700-W2A 3.Writetothedriver — 3.Writetothedriver

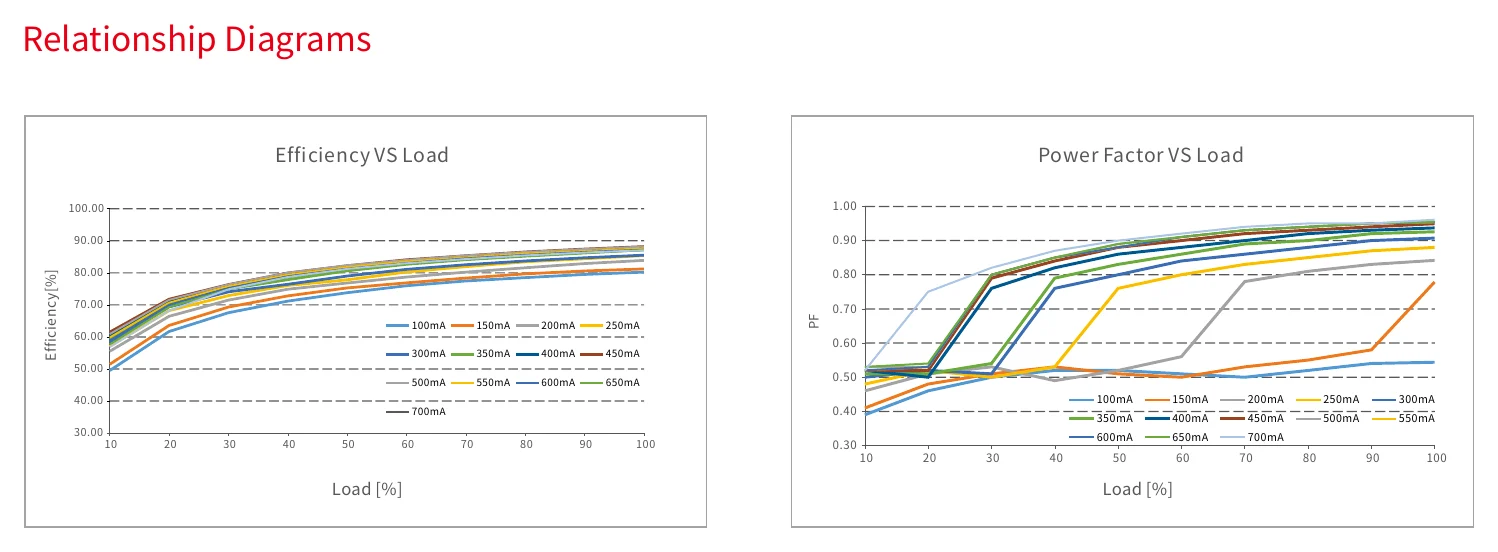

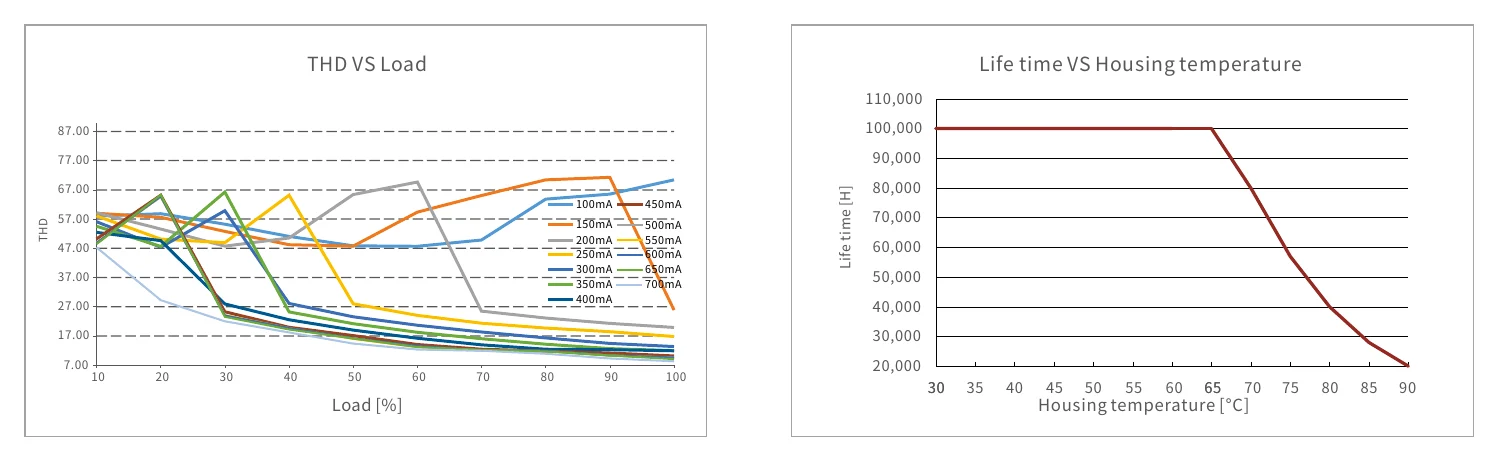

SE-20-100-700-W2A RelationshipDiagrams — RelationshipDiagrams

Downloads

Datasheet1

SE-20-100-700-W2A datasheetSE_20_100_700_W2A.pdf PDF Download

FAQ

What is this LED driver used for?

It is a constant current LED driver suitable for indoor lighting fixtures, such as LED panels and downlights, with an output power range of 0.9W to 20W.

What are the output voltage and current specifications?

The output voltage is 9-42Vdc (max 48Vdc) and the output current is adjustable from 100mA to 700mA.

How do I dim this driver?

It supports 0-10V dimming (including 1-10V, 10V PWM, and RX interfaces) with a dimming range from 0% to 100%, down to 0.01%.

What is the input voltage range?

The input voltage range is 100-240Vac (50/60Hz) or 120-300Vdc. It features a power factor greater than 0.95 at 115Vac and 0.9C at 230Vac.

What protection features are included?

It includes automatic recovery for overload, overheat, overvoltage, and short circuit conditions. The overheat protection activates if the PCB temperature reaches 110°C.

What are the operating temperature and IP rating?

The operating ambient temperature is -20°C to 45°C. The unit has an IP20 rating, making it suitable for indoor use only.

What are the dimensions and weight?

The dimensions are 127 x 40 x 23mm (L x W x H) and the net weight is approximately 105g.
