Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Ltech LF-60-500-1500-G2A2 60W 9-54VDC CC 0-10V LED Driver 0.5-1.05A
Log in to see priceOverview
LF-60-500-1500-G2A2 is the 9-54V output model of this series: typical efficiency 88.5%.
Features
- Slim metal housing;
- Overall design complies with Zhaga standards: built-in models meet Zhaga Book 13 and Book 24 specifications, while standalone models meet Zhaga Book 24 requirements;

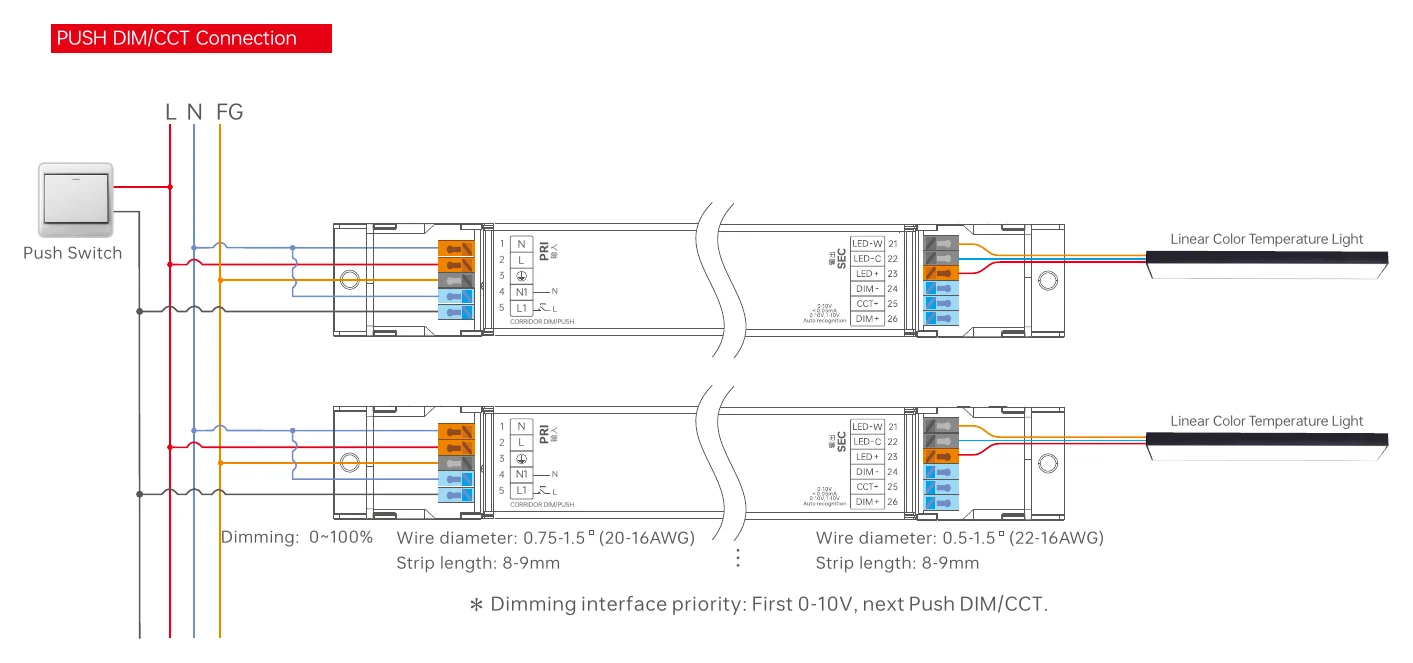

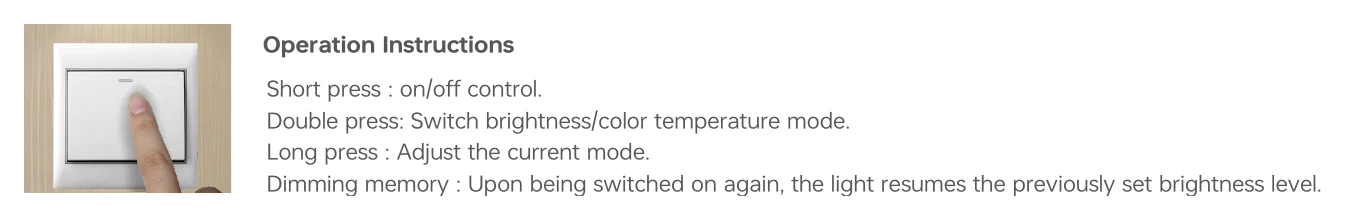

- Supports 0-10V, PUSH DIM/CCT, and corridor lighting dimming/color temperature adjustment;

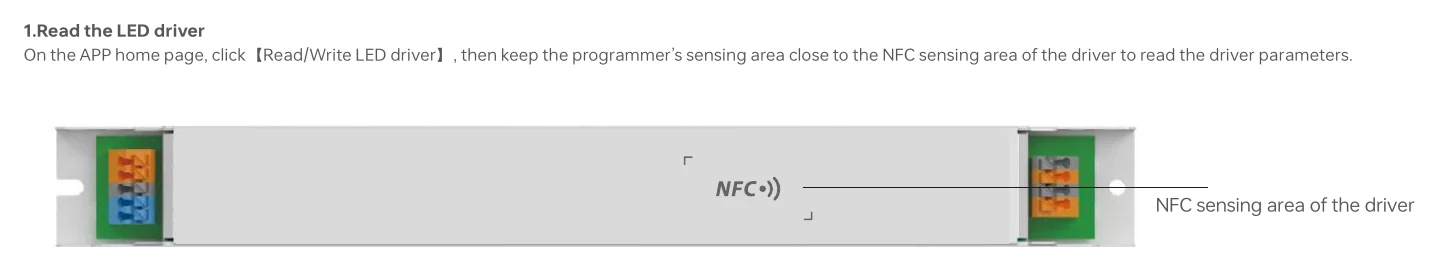

- Supports NFC rapid programming, enabling smartphone app control via NFC to adjust output current, dimming modes, and other parameters for driver data interaction;
- NFC current setting with step increments as low as 1mA for enhanced compatibility and precision;
- Ultra-low 0-10V port consumption <0.05mA;
- T-PWM ultra-deep dimming technology achieving 0.01% dimming depth;
- 0-100% full-range dimming with zero visible flicker, meeting high-frequency exemption standards;
- Features soft-start gradual brightening for enhanced visual comfort;
- EU ERP compliance: no-load power consumption and network standby power <0.5W;
- 0V output at no load to prevent LED fixture damage from poor contact;
- Over-temperature, over-voltage, overload, and short-circuit protection with automatic recovery;
- Suitable for indoor Class I, II, and III luminaires, such as linear lights, triple-proof lights, floor lamps, bracket lights, and other linear or ultra-thin fixtures;
- Lifespan up to 100,000 hours under normal use;
- 5-year warranty.
Specifications
LF-60-500-1500-G2A2Specifications from the official datasheetDownload datasheet PDF
FEATURES
- Output Type
- Constant current
- Dimming Interface

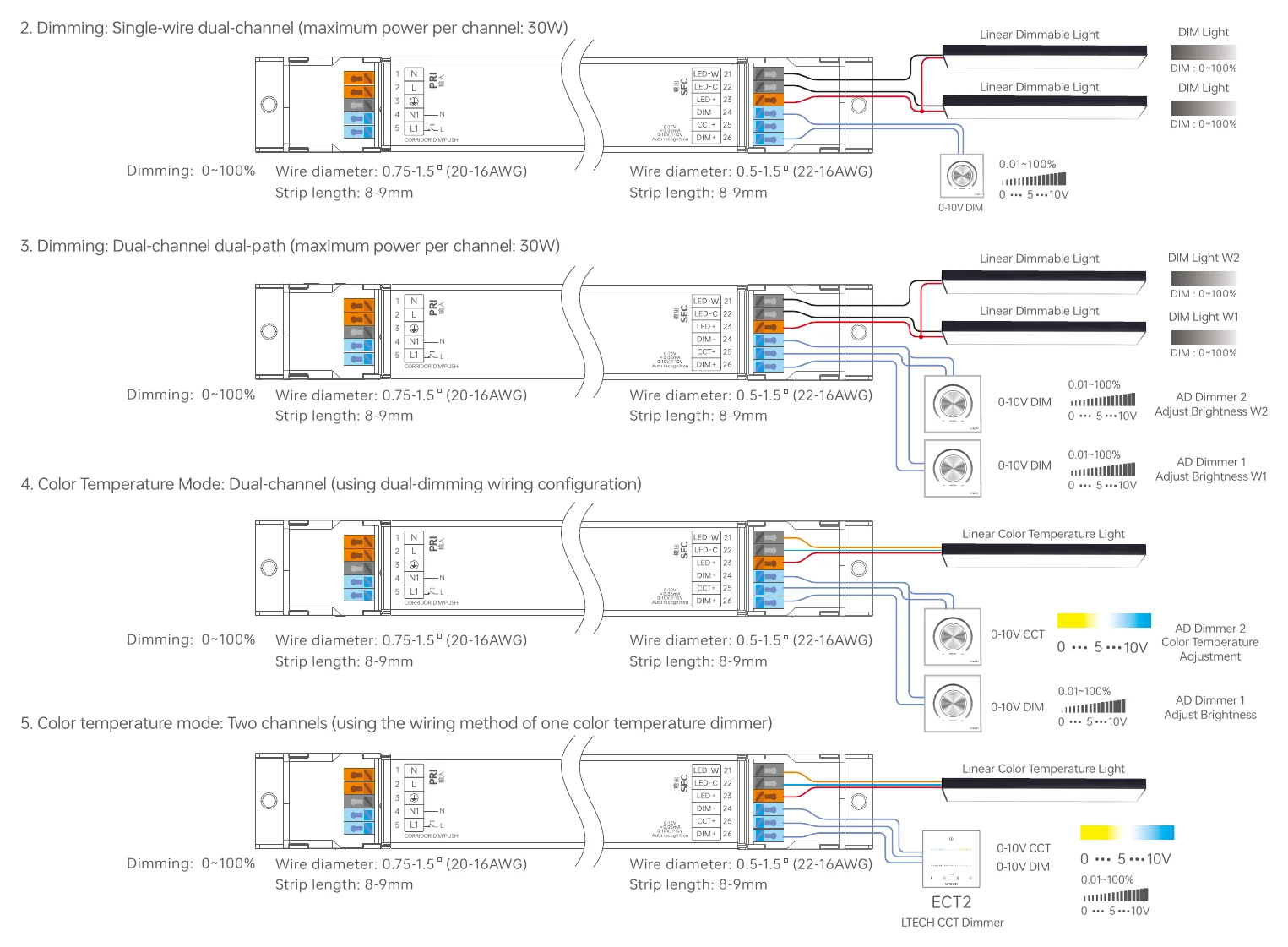

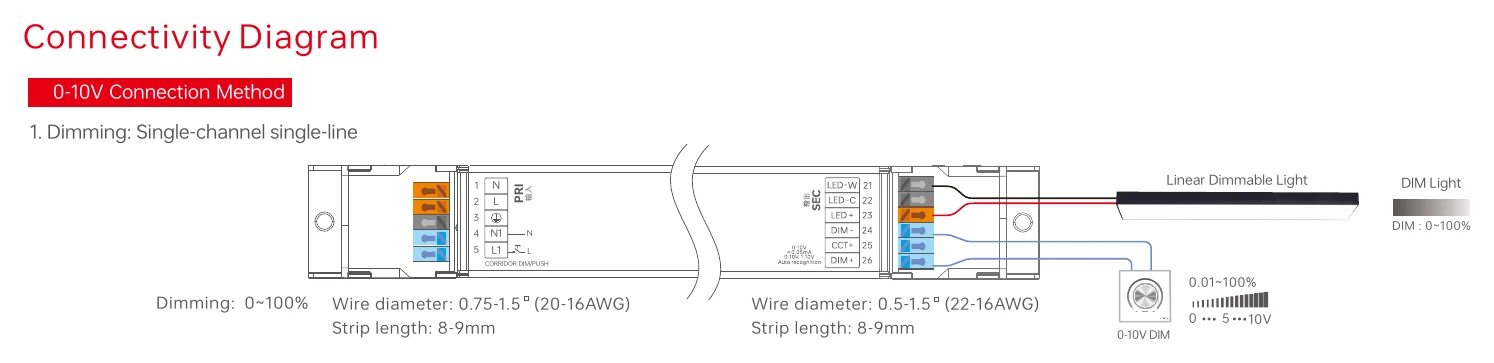

- 0-10V(1-10V,10V PWM,RX), PUSH DIM/CCT
- Output Feature
- Isolation
- Zhaga Standard
- Book 24
- Installation Method

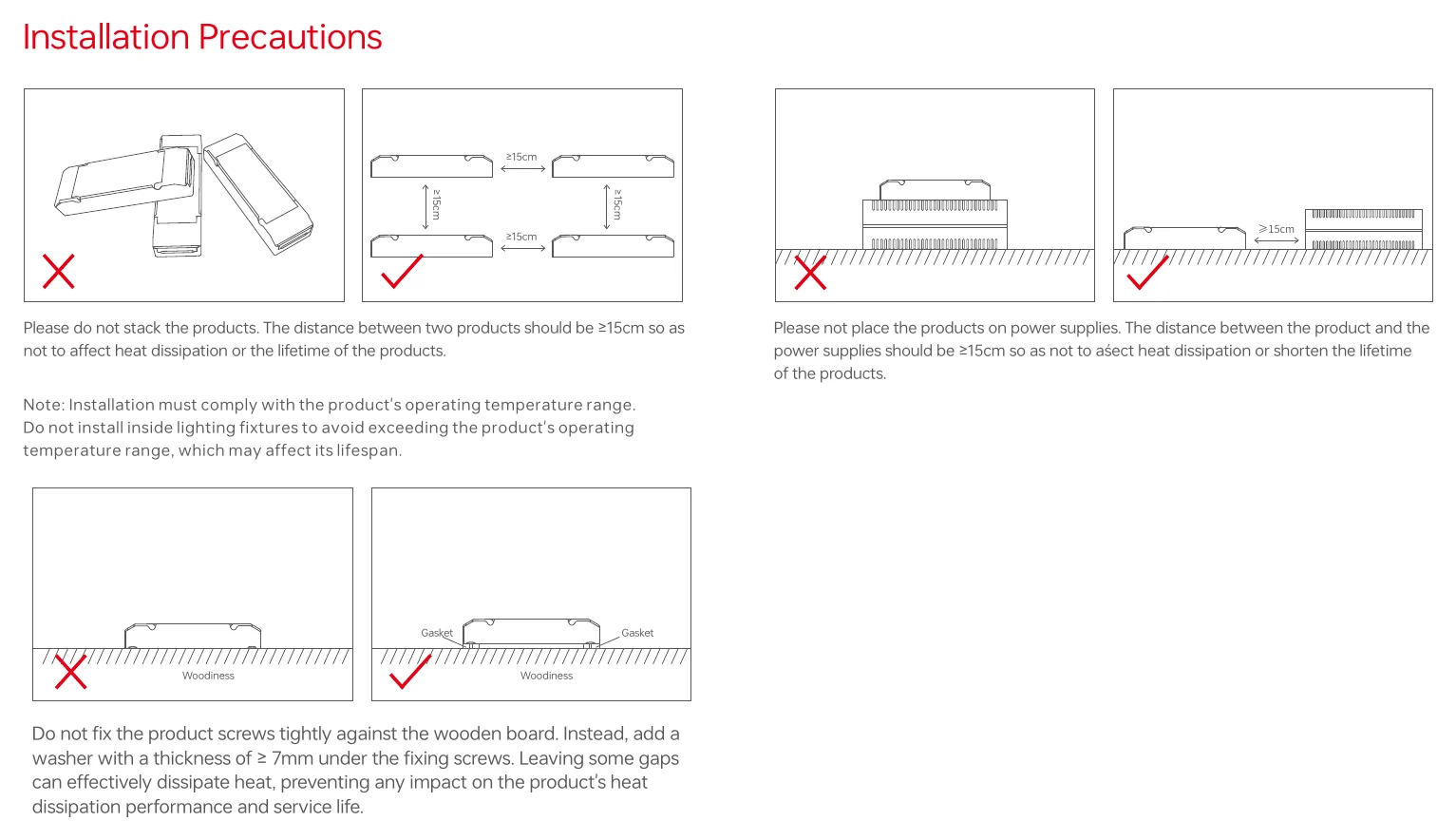

- Can be independently installed in ceilings or light channels, etc.
- Other Features

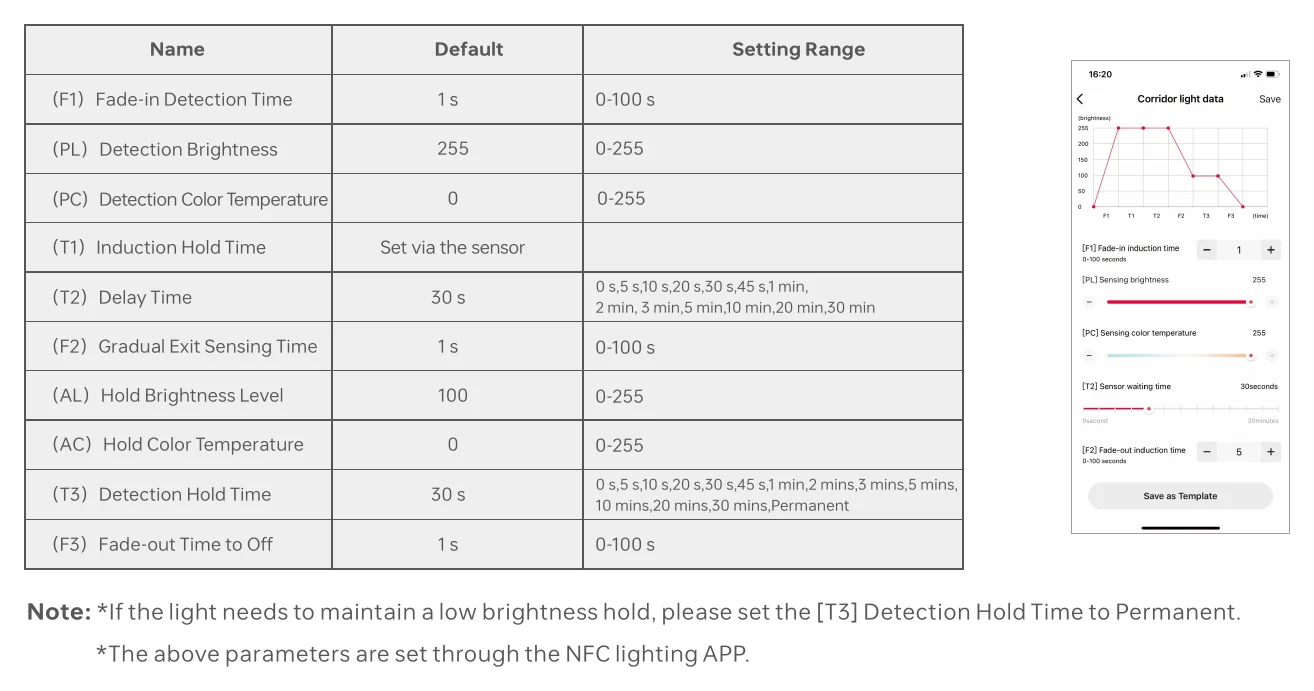

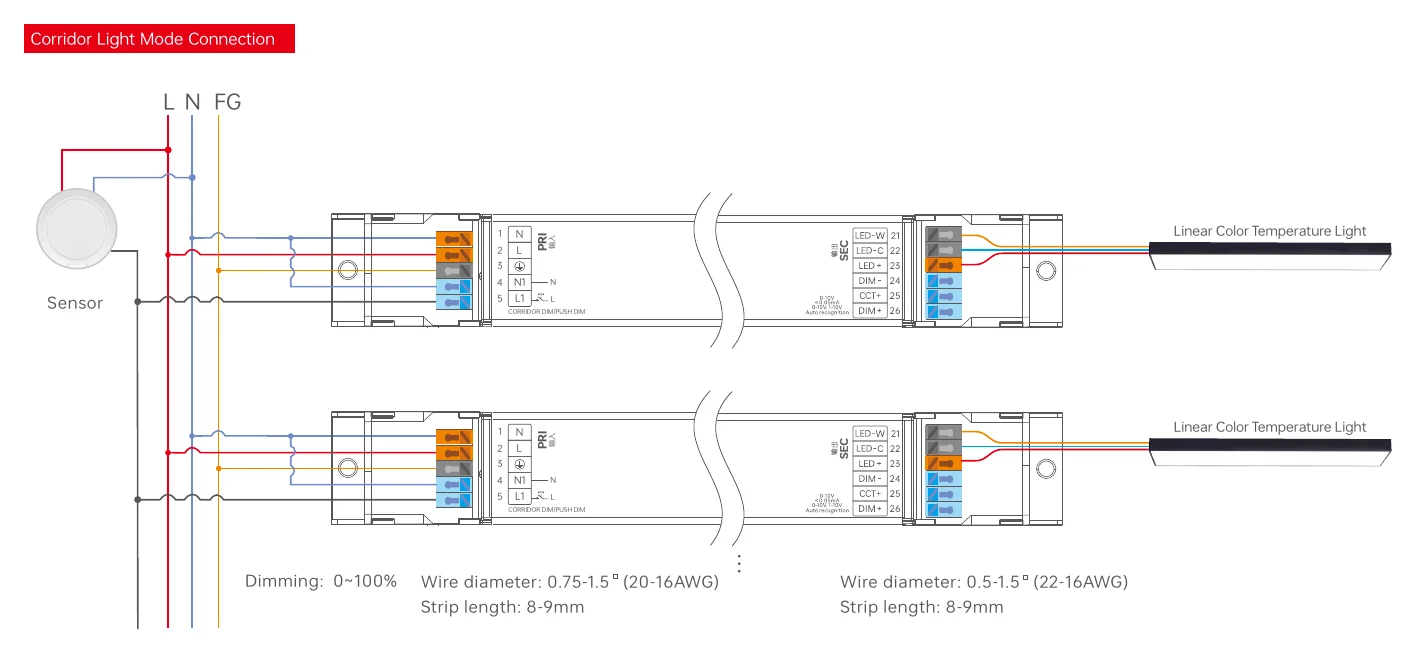

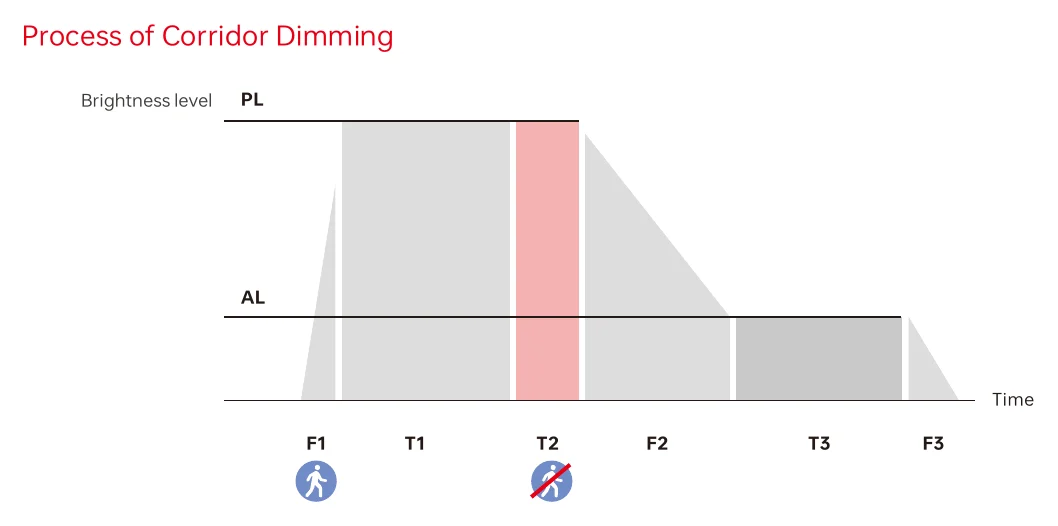

- Corridor Lighting Applications
- IP Rating
- IP20
- Insulation Class
- Class II (Suitable for class I/II/III light fixtures)
OUTPUT
- Output Voltage
- 9-54V
- Max. Output Voltage(No-load)
- ≤59.5V
- Rated Current Range

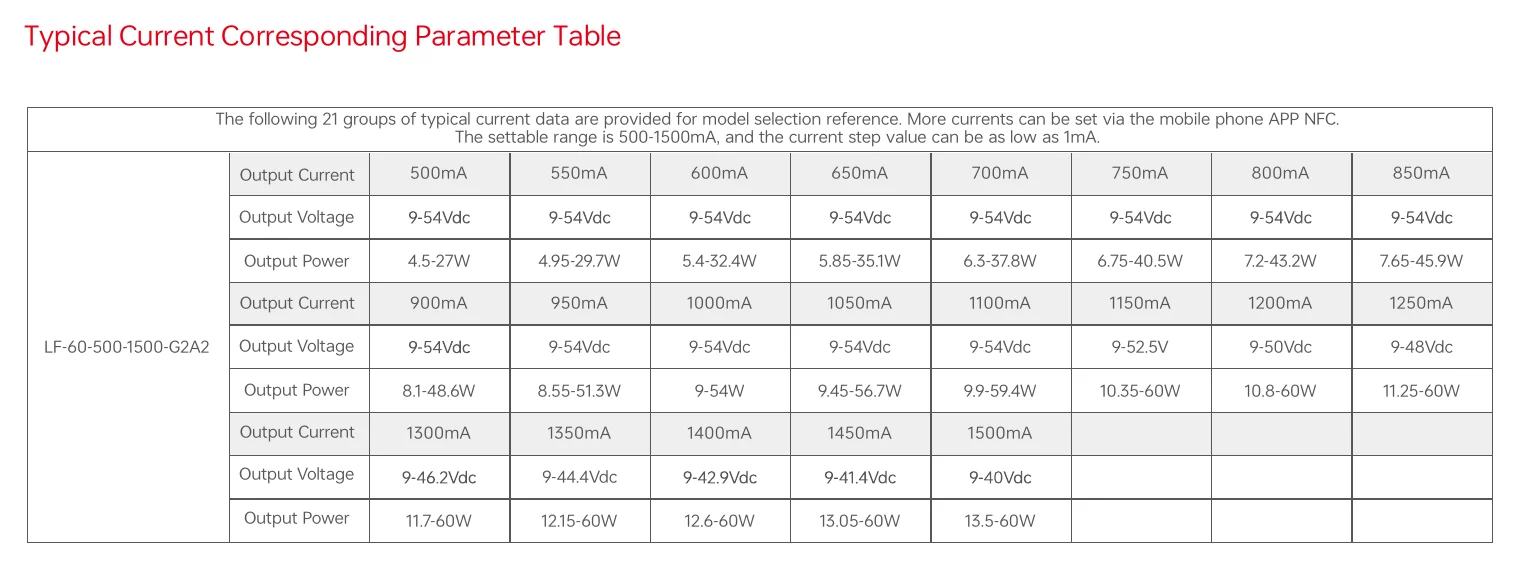

- 500-1500mA (Set higher current levels via the mobile app's NFC feature, with step increments as low as 1mA; Default: 500mA)
- Load Power Range
- 4.5-60W
- Dimming Range
- 0~100%, Dimming depth: 0.01%
- LF Current Ripple
- <5%(Maximum current for non dimming state)
- Current Accuracy
- ±5%
- PWM Frequency
- ≤3600Hz
INPUT
- AC Voltage Range
- 220-240V~
- DC Voltage Range
- 220-240V
- Rated Voltage
- 230V~
- Frequency
- 50/60Hz
- Input Current
- ≤0.35A/230V~
- Power Factor
- PF＞0.95/230V~ (Fully loaded)
- THD
- 230V~@THD<10% (Fully loaded)
- Efficiency(Typ.)
- 88.5%
- Inrush Current
- 18A (twidth=123us, 50% Ipeak) / 230V~
- Anti Surge
- L-N: 2KV L-FG/N-FG: 4KV
- Leakage Current
- Max.0.5mA
ENVIRONMENT
- Operating Temperature
- ta:-20°C~50°C tc:80°C
- Working Humidity
- 20~95%RH, non-condensing
- Storage Temperature/Humidity
- -40~80°C/10~95%RH
- Temperature Coefficient
- ±0.03%/°C(-20°C~50°C)
- Vibration
- 10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively
PROTECTION
- Overload Protection
- Automatically protect the device when the load exceeds 102% of the rated power. Automatically recover once load is reduced
- Overheat Protection
- Intelligently adjust or turn off the current output if the PCB temperature ≥110°C. When the PCB temperature <90°C, automatically recover normal output
- Overvoltage Protection
- Automatically protect the device when voltage exceeds the no-load voltage. It can be recovered automatically
- Short Circuit Protection
- Enter hiccup mode if short circuit occurs, and recover automatically
SAFETY & EMC
- Withstand Voltage①
- I/P-O/P: 3750V~/1min/<5mA, I/P-FG: 1750V~/1min/<5mA, O/P-FG:500V~/1min/<5mA, Signal-FG:500V~/1min/<5mA
- Insulation Resistance
- I/P-O/P: 100MΩ/500V~/1min/25℃/70%RH
- Safety Certifications
-
Parameter Standard Test Level CCC China GB19510.1, GB19510.14, GB19510.213 TUV Germany EN61347-1, EN61347-2-13, EN62493 CB CB Member States IEC61347-1, IEC61347-2-13 CE European Union EN61347-1, EN61347-2-13, EN62384 EAC Russia IEC61347-1, IEC61347-2-13 RCM Australia AS 61347-1, AS 61347-2-13 ENEC Europe EN61347-1, EN61347-2-13, EN62384 - EMC Emission
-
Parameter Standard Test Level CCC China GB/T17743, GB17625.1 CE European Union ENIEC55015, ENIEC61000-3-2, EN61000-3-3 EAC Russia IEC62493, IEC61547, EH55015 RCM Australia EN55015, EN61000-3-2, EN61000-3-3, EN61547 - EMC Immunity
- EN61000-4-2,3,4,5,6,8,11,EN61547
ErP
- Power Consumption
- Networked standby ＜0.5W(After shutdown by command) ; No-load power consumption ＜0.5W (When the lamp is not connected)
- Flicker/Stroboscopic Effect
-
Parameter Standard IEEE1789 Meet IEEE 1789 standard/High frequency exemption level CIE SVM PstLM≤1.0, SVM≤0.4
OTHERS
- Weight(N.W.)
- 260g±5g

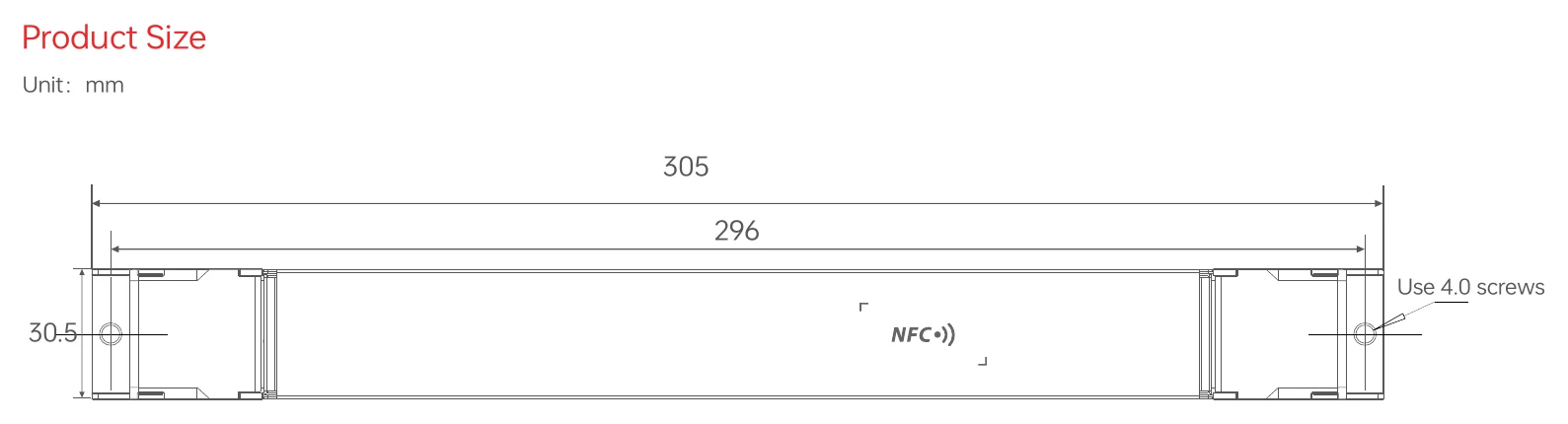

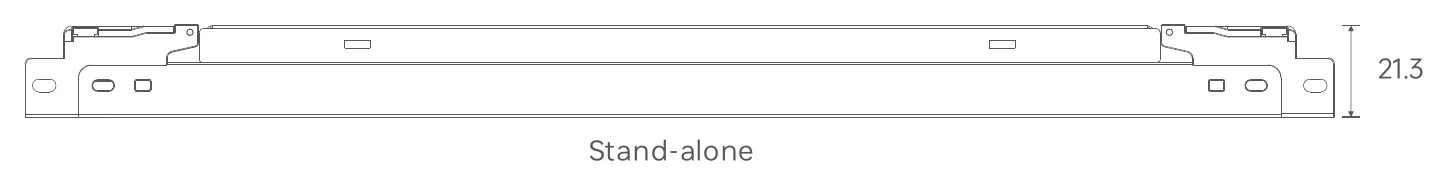

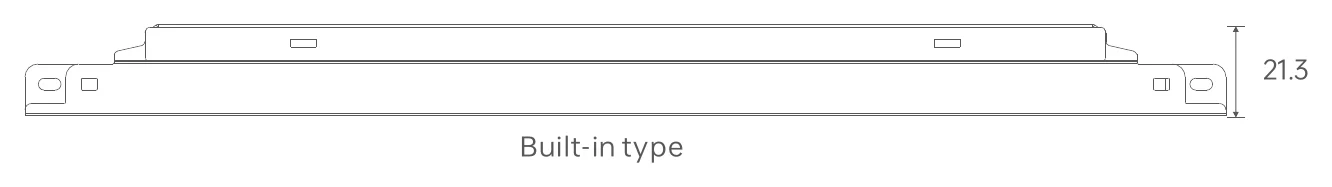

- Dimensions
- 305x30.5x21.3mm(LxWxH)
Test conditions and notes1
- ①Note: When performing a withstand voltage test to ground (FG), the gas discharge tube at the drive input must be temporarily removed to prevent functional operation of the internal gas discharge tube (see IEC 60598-1-10.2). After testing is complete, it must be reinstalled to restore surge protection functionality for the power line to ground and ensure reliable contact.

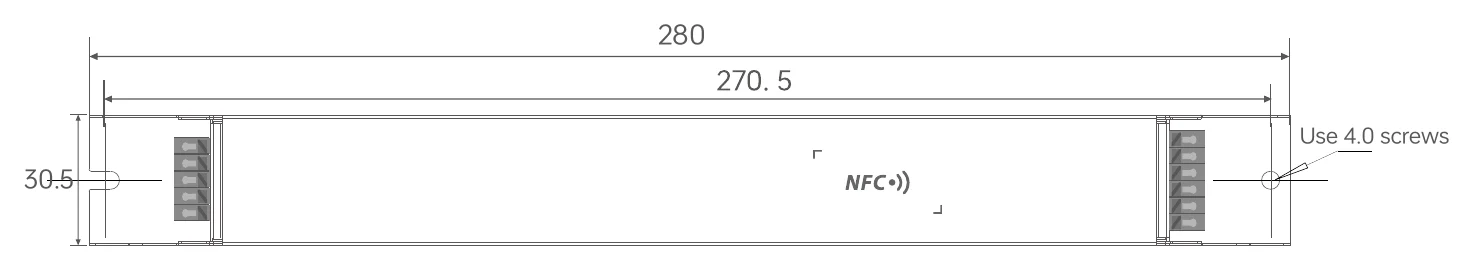

Technical drawings
