Ltech LM-100-24-G1D2F 100W 24VDC CV DALI-2 LED Driver 4.17A
Log in to see priceOverview
LM-100-24-G1D2F is the 24V output model of this series: typical efficiency 93%.
Features
- Housing made from SAMSUNG/COVESTRO's V0 flame retardant PC materials.

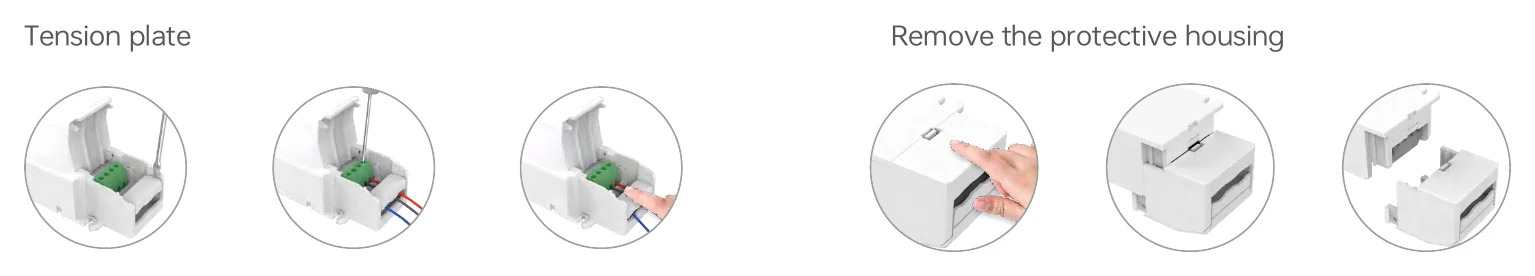

- Screwless wire-pressing flip cover design, with detachable end caps. The length of the shell can be adjusted as needed.

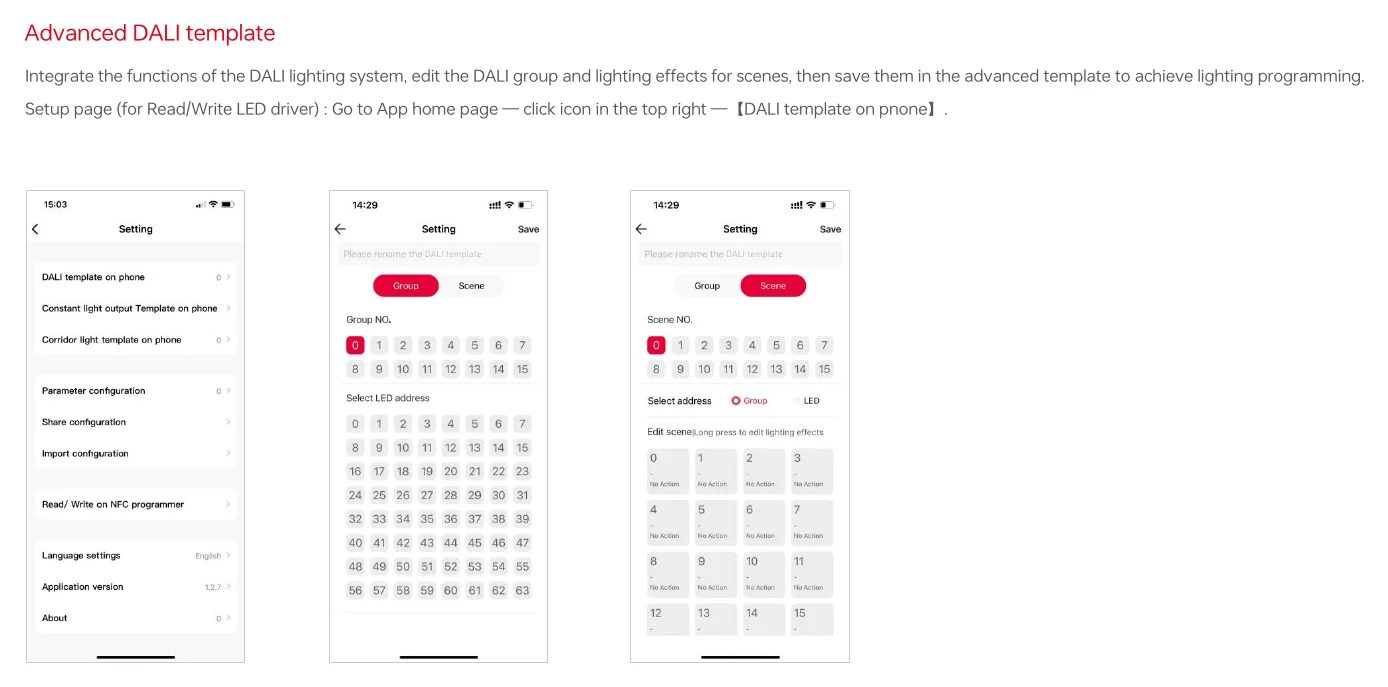

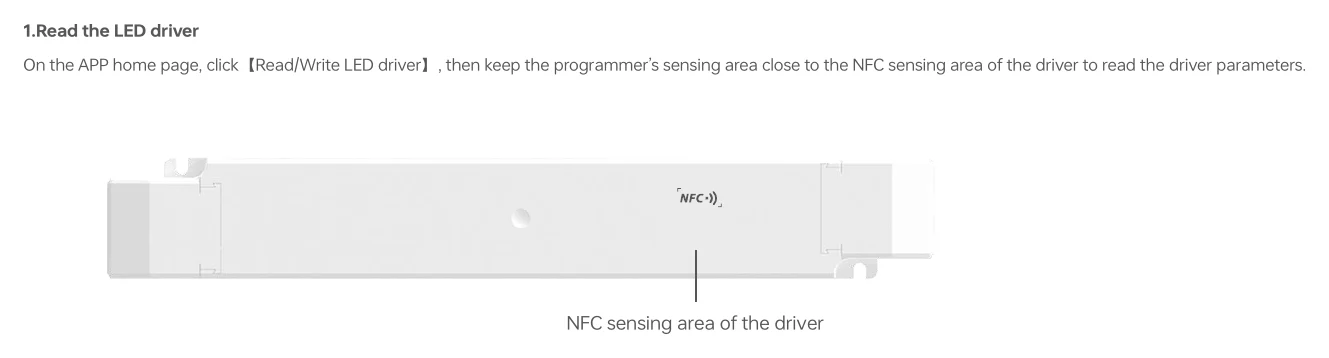

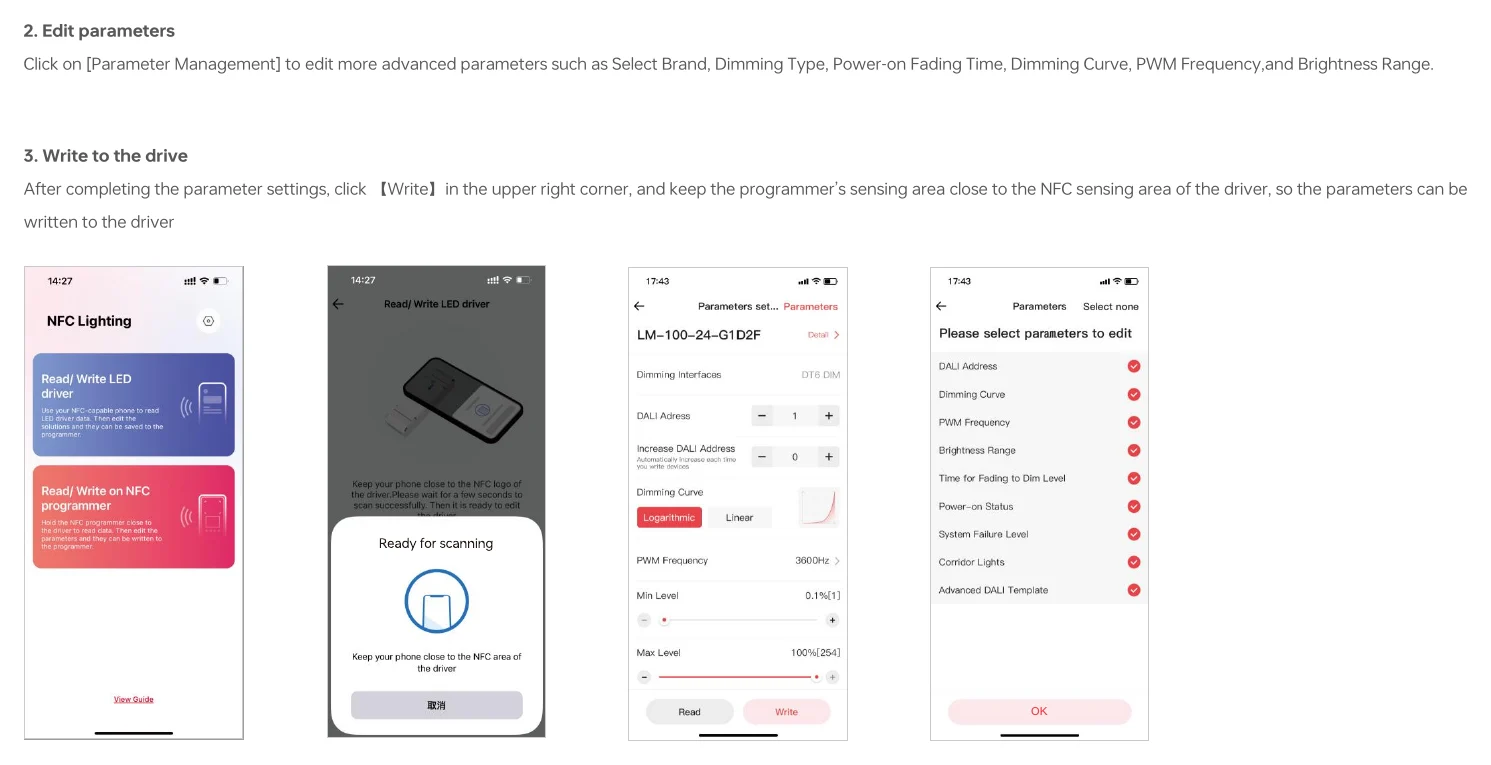

- Supports full-command NFC fast programming, allowing configuration via mobile app. Users can modify dimming mode, brightness range, DALI templates, and other settings through NFC, enabling data interaction with the driver.
- Two independent SELV constant voltage output channels.

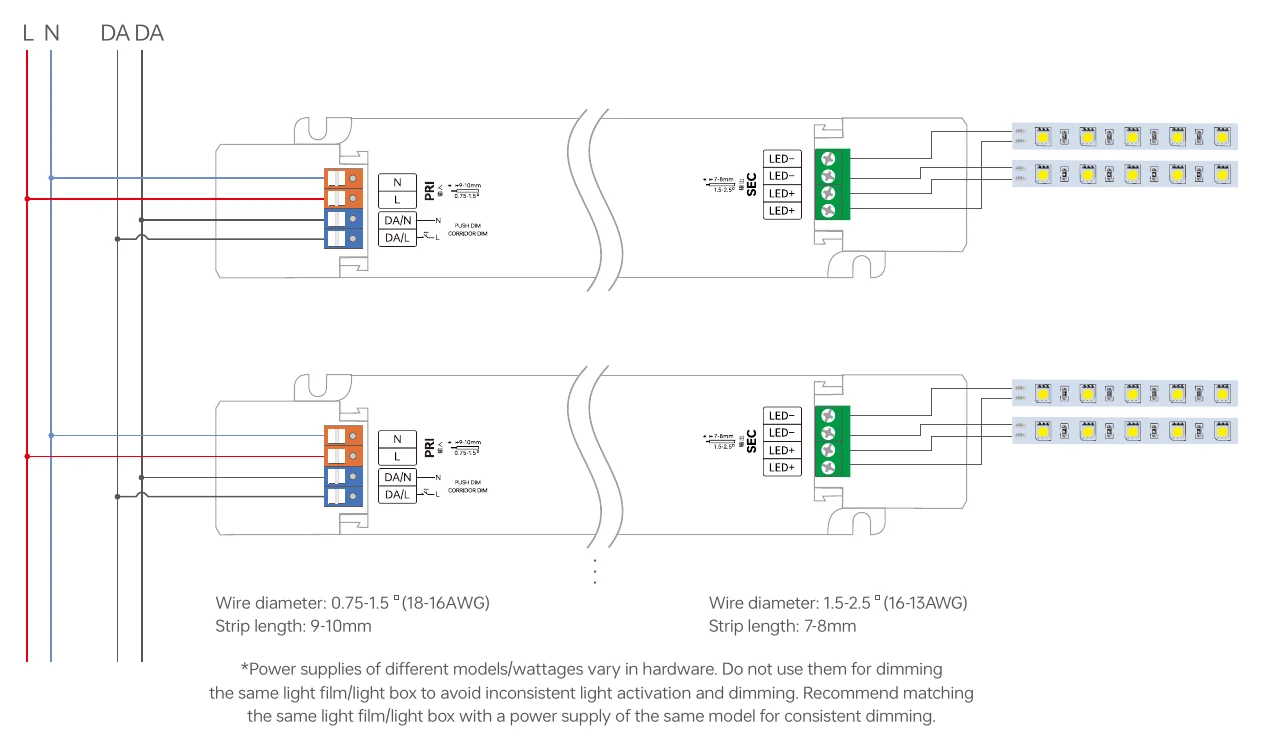

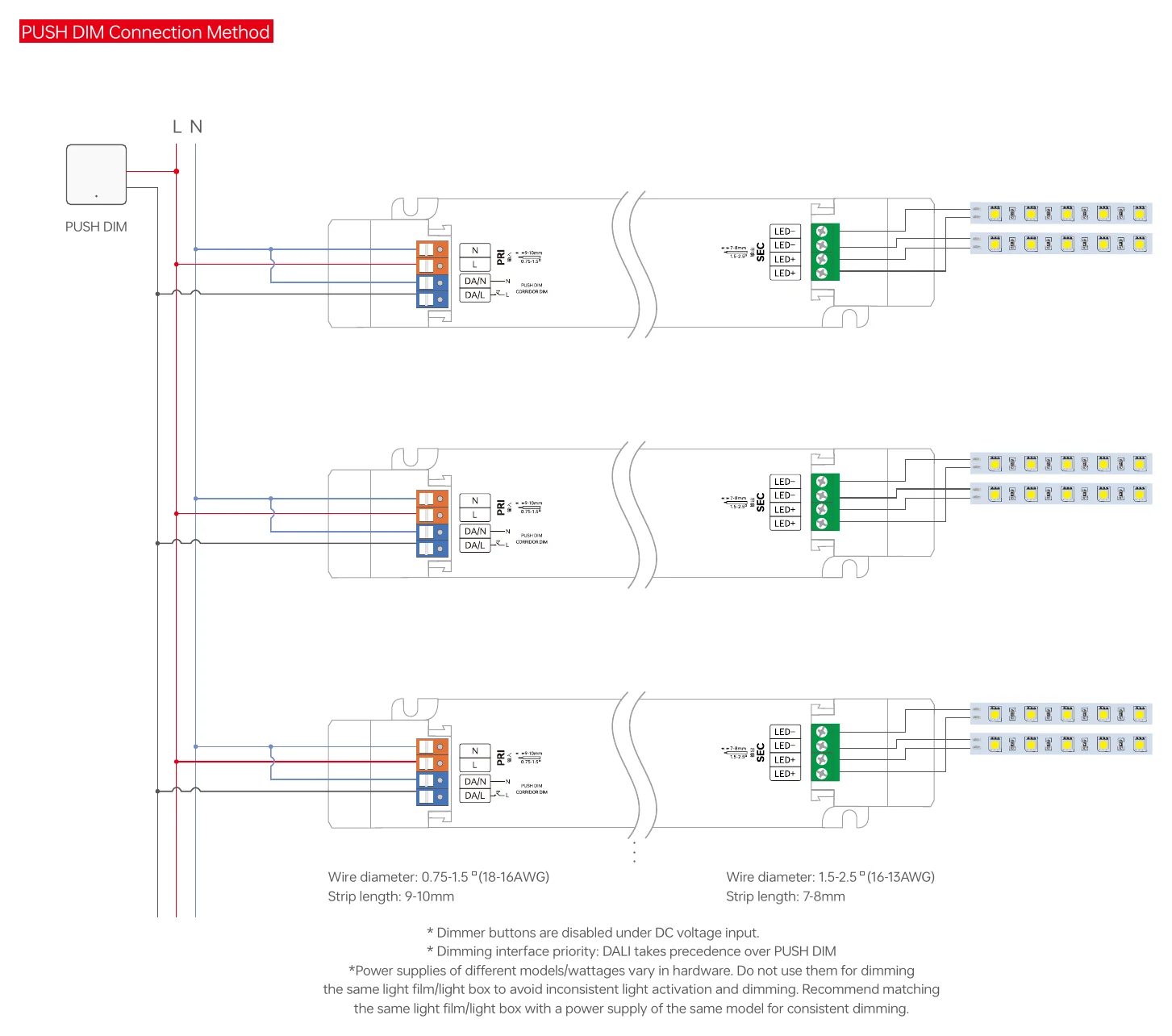

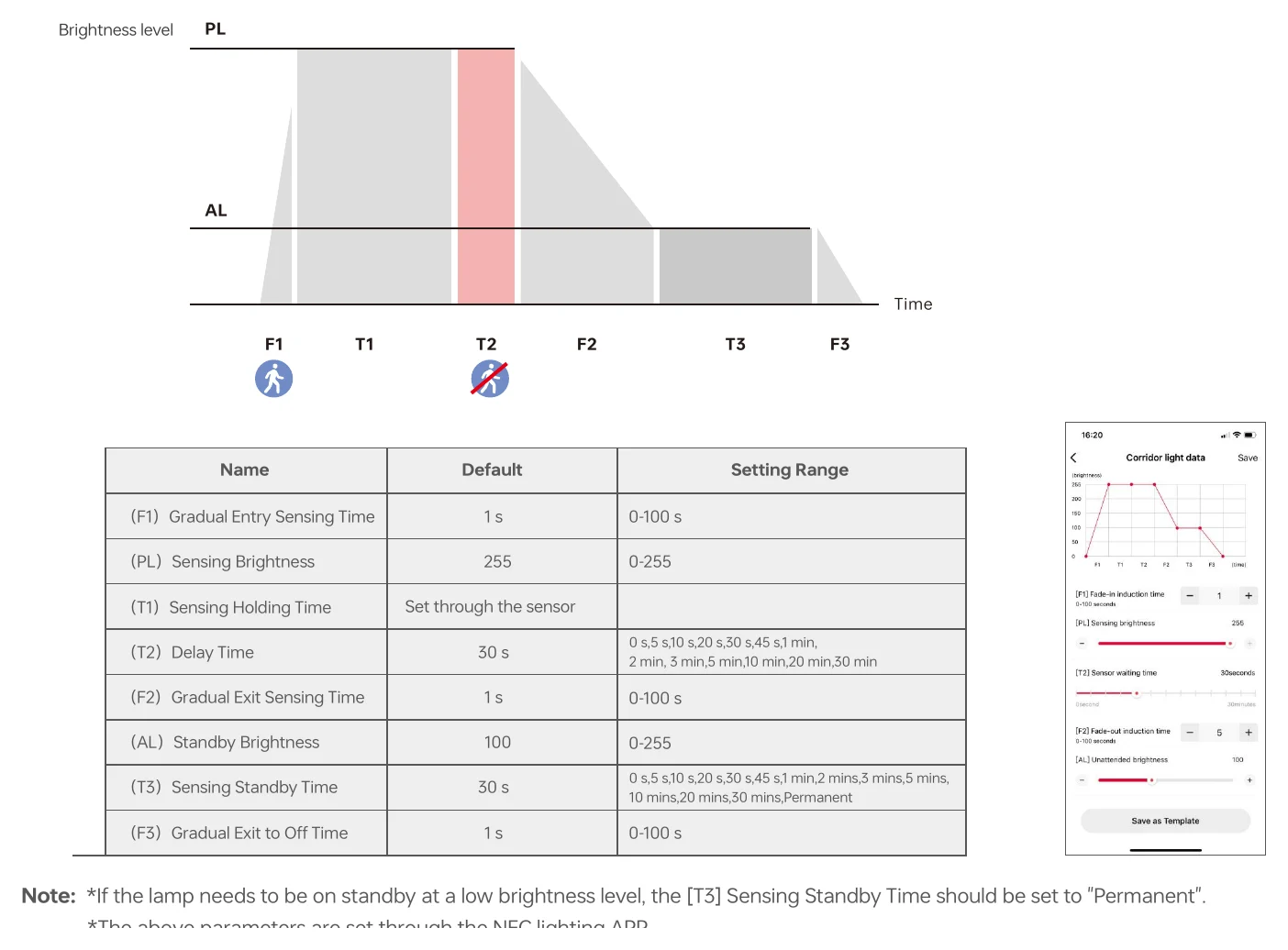

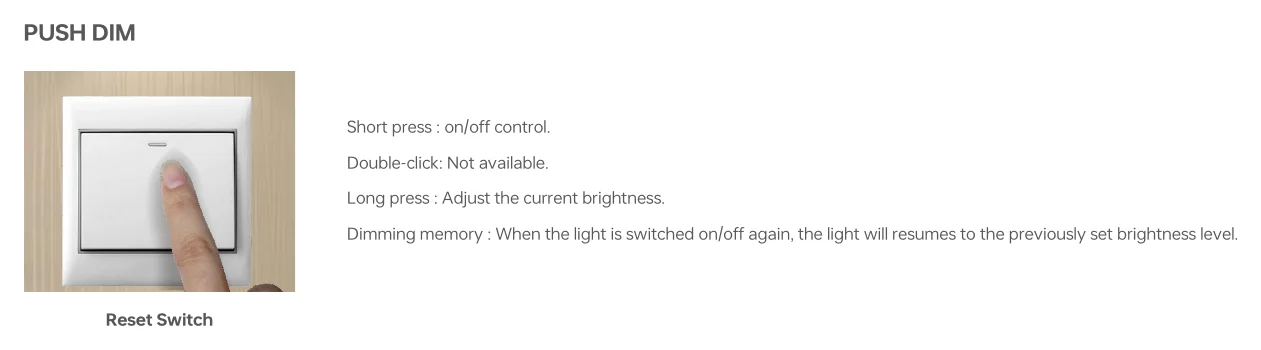

- Supports DALI-2 DT6, Push DIM, and corridor light DIM modes.
- Compatible with L-Data and DALI Part 251, 252, 253.
- Supports deep dimming from 0–100%, with a minimum dimming level of 0.01%.
- Supports wired firmware update for devices.
- Complies with the EU ERP Directive on energy efficiency, with no-load power consumption < 0.5W and network standby power consumption < 0.5W.
- Innovative thermal management technology for intelligent protection of power supply lifespan.
- Overheat, over voltage, overload, short circuit protection and automatic recovery.
- Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
- Normal service life can reach 100,000 hours.
- 5-year warranty (Rubycon capacitor).
Specifications
LM-100-24-G1D2FSpecifications from the official datasheetDownload datasheet PDF
Features
- Output Type
- Constant voltage
- Dimming Interface
- DALI-2 DT6, PUSH DIM
- Output Feature
- Isolation
- Protection Grade
- IP20
- Insulation Grade
- Class II (Suitable for class I/ II /III light fixtures)
OUTPUT
- Output Voltage
- 24V
- Output Voltage Range
- 24V ± 0.5V
- Output Current
- Max. 4.17A
- Output Power
- Max. 100W
- Output Power Range
- 0-100W
- Strobe Level
- High frequency exemption level
- Dimming Range
- 0-100%, down to 0.01%
- Overload Power Limitation
- ≥102%
- Ripple
- ≤300mV
- PWM Frequency
- 300-22000Hz
INPUT
- Input AC Voltage
- 220-240V~
- Input DC Voltage
- 220-240V (EMI needs to be evaluated after the lamp is equipped.)
- Frequency
- 50/60Hz
- Input Current
- Max. 0.5A/230V~
- Power Factor
- PF>0.98/230V~ (at full load)

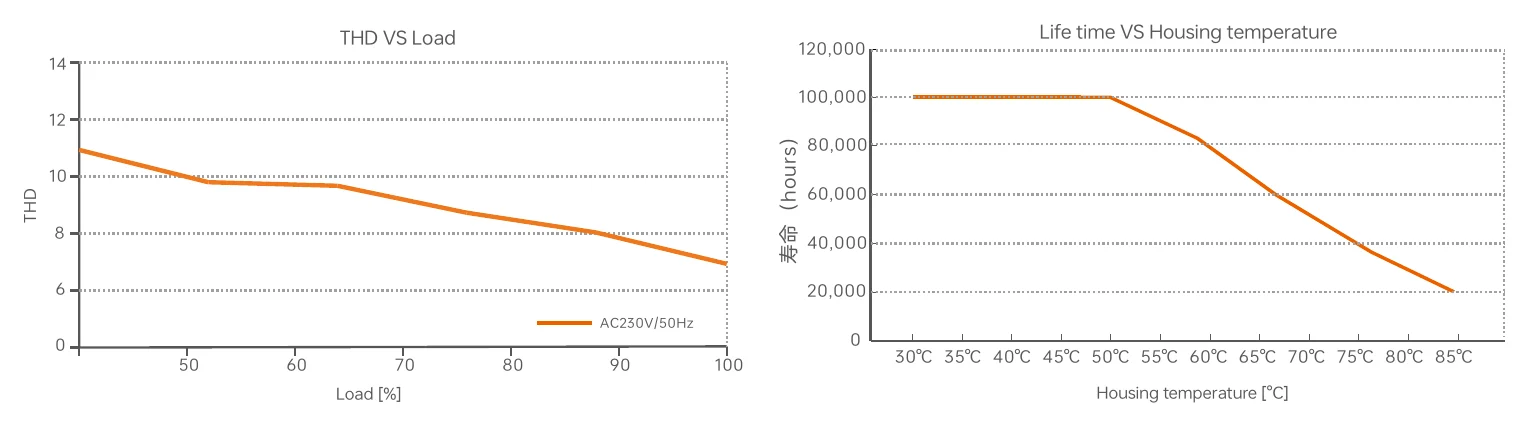

- THD
- THD<10%@ 230V~(at full load)

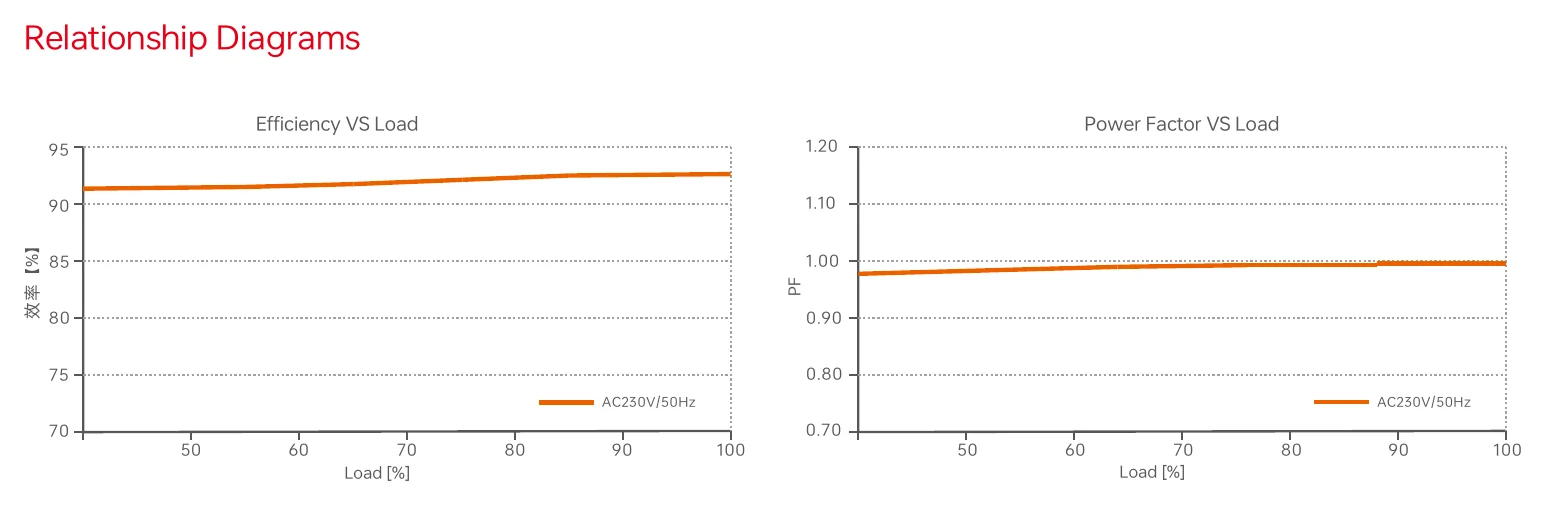

- Efficiency (Typ.)
- 93%
- Inrush Current
- Cold start 45A(Test twidth=300us tested under 50% Ipeak)/230Vac
- Anti Surge
- L-N: 2KV
- Leakage Current
- Max. 0.5mA
ENVIRONMENT
- Working Temperature
- ta: -20 ~ 50°C tc: 80°C
- Working Humidity
- 20 ~ 95%RH, non-condensing
- Storage Temperature/Humidity
- -40 ~ 80°C, 10~95%RH
- Temperature Coefficient
- ±0.03%/°C(-20℃-50°C)
- Vibration
- 10-500Hz, 2G 12mins/cycle, 72 min for X, Y and Z axes respectively
PROTECTION
- Overheat Protection
- Intelligently adjust or turn off the output current if the PCB temperature ≥110°C, and recover automatically
- Overload Protection
- Automatically protect the device when the load exceeds 102% of the rated power. Automatically recover once load is reduced
- Short Circuit Protection
- Enter hiccup mode if short circuit occurs, and recover automatically
- Overvoltage Protection
- No-load voltage ≥ 28V; output turns off and can recover automatically.
- Withstand Voltage
- I/P-O/P:3750V~
- Insulation Resistance
- I/P-O/P: 100MΩ/500VDC/25°C/70%RH
SAFETY & EMC
- Safety Standards
-
Parameter Standard Test Level CCC China GB19510.1，GB19510.14，GB19510.213 TUV Germany EN61347-1，EN61347-2-13，EN62493 CB CB Member States IEC61347-1，IEC61347-2-13 CE European Union EN61347-1，EN61347-2-13，EN62384 EAC Russia IEC61347-1，IEC61347-2-13 RCM Australia AS 61347-1，AS 61347-2-13 ENEC Europe EN61347-1，EN61347-2-13，EN62384 / - EMC Emission
-
Parameter Standard Test Level CCC China GB/T17743，GB17625.1 CE European Union EN55015，EN61000-3-2，EN61000-3-3，EN61547 EAC Russia IEC62493，IEC61547，EH55015 RCM Australia EN55015，EN61000-3-2，EN61000-3-3，EN61547 / - EMC Immunity
- EN61000-4-2,3,4,5,6,8,11,EN61547
ErP
- Power Consumption
-
Parameter Standard Networked standby < 0.5W (After switching on/off via command) No-load power consumption < 0.5W(When the lamp is not connected) - Flicker/Stroboscopic Effect
-
Parameter Standard IEEE1789 Meet IEEE 1789 standard/High frequency exemption level CIE SVM PstLM≤1.0，SVM≤0.4 - DF
-
Parameter Standard Phase factor DF≥0.9
OTHERS
- Weight(N.W.)
- 300g±10g
- Dimensions
- 293×43×30mm(L×W×H)
Certifications & ratings
- Flicker Free
- IEEE1789
- L-Data
- 251/252/253
- ErP
- RED
- Marked features
- NFC, CORRIDOR DIM
Test conditions and notes1
- This driver is suitable for connecting LED lighting fixtures with resistor current limiting (such as LED light strips). If it is connected to a fixture with built-in constant current IC for current limiting, an instantaneous inrush current dozens of times higher will be generated, causing the driver to activate overload protection (hiccup and strobing). When placing an order, such fixtures with built-in constant current IC for current limiting (e.g., MR16 bulbs, underground lights, wall washers, constant current hard light strips, etc.) need to be specified to facilitate the burning of a special program.

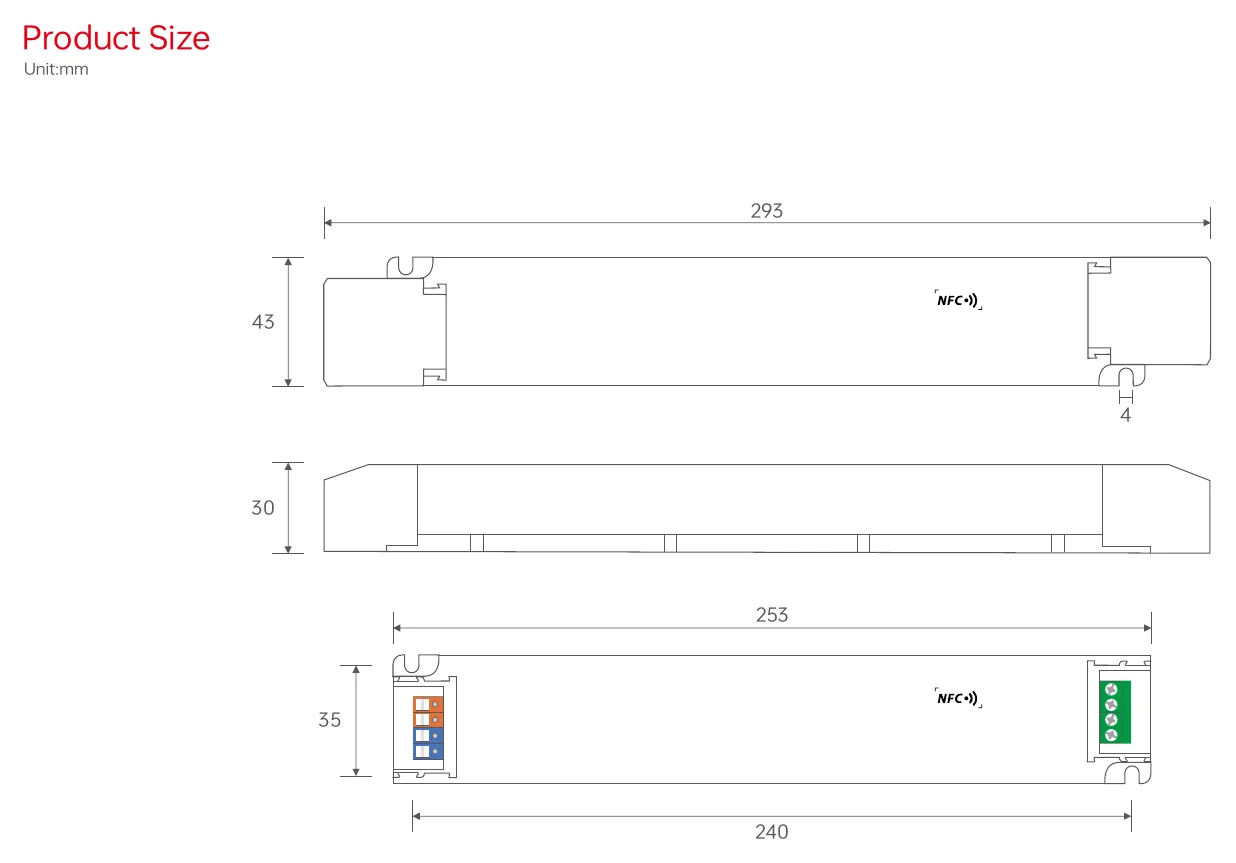

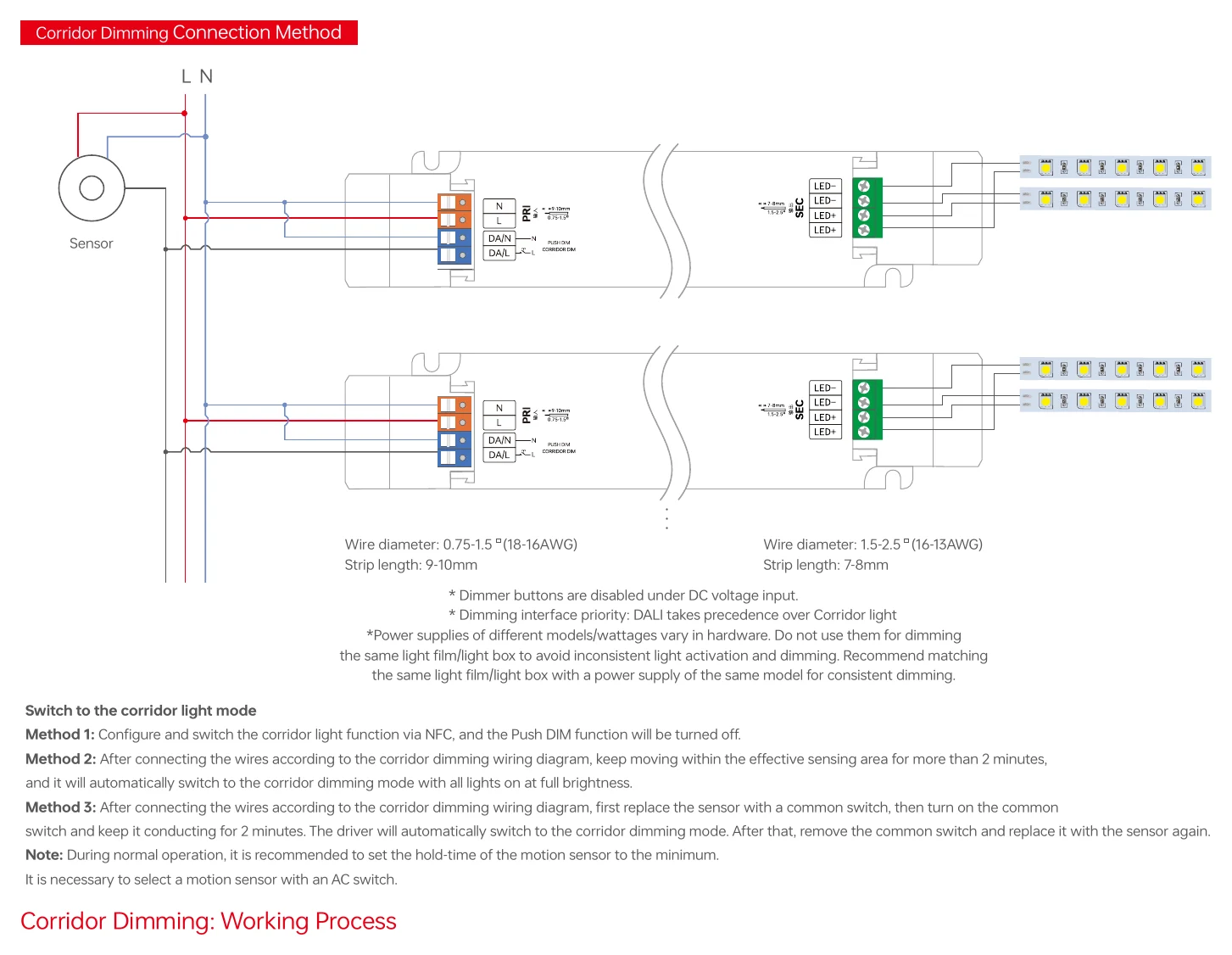

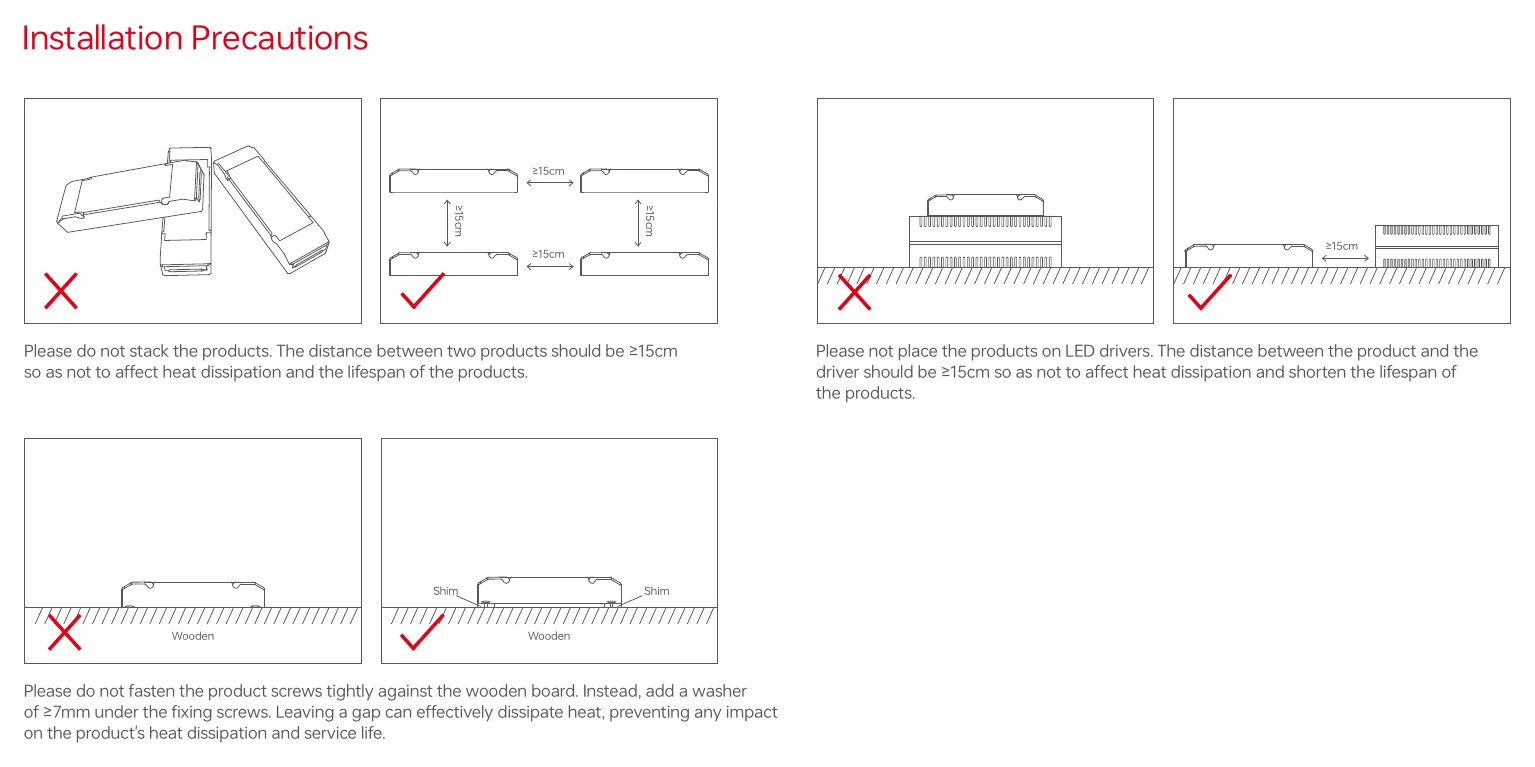

Technical drawings
Downloads
Datasheet1
FAQ
What is this driver used for?
It is a constant voltage LED driver designed for 24V LED fixtures, suitable for Class I, II, and III light fixtures.
What are the output specifications?
It provides a 24V output with a maximum current of 4.17A and a maximum power of 100W.
How does the dimming work?
It supports DALI-2 DT6 and PUSH DIM interfaces, allowing dimming from 0-100% down to 0.01%.
What is the input voltage range?
The input voltage is 220-240V AC at 50/60Hz. It also supports 220-240V DC input, though EMI must be evaluated after lamp installation.
Where can this driver be installed?
It has an IP20 rating, making it suitable for indoor use only. The operating temperature range is -20°C to 50°C.
What protections are included?
It includes automatic recovery for overload, short circuit, and overheat conditions, along with overvoltage protection.

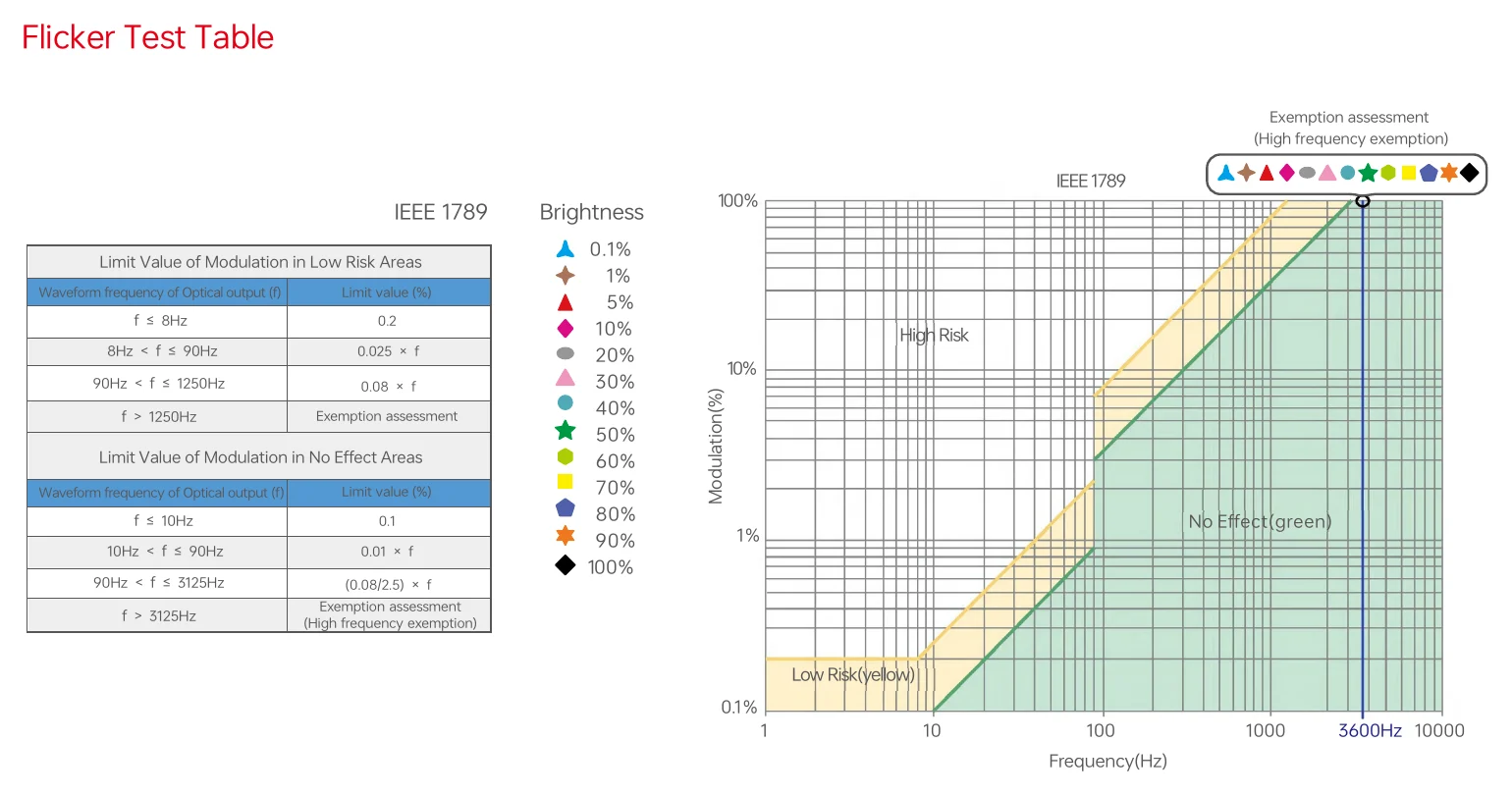

Does it have flicker-free operation?
Yes, it is Flicker Free according to IEEE1789 and features high-frequency exemption strobe levels.
