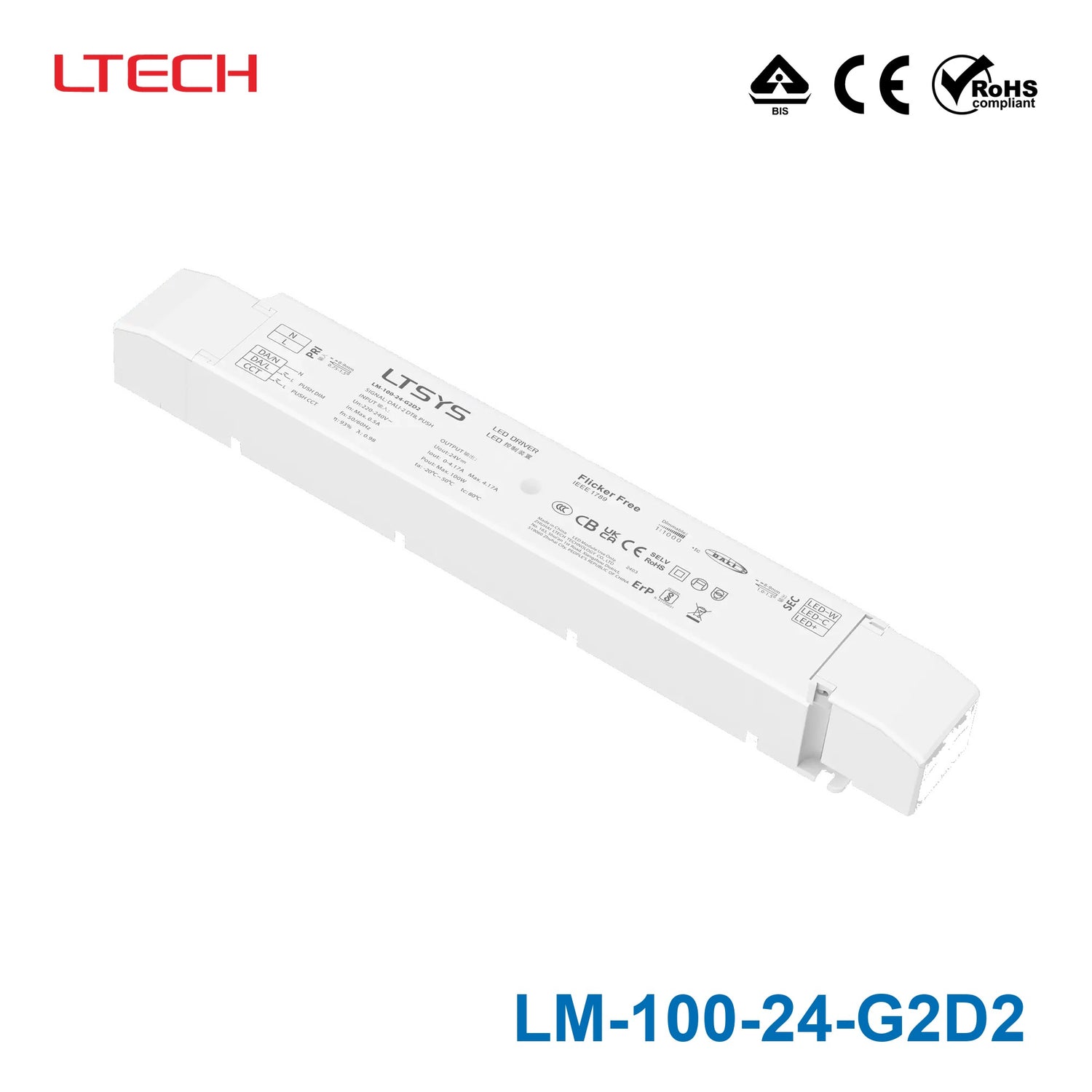

Ltech LM-100-24-G2D2 100W 24VDC DALI2 DT8 LED Driver - Tunable White 4.17A

SKU LM-100-24-G2D2
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
End of Life, Succeeded by LM-100-24-G2D2F
In stock
|

Overview

LM-100-24-G2D2 is the 24Vdc output model of this series: typical efficiency 93%.

Features

  • Dimming interface: DALI DT8, Push DIM/CCT
  • 2 independently SELV constant voltage output channels.
  • DALI DT8, DIM and color temperature adjusting driver.
  • Constant power design, adjust different color temperature to keep the same brightness.
  • Dimming range from 0-100%, LED start at 0.1% possible.
  • Color temperature adjusting range: 2700-6500K
  • 0~100% flicker-free, achieve the level of exemption assessment.
  • Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.
  • Standby Power Loss: <0.5W
  • Full protective plastic housing.
  • Compliant with Safety Extra Low Voltage standard.
  • Suitable for indoor Ⅰ/Ⅱ/Ⅲ type lamps application.

Specifications

LM-100-24-G2D2Specifications from the official datasheetDownload datasheet PDF

OUTPUT

Output Voltage
24Vdc
Output Voltage Range
24Vdc ±0.5Vdc
Output Current
Max. 4.17A
Output Power
Max. 100W
Output Power Range
0~100W
Strobe Level
High frequency exemption level.
Dimming Range
0~100%, dimming depth: Max. 0.1%
Overload Power Limitation
≥102%
Ripple & Noise
≤300mV
PWM Frequency
≤3600Hz

INPUT

Dimming Interface
DALI DT8(IEC62386), Push DIM/CCT
Input Voltage
220-240Vac
Frequency
50/60Hz
Input Current
Max. 0.5A/230Vac
Power Factor
PF>0.98/230Vac, at full load
THD
≤12% at 230Vac, at full load
Efficiency (typ.)
93%
Standby Power Loss
<0.5W
Inrush Current(typ.)
Cold start 45.2A at 230Vac (twidth=372μs measured at 50% Ipeak)
Control surge capability
L-N:2KV
Leakage Current
Max. 0.5mA

ENVIRONMENT

Working Temperature
ta: -20°C ~ 50°C tc: 80°C
Working Humidity
20 ~ 95%RH, non-condensing
Storage Temp., Humidity
-40°C ~ 80°C, 10~95%RH
Temp. Coefficient
±0.03%/°C (0-50°C)
Vibration
10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.

PROTECTION

Over-heat Protection
Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, auto recovers.
Over Voltage Protection
Shut down the output when non-load voltage ≥26V, re-power on to recover after fault condition is removed.
Over Load Protection
Shut down the output when current load≥102%, auto recovers.
Short Circuit Protection
Enter hiccup mode if short circuit occurs, auto recovers.

SAFETY & EMC

Withstand Voltage
I/P-O/P: 3750Vac
Isolation Resistance
I/P-O/P: 100MΩ/500VDC/25°C/70%RH
Safety Standards
IEC/EN61347-1, IEC/EN61347-2-13
EMC Emission
EN55015, EN61000-3-2 Class C, IEC61000-3-3
EMC Immunity
EN61000-4-2,3,4,5,6,8,11 EN61547
Strobe Test Standard
IEEE 1789

OTHERS

Dimension
293×43×30mm(L×W×H)
Packing
296×44×33mm(L×W×H)
Weight(G.W.)
300g±10g

Certifications & ratings

Marked features
DALI PUSH

Technical drawings

LM-100-24-G2D2 Dimensions
Dimensions

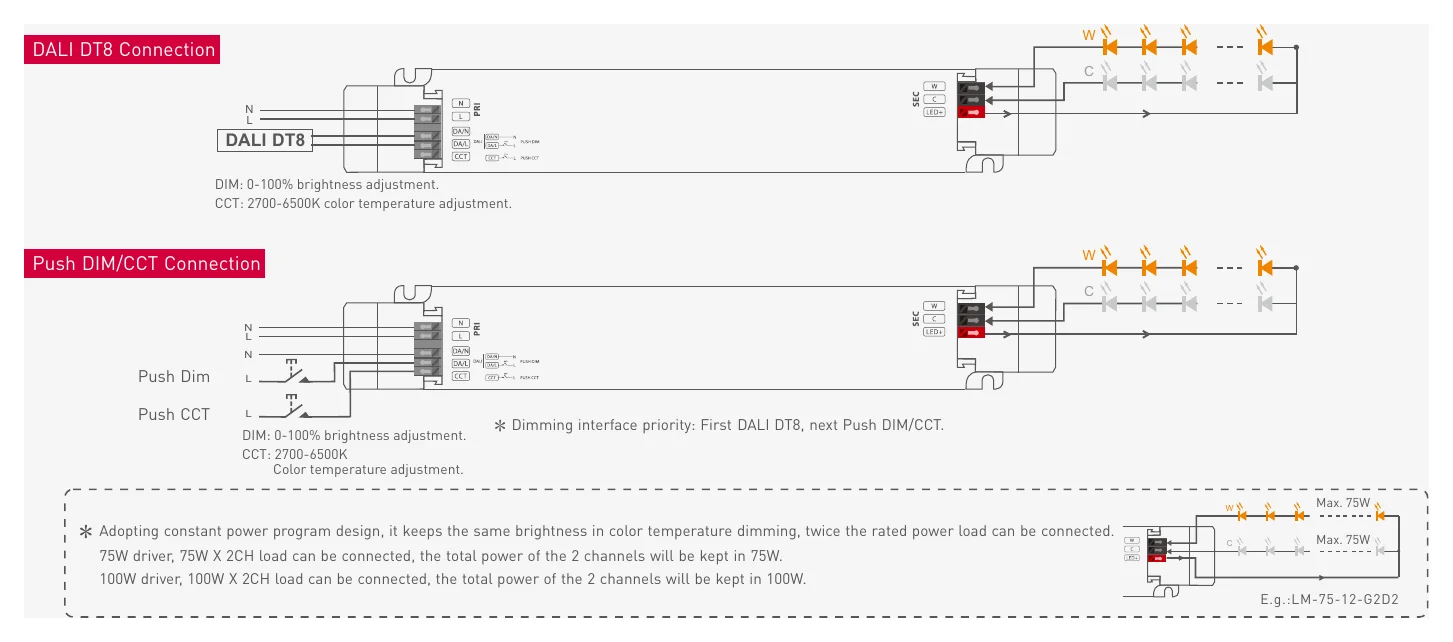

LM-100-24-G2D2 DALI DT8 Connection
DALI DT8 Connection

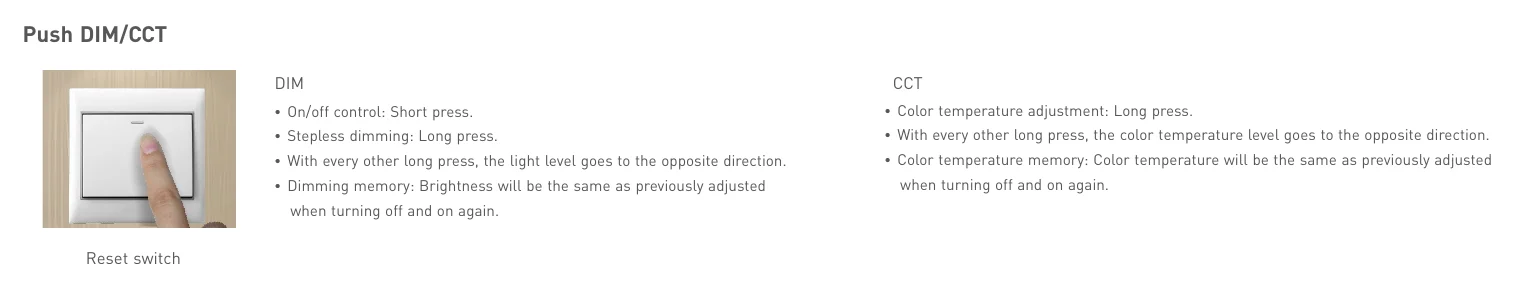

LM-100-24-G2D2 Push DIM/CCT
Push DIM/CCT

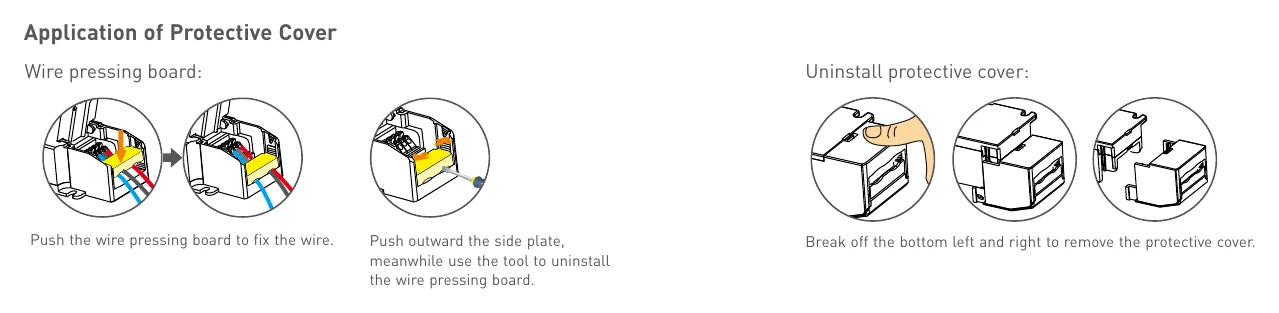

LM-100-24-G2D2 Application of Protective Cover
Application of Protective Cover

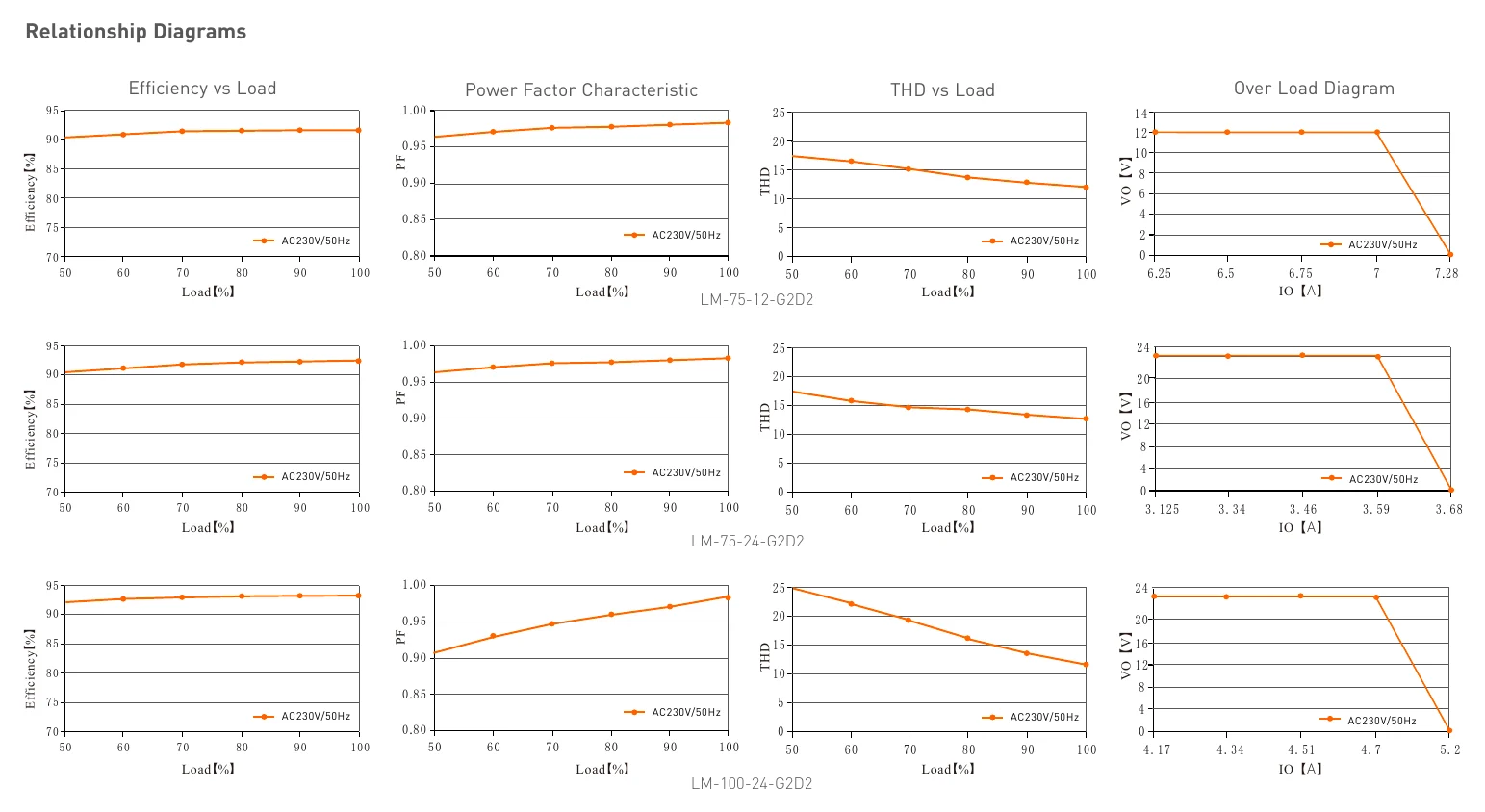

LM-100-24-G2D2 Relationship Diagrams
Relationship Diagrams

Downloads

FAQ

What is the Ltech LM-100-24-G2D2 designed for?

The LM-100-24-G2D2 is a 100W 24VDC constant-voltage LED driver designed for tunable white lighting applications. It supports both dimming and color temperature adjustment, making it suitable for indoor luminaires that need variable white output.

Does this model support DALI-2 DT8 tunable white control?

Yes. This model is specified with a DALI DT8 dimming interface and is intended for tunable white control. It also lists Push DIM/CCT functionality for dimming and color temperature adjustment.

What are the main electrical specs of the LM-100-24-G2D2?

This driver is rated at 100W output with a 24VDC output voltage and a rated current of 4.17A. It uses a constant-power design and provides a constant-voltage output channel.

What dimming and color temperature range does this driver offer?

The LM-100-24-G2D2 supports dimming from 0% to 100%, with a maximum dimming depth of 0.1%. Its tunable white capability is controlled via DALI DT8 or Push DIM/CCT interfaces, allowing for adjustable color temperature in compatible systems.

Is this LED driver suitable for indoor commercial or architectural lighting?

Yes, this model is intended for indoor use and is described as suitable for indoor I/II/III type lamp applications. Its tunable white capability makes it relevant for commercial, architectural, and other indoor lighting projects where adjustable white light is required.

What operating conditions and protection features does this model have?

The specified operating temperature range is -20°C to 50°C. It includes over-heat, overload, and short-circuit protection with automatic recovery, and standby power loss is listed at less than 0.5W.

How does the LM-100-24-G2D2 differ from a standard non-tunable 24V LED driver?

The LM-100-24-G2D2 is built specifically for tunable white applications, not just basic 24V constant-voltage output. In addition to power delivery, it supports DALI DT8 control for dimming and color temperature adjustment via Push DIM/CCT interfaces.

What warranty is offered for the LM-100-24-G2D2?

The LM-100-24-G2D2 is a reliable option for indoor tunable white lighting systems. It features robust protection mechanisms including over-heat, over-voltage, over-load, and short-circuit protection with automatic recovery.
