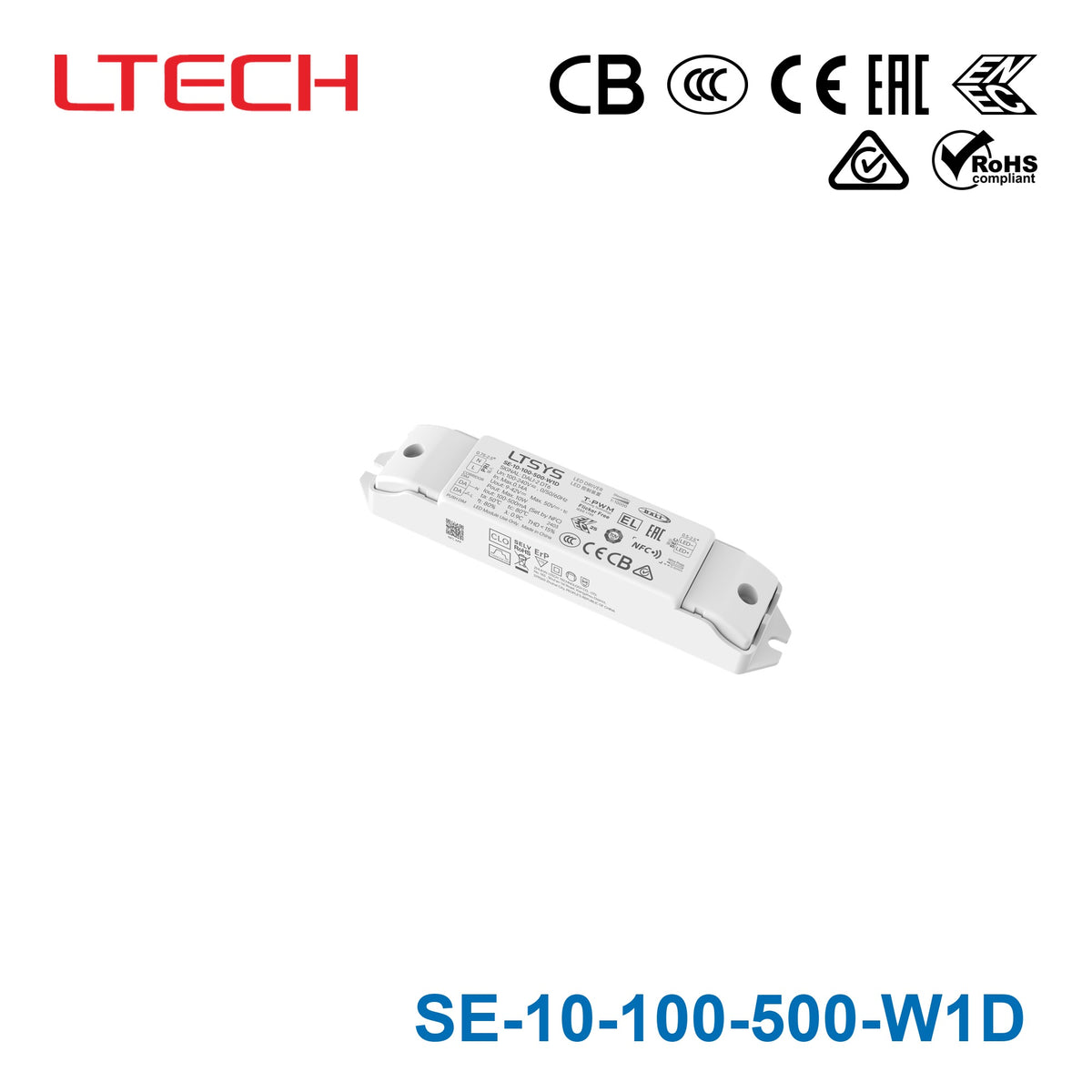

Ltech SE-10-100-500-W1D 10W 9-42VDC CC DALI-2 LED Driver 0.1-0.5A

2-in-1 DALI-2 Push DIM mis-wiring protection (300vac)9-42VDC10W

SKU SE-10-100-500-W1D

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

SE-10-100-500-W1D is the 9-42Vdc output model of this series: typical efficiency 80%(at full load).

Features

Housing made from SAMSUNG/Covestro's V-0 flame-retardant PC materials.
Ultra small, thin and lightweight, screwless end cap.
Supports DALI-2, Push DIM, and corridor light DIM modes.
Parameters such as output current and DALI address can be changed via the mobile phone APP through NFC. Advanced templates such as groups and scenes can also be set up to achieve the data interaction function of the driver.
Current step value as low as 1mA by NFC setting, with higher compatibility and more precision
It supports the CLO light decay compensation function to ensure constant illumination brightness.
It supports online OTA (Over-The-Air) upgrade of the device firmware.
T-PWM ultra-deep dimming technology, dimming depth can reach 0.01%.
Soft-on and fade-in dimming function enhances your visual comfort.
0-100% full dimming without visible flicker, high frequency exemption assessment level.
EU ERP no-load power consumption, network standby power consumption < 0.5W.
No-load 0V output to prevent damage to LED lamps due to poor contact.
Overheat, over voltage, overload, short circuit protection and automatic recovery.
Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
Normal service life can reach 100,000 hours.
5-year warranty (Rubycon capacitor).

Specifications

SE-10-100-500-W1DSpecifications from the official datasheetDownload datasheet PDF

Features

Output Type: Constant current
Dimming Interface: DALI-2 DT6, PUSH DIM
Output Feature: Isolation
Protection Grade: IP20
Insulation Grade: Class II (Suitable for class I/ II /III light fixtures)

OUTPUT

Output Voltage: 9-42Vdc
Maximum output voltage: ≤50Vdc
Output Current Range: 100-500mA
Output Power Range: 0.9W-10W
Dimming Range: 0~100%, down to 0.01%
LF Current Ripple: <5% (Maximum current for non dimming state)
Current Accuracy: ±5%
PWM Frequency: ≤3600Hz

INPUT

DC Voltage Range: 100-240Vdc
AC Voltage Range: 100-240Vac
Rated Voltage: 115Vac/230Vac
Frequency: 50/60Hz
Input Current: ≤0.14A/115Vac(at full load) , ≤0.07A/230Vac(at full load)
Power Factor: PF≥0.95/115Vac(at full load), PF≥0.9/230Vac(at full load)
THD: THD≤15%/230Vac(at full load)
Efficiency (Typ.): 80%(at full load)
Inrush Current: 15A (twidth=102us, tested under 50% Ipeak)/230Vac
Anti Surge: L-N:2KV
Leakage Current: Max.0.24mA

ENVIRONMENT

Working Temperature: ta: -20°C ~ 50°C tc: 80°C
Working Humidity: 20 ~ 95%RH, non-condensing
Storage Temperature/Humidity: -40 ~ 80°C/10~95%RH
Temperature Coefficient: ±0.03%/°C(-20°C~45°C)
Vibration: 10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively

PROTECTION

Overload Protection: Automatically protect the device when the load exceeds 102% of the rated power. Automatically recover once load is reduced
Overheat Protection: Intelligently adjust or turn off the current output if the PCB temperature ≥110°C. When the PCB temperature <90°C, automatically recover normal output
Overvoltage Protection: Automatically protect the device when voltage exceeds the no-load voltage. It can be recovered automatically
Short Circuit Protection: Enter hiccup mode if short circuit occurs, and recover automatically

SAFETY & EMC

Withstand Voltage: I/P-O/P:3750Vac
Insulation Resistance: I/P-O/P: 100MΩ/500VDC/25°C/70%RH
Safety Standards: Parameter Standard Test Level

CCC China GB19510.1， GB19510.14，GB19510.213
TUV Germany EN61347-1， EN61347-2-13， EN62493
CB CB Member States IEC61347-1， IEC61347-2-13
CE EuropeanUnion EN61347-1， EN61347-2-13， EN62384
KC Korea KC61347-1， KC61347-2-13
EAC Russia IEC61347-1， IEC61347-2-13
RCM Australia AS61347-1， AS61347-2-13
ENEC Europe EN61347-1， EN61347-2-13， EN62384
UKCA Britain BSEN61347-1，BSEN61347-2-13，BSEN62493
BIS India IS15885(PART2/SEC13)
EMC Emission: Parameter Standard Test Level

CCC China GB/T17743，GB17625.1
CE EuropeanUnion EN55015，EN61000-3-2，EN61000-3-3，EN61547
KC Korea KN15，KN61547
EAC Russia IEC62493，IEC61547，EH55015
RCM Australia EN55015，EN61000-3-2，EN61000-3-3，EN61547
UKCA Britain BSENIEC55015，BSENIEC61000-3-2，BSEN61000-3-3，BSEN61547
EMC Immunity: EN61000-4-2,3,4,5,6,8,11,EN61547

Parameter	Standard	Test Level
CCC	China	GB19510.1， GB19510.14，GB19510.213
TUV	Germany	EN61347-1， EN61347-2-13， EN62493
CB	CB Member States	IEC61347-1， IEC61347-2-13
CE	EuropeanUnion	EN61347-1， EN61347-2-13， EN62384
KC	Korea	KC61347-1， KC61347-2-13
EAC	Russia	IEC61347-1， IEC61347-2-13
RCM	Australia	AS61347-1， AS61347-2-13
ENEC	Europe	EN61347-1， EN61347-2-13， EN62384
UKCA	Britain	BSEN61347-1，BSEN61347-2-13，BSEN62493
BIS	India	IS15885(PART2/SEC13)

Parameter	Standard	Test Level
CCC	China	GB/T17743，GB17625.1
CE	EuropeanUnion	EN55015，EN61000-3-2，EN61000-3-3，EN61547
KC	Korea	KN15，KN61547
EAC	Russia	IEC62493，IEC61547，EH55015
RCM	Australia	EN55015，EN61000-3-2，EN61000-3-3，EN61547
UKCA	Britain	BSENIEC55015，BSENIEC61000-3-2，BSEN61000-3-3，BSEN61547

ErP

Power Consumption Networked standby: ＜0.5W(After shutdown by command)
Power Consumption No-load power consumption: ＜0.5W(When the lamp is not connected)
Flicker/Stroboscopic Effect IEEE1789: Meet IEEE 1789 standard/High frequency exemption level
Flicker/Stroboscopic Effect CIE SVM: PstLM≤1.0，SVM≤0.4
DF Phase factor: DF≥0.9

OTHERS

Weight(N.W.): 80g±10g
Dimensions: 135×30×20mm(L×W×H)

Certifications & ratings

Dimming Technology: T-PWM
Marked features: Flicker Free IEEE 1789

Technical drawings

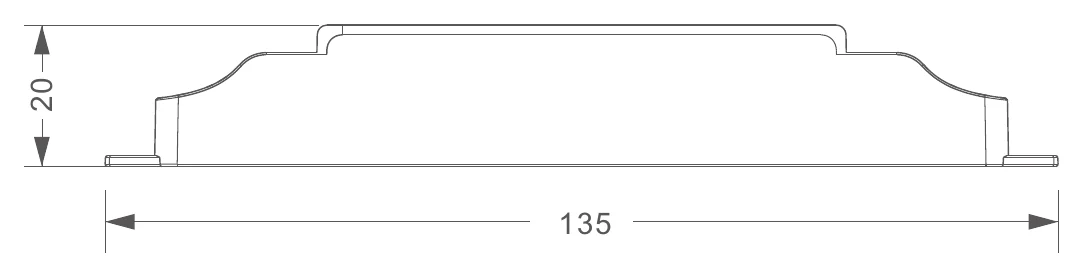

SE-10-100-500-W1D Dimensions (mm) — Dimensions (mm)

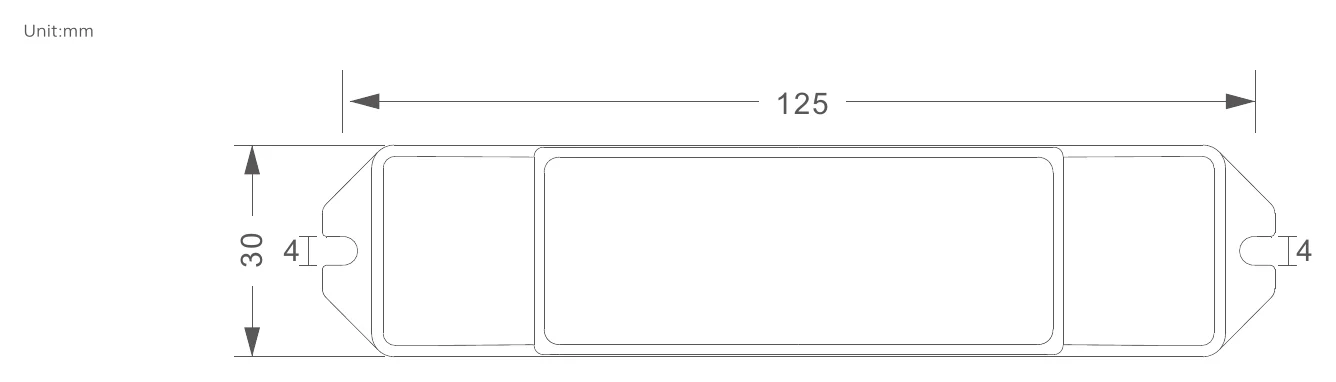

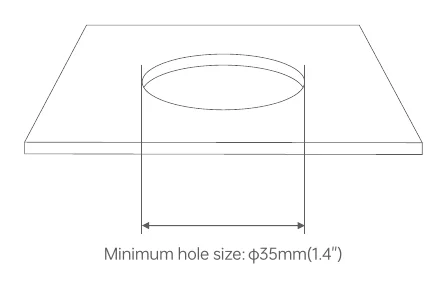

SE-10-100-500-W1D Minimum hole size:φ35mm(1.4'') — Minimum hole size:φ35mm(1.4'')

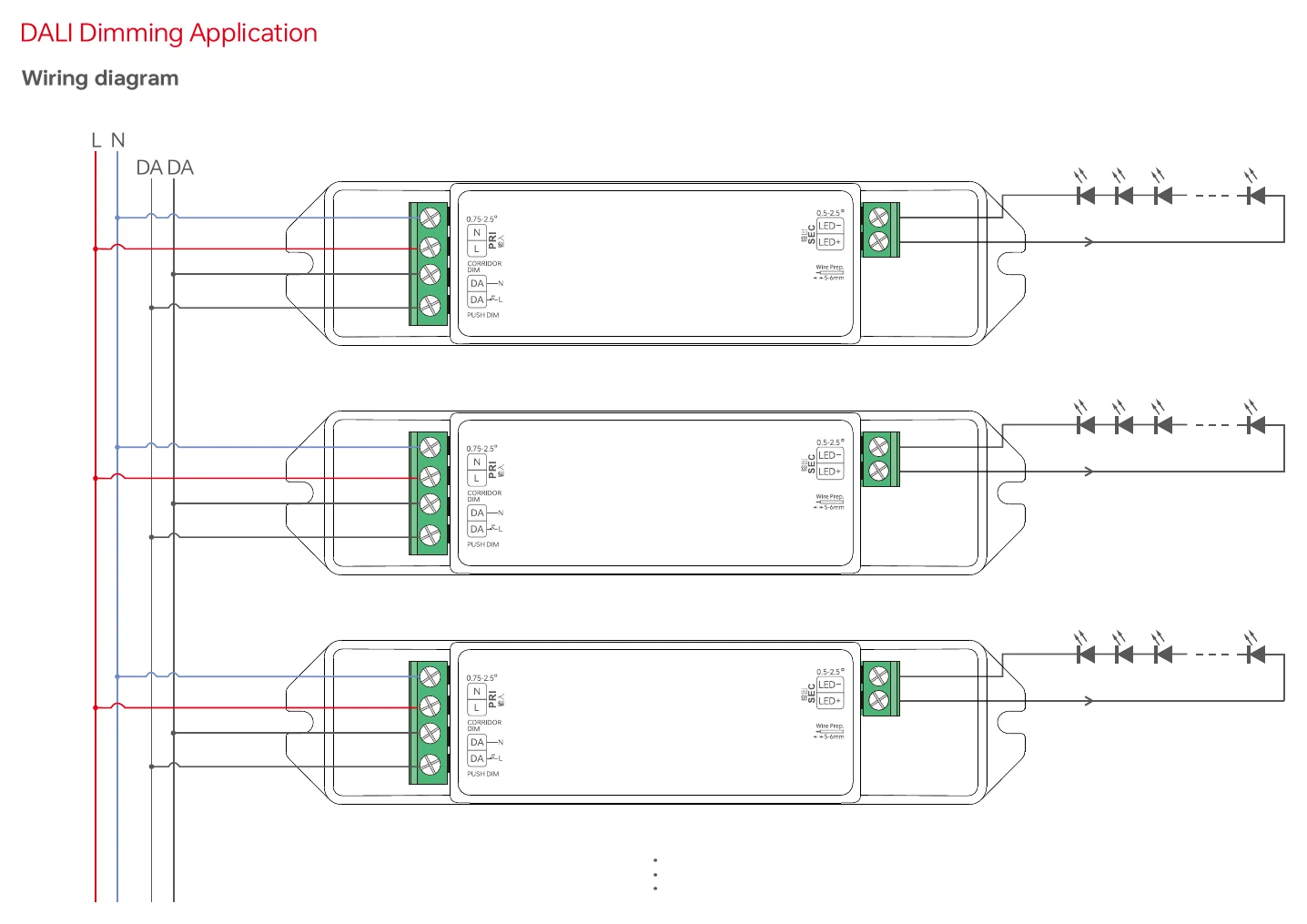

SE-10-100-500-W1D DALI Dimming Application — DALI Dimming Application

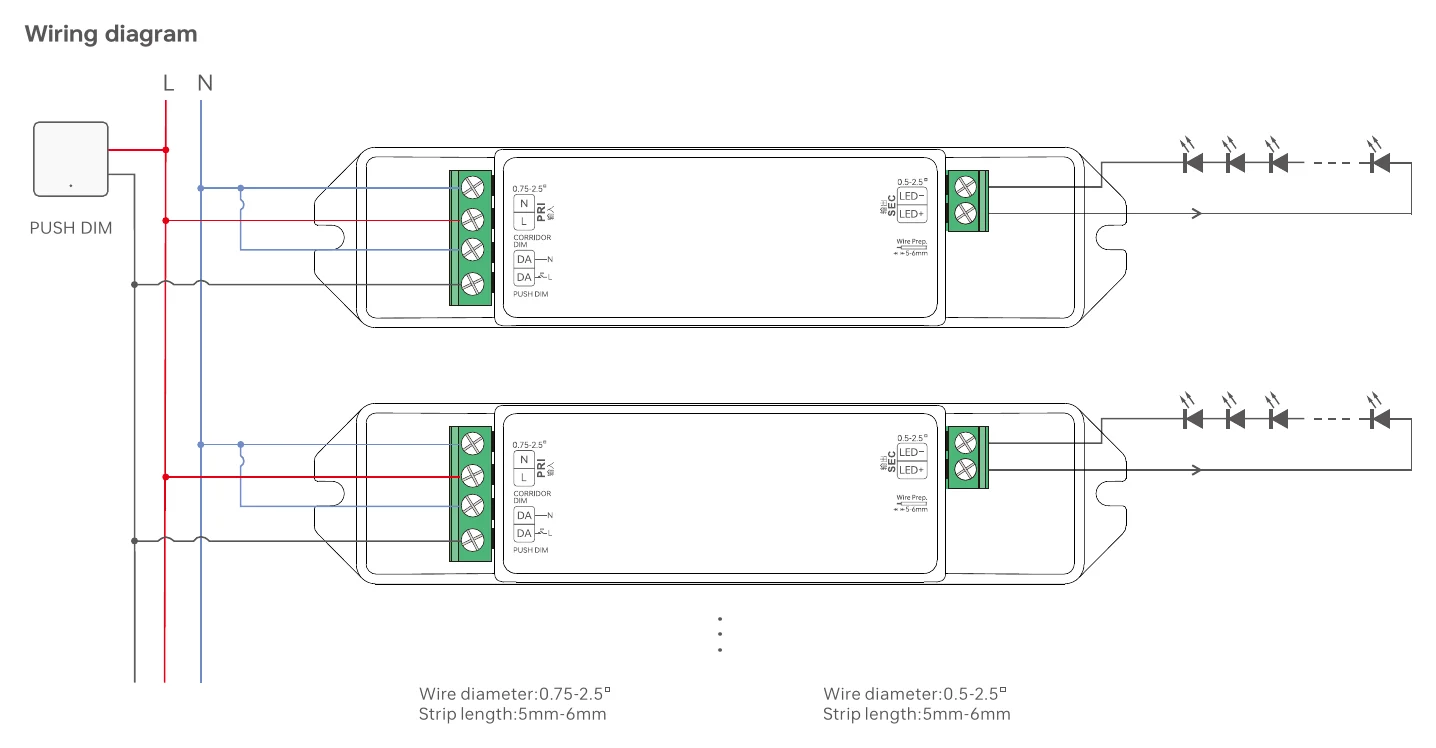

SE-10-100-500-W1D Wiring diagram — Wiring diagram

SE-10-100-500-W1D Operation Instructions — Operation Instructions

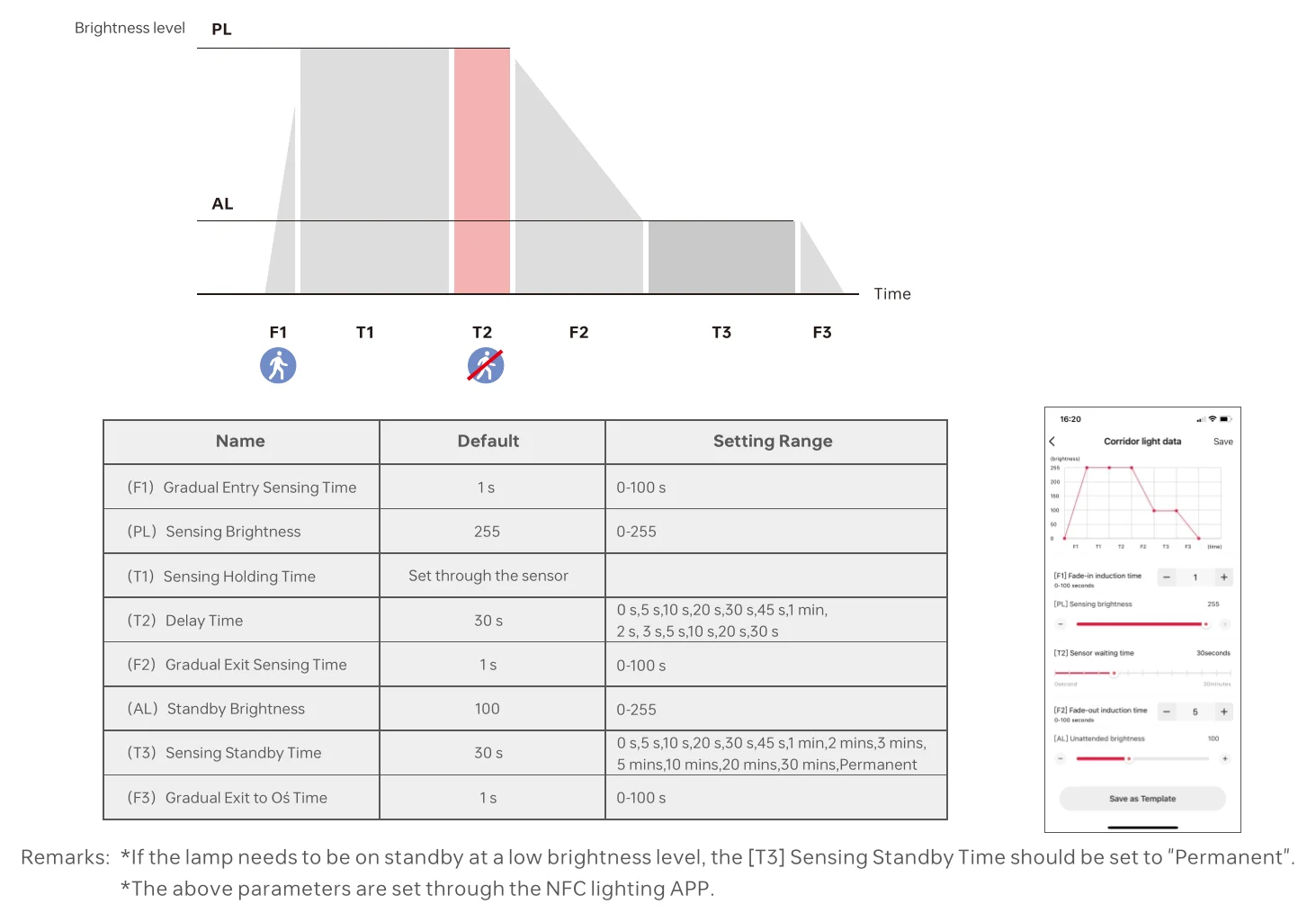

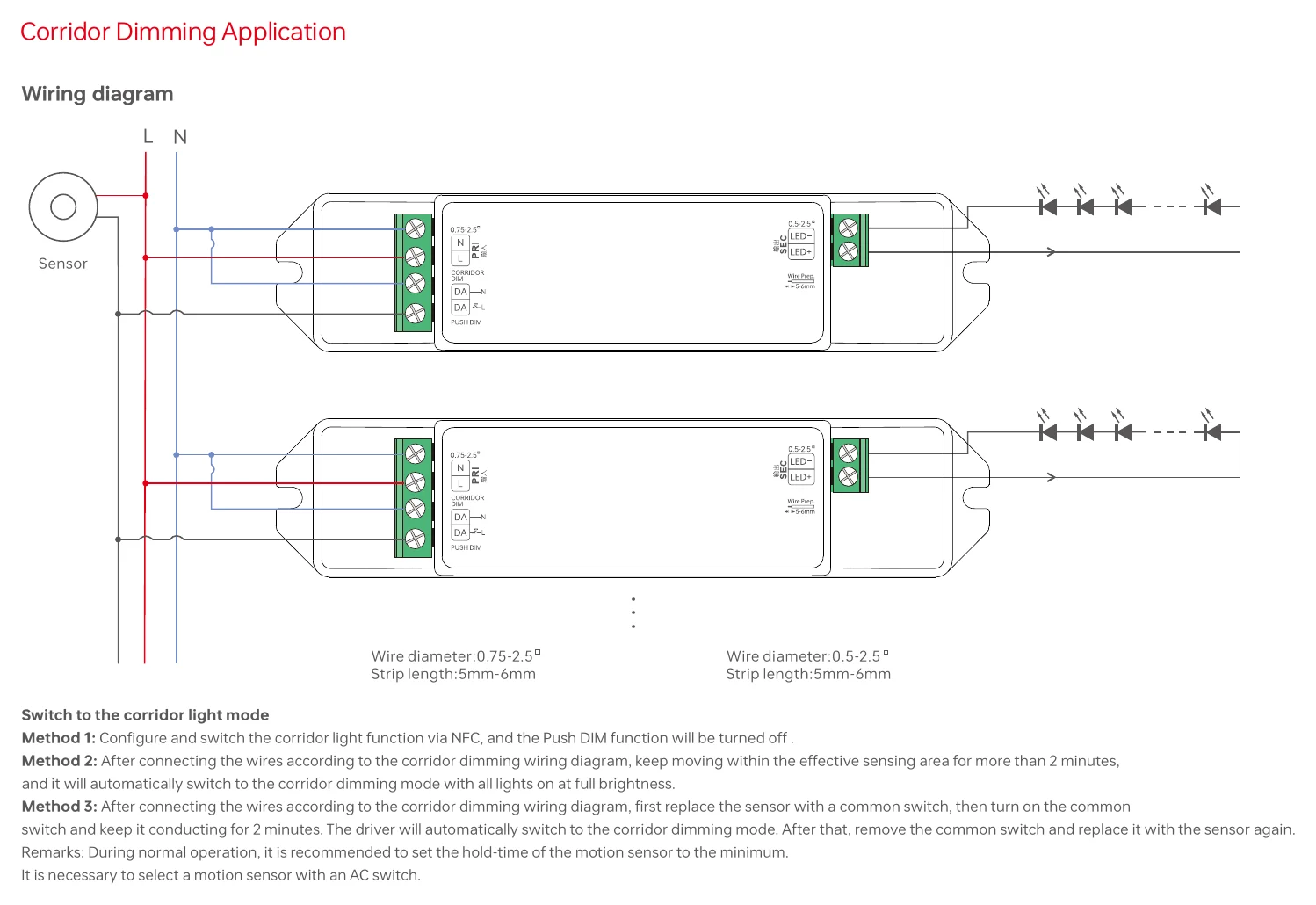

SE-10-100-500-W1D Corridor Dimming Application — Corridor Dimming Application

SE-10-100-500-W1D *The above parameters are set through the NFC lighting APP. — *The above parameters are set through the NFC lighting APP.

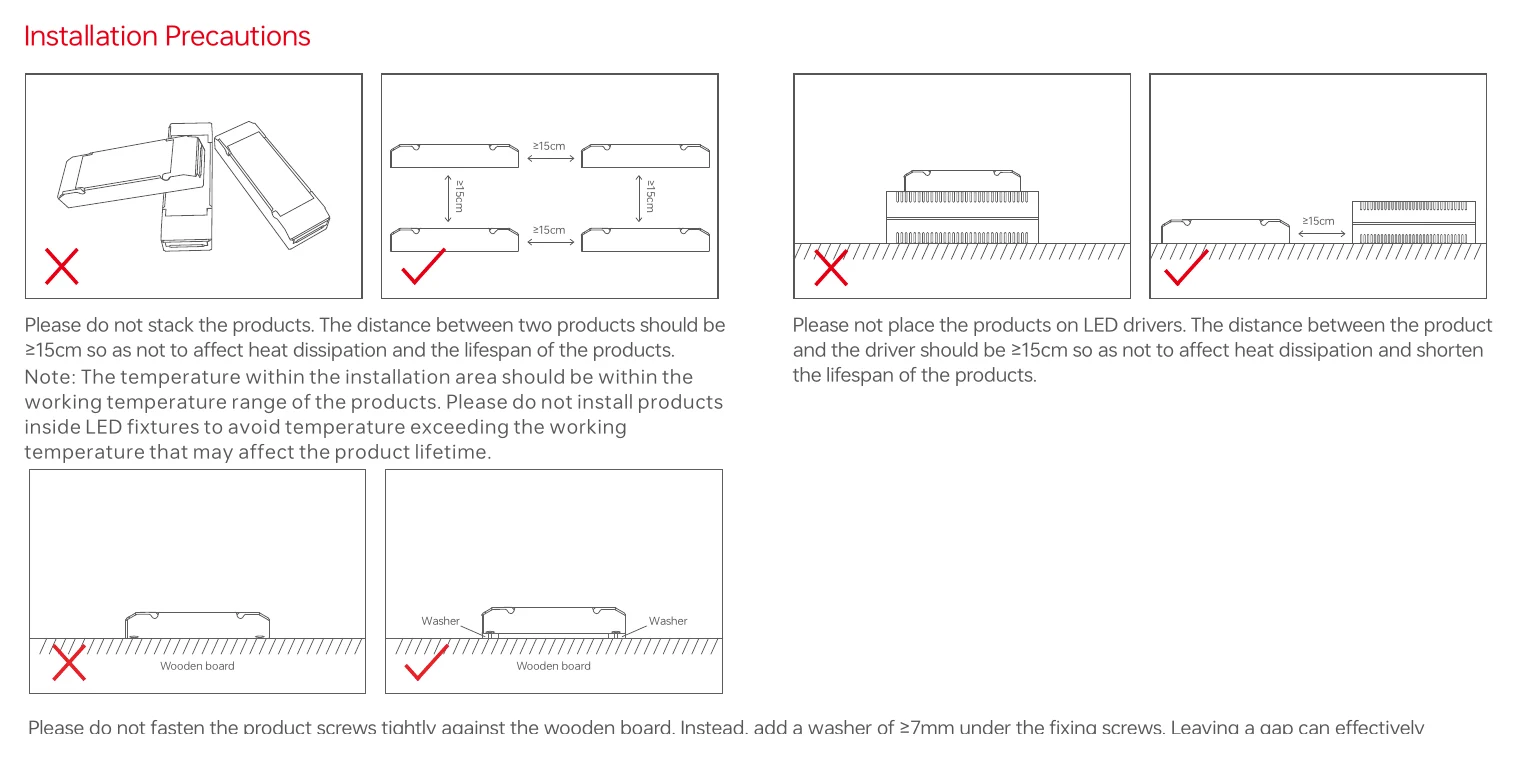

SE-10-100-500-W1D Installation Precautions — Installation Precautions

SE-10-100-500-W1D Scan the QR code below with your mobile phone and follow… — Scan the QR code below with your mobile phone and follow…

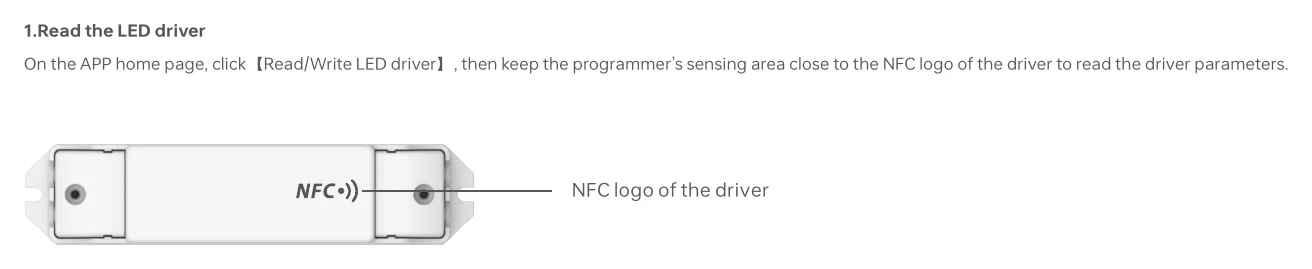

SE-10-100-500-W1D 1.Read the LED driver — 1.Read the LED driver

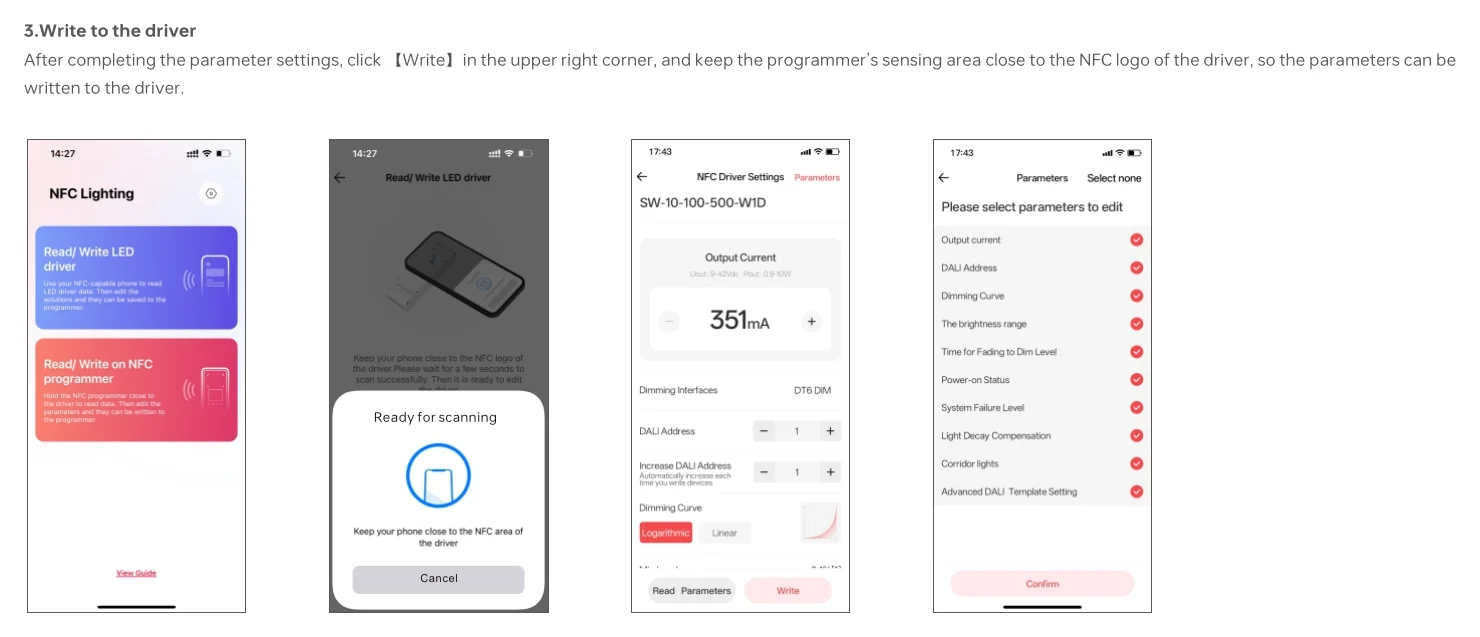

SE-10-100-500-W1D 3.Write to the driver — 3.Write to the driver

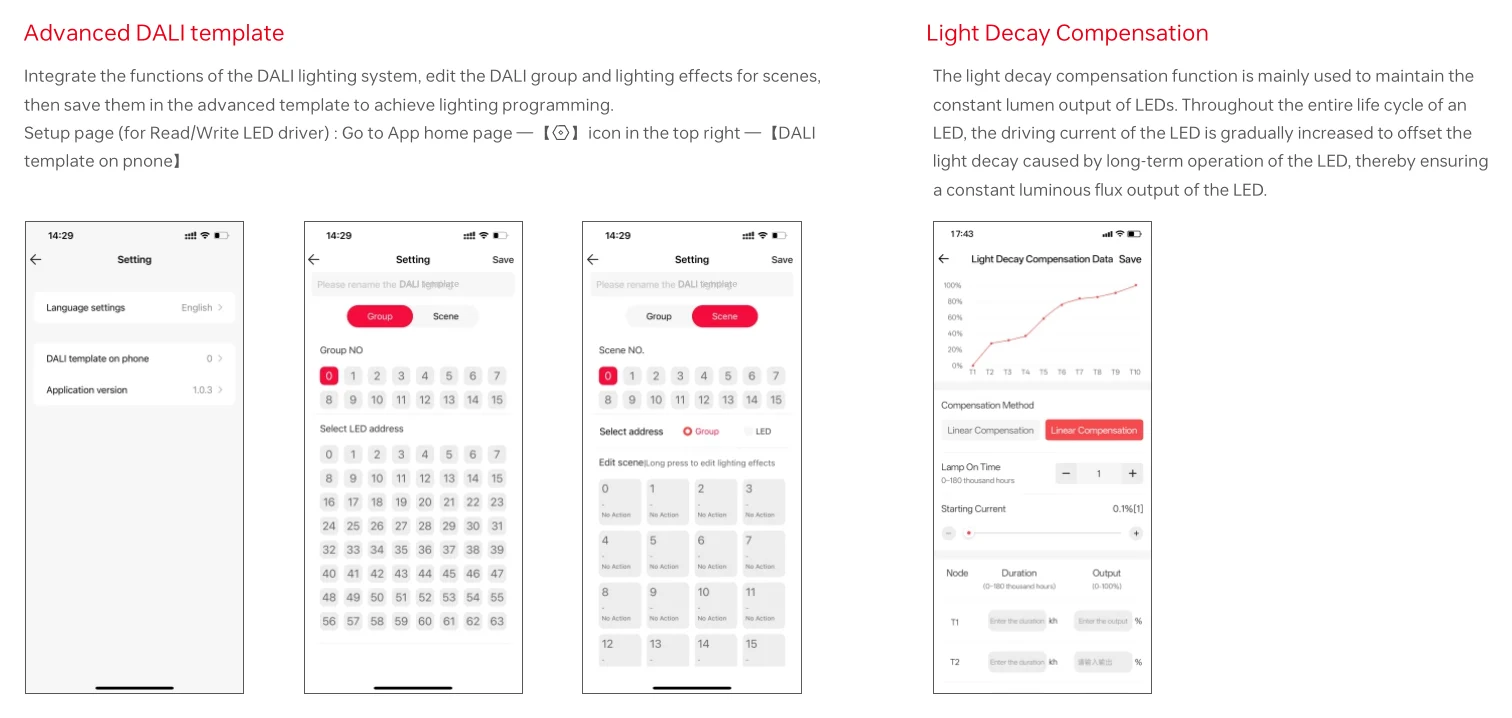

SE-10-100-500-W1D Advanced DALI template — Advanced DALI template

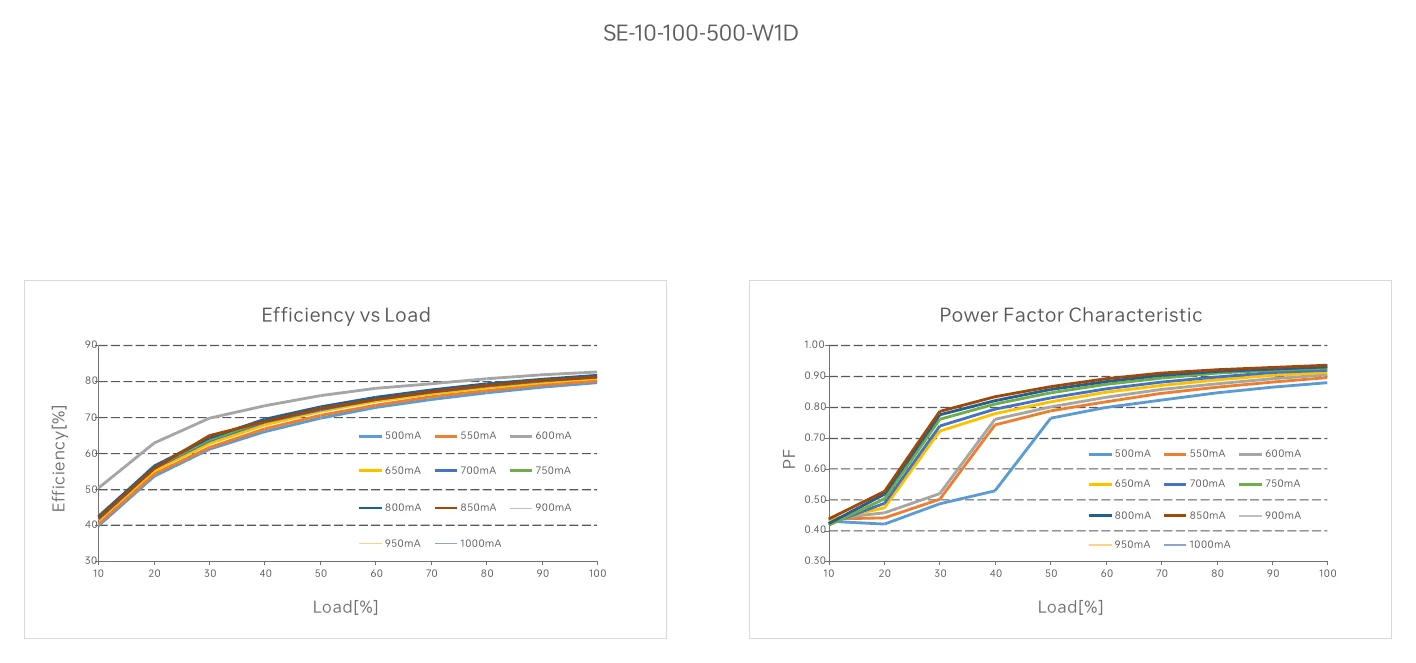

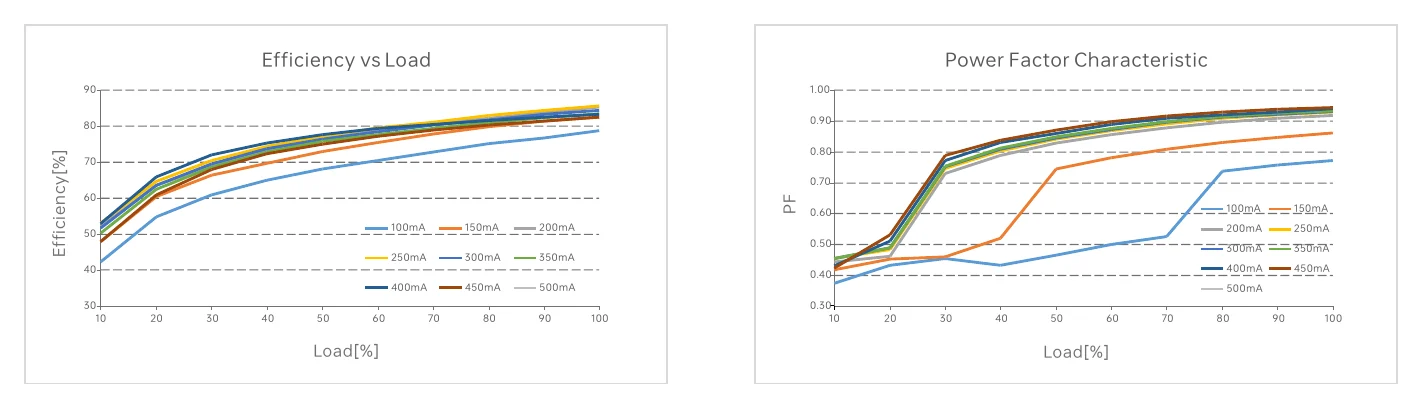

SE-10-100-500-W1D Efficiency vs Load — Efficiency vs Load

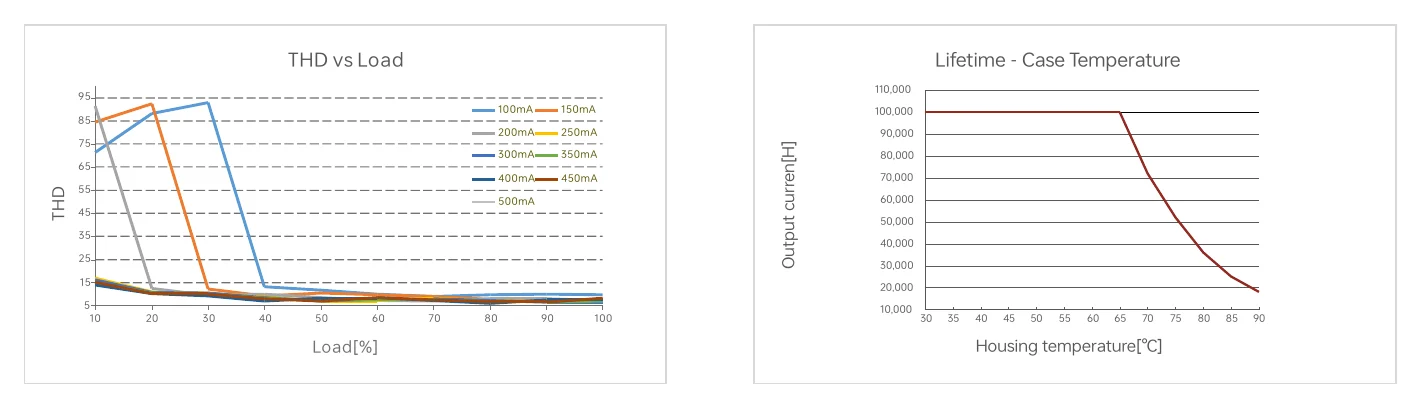

SE-10-100-500-W1D Lifetime - Case Temperature — Lifetime - Case Temperature

SE-10-100-500-W1D Lifetime - Case Temperature (2) — Lifetime - Case Temperature (2)
