Ltech

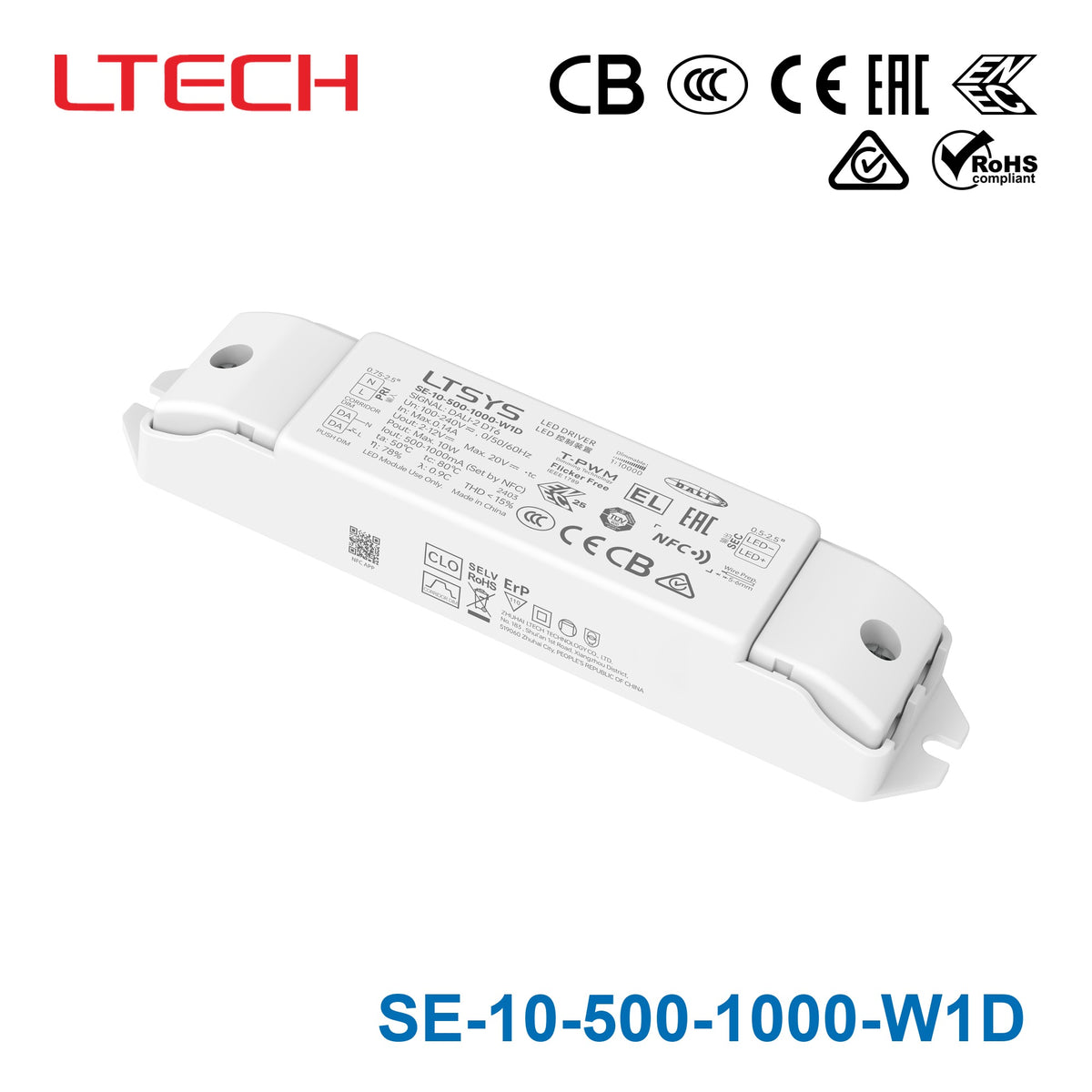

Ltech SE-10-500-1000-W1D 10W 2-12VDC CC DALI-2 LED Driver 0.5-1A

2-in-1 DALI-2 Push DIM mis-wiring protection (300vac)2-12VDC10W
SKU SE-10-500-1000-W1D
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

SE-10-500-1000-W1D is the 2-12Vdc output model of this series: typical efficiency 78%(at full load).

Features

  • Housing made from SAMSUNG/Covestro's V-0 flame-retardant PC materials.
  • Ultra small, thin and lightweight, screwless end cap.
  • Supports DALI-2, Push DIM, and corridor light DIM modes.
  • Parameters such as output current and DALI address can be changed via the mobile phone APP through NFC. Advanced templates such as groups and scenes can also be set up to achieve the data interaction function of the driver.
  • Current step value as low as 1mA by NFC setting, with higher compatibility and more precision
  • It supports the CLO light decay compensation function to ensure constant illumination brightness.
  • It supports online OTA (Over-The-Air) upgrade of the device firmware.
  • T-PWM ultra-deep dimming technology, dimming depth can reach 0.01%.
  • Soft-on and fade-in dimming function enhances your visual comfort.
  • 0-100% full dimming without visible flicker, high frequency exemption assessment level.
  • EU ERP no-load power consumption, network standby power consumption < 0.5W.
  • No-load 0V output to prevent damage to LED lamps due to poor contact.
  • Overheat, over voltage, overload, short circuit protection and automatic recovery.
  • Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
  • Normal service life can reach 100,000 hours.
  • 5-year warranty (Rubycon capacitor).

Specifications

SE-10-500-1000-W1DSpecifications from the official datasheetDownload datasheet PDF

Features

Output Type
Constant current
Dimming Interface
DALI-2 DT6, PUSH DIM
Output Feature
Isolation
Protection Grade
IP20
Insulation Grade
Class II (Suitable for class I/ II /III light fixtures)

OUTPUT

Output Voltage
2-12Vdc
Maximum output voltage
≤20Vdc
Output Current Range
500-1000mA
Output Power Range
1W-10W
Dimming Range
0~100%, down to 0.01%
LF Current Ripple
<5% (Maximum current for non dimming state)
Current Accuracy
±5%
PWM Frequency
≤3600Hz

INPUT

DC Voltage Range
100-240Vdc
AC Voltage Range
100-240Vac
Rated Voltage
115Vac/230Vac
Frequency
50/60Hz
Input Current
≤0.14A/115Vac(at full load) , ≤0.07A/230Vac(at full load)
Power Factor
PF≥0.95/115Vac(at full load), PF≥0.9/230Vac(at full load)
THD
THD≤15%/230Vac(at full load)
Efficiency (Typ.)
78%(at full load)
Inrush Current
15A (twidth=102us, tested under 50% Ipeak)/230Vac
Anti Surge
L-N:2KV
Leakage Current
Max.0.24mA

ENVIRONMENT

Working Temperature
ta: -20°C ~ 50°C tc: 80°C
Working Humidity
20 ~ 95%RH, non-condensing
Storage Temperature/Humidity
-40 ~ 80°C/10~95%RH
Temperature Coefficient
±0.03%/°C(-20°C~45°C)
Vibration
10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively

PROTECTION

Overload Protection
Automatically protect the device when the load exceeds 102% of the rated power. Automatically recover once load is reduced
Overheat Protection
Intelligently adjust or turn off the current output if the PCB temperature ≥110°C. When the PCB temperature <90°C, automatically recover normal output
Overvoltage Protection
Automatically protect the device when voltage exceeds the no-load voltage. It can be recovered automatically
Short Circuit Protection
Enter hiccup mode if short circuit occurs, and recover automatically

SAFETY & EMC

Withstand Voltage
I/P-O/P:3750Vac
Insulation Resistance
I/P-O/P: 100MΩ/500VDC/25°C/70%RH
Safety Standards
ParameterStandardTest Level
CCCChinaGB19510.1， GB19510.14，GB19510.213
TUVGermanyEN61347-1， EN61347-2-13， EN62493
CBCB Member StatesIEC61347-1， IEC61347-2-13
CEEuropeanUnionEN61347-1， EN61347-2-13， EN62384
KCKoreaKC61347-1， KC61347-2-13
EACRussiaIEC61347-1， IEC61347-2-13
RCMAustraliaAS61347-1， AS61347-2-13
ENECEuropeEN61347-1， EN61347-2-13， EN62384
UKCABritainBSEN61347-1，BSEN61347-2-13，BSEN62493
BISIndiaIS15885(PART2/SEC13)
EMC Emission
ParameterStandardTest Level
CCCChinaGB/T17743，GB17625.1
CEEuropeanUnionEN55015，EN61000-3-2，EN61000-3-3，EN61547
KCKoreaKN15，KN61547
EACRussiaIEC62493，IEC61547，EH55015
RCMAustraliaEN55015，EN61000-3-2，EN61000-3-3，EN61547
UKCABritainBSENIEC55015，BSENIEC61000-3-2，BSEN61000-3-3，BSEN61547
EMC Immunity
EN61000-4-2,3,4,5,6,8,11,EN61547

ErP

Power Consumption Networked standby
<0.5W (After shutdown by command)
Power Consumption No-load power consumption
<0.5W (When the lamp is not connected)
Flicker/Stroboscopic Effect IEEE1789
Meet IEEE 1789 standard/High frequency exemption level
Flicker/Stroboscopic Effect CIE SVM
PstLM≤1.0，SVM≤0.4
DF Phase factor
DF≥0.9

OTHERS

Weight(N.W.)
80g±10g
Dimensions
135×30×20mm(L×W×H)

Certifications & ratings

Dimming Technology
T-PWM
Marked features
Flicker Free IEEE 1789

Technical drawings

SE-10-500-1000-W1D Unit:mm
Unit:mm
SE-10-500-1000-W1D Dimensions (mm)
Dimensions (mm)
SE-10-500-1000-W1D Minimum hole size:φ35mm(1.4'')
Minimum hole size:φ35mm(1.4'')
SE-10-500-1000-W1D DALI Dimming Application
DALI Dimming Application
SE-10-500-1000-W1D Wiring diagram
Wiring diagram
SE-10-500-1000-W1D Operation Instructions
Operation Instructions
SE-10-500-1000-W1D Corridor Dimming Application
Corridor Dimming Application
SE-10-500-1000-W1D *The above parameters are set through the NFC lighting APP.
*The above parameters are set through the NFC lighting APP.
SE-10-500-1000-W1D Installation Precautions
Installation Precautions
SE-10-500-1000-W1D Scan the QR code below with your mobile phone and follow…
Scan the QR code below with your mobile phone and follow…
SE-10-500-1000-W1D 1.Read the LED driver
1.Read the LED driver
SE-10-500-1000-W1D 3.Write to the driver
3.Write to the driver
SE-10-500-1000-W1D Advanced DALI template
Advanced DALI template
SE-10-500-1000-W1D Efficiency vs Load
Efficiency vs Load
SE-10-500-1000-W1D Lifetime - Case Temperature
Lifetime - Case Temperature
SE-10-500-1000-W1D Lifetime - Case Temperature (2)
Lifetime - Case Temperature (2)

Downloads

FAQ

What is this LED driver used for?

It is a constant current LED driver designed for indoor lighting fixtures, suitable for Class I, II, and III light fixtures.

What are the output voltage and current specifications?

The output voltage range is 2-12Vdc (max 20Vdc) and the output current range is 500-1000mA, delivering 1W to 10W of power.

How do I dim this driver?

It supports DALI-2 DT6 and PUSH DIM interfaces, allowing for smooth dimming from 0% to 100% down to 0.01%.

What is the required input voltage?

It accepts a universal input range of 100-240Vac or 100-240Vdc at 50/60Hz.

Where can this driver be installed?

It has an IP20 rating, making it suitable for indoor use only. The operating temperature range is -20°C to 50°C.

It includes automatic recovery for overload, overheat, overvoltage, and short circuit conditions.

What safety protections are included?

What are the physical dimensions?

The driver measures 135mm in length, 30mm in width, and 20mm in height, weighing approximately 80g.
