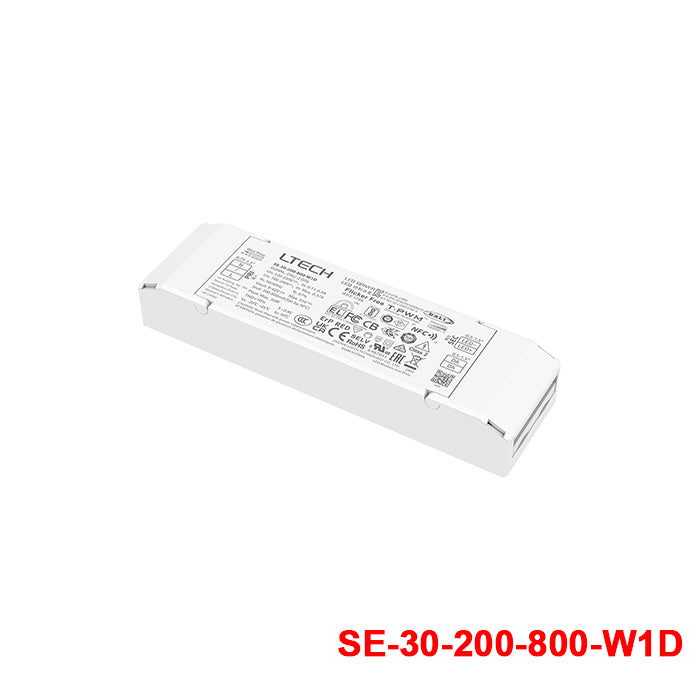

Ltech SE-30-200-800-W1D 30W 200-800mA LED Driver - NFC, DALI2 Dimmable
Log in to see priceOverview
SE-30-200-800-W1D 为该系列 9-42Vdc 输出型号：典型效率 87%@750mA (满载)。
Features
- 外壳采用科思创/三星PC阻燃V0级原料
- 超小体积、轻薄、免螺丝端盖设计
- 通过手机APP可更改输出电流、DALI地址等参数，亦可设置群组、场景等高级模板，实现驱动器数据交互功能
- 电流档位步进值设置低至1mA，兼容性更高更精细
- 带软启动渐亮功能，让人眼视觉更舒服
- T-PWM™超深度调光技术，调光深度可达0.01%
- 0-100%全程调光无可视频闪, 高频豁免考核级别
- 欧盟ERP空载功耗、网络待机功耗＜0.5W
- 空载0V输出，防止接触不良损坏LED灯具
- 过温、过载、短路保护，可自动恢复
- 适合室内Ⅰ、Ⅱ、Ⅲ类灯具应用
- 常规使用下寿命可达10万小时
- 5年保修期（红宝石电容）
Specifications
特征
- 输出类型
- 恒流
- 调光接口
- DALI-2 DT6
- 输出特征
- 隔离
- 防护等级
- IP20
- 绝缘等级
- II 类 (适用于室内Ⅰ、Ⅱ、Ⅲ类灯具)
输出
- 输出电压
- 9-42Vdc
- 最大输出电压(空载)
- ≤55Vdc
- 工作电流范围
- 200-800mA
- 负载功率范围
- 1.8W~30W
- 调光范围
- 0~100%，调光深度: 0.01%
- 电流纹波
- <3%(输出最大电流非调光状态)
- 电流精度
- ±5%
- PWM频率
- ≤3600Hz
输入
- 直流电压范围
- 120-250Vdc
- 交流电压范围
- 100-240Vac
- 应急输出系数
- EoF=100%
- 额定电压
- 115Vac/230Vac
- 频率范围
- 50/60Hz
- 输入电流
- ≤0.34A/115Vac, ≤0.17A/230Vac
- 功率因数
- PF>0.95/115Vac (满载), PF>0.9C/230Vac (满载)
- 谐波THD
- THD≤10%/230Vac (满载)
- 效率(Typ.)
- 87%@750mA (满载)
- 浪涌电流
- 冷启动, 25A (在50%Ipeak下测twidth=130us)@230Vac
- 抗浪涌
- L-N: 2KV
- 漏电流
- Max. 0.5mA
环境
- 工作温度
- ta: -20 ~ 45°C tc: 90°C
- 工作湿度
- 20 ~ 95%RH, 无冷凝
- 储存温度/湿度
- -40 ~ 80°C/10~95%RH
- 温度系数
- ±0.03%/°C(0-50°C)
- 耐振动
- 10-500HZ, 2G 12分钟/周期，X, Y, Z轴各72分钟
保护
- 过载保护
- 负载超过额定功率≥1.02倍时自动保护，减轻负载自动恢复
- 过温保护
- 根据PCB温度超标情况(≥110°C)，智能调节电流输出或关闭，可自动恢复；PCB温度＜90℃时，可自动恢复正常输出
- 过压保护
- 超过空载电压值进入保护，可自行恢复
- 短路保护
- 输出线路短路进入打嗝模式，可自动恢复
- 耐压
- 输入对输出：3750Vac
- 绝缘阻抗
- 输入对输出：100MΩ/500VDC/25℃/70%RH
安规和电磁规格
- 安全规范
-
Parameter Standard Test Level CCC 中国 GB19510.1，GB19510.14 TUV 德国 EN61347-1，EN61347-2-13，EN62493 CB CB成员国 IEC61347-1，IEC61347-2-13 CE 欧盟 EN61347-1，EN61347-2-13，EN62384 KC 韩国 KC61347-1，KC61347-2-13 EAC 俄罗斯 IEC61347-1，IEC61347-2-13 RCM 澳洲 AS 61347-1，AS 61347-2-13 ENEC 欧洲 EN61347-1，EN61347-2-13，EN62384 UKCA 英国 BS EN 61347-1，BS EN 61347-2-13，BS EN 62493 BIS 印度 IS 15885 (PART 2/SEC 13) CUL 加拿大 CSA C22.2 No.250.13 UL 美国 UL 8750 - 电磁兼容发射
-
Parameter Standard Test Level CCC 中国 GB/T17743，GB17625.1 CE 欧盟 EN55015，EN61000-3-2，EN61000-3-3，EN61547 KC 韩国 KSC 9815, KSC 9547 EAC 俄罗斯 IEC62493，IEC61547，EH55015 RCM 澳洲 EN55015，EN61000-3-2，EN61000-3-3，EN61547 UKCA 英国 BS EN IEC 55015，BS EN IEC 61000-3-2，BS EN 61000-3-3，BS EN 61547 CUL 加拿大 ICES-005 UL 美国 FCC part 15B - 电磁兼容抗扰度
- EN61000-4-2,3,4,5,6,8,11, EN61547
ErP
- 功耗
-
Parameter Standard 网络待机功耗 ＜0.5W（通过指令开关后） 空载功耗 ＜0.5W（不接灯具时） - 频闪/频闪效应
-
Parameter Standard Test Level IEEE 1789 满足无影响/高频豁免考核级别 CIE SVM Pst LM≤1.0，SVM≤0.4 DF 相位因素 DF≥0.9
其他
- 产品重量
- 150g±10g
- 产品尺寸
- 142×40×23mm(L×W×H)
Protection
- Overload Protection
- Automatically protect the device when the load exceeds 102% of the rated power. Automatically recover once load is reduced
- Overheat Protection
- Intelligently adjust or turn off the current output if the PCB temperature ≥110°C. When the PCB temperature <90°C, automatically recover normal output
- Overvoltage Protection
- Automatically protect the device when voltage exceeds the no-load voltage. It can be recovered automatically
- Short Circuit Protection
- Enter hiccup mode if short circuit occurs, and recover automatically
Environment
- Working Temperature
- ta: -20 ~ 45°C tc: 90°C
- Storage Temperature/Humidity
- -40 ~ 80°C/10~95%RH
Others
- Normal service life
- 100,000 hours
- Warranty
- 5-year warranty (Rubycon capacitor)
Output
- Efficiency (Typ.)
- 87%
Input
- Inrush Current
- Cold start 25A(Test twidth=130us tested under 50% Ipeak)/230Vac
- Leakage Current
- Max. 0.5mA
Certifications & ratings
- Certification marks
- CCC, UKCA, TÜV, CB, cRUus, FCC, EAC, KC, CE, ENEC, Class II
Technical drawings
Downloads
Datasheet1
FAQ
What kind of applications is the Ltech SE-30-200-800-W1D designed for?
This model is intended for constant-current LED lighting applications that need dimming control and adjustable drive current. Its 30W output, 200-800mA adjustable current range, and DALI2 dimming make it a good fit for commercial and architectural LED systems where control flexibility matters.
Does this model support DALI dimming?
Yes. This driver is DALI2 dimmable and also includes features such as soft-on and fade-in dimming for a smoother lighting experience. It also supports very deep dimming through T-PWM technology, which helps in applications that need fine light-level control.
What are the key electrical specifications of this model?
This LED driver is rated at 30W with a maximum no-load output voltage of ≤55Vdc. Its rated current starts at 200mA, and the output current can be adjusted up to 800mA depending on the application requirements.
Is the SE-30-200-800-W1D suitable for demanding indoor environments?
It is built with V0 flame-retardant PC housing materials and is specified for operation from -20°C to 45°C. Those characteristics make it appropriate for indoor lighting environments that need a compact driver with a defined operating temperature range.
Does this LED driver offer long-term reliability for commercial projects?
This model includes a 5-year warranty, which supports use in professional and commercial lighting projects where service life matters. Its feature set is aimed at controlled LED applications that need both dimming performance and configurable operation.
