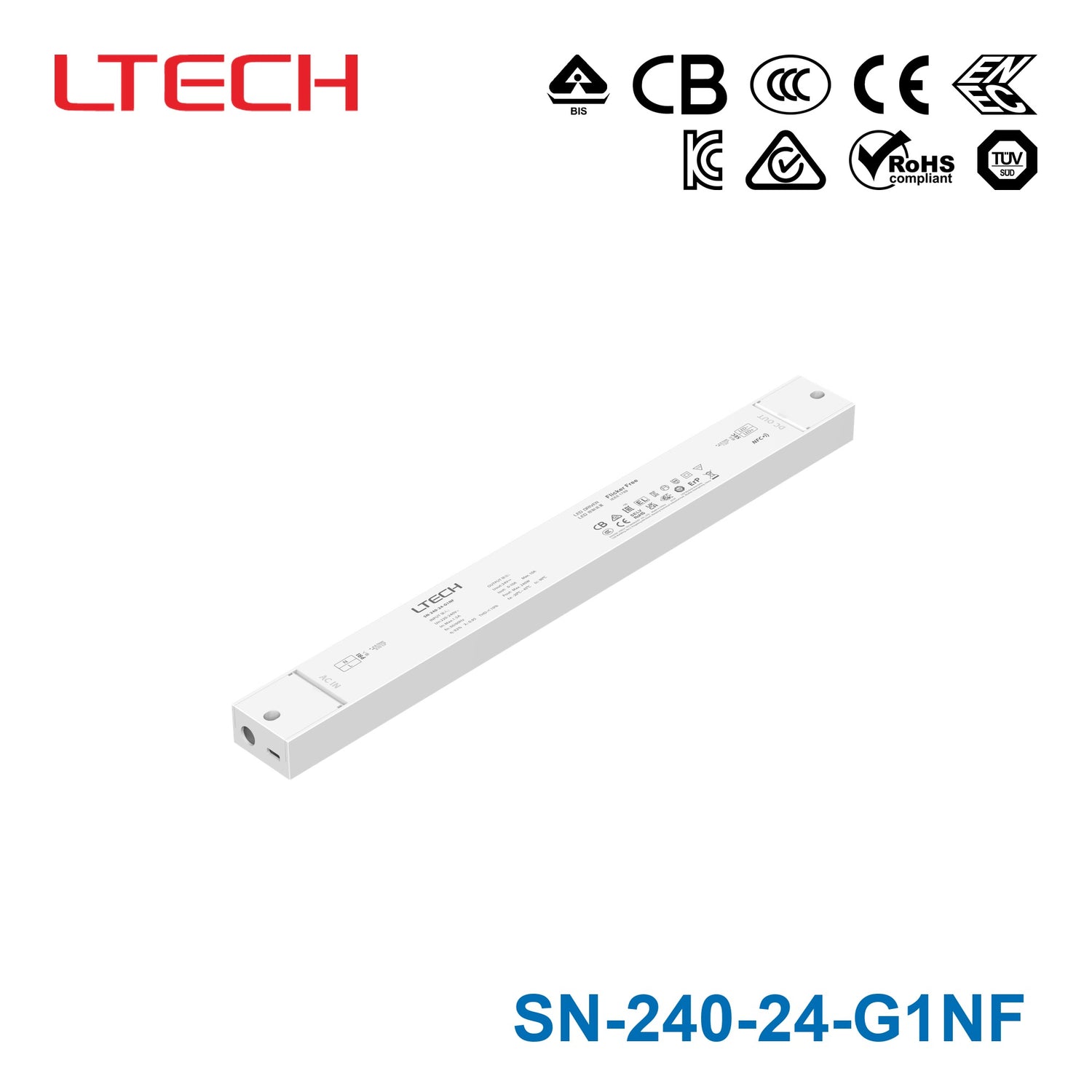

Ltech SN-240-24-G1NF 240W 24VDC CV LED Driver 10A

240W

SKU SN-240-24-G1NF

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

SN-240-24-G1NF is the 24Vdc output model of this series: typical efficiency 93.5%.

Features

Ultra-thin, ultra-small. Housing is made from V0 flame retardant PC materials.
Clamshell style case and wire clamping structure for convenient wire connection.
Through the NFC mobile APP, you can change the maximum brightness value, power transition time, PWM frequency and other parameters.
Support corridor dimming function
With soft start lighting function, let the human eye more comfortable vision
Innovative thermal management technology intelligently protects the life of the LED driver.
Overheat, overload, short circuit protection and automatic recovery.
Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
5-year warranty (Rubycon capacitor).

Specifications

SN-240-24-G1NFSpecifications from the official datasheetDownload datasheet PDF

Features

Output Type: Constant Voltage
Output Feature: Isolation
Protection Grade: IP20
Insulation Grade: Class II (Suitable for class I/ II /III light fixtures)

OUTPUT

Output Voltage: 24Vdc
Output Voltage Range: 24Vdc±0.5Vdc
Output Current: Max. 10A
Output Power: Max. 240W
Output Power Range: 0-240W
Overload Power Limitation: ≥102%
Ripple & Noise: Ripple≤900mV, Noise≤900mV
PWM frequency: 300-2200Hz

INPUT

DC Voltage Range: 220-240Vdc
Input Voltage: 220-240Vac
Frequency: 0/50/60Hz
Input Current: Max. 1.2A/230Vac
Power Factor: PF>0.97 (at full load)
THD: THD<8% (at full load)
Maximum input power: Max. 256W
Efficiency (Typ.): 93.5%
Inrush Current: 45A (230Vac, cold start, twidth=350us, 50% Ipeak)
Anti Surge: L-N: 2KV
Leakage Current: Max. 0.5mA

ENVIRONMENT

Working Temperature: ta: -20~45°C, tc: 90°C
Working Humidity: 20 ~ 95%RH, non-condensing
Storage Temperature/Humidity: -40~80°C, 10~95%RH
Temperature Coefficient: ±0.03%/°C(0-45°C)
Vibration: 10-500Hz, 2G, 12min/cycle, 72min (X, Y, Z axes)

PROTECTION

Overload Protection: Shut down when load ≥102%, auto recovers
Overheat Protection: Adjusts/turns off output if PCB temp ≥110°C, auto recovers
Overvoltage protection: Shut down when non-load voltage ≥28V, re-power on to recover
Short Circuit Protection: Shut down on short circuit, auto recovers
Withstand Voltage: I/P-O/P: 3750Vac
Insulation Resistance: 100MΩ (500VDC, 25°C, 70%RH)

SAFETY & EMC

Safety Standards: Parameter Standard Test Level

CCC China GB19510.1, GB19510.14
TUV Germany EN61347-1, EN61347-2-13, EN62493
CB CB Member States IEC61347-1, IEC61347-2-13
CE European Union EN61347-1, EN61347-2-13, EN62384
KC Korea KC61347-1, KC61347-2-13
EAC Russia IEC61347-1, IEC61347-2-13
RCM Australia AS 61347-1, AS 61347-2-13
ENEC Europe EN61347-1, EN61347-2-13, EN62384
UKCA Britain BS EN 61347-1, BS EN 61347-2-13, BS EN 62493
BIS India IS 15885 (PART 2/SEC 13)
EMC Emission: Parameter Standard Test Level

CCC China GB/T17743, GB17625.1
CE European Union EN55015, EN61000-3-2, EN61000-3-3, EN61547
KC Korea KN15, KN61547
EAC Russia IEC62493, IEC61547, EH55015
RCM Australia EN55015, EN61000-3-2, EN61000-3-3, EN61547
UKCA Britain BS EN IEC 55015, BS EN IEC 61000-3-2, BS EN 61000-3-3, BS EN 61547
EMC Immunity: EN61000-4-2,3,4,5,6,8,11, EN61547

Parameter	Standard	Test Level
CCC	China	GB19510.1, GB19510.14
TUV	Germany	EN61347-1, EN61347-2-13, EN62493
CB	CB Member States	IEC61347-1, IEC61347-2-13
CE	European Union	EN61347-1, EN61347-2-13, EN62384
KC	Korea	KC61347-1, KC61347-2-13
EAC	Russia	IEC61347-1, IEC61347-2-13
RCM	Australia	AS 61347-1, AS 61347-2-13
ENEC	Europe	EN61347-1, EN61347-2-13, EN62384
UKCA	Britain	BS EN 61347-1, BS EN 61347-2-13, BS EN 62493
BIS	India	IS 15885 (PART 2/SEC 13)

Parameter	Standard	Test Level
CCC	China	GB/T17743, GB17625.1
CE	European Union	EN55015, EN61000-3-2, EN61000-3-3, EN61547
KC	Korea	KN15, KN61547
EAC	Russia	IEC62493, IEC61547, EH55015
RCM	Australia	EN55015, EN61000-3-2, EN61000-3-3, EN61547
UKCA	Britain	BS EN IEC 55015, BS EN IEC 61000-3-2, BS EN 61000-3-3, BS EN 61547

ErP

Power Consumption: Parameter Standard

No-load power consumption <0.5W (When the lamp is not connected)
Flicker/Stroboscopic Effect: Parameter Standard Test Level

Network standby power consumption Meet IEEE 1789 standard/High frequency exemption level
CIE SVM Pst LM≤1.0，SVM≤0.4
DF Phase factor DF≥0.9

Parameter	Standard
No-load power consumption	<0.5W (When the lamp is not connected)

Parameter	Standard	Test Level
Network standby power consumption	Meet IEEE 1789 standard/High frequency exemption level
CIE SVM	Pst LM≤1.0，SVM≤0.4
DF	Phase factor	DF≥0.9

OTHERS

Weight(N.W.): 450g±10g
Dimensions: 400×40×22mm(L×W×H)
Life time: 100,000 hours (at housing temperature 50°C)

Technical drawings

SN-240-24-G1NF Product Size — Product Size

SN-240-24-G1NF Wiring Diagram — Wiring Diagram

SN-240-24-G1NF Application Diagram of Protective Cover — Application Diagram of Protective Cover

SN-240-24-G1NF Installation Precautions — Installation Precautions

SN-240-24-G1NF Installation Precautions (2) — Installation Precautions (2)

SN-240-24-G1NF Use with NFC Lighting APP — Use with NFC Lighting APP

SN-240-24-G1NF Read/write smart power supply — Read/write smart power supply

SN-240-24-G1NF 3. Write data to the drive — 3. Write data to the drive

SN-240-24-G1NF Corridor light function working process — Corridor light function working process

SN-240-24-G1NF Corridor light function working process (2) — Corridor light function working process (2)

SN-240-24-G1NF Relationship Diagrams — Relationship Diagrams

SN-240-24-G1NF Lifetime[hours] — Lifetime[hours]

SN-240-24-G1NF Stroboscopic test list — Stroboscopic test list

Typical applications

Indoor office lighting, decorative lighting and commercial lighting.

Downloads

Datasheet1

SN-240-24-G1NF datasheetSN_240_24_G1NF.pdf PDF Download

FAQ

What is this LED driver used for?

It is a constant voltage LED driver suitable for Class I, II, and III light fixtures, providing 24V DC output.

What are the output voltage and current ratings?

The output is 24V DC with a maximum current of 10A and a maximum power of 240W.

What is the input voltage range?

It accepts an input voltage of 220-240V AC at 50/60Hz.

What is the IP rating and operating temperature?

The unit has an IP20 rating, making it suitable for indoor use only. The operating ambient temperature range is -20°C to 45°C.

What protection features are included?

It includes short circuit, overload, overvoltage, and overheat protection. Overload and short circuit protections auto-recover, while overvoltage requires a power cycle.

What are the dimensions and weight?

The dimensions are 400 x 40 x 22 mm, and the net weight is approximately 450g.

What is the expected lifetime?

The estimated lifetime is 100,000 hours at a housing temperature of 50°C.
