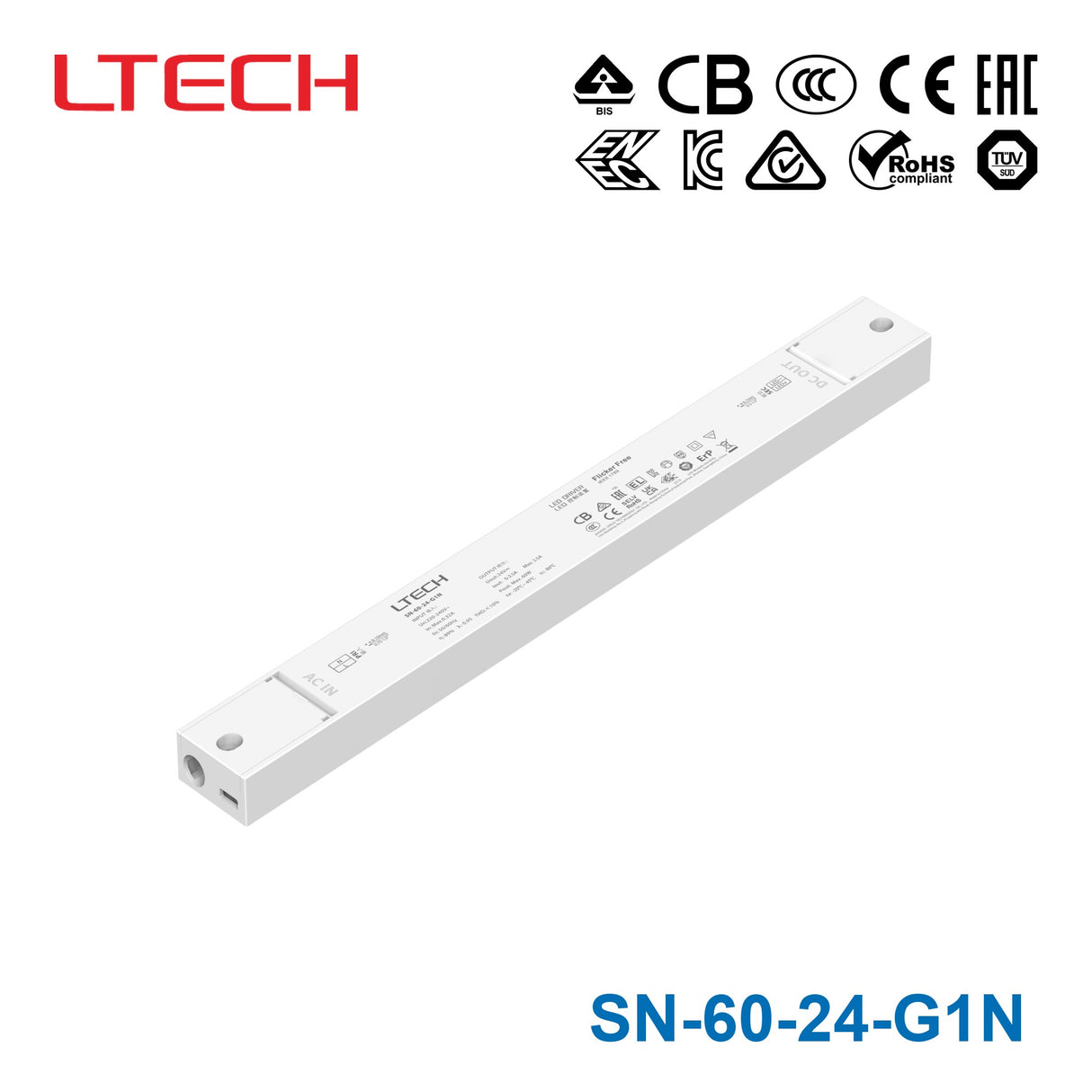

Ltech SN-60-24-G1N 60W 24VDC CV LED Driver 2.5A
Log in to see priceOverview
SN-60-24-G1N is the 24Vdc output model of this series: typical efficiency 89%.
Features
- Ultra-thin, ultra-small. Housing is made from V0 flame retardant PC materials;.
- Clamshell style case and wire clamping structure for convenient wire connection.
- Overheat, overload, short circuit protection and automatic recovery.
- Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
- 5-year warranty (Rubycon capacitor).
Specifications
SN-60-24-G1NSpecifications from the official datasheetDownload datasheet PDF
Features
- Output Type
- Constant Voltage
- Output Feature
- Isolation
- Protection Grade
- IP20
- Insulation Grade
- Class II (Suitable for class I/ II /III light fixtures)
OUTPUT
- Output Voltage
- 24Vdc
- Output Voltage Range
- 24Vdc±0.5Vdc
- Output Current
- Max. 2.5A
- Output Power
- Max. 60W
- Output Power Range
- 0-60W
- Overload Power Limitation
- ≥102%
- Ripple & Noise
- 350mVp-p
INPUT
- DC Voltage Range
- 220-240Vdc
- Input Voltage
- 220-240Vac
- Frequency
- 0/50/60Hz
- Input Current
- Max. 0.32A/230Vac
- Power Factor
- PF>0.95 (at full load)
- THD
- THD<10% (at full load)
- Maximum input power
- Max. 68W
- Efficiency (Typ.)
- 89%
- Inrush Current
- 30A (twidth=162us, tested under 50% Ipeak) / 230Vac
- Anti Surge
- L-N: 2KV
- Leakage Current
- Max. 0.5mA
ENVIRONMENT
- Working Temperature
- ta: -20 ~ 45°C tc: 85°C
- Working Humidity
- 20 ~ 95%RH, non-condensing
- Storage Temperature/Humidity
- -40 ~ 80°C/10~95%RH
- Temperature Coefficient
- ±0.03%/°C(0-45°C)
- Vibration
- 10-500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively
PROTECTION
- Overload Protection
- Shut down the output when current load≥102%, auto recovers.
- Overheat Protection
- Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, auto recovers
- Overvoltage protection
- Shut down the output when non-load voltage ≥30V, re-power on to recover after fault condition is removed
- Short Circuit Protection
- Shut down automatically if short circuit occurs, auto recovers.
SAFETY & EMC
- Withstand Voltage
- I/P-O/P: 3750Vac
- Insulation Resistance
- 100MΩ/500VDC/25°C/70%RH
- Safety Standards
-
Parameter Standard Test Level CCC China GB19510.1, GB19510.14 TUV Germany EN61347-1, EN61347-2-13, EN62493 CB CB Member States IEC61347-1, IEC61347-2-13 CE European Union EN61347-1, EN61347-2-13, EN62384 KC Korea KC61347-1, KC61347-2-13 EAC Russia IEC61347-1, IEC61347-2-13 RCM Australia AS 61347-1, AS 61347-2-13 ENEC Europe EN61347-1, EN61347-2-13, EN62384 UKCA Britain BS EN 61347-1, BS EN 61347-2-13, BS EN 62493 BIS India IS 15885 (PART 2/SEC 13) - EMC Emission
-
Parameter Standard Test Level CCC China GB/T17743, GB17625.1 CE European Union EN55015, EN61000-3-2, EN61000-3-3, EN61547 KC Korea KN15, KN61547 EAC Russia IEC62493, IEC61547, EH55015 RCM Australia EN55015, EN61000-3-2, EN61000-3-3, EN61547 UKCA Britain BS EN IEC 55015, BS EN IEC 61000-3-2, BS EN 61000-3-3, BS EN 61547 - EMC Immunity
- EN61000-4-2,3,4,5,6,8,11, EN61547
ErP
- Power Consumption
- No-load power consumption <0.5W (When the lamp is not connected)
- Flicker/Stroboscopic Effect
- IEEE 1789 Meet IEEE 1789 standard/High frequency exemption level
- CIE SVM
- Pst LM≤1.0，SVM≤0.4
- DF
- Phase factor DF≥0.9
OTHERS
- Weight(N.W.)
- 195g±10g
- Dimensions
- 300×30×17mm(L×W×H)
- Warranty
- 5-year warranty (Rubycon capacitor)
Technical drawings
![SN-60-24-G1N Efficiency[%]](https://wellforces-akeneo-pim.s3.ap-southeast-2.amazonaws.com/catalog/8d/2d/8d2d5b6b7317aee879af7602e9ade1a4dd2b9c548bf233949c56818ef0e8da0c.webp)
Typical applications
- Indoor office lighting, decorative lighting and commercial lighting.
