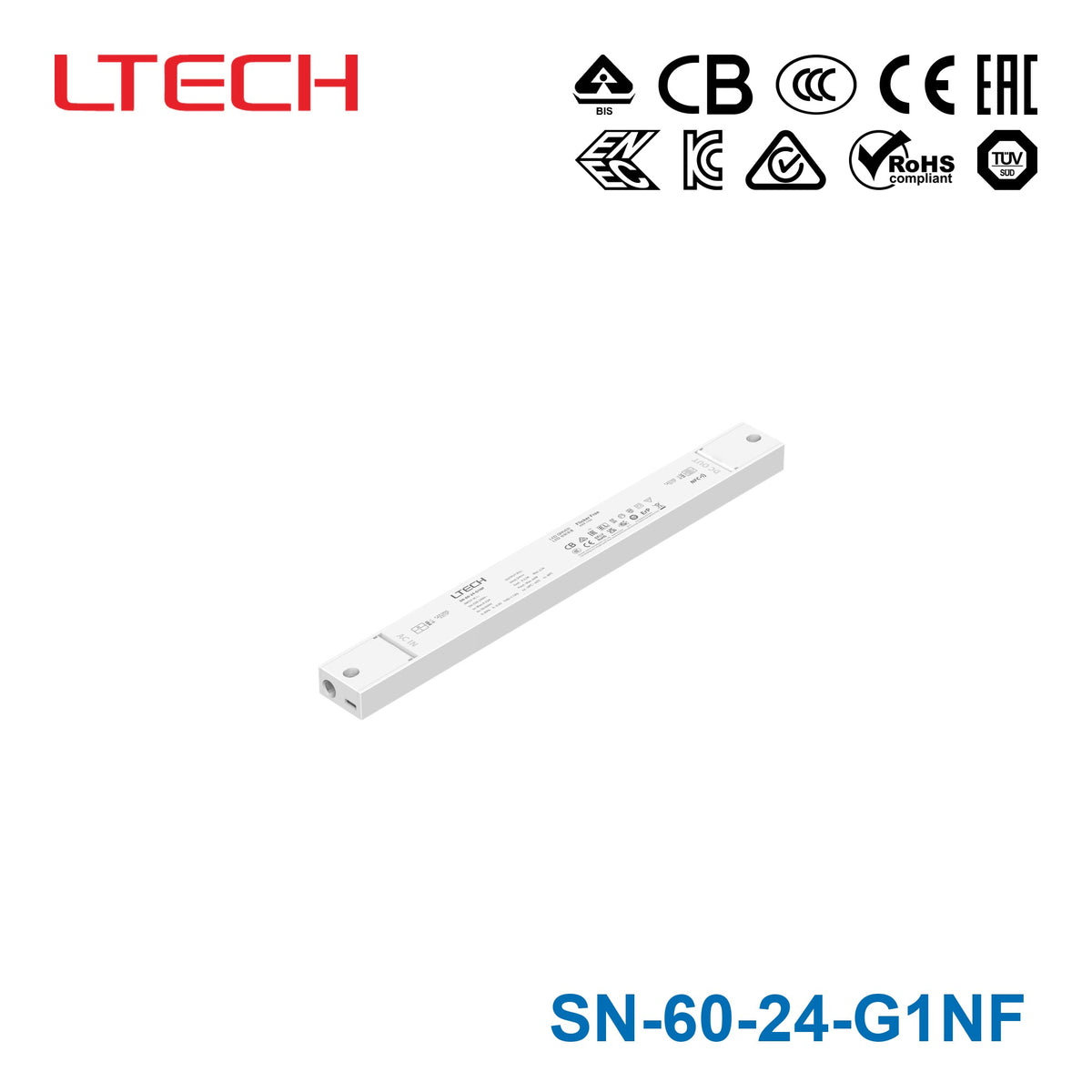

Ltech SN-60-24-G1NF 60W 24VDC CV LED Driver 2.5A
Log in to see priceOverview
SN-60-24-G1NF is the 24Vdc output model of this series: typical efficiency 89%.
Features
- Ultra-thin, ultra-small. Housing is made from V0 flame retardant PC materials.
- Clamshell style case and wire clamping structure for convenient wire connection.
- Change max.brightness, power-on fading time, PWM frequency and other parameters thorough a NFC-enabled phone and driver data can be synced between drivers and the APP.
- With soft-on and fade-in dimming function, enhancing your visual comfort.
- Innovative thermal management technology intelligently protects the life of the LED driver.
- Overheat, over voltage, overload, short circuit protection and automatic recovery.
- 5-year warranty (Rubycon capacitor).
Specifications
Features
- Output Type
- Constant voltage
- Output Feature
- Isolation
- Protection Grade
- IP20
- Insulation Grade
- Class II (Suitable for class I/ II /III light fixtures)
OUTPUT
- Output Voltage
- 24Vdc
- Output Voltage Range
- 24Vdc±0.5Vdc
- Output Current
- Max. 2.5A
- Output Power
- Max. 60W
- Output Power Range
- 0-60W
- Overpower Limitation
- ≥102%
- Ripple and Noise
- 350mVp-p
- PWM frequency
- NFC set up 300-22000Hz
INPUT
- DC Voltage Range
- 220-240Vdc
- Input Voltage
- 220-240Vac
- EoFv
- 99.6%
- Frequency
- 0/50/60Hz
- Input Current
- Max. 0.32A/230Vac
- Power Factor
- PF＞0.95 (at full load)
- THD
- THD＜10% (at full load)
- Maximum Input Power
- Max. 68W
- Efficiency (Typ.)
- 89%
- Inrush Current
- Cold start 30A (Test twidth=162us tested under 50% Ipeak) / 230Vac
- Anti Surge
- L-N: 2KV
- Leakage Current
- Max. 0.5mA
ENVIRONMENT
- Working Temperature
- ta: -20~45°C, tc: 85°C
- Working Humidity
- 20~95%RH,non-condensing
- Storage Temperature/Humidity
- -40~80°C/10~95%RH
- Temperature Coefficient
- ±0.03%/°C(0-45°C)
- Vibration
- 10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively
PROTECTION
- Overload Protection
- Shut down the output when rated power≥102%, auto recovers
- Overheat Protection
- Intelligently adjust or turn off the output current if the PCB temperature ≥110°C, and recover automatically
- Overvoltage Protection
- Shut down the output when voltage≥28V, and recover automatically
- Short Circuit Protection
- Enter hiccup mode if short circuit occurs, and recover automatically
SAFETY & EMC
- Withstand Voltage
- I/P-O/P: 3750Vac
- Insulation Resistance
- I/P-O/P: 100MΩ/500VDC/25°C/70%RH
- Safety Standards
-
Parameter Standard Test Level CCC China GB19510.1,GB19510.14 TUV Germany EN61347-1,EN61347-2-13，EN62493 CB CB Member States IEC61347-1,IEC61347-2-13 CE European Union EN61347-1,EN61347-2-13，EN62384 KC Korea KC61347-1,KC61347-2-13 EAC Russia IEC61347-1,IEC61347-2-13 RCM Australia AS 61347-1,AS 61347-2-13 ENEC Europe EN61347-1,EN61347-2-13，EN62384 UKCA Britain BS EN 61347-1,BS EN 61347-2-13, BS EN 62493 BIS India IS 15885 (PART 2/SEC 13) - EMC Emission
-
Parameter Standard Test Level CCC China GB/T17743, GB17625.1 CE European Union En55015, EN61000-3-2, EN61000-3-3, En61547 KC Korea Kn15, Kn61547 EAC Russia IEC62493, IEC61547, Eh55015 RCM Australia En55015, EN61000-3-2, EN61000-3-3, En61547 UKCA Britain BS EN IEC 55015, BS EN IEC 61000-3-2, BS EN 61000-3-3, BS EN 61547 - EMC Immunity
- EN61000-4-2,3,4,5,6,8,11, EN61547
ErP
- Power Consumption
-
Parameter Standard No-load power consumption <0.5W (When the lamp is not connected) - Flicker/Stroboscopic Effect
-
Parameter Standard IEEE1789 Meet IEEE 1789 standard/High frequency exemption level CIE SVM Pst LM≤1.0, SVM≤0.4 - DF
-
Parameter Standard Phase factor DF≥0.9
OTHERS
- Weight(N.W.)
- 195g±10g
- Dimensions
- 300×30×17mm(L×W×H)
Technical drawings
Typical applications
- Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
- Suitable for indoor lights such as LED strips and magnetic track lights.
Downloads
Datasheet1
FAQ
What is this driver used for?
It is a constant voltage LED driver designed for Class I, II, and III light fixtures, providing 24V DC output.
What are the output voltage and current ratings?
The output is 24V DC with a maximum current of 2.5A, delivering up to 60W of power.
What is the input voltage range?
It accepts an input voltage of 220-240V AC (and 220-240V DC) at 50/60Hz.
Does it support dimming?
Yes, it supports PWM dimming with a frequency range of 300-22000Hz.
What protections are included?
It includes overload, overheat, overvoltage, and short circuit protection, all with automatic recovery.
What is the IP rating and operating temperature?
It has an IP20 rating for indoor use and operates in ambient temperatures from -20°C to 45°C.
What are the physical dimensions?
The unit measures 300mm in length, 30mm in width, and 17mm in height.
