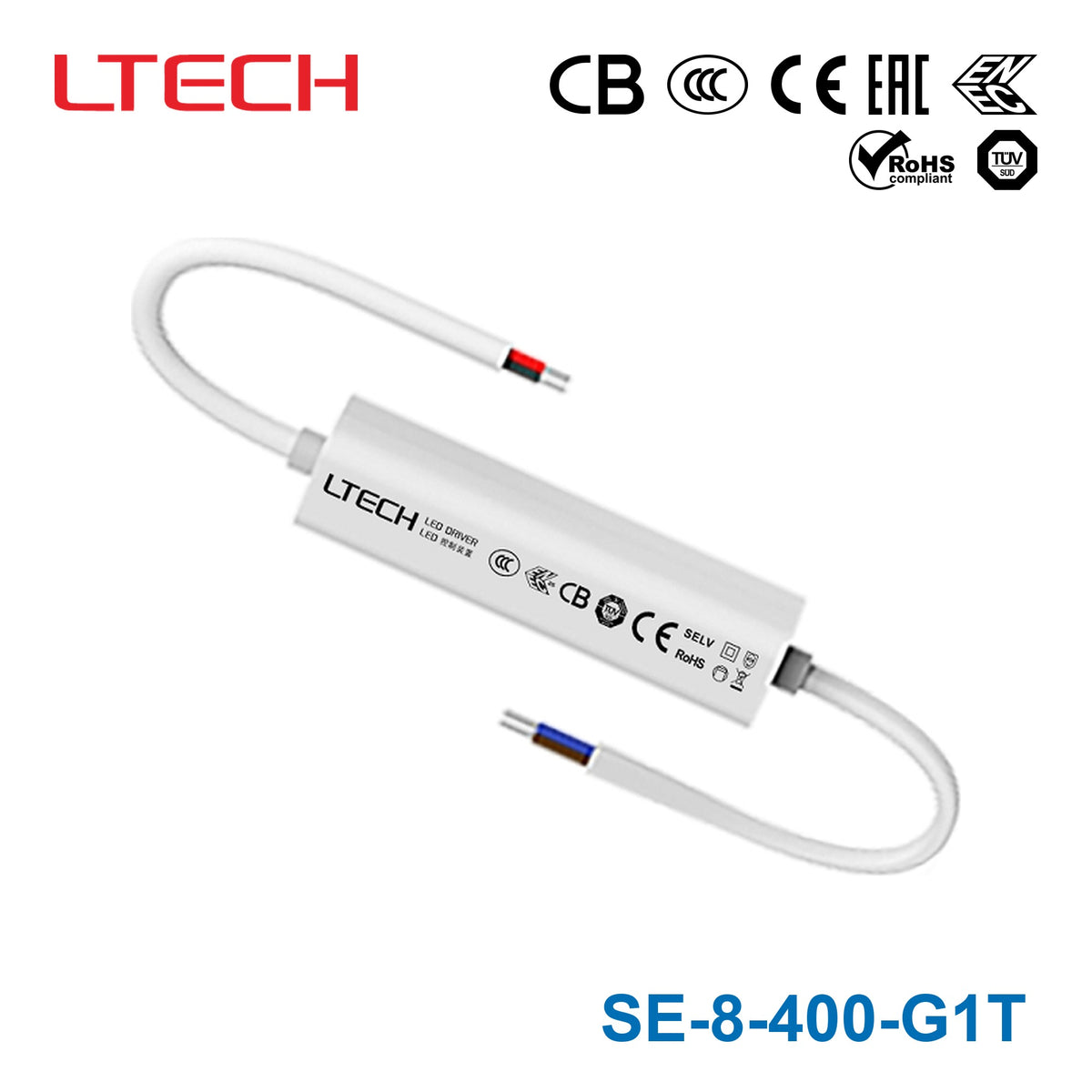

Ltech SE-8-400-G1T 6.3W 9-42VDC CC Triac LED Driver 0.45A
Log in to see priceOverview
SE-8-400-G1T is the 2-15.5Vdc output model of this series: typical efficiency 73%.
Features
- Housing made from SAMSUNG/COVESTRO's V0 flame retardant PC materials.
- Ultra small, thin and lightweight, screwless end cap design.
- Leading edge (Triac), trailing edge (ELV) phase control dimming.
- Soft-on and fade-in dimming function enhances your visual comfort；
- T-PWM super deep dimming technology, 0.1% dimming depth.
- The whole dimming process is flicker-free with high frequency exemption level;
- Overheat, over voltage, overload, short circuit protection and automatic recovery.
- Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
- Normal service life can reach 100,000 hours.
- 5-year warranty (Rubycon capacitor).
Specifications
SE-8-400-G1TSpecifications from the official datasheetDownload datasheet PDF
FEATURES
- Output Type
- Constant current
- Dimming Interface
- Triac/ELV
- Output Feature
- Isolation
- IP Rating
- IP50
- Insulation Glass
- Class II (Suitable for class I/ II /III light fixtures)
OUTPUT
- Output Voltage
- 2-15.5Vdc
- Max. Output Voltage(No-load)
- ≤30Vdc
- Output Current
- 400mA
- Output Power
- Max.6.2W
- Load Power Range
- 0.8-6.2W
- Dimming Range
- 0~100%，Down to 0.1%
- LF Current Ripple
- ＜3% (Maximum current for non dimming state)
- Current Accuracy
- ±5%
- PWM Frequency
- ≤3600Hz
INPUT
- AC Voltage Range
- 220-240Vac
- DC Voltage Range
- 220-240Vdc(EMI evaluation required after luminaire integration)
- Input Voltage
- 230Vac
- Frequency
- 50/60Hz
- Input Current
- ≤0.045A/230Vac
- Power Factor
- PF＞0.9/230Vac (at full load)
- Efficiency (Typ.)
- 73%
- Inrush Current
- Cold start 10A(Test twidth=300us tested under 50% Ipeak)/230Vac
- Anti Surge
- L-N:1KV
- Leakage Current
- Max.0.5mA
ENVIRONMENT
- Operating Temperature
- ta:-20°C~45°C tc:90°C
- Working Humidity
- 20~95%RH，non-condensing
- Storage Temperature/Humidity
- -40~80°C/10~95%RH
- Temperature Coefficient
- ±0.03%/°C(-20°C~45°C)
- Vibration
- 10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively
PROTECTION
- Overload Protection
- Automatically protect the device when the load exceeds 102% of the rated power. Automatically recover once load is reduced
- Overheat Protection
- Intelligently adjust or turn off the current output if the PCB temperature ≥110°C. When the PCB temperature <90°C, automatically recover normal output
- Overvoltage Protection
- Automatically protect the device when voltage exceeds the no-load voltage. It can be recovered automatically
- Short Circuit Protection
- Enter hiccup mode if short circuit occurs, and recover automatically
SAFETY & EMC
- Withstand Voltage
- I/P-O/P: 3750Vac
- Insulation Resistance
- I/P-O/P: 100MΩ/500VDC/25℃/70%RH
- Safety Certifications
-
Parameter Standard Test Level CCC China GB19510.1，GB19510.14，GB19510.213 TUV Germany EN61347-1，EN61347-2-13，EN62493 CB CB Member States IEC61347-1，IEC61347-2-13 CE European Union EN61347-1，EN61347-2-13，EN62384 EAC Russia IEC61347-1，IEC61347-2-13 RCM Australia AS 61347-1，AS 61347-2-13 ENEC Europe EN61347-1，EN61347-2-13，EN62384 KC Korea KC61347-1，KC61347-2-13 - EMC Emission
-
Parameter Standard Test Level CCC China GB/T17743，GB17625.1 CE European Union ENIEC55015，ENIEC61000-3-2，EN61000-3-3 EAC Russia IEC62493，IEC61547，EH55015 RCM Australia EN55015，EN61000-3-2，EN61000-3-3，EN61547 KC Korea KN15，KN61547 - EMC Immunity
- EN61000-4-2,3,4,5,6,8,11,EN61547
ErP
- Power Consumption Networked standby
- Standby power consumption without network connection (when the thyristor signal is 0, the power consumption is 0)
- Power Consumption No-load power consumption
- No no-load mode
- Flicker/Stroboscopic Effect IEEE1789
- Meet IEEE 1789 standard/High frequency exemption level
- Flicker/Stroboscopic Effect CIE SVM
- PstLM≤1.0，SVM≤0.4
- DF Phase factor
- DF≥0.9
OTHERS
- Weight(N.W.)
- 50g±5g
- Dimensions
- 84x20x20mm(LxWxH)
- Package size
- 115x36x26mm(LxWxH)
