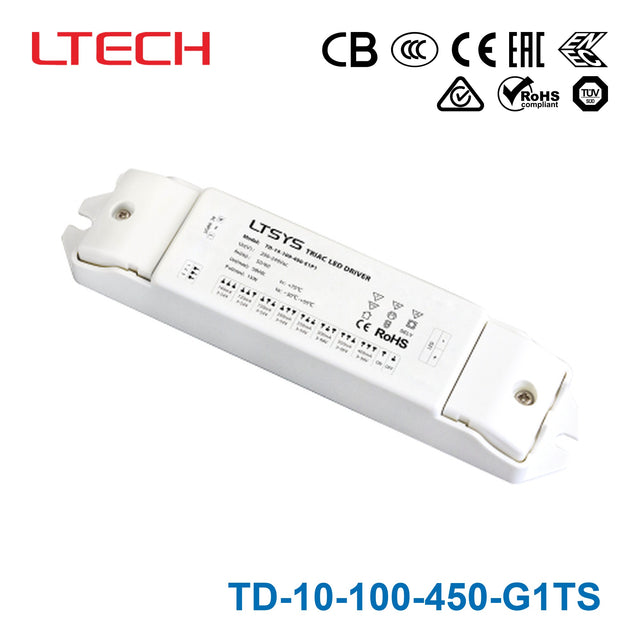

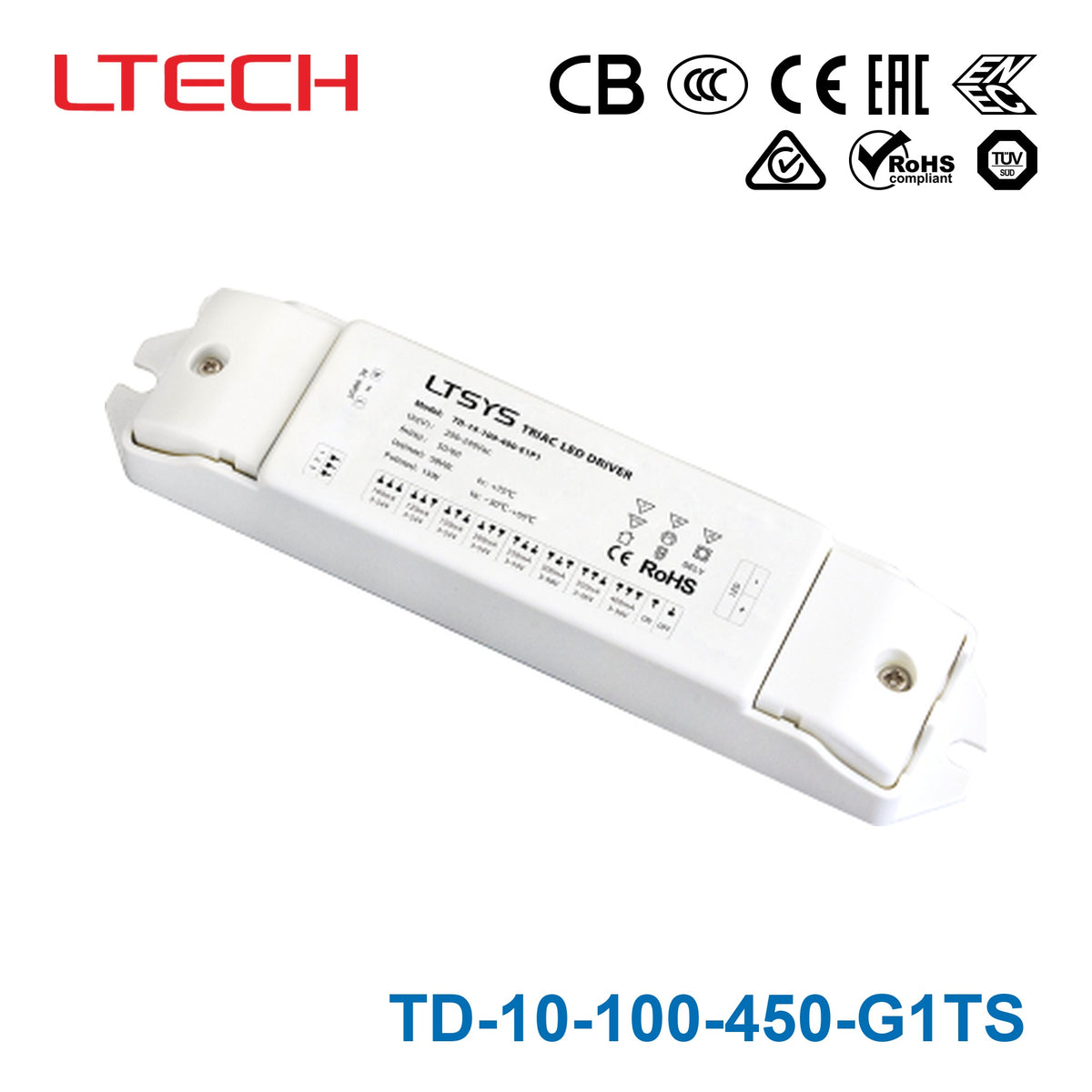

Ltech TD-10-100-450-G1TS 10W 9-42VDC CC Triac LED Driver 0.1-0.45A

2-in-1 Triac /ELV9-42VDC10W

SKU TD-10-100-450-G1TS

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

TD-10-100-450-G1TS is the ≤54Vdc output model of this series.

Features

Small size and light weight.The housing is made from V0 flame retardant PC materials from SAMSUNG/COVESTRO.
Support Leading edge(Triac), Trailing edge(ELV).
With soft-on and fade-in dimming function, enhancing your visual comfort.
T-PWM™ dimming technology allows continuous and flicker-free images under high-speed photography.
Dimming from 0~100%, down to 0.1%.
The whole dimming process is flicker-free with high frequency exemption level.
Multiple current levels and wide voltage range. Suitable for different power of LEDs.
Class 2 LED driver, Safety Extra Low Voltage (SELV).
Innovative thermal management technology intelligently protects the life of the LED driver.
Overheat, overload, short circuit protection and automatic recovery.
Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
Up to 50,000-hour life time.
5-year warranty (Rubycon capacitor).

Specifications

TD-10-100-450-G1TSSpecifications from the official datasheetDownload datasheet PDF

Features

Output Type: Constant Current
Dimming Interface: Triac/ELV
Output Feature: Isolation
Protection Grade: IP20
Insulation Grade: Class II (Suitable for class I/ II /III light fixtures)

OUTPUT

Output Voltage: ≤54Vdc
Output Voltage Range: 9-42Vdc
Output Current: 100-450mA
Output Power: Max. 10W
Output Power Range: 0.9-10W
Dimming Range: 0~100%, down to 0.1%
LF Current Ripple: <3%
Current Accuracy: ±5%
PWM Frequency: ≤3600Hz

INPUT

DC Voltage Range: 200-280Vdc (Dimming is not available)
AC Voltage Range: 220-240Vac
Rated Voltage: 230Vac
Frequency: 50/60Hz
Input Current: ≤0.08A/230Vac
Power Factor: PF>0.9/230Vac, at full load
THD: THD<15%@230Vac, at full load
Efficiency (Typ.): >78%@250mA
Inrush Current: 10A@230Vac (twidth=300us, tested under 50% Ipeak)
Anti Surge: L-N: 1KV
Leakage Current: Max. 0.5mA

ENVIRONMENT

Working Temperature: ta: -20 ~ 45°C tc: 90°C
Working Humidity: 20 ~ 95%RH, non-condensing
Storage Temperature/Humidity: -40 ~ 80°C/10~95%RH
Temperature Coefficient: ±0.03%/°C (-20~45°C)
Vibration: 10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively

PROTECTION

Overload Protection: Shut down the output and recover automatically once it exceeds 1.02-1.35 times of the rated power
Overheat Protection: Intelligently adjust or turn off the current output if the PCB temperature ≥110°C. When the PCB temperature <90°C, automatically recover normal output
Short Circuit Protection: When short circuit occurs, shut down the output and recover automatically

SAFETY & EMC

Withstand Voltage: I/P-O/P: 3750Vac
Insulation Resistance: I/P-O/P: 100MΩ/500VDC/25°C/70%RH
Safety Standards: Parameter Standard Test Level

CCC China GB19510.1，GB19510.14，GB19510.213
CE European Union EN 61347-1, EN 61347-2-13, EN 62493
TUV Germany EN 61347-1, EN 61347-2-13, EN 62493
ENEC Europe EN 61347-1, EN 61347-2-13, EN 62384
CB CB Member States IEC 61347-1, IEC 61347-2-13
RCM Australia AS/NZS 61347.1, AS 61347.2.13
EAC Russia IEC 61347-1, IEC 61347-2-13
EMC Emission: Parameter Standard Test Level

CCC China GB/T 17743, GB 17625.1
CE European Union EN IEC 55015, EN IEC 61000-3-2, EN 61000-3-3
RCM Australia EN IEC 55015, EN IEC 61000-3-2, EN 61000-3-3
EAC Russia IEC 62493, IEC 61547, EH 55015, IEC 61000-3-2, IEC 61000-3-3
EMC Immunity: EN 61000-4-2,3,4,5,6,8,11, EN 61547

Parameter	Standard	Test Level
CCC	China	GB19510.1，GB19510.14，GB19510.213
CE	European Union	EN 61347-1, EN 61347-2-13, EN 62493
TUV	Germany	EN 61347-1, EN 61347-2-13, EN 62493
ENEC	Europe	EN 61347-1, EN 61347-2-13, EN 62384
CB	CB Member States	IEC 61347-1, IEC 61347-2-13
RCM	Australia	AS/NZS 61347.1, AS 61347.2.13
EAC	Russia	IEC 61347-1, IEC 61347-2-13

Parameter	Standard	Test Level
CCC	China	GB/T 17743, GB 17625.1
CE	European Union	EN IEC 55015, EN IEC 61000-3-2, EN 61000-3-3
RCM	Australia	EN IEC 55015, EN IEC 61000-3-2, EN 61000-3-3
EAC	Russia	IEC 62493, IEC 61547, EH 55015, IEC 61000-3-2, IEC 61000-3-3

ErP

Power Consumption Standby power consumption: No standby mode
Power Consumption Networked standby: No networked standby mode (No Phase-cut signal, no power consumption)
Power Consumption No-load power consumption: Without no-load mode
Flicker/Stroboscopic Effect IEEE 1789: Meet IEEE 1789 standard/High frequency exemption level
Flicker/Stroboscopic Effect CIE SVM: Pst LM≤1.0, SVM≤0.4
DF Phase factor: DF≥0.9

OTHERS

Life Time: 50000 hours
Warranty: 5 years

Certifications & ratings

Marked features: T-PWM Dimming Technology, Multiple Current

Technical drawings

TD-10-100-450-G1TS LED Current Selection — LED Current Selection

TD-10-100-450-G1TS Product Size — Product Size

TD-10-100-450-G1TS Wiring Diagram — Wiring Diagram

TD-10-100-450-G1TS ELV Connection — ELV Connection

TD-10-100-450-G1TS Installation Precautions — Installation Precautions

TD-10-100-450-G1TS Relationship Diagrams — Relationship Diagrams

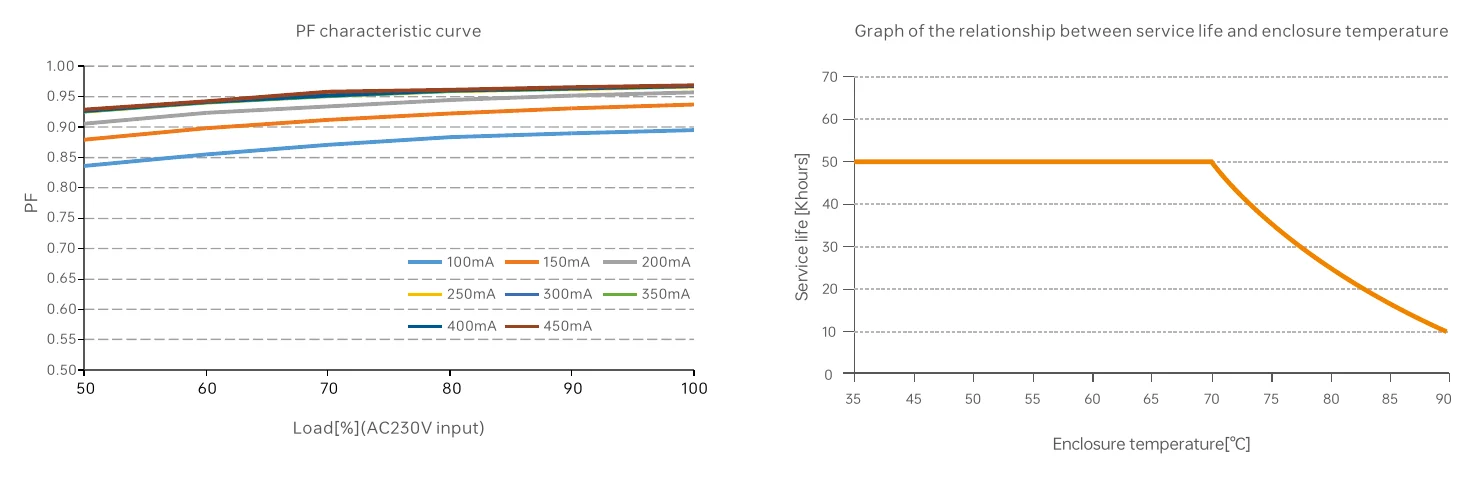

TD-10-100-450-G1TS Servicelife[Khours] — Servicelife[Khours]

TD-10-100-450-G1TS Efficiency[%] — Efficiency[%]

TD-10-100-450-G1TS Flicker Test Form — Flicker Test Form

TD-10-100-450-G1TS Packaging Image — Packaging Image

Downloads

Datasheet1

TD-10-100-450-G1TS datasheetTD_10_100_450_G1TS.pdf PDF Download

FAQ

What is this LED driver used for?

It is a constant current LED driver suitable for Class I, II, and III light fixtures, providing up to 10W of power.

What are the output voltage and current specifications?

The output voltage range is 9-42Vdc (max 54Vdc) and the output current is adjustable from 100mA to 450mA.

How does the dimming work?

It supports Triac/ELV dimming with a range of 0-100%, down to 0.1%. Note that dimming is not available when using DC input (200-280Vdc).

What is the required input voltage?

The rated AC input is 220-240Vac at 50/60Hz. It also accepts a DC input range of 200-280Vdc.

What is the IP rating and operating temperature?

The unit has an IP20 rating, making it suitable for indoor use only. The working ambient temperature range is -20°C to 45°C.

What protection features are included?

It includes automatic recovery for overload, short circuit, and overheat protection. Overheat protection activates if the PCB temperature reaches 110°C.

What is the warranty period?

The product comes with a 5-year warranty and has a rated life time of 50,000 hours.
