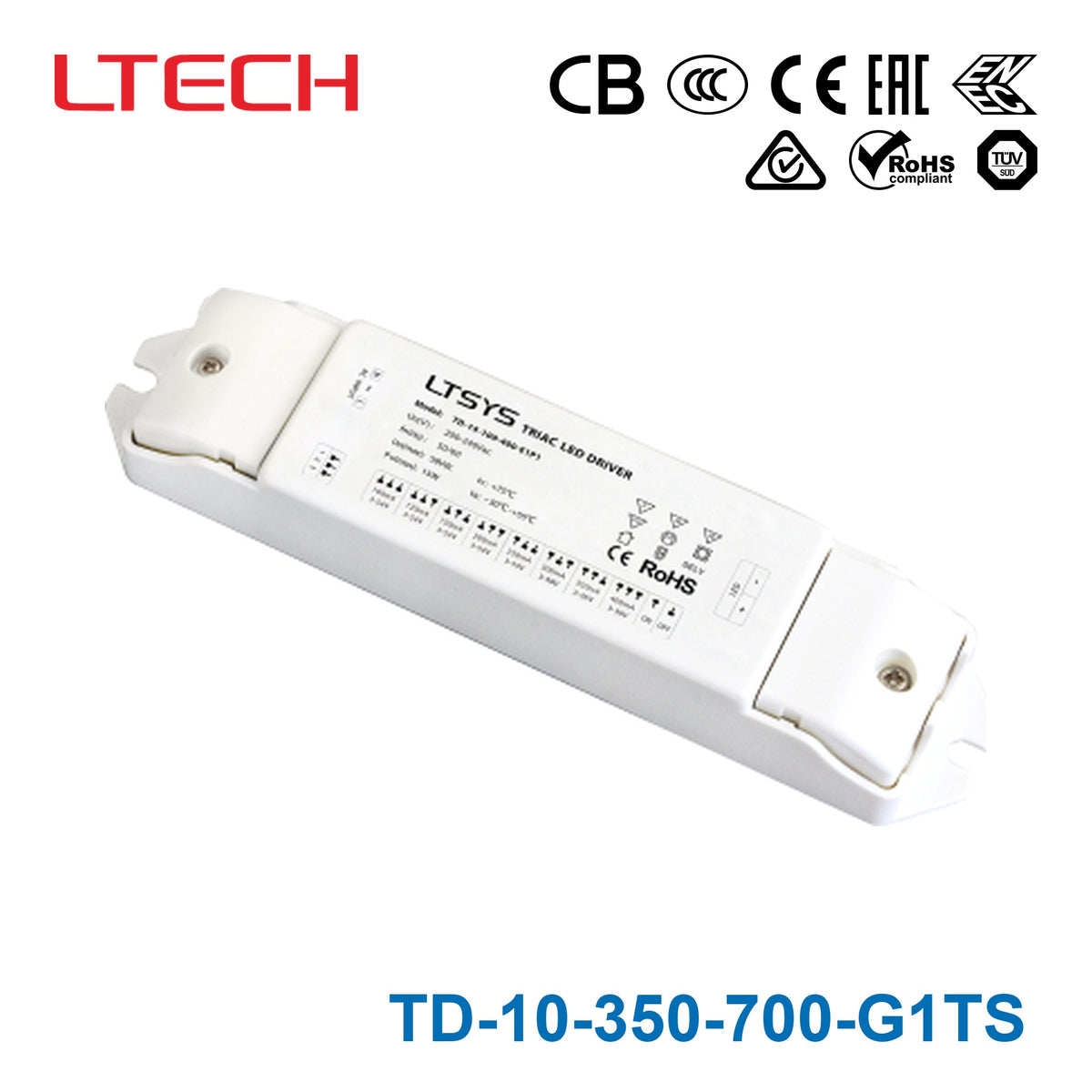

Ltech TD-10-350-700-G1TS 10W 9-24VDC CC Triac LED Driver 0.35-0.7A

2-in-1 Triac /ELV9-24VDC10W

SKU TD-10-350-700-G1TS

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

TD-10-350-700-G1TS is the ≤35Vdc output model of this series.

Features

Small size and light weight.The housing is made from V0 flame retardant PC materials from SAMSUNG/COVESTRO.
Support Leading edge(Triac), Trailing edge(ELV).
With soft-on and fade-in dimming function, enhancing your visual comfort.
T-PWM™ dimming technology allows continuous and flicker-free images under high-speed photography.
Dimming from 0~100%, down to 0.1%.
The whole dimming process is flicker-free with high frequency exemption level.
Multiple current levels and wide voltage range. Suitable for different power of LEDs.
Class 2 LED driver, Safety Extra Low Voltage (SELV).
Innovative thermal management technology intelligently protects the life of the LED driver.
Overheat, overload, short circuit protection and automatic recovery.
Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
Up to 50,000-hour life time.
5-year warranty (Rubycon capacitor).

Specifications

TD-10-350-700-G1TSSpecifications from the official datasheetDownload datasheet PDF

Features

Output Type: Constant Current
Dimming Interface: Triac/ELV
Output Feature: Isolation
Protection Grade: IP20
Insulation Grade: Class II (Suitable for class I/ II /III light fixtures)

OUTPUT

Output Voltage: ≤35Vdc
Output Voltage Range: 9-24Vdc
Output Current: 350-700mA
Output Power: Max. 10W
Output Power Range: 3.15-10W
Dimming Range: 0~100%, down to 0.1%
LF Current Ripple: <3%
Current Accuracy: ±5%
PWM Frequency: ≤3600Hz

INPUT

DC Voltage Range: 200-280Vdc (Dimming is not available)
AC Voltage Range: 220-240Vac
Rated Voltage: 230Vac
Frequency: 50/60Hz
Input Current: ≤0.08A/230Vac
Power Factor: PF>0.9/230Vac, at full load
THD: THD<15%@230Vac, at full load
Efficiency (Typ.): >76%@400mA
Inrush Current: 10A@230Vac (twidth=300us, tested under 50% Ipeak)
Anti Surge: L-N: 1KV
Leakage Current: Max. 0.5mA

ENVIRONMENT

Working Temperature: ta: -20 ~ 45°C tc: 90°C
Working Humidity: 20 ~ 95%RH, non-condensing
Storage Temperature/Humidity: -40 ~ 80°C/10~95%RH
Temperature Coefficient: ±0.03%/°C (-20~45°C)
Vibration: 10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively

PROTECTION

Overload Protection: Shut down the output and recover automatically once it exceeds 1.02-1.35 times of the rated power
Overheat Protection: Intelligently adjust or turn off the current output if the PCB temperature ≥110°C. When the PCB temperature <90°C, automatically recover normal output
Short Circuit Protection: When short circuit occurs, shut down the output and recover automatically

SAFETY & EMC

Withstand Voltage: I/P-O/P: 3750Vac
Insulation Resistance: I/P-O/P: 100MΩ/500VDC/25°C/70%RH
Safety Standards: Parameter Standard Test Level

CCC China GB19510.1，GB19510.14，GB19510.213
CE European Union EN 61347-1, EN 61347-2-13, EN 62493
TUV Germany EN 61347-1, EN 61347-2-13, EN 62493
ENEC Europe EN 61347-1, EN 61347-2-13, EN 62384
CB CB Member States IEC 61347-1, IEC 61347-2-13
RCM Australia AS/NZS 61347.1, AS 61347.2.13
EAC Russia IEC 61347-1, IEC 61347-2-13
EMC Emission: Parameter Standard Test Level

CCC China GB/T 17743, GB 17625.1
CE European Union EN IEC 55015, EN IEC 61000-3-2, EN 61000-3-3
RCM Australia EN IEC 55015, EN IEC 61000-3-2, EN 61000-3-3
EAC Russia IEC 62493, IEC 61547, EH 55015, IEC 61000-3-2, IEC 61000-3-3
EMC Immunity: EN 61000-4-2,3,4,5,6,8,11, EN 61547

Parameter	Standard	Test Level
CCC	China	GB19510.1，GB19510.14，GB19510.213
CE	European Union	EN 61347-1, EN 61347-2-13, EN 62493
TUV	Germany	EN 61347-1, EN 61347-2-13, EN 62493
ENEC	Europe	EN 61347-1, EN 61347-2-13, EN 62384
CB	CB Member States	IEC 61347-1, IEC 61347-2-13
RCM	Australia	AS/NZS 61347.1, AS 61347.2.13
EAC	Russia	IEC 61347-1, IEC 61347-2-13

Parameter	Standard	Test Level
CCC	China	GB/T 17743, GB 17625.1
CE	European Union	EN IEC 55015, EN IEC 61000-3-2, EN 61000-3-3
RCM	Australia	EN IEC 55015, EN IEC 61000-3-2, EN 61000-3-3
EAC	Russia	IEC 62493, IEC 61547, EH 55015, IEC 61000-3-2, IEC 61000-3-3

ErP

Power Consumption Standby power consumption: No standby mode
Power Consumption Networked standby: No networked standby mode (No Phase-cut signal, no power consumption)
Power Consumption No-load power consumption: Without no-load mode
Flicker/Stroboscopic Effect IEEE 1789: Meet IEEE 1789 standard/High frequency exemption level
Flicker/Stroboscopic Effect CIE SVM: Pst LM≤1.0, SVM≤0.4
DF Phase factor: DF≥0.9

OTHERS

Life Time: 50000 hours
Warranty: 5 years

Certifications & ratings

Marked features: T-PWM Dimming Technology, Multiple Current

Technical drawings

TD-10-350-700-G1TS LED Current Selection — LED Current Selection

TD-10-350-700-G1TS Product Size — Product Size

TD-10-350-700-G1TS Wiring Diagram — Wiring Diagram

TD-10-350-700-G1TS ELV Connection — ELV Connection

TD-10-350-700-G1TS Installation Precautions — Installation Precautions

TD-10-350-700-G1TS Relationship Diagrams — Relationship Diagrams

TD-10-350-700-G1TS Servicelife[Khours] — Servicelife[Khours]

TD-10-350-700-G1TS Efficiency[%] — Efficiency[%]

TD-10-350-700-G1TS Flicker Test Form — Flicker Test Form

TD-10-350-700-G1TS Packaging Image — Packaging Image

Downloads

Datasheet1

TD-10-350-700-G1TS datasheetTD_10_350_700_G1TS.pdf PDF Download

FAQ

What is this LED driver used for?

It is a constant current LED driver suitable for Class I, II, and III light fixtures, providing 350-700mA output.

What is the input voltage range?

The AC input range is 220-240Vac at 50/60Hz. It also supports a DC input range of 200-280Vdc, though dimming is not available in DC mode.

What are the output specifications?

It delivers a constant current of 350-700mA with an output voltage range of 9-24Vdc (max 35Vdc) and a maximum power of 10W.

How does the dimming work?

It supports Triac/ELV dimming with a range of 0-100%, down to 0.1%, using T-PWM Dimming Technology.

What protections are included?

It includes automatic recovery for overload, short circuit, and overheat protection. Overheat protection activates if the PCB temperature reaches 110°C.

What is the operating temperature range?

The ambient operating temperature is -20 to 45°C, with a case temperature limit of 90°C. Humidity should be 20-95% RH non-condensing.

What is the warranty period?

The product comes with a 5-year warranty and has a rated life time of 50,000 hours.
