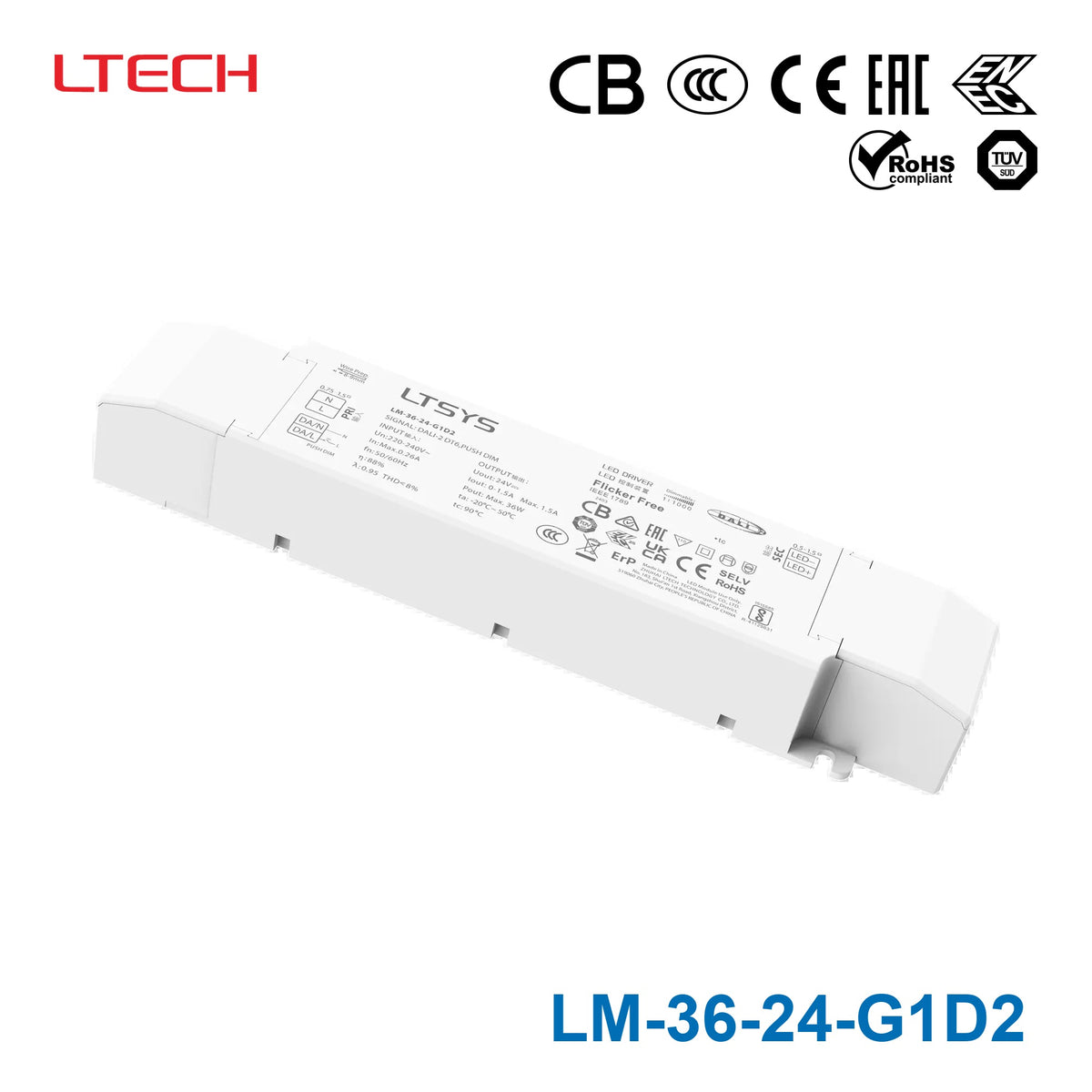

Ltech LM-36-24-G1D2 CV DALI2 Dimmable Driver 1.5A

LED DriverConstant VoltageDALI2

SKU LM-36-24-G1D2

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The LM-36-24-G1D2 is a 24V constant-voltage dimmable driver for compatible 24V LED lighting products. the LM-36-24-G1D2 is rated for up to 36W output and 1.5A, so it is best suited to applications that stay within those limits.

Input 200~240VAC. Operating temperature -20~+50°C. Backed by a 5 year warranty.

Key Features

✓Input voltage: 200~240VAC
✓Dimming: DALI, Push DIM
✓Output voltage: 24V
✓Rated output current: 1.5A
✓Rated power: 36W
✓Ingress protection: IP20
✓Operating temperature: -20~+50°C
✓Certifications: CB, CCC, CE, EAC, ENEC, ROHS, SELV, TUV
✓Dimensions: 210 x 43 x 30mm
✓5 year warranty

Frequently Asked Questions

What type of LED load is the LM-36-24-G1D2 designed for?

The LM-36-24-G1D2 is a 24V constant-voltage dimmable driver for compatible 24V LED lighting products. This model is rated for up to 36W output and 1.5A, so it is best suited to applications that stay within those limits.

Does this driver support DALI-2 dimming?

Yes. This model supports DALI-2 dimming and also includes Push DIM control. It offers 0 to 100% dimming with dimming down to 0.1%, which makes it suitable for projects that need very fine light control.

What makes the LM-36-24-G1D2 different from a basic non-dimmable 24V LED driver?

This model adds intelligent dimming control rather than providing fixed-output power only. It supports DALI-2 and Push DIM, offers flicker-free dimming across the full range, and is built with power quality figures such as 88% efficiency, power factor above 0.95, and THD below 8%.

Is the LM-36-24-G1D2 suitable for demanding indoor commercial lighting projects?

It is designed for indoor lamp applications and supports DALI bus standards IEC62386-101, 102, and 207. The combination of DALI-2 control, low standby power under 0.5W, and flicker-free dimming makes it a practical choice for professional lighting environments where control quality matters.

What operating temperature range does this driver support?

The specified ambient operating range is -20°C to 50°C. That makes it suitable for a wide range of indoor environments, provided the application stays within the model's rated conditions.

What protection and reliability features are included in this model?

The LM-36-24-G1D2 includes over-heat, over-voltage, overload, and short-circuit protection with automatic recovery. It also uses signal isolation and thermal management features intended to protect driver life, with a stated lifetime of up to 50,000 hours and a 5-year warranty.
