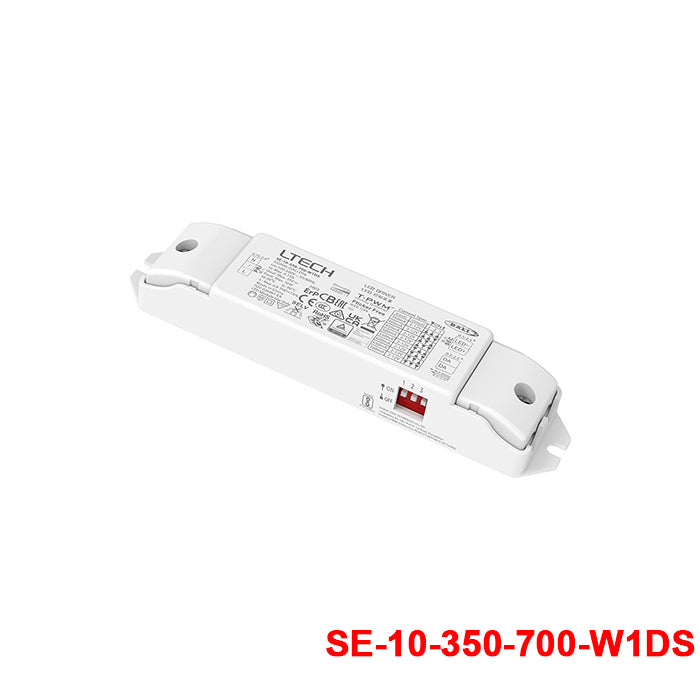

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Ltech SE-10-350-700-W1DS 10W 350mA ~700mA CC DALI2 LED Driver - Selectable Output

2-12V voltage rangeactual wattage depending on current

SKU SE-10-350-700-W1DS

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The Ltech SE-10-350-700-W1DS is a constant current LED driver with DALI2 dimming control. It is designed for applications that need selectable output current in the 350mA to 700mA range. the SE-10-350-700-W1DS is also described as a Class 2, SELV LED driver.

Input 100~240VAC. Operating temperature -20~+50°C. Backed by a 5 year warranty.

Key Features

✓Input voltage: 100~240VAC (120~300VDC)
✓Dimming: DALI
✓Output voltage: 35V
✓Output current: 350~700mA, selectable by DIP switch
✓Rated power: 8.4W
✓Ingress protection: IP20
✓Operating temperature: -20~+50°C
✓Certifications: CB, CCC, CE, EAC, ENEC, KC, SELV, TUV
✓Dimensions: 135 x 20 x 30mm
✓5 year warranty

Frequently Asked Questions

What type of LED driver is the Ltech SE-10-350-700-W1DS?

The Ltech SE-10-350-700-W1DS is a constant current LED driver with DALI2 dimming control. It is designed for applications that need selectable output current in the 350mA to 700mA range. This model is also described as a Class 2, SELV LED driver.

What makes this model different from a fixed-output LED driver?

This model stands out because it offers selectable output current rather than a single fixed current value. That can make it more flexible for buyers comparing driver options across compatible constant current lighting products. It also combines that flexibility with DALI2 control in a compact 10W form factor.

Is the SE-10-350-700-W1DS suitable for DALI lighting systems?

Yes, this driver is intended for DALI-based lighting applications and lists DALI2 as its dimming control method. The product description also references IEC62386-101, 102, and 207 DALI bus standards. For buyers standardizing on DALI dimming, this model is built for that control environment.

What are the key electrical ratings of this LED driver?

This model is rated at 8.4W power, with a listed output voltage of 35V and a rated current of 350mA. Its product name also identifies it as a selectable constant current driver covering 350mA to 700mA. Buyers should match those published ratings against their fixture requirements before purchase.

Can this driver be used in demanding indoor operating conditions?

The listed operating temperature range is -20°C to 50°C, which supports use across a broad range of indoor commercial and architectural environments. That range can be relevant for projects where ambient temperature varies by season or installation area. Buyers should still confirm the surrounding fixture or enclosure stays within that specified range.

What kind of applications is this driver best suited for?

This driver is best suited for constant current LED lighting applications where DALI2 dimming is required and space is limited. Its ultra-small, thin, and lightweight design makes it relevant for compact lighting assemblies. It is particularly appropriate for professional lighting projects that value flicker-free dimming performance.

What warranty is offered for the Ltech SE-10-350-700-W1DS?

The listed warranty period for this model is 5 years. That gives B2B buyers a clear published support window for project planning and replacement expectations. Warranty terms can still depend on seller policies and proper use conditions.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Ltech SE-10-500-1000-W1D 10W 2-12VDC CC DALI-2 LED Driver 0.5-1A	—	—	—	IP20	View
Ltech SE-10-100-500-W1D 10W 9-42VDC CC DALI-2 LED Driver 0.1-0.5A	—	—	—	IP20	View
