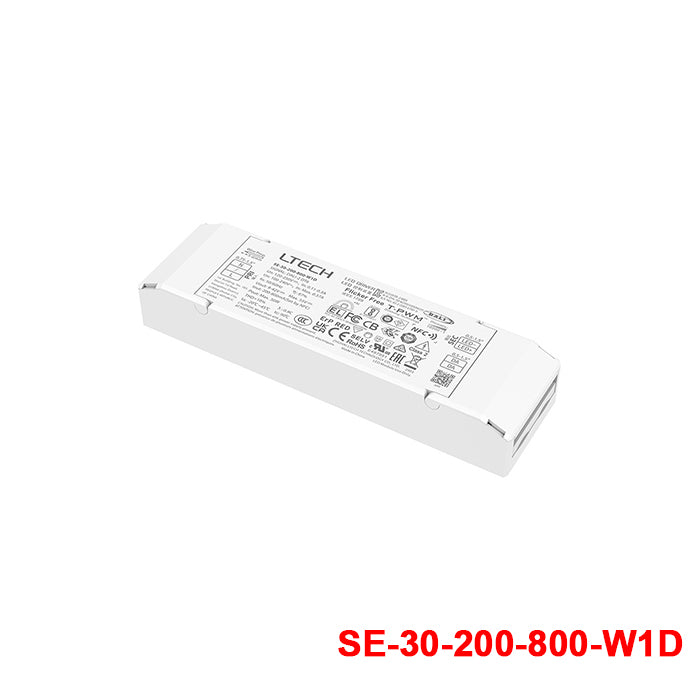

Ltech SE-30-200-800-W1D 30W 200-800mA LED Driver - NFC, DALI2 Dimmable

0.01% dimming depthoutput current adjustable with 1mA stepsuitable for class I/II/III indoor light fixtures

SKU SE-30-200-800-W1D

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The SE-30-200-800-W1D is intended for constant-current LED lighting applications that need dimming control and adjustable drive current. Its 30W output, 200-800mA adjustable current range, and DALI2 dimming make it a good fit for commercial and architectural LED systems where control flexibility matters.

Input 120~250VAC. Operating temperature -20~+45°C. Backed by a 5 year warranty.

Key Features

✓Input voltage: 120~250VAC
✓Dimming: DALI
✓Output voltage: 55V
✓Output current: 200~800mA, NFC-programmable via app in 1mA steps
✓Rated power: 30W
✓Ingress protection: IP20
✓Operating temperature: -20~+45°C
✓Certifications: CB, CCC, CE, EAC, ENEC, KC, SELV, TUV
✓Dimensions: 142 x 23 x 40mm
✓5 year warranty

Frequently Asked Questions

What kind of applications is the Ltech SE-30-200-800-W1D designed for?

This model is intended for constant-current LED lighting applications that need dimming control and adjustable drive current. Its 30W output, 200-800mA adjustable current range, and DALI2 dimming make it a good fit for commercial and architectural LED systems where control flexibility matters.

What makes this LED driver different from a fixed-current driver?

The SE-30-200-800-W1D allows the output current to be adjusted from 200mA to 800mA in 1mA steps, instead of locking you into one preset current. It also supports parameter changes such as DALI address through an app with NFC-based configuration, which gives more flexibility than a basic fixed-output driver.

Does this model support DALI dimming?

Yes. This driver is DALI2 dimmable and also includes features such as soft-on and fade-in dimming for a smoother lighting experience. It also supports very deep dimming through T-PWM technology, which helps in applications that need fine light-level control.

What are the key electrical specifications of this model?

This LED driver is rated at 30W with a maximum output voltage of 55V. Its rated current starts at 200mA, and the output current can be adjusted up to 800mA depending on the application requirements.

Is the SE-30-200-800-W1D suitable for demanding indoor environments?

It is built with V0 flame-retardant PC housing materials and is specified for operation from -20°C to 45°C. Those characteristics make it appropriate for indoor lighting environments that need a compact driver with a defined operating temperature range.

Does this LED driver offer long-term reliability for commercial projects?

This model includes a 5-year warranty, which supports use in professional and commercial lighting projects where service life matters. Its feature set is aimed at controlled LED applications that need both dimming performance and configurable operation.
