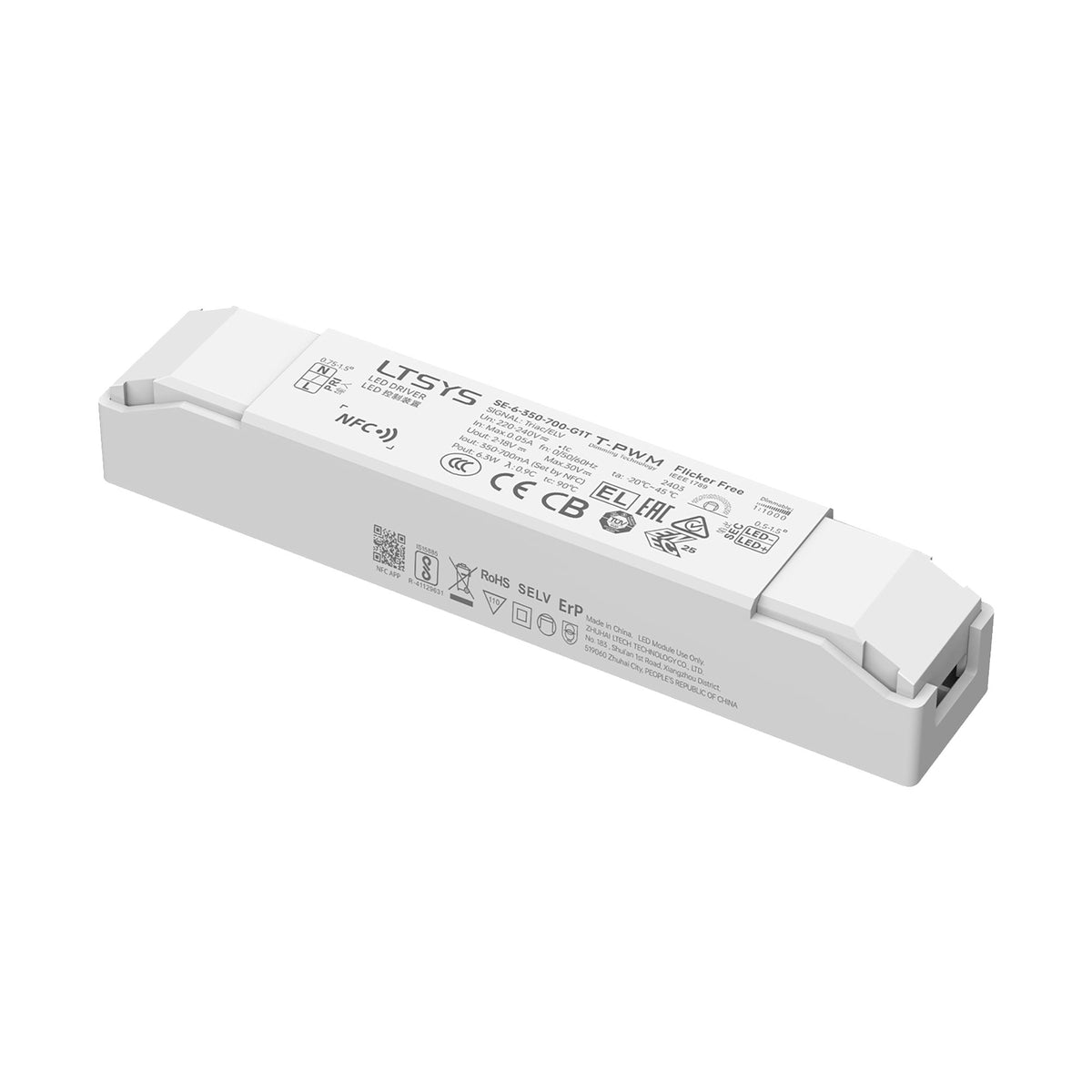

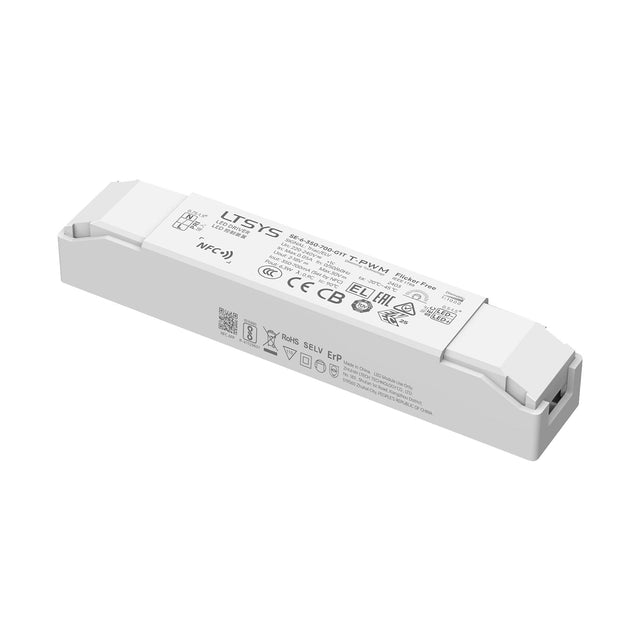

Ltech SE-6-350-700-G1T 6W 350-700mA Triac Ultra Small LED Driver

0.01% dimming depthoutput current adjustable with 1mA stepsuitable for class I/II/III indoor light fixtures

SKU SE-6-350-700-G1T

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The SE-6-350-700-G1T is designed for indoor constant current LED applications where compact size and precise dimming are important. Its 6W rating, ultra small form factor, and Triac/ELV dimming make it relevant for space-constrained commercial or architectural lighting projects.

Input 220~240VAC. Operating temperature -20~+45°C. Backed by a 5 year warranty.

Key Features

✓Input voltage: 220~240VAC
✓Dimming: AC phase cut (TRIAC)
✓Output voltage: 18V
✓Output current: 350~700mA, NFC-programmable via app in 1mA steps
✓Rated power: 6W
✓Ingress protection: IP20
✓Operating temperature: -20~+45°C
✓Certifications: CB, CCC, CE, ENEC, RED, ROHS, SAA, TUV
✓Dimensions: 119 x 22 x 20mm
✓5 year warranty

Frequently Asked Questions

What kind of LED applications is the Ltech SE-6-350-700-G1T best suited for?

What makes the SE-6-350-700-G1T different from a fixed-current LED driver?

This model supports NFC programmability with 1mA step current adjustment, which gives more flexibility than a fixed-current driver. That allows buyers to fine-tune output current within the stated 350-700mA range for applications that need more precise parameter control.

Does the Ltech SE-6-350-700-G1T support dimming?

Yes, this model supports Triac/ELV dimming and is built for high-performance lighting control. The product description also states soft-on and fade-in dimming with 0.01% flicker-free deep dimming, which can be useful in projects where smooth low-level dimming matters.

What are the main electrical specifications of the SE-6-350-700-G1T?

The SE-6-350-700-G1T is rated at 6W with an output voltage of 18V and a rated current of 350mA. Its product name and description also indicate an adjustable constant current range of 350-700mA through NFC programming.

Is this LED driver suitable for demanding indoor environments?

This driver is intended for indoor use and has an operating temperature range of -20°C to 45°C. It also uses V0 flame-retardant PC housing and includes multi-level protection, which supports use in professional indoor lighting environments.

What should buyers know about compatibility when selecting the SE-6-350-700-G1T?

Buyers should confirm that their lighting application requires a constant current LED driver and that the required current falls within this model's 350-700mA programmable range. It is also intended for projects that need ac phase-cut dimming, since this model is specified for Triac/ELV control.

What warranty does the Ltech SE-6-350-700-G1T include?

The listed warranty period for the SE-6-350-700-G1T is 5 years. That makes it a stronger fit for commercial buyers who want longer-term support expectations on LED driver components.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Ltech SE-6-100-450-G1T 6W 100-450mA Triac Ultra Small NFC LED Driver	6W	42V	0.35A	IP20	View
