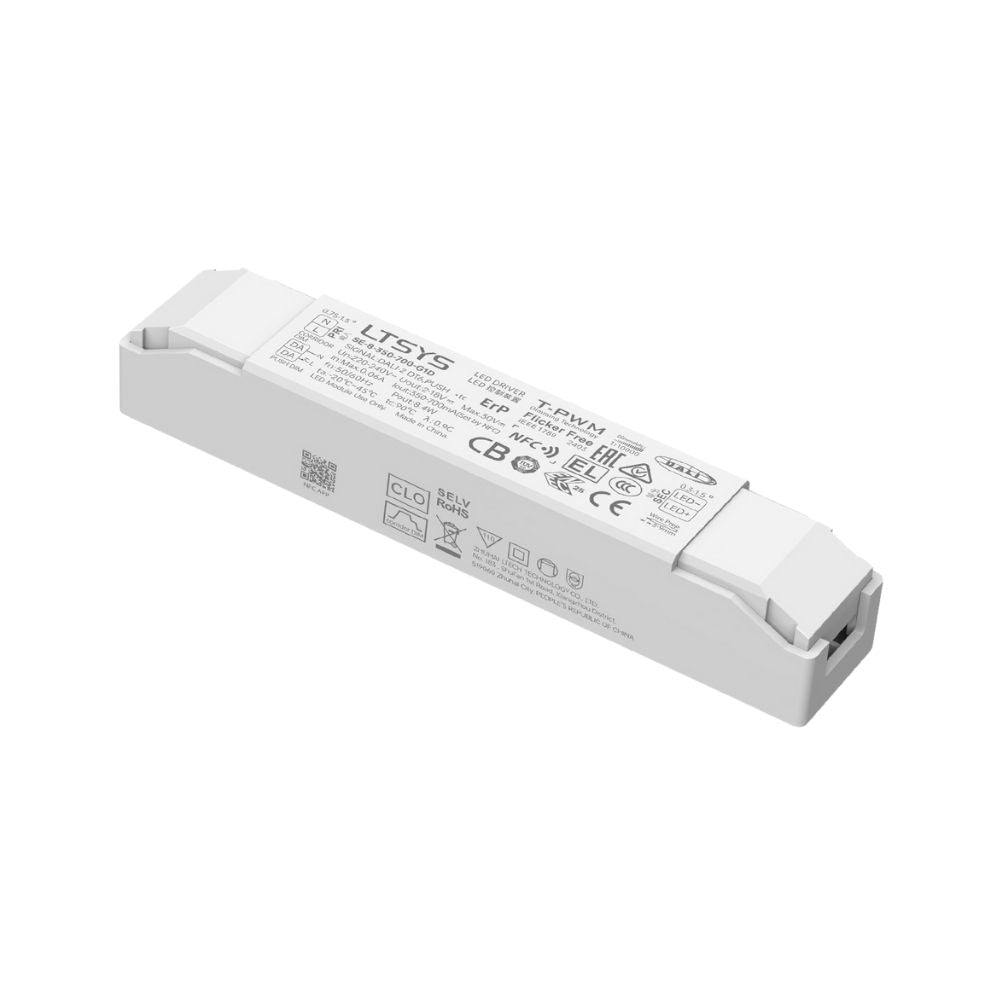

Ltech SE-8-350-700-G1D 8W 350-700mA LED Driver - NFC, DALI2 Dimmable

0.01% dimming depthoutput current adjustable with 1mA stepsuitable for class I/II/III indoor light fixtures

SKU SE-8-350-700-G1D

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The SE-8-350-700-G1D is a constant current LED driver designed for professional lighting applications. It supports NFC-adjustable output current from 350mA to 700mA and is rated at 8.4W. the SE-8-350-700-G1D also supports DALI-2 DT6 dimming control for systems that require precise lighting adjustment.

Input 220~240VAC. Operating temperature -20~+45°C. Backed by a 5 year warranty.

Key Features

✓Input voltage: 220~240VAC
✓Dimming: DALI, DALI-2
✓Output voltage: 18V
✓Output current: 350~700mA, NFC-programmable via app in 1mA steps
✓Rated power: 8.4W
✓Ingress protection: IP20
✓Operating temperature: -20~+45°C
✓Certifications: BIS, CB, CE, EAC, ENEC, KC, RCM, TUV
✓Dimensions: 119 x 22 x 20mm
✓5 year warranty

Frequently Asked Questions

What kind of LED driver is the LTECH SE-8-350-700-G1D?

The SE-8-350-700-G1D is a constant current LED driver designed for professional lighting applications. It supports NFC-adjustable output current from 350mA to 700mA and is rated at 8.4W. This model also supports DALI-2 DT6 dimming control for systems that require precise lighting adjustment.

What dimming protocols does the SE-8-350-700-G1D support?

This model supports DALI, DALI-2 DT6, and Push DIM control as stated in the product details. That makes it suitable for projects that need digital dimming flexibility rather than simple non-dimmable operation. It is intended for applications where smooth and controlled light adjustment is important.

When is the NFC-adjustable current feature useful on this model?

The NFC-adjustable output range of 350mA to 700mA helps when a project needs a driver matched more closely to the LED load requirement. It allows this specific model to cover more than one current setting instead of being limited to a single fixed output. That can make it a practical option for commercial lighting specifications that need flexibility within a low-power constant current range.

Is the SE-8-350-700-G1D a good fit for flicker-sensitive lighting environments?

Yes, this model is described as IEEE 1789 flicker-free compliant, which is relevant for applications where lighting comfort matters. It is positioned for smooth and reliable lighting performance rather than basic on/off use only. That makes it more suitable for professional spaces where dimming quality and visual comfort are priorities.

What operating temperature range is specified for the SE-8-350-700-G1D?

The specified operating temperature range for this model is -20°C to 45°C. That gives it a defined working window for indoor or protected lighting environments that stay within those conditions. Buyers should confirm the project environment stays inside that range for reliable performance.

How compact is the LTECH SE-8-350-700-G1D?

This LED driver has a listed weight of 50g, which reflects its compact, lightweight design. Its low-power 8.4W rating and compact housing make it suited to space-conscious lighting assemblies. For buyers comparing small constant current drivers, this model is aimed at applications where size and control features both matter.

What warranty is provided for the SE-8-350-700-G1D?

The listed warranty period for this model is 5 years. That is a strong warranty term for an 8.4W constant current LED driver intended for professional use. It can be a useful consideration for projects that prioritize long-term service life and support.
