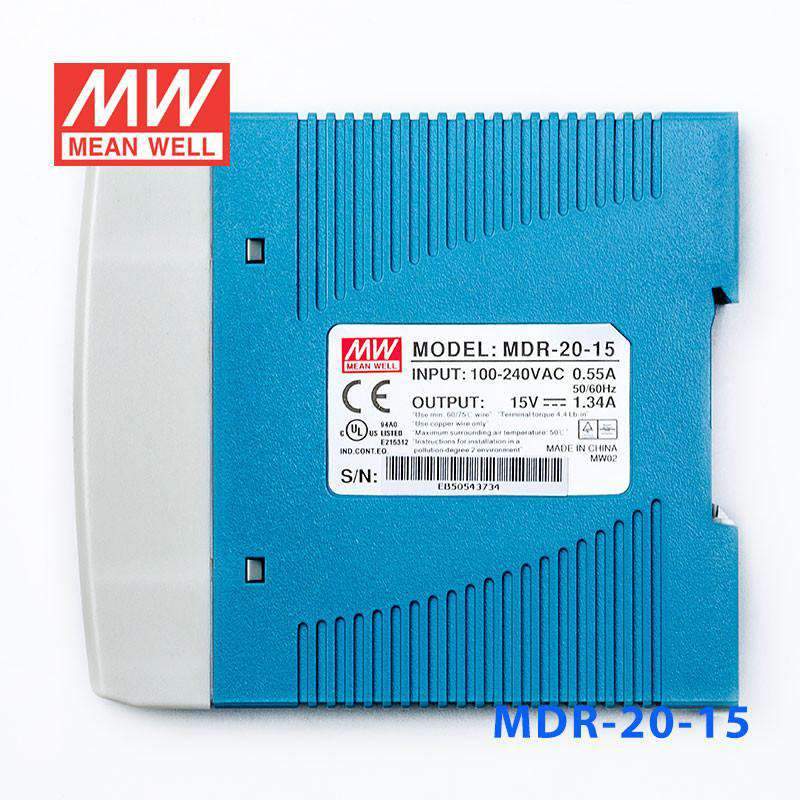

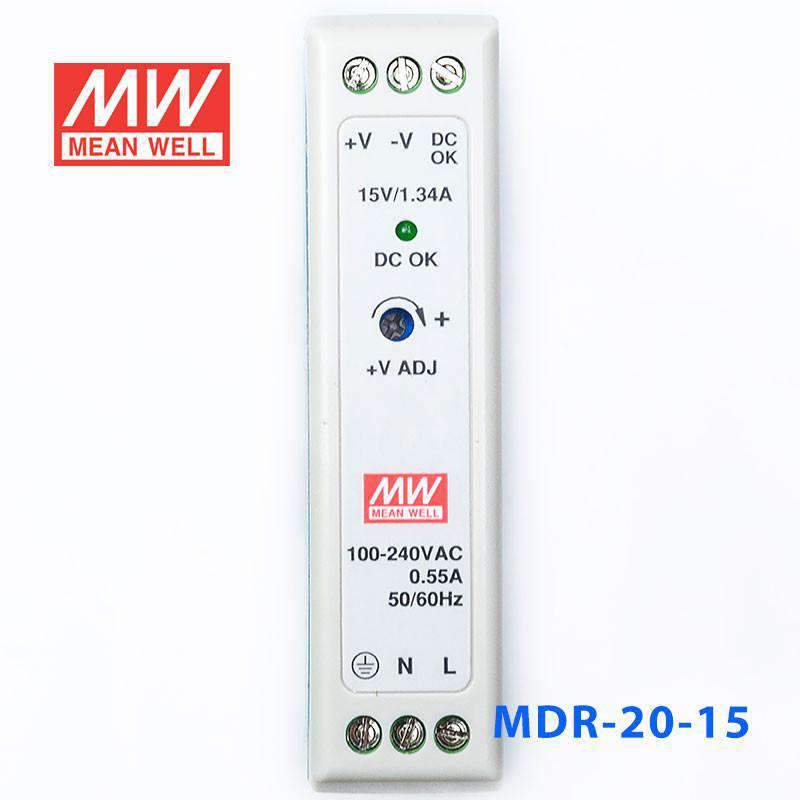

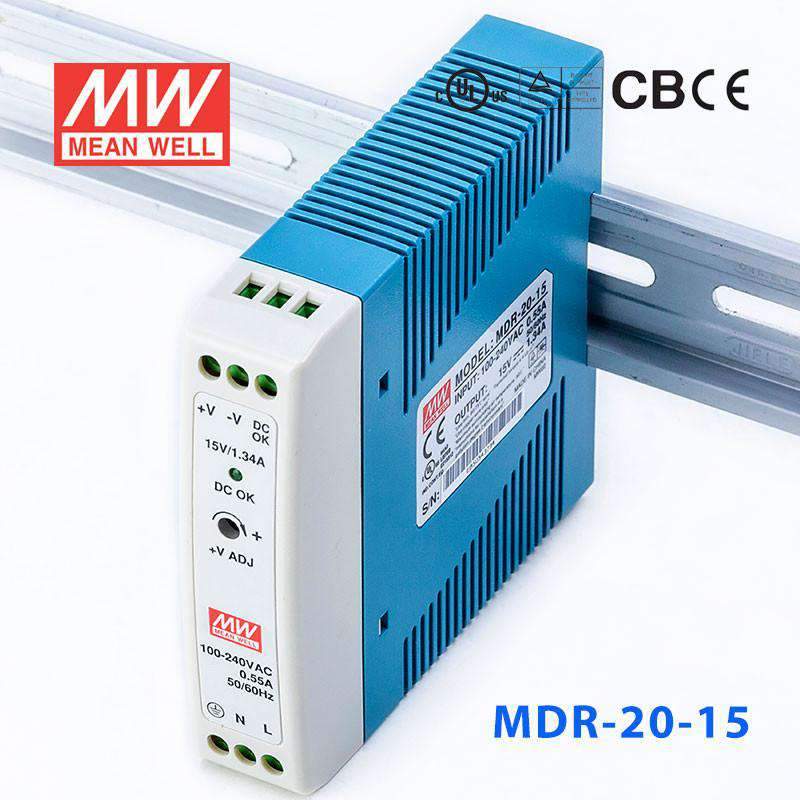

Mean Well MDR-20-15 Single Output Industrial Power Supply 20W 15V 1.34A - DIN Rail

ultra slimbuilt-in active PFC function
SKU MDR-20-15
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 2 in this family

MDR-20-15
In stock
|

Overview

MDR-20-15 is the 15V output model of this series: rated current 1.34A, rated power 20W, typical efficiency 81%.

Features

  • Universal AC input/Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection

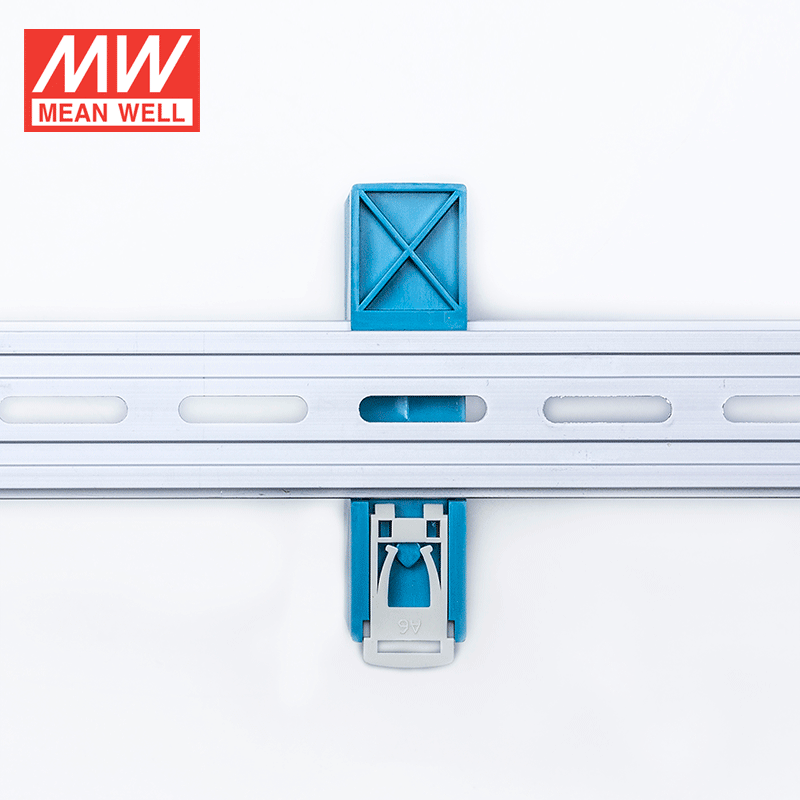

  • Can be installed on DIN rail TS-35/7.5 or 15
  • Built in DC OK active signal
  • LED indicator for power on
  • No load power consumption<0.75W
  • 100% full load burn-in test
  • 3 years warranty

Specifications

MDR-20-15Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE
15V
RATED CURRENT
1.34A
CURRENT RANGE
0 ~ 1.34A
RATED POWER
20W
RIPPLE & NOISE (max.)Note.2
120mVp-p
VOLTAGE ADJ. RANGE
13.5 ~ 16.5V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±1.0%
LOAD REGULATION
±1.0%
SETUP, RISE TIMENote.5
500ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
50ms/230VAC 20ms/115VAC at full load

INPUT

VOLTAGE RANGE
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
81%
AC CURRENT (Typ.)
0.55A/115VAC 0.35A/230VAC
INRUSH CURRENT (Typ.)
COLD START 20A/115VAC 40A/230VAC
LEAKAGE CURRENT
<1mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 160% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
17.25 ~ 20.25V Protection type : Shut down o/p voltage, re-power on to recover

FUNCTION

DC OK ACTIVE SIGNAL (max.)
11.5 ~ 16.5V / 40mA

ENVIRONMENT

WORKING TEMP.
-20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6

SAFETY & EMC (Note 4)

SAFETY STANDARDS
Ul508, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS15598-1, AS/NZS 62368.1 , IS13252(Part1)/IEC60950-1 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS15936 Class B
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2, 3, 4, 5, 6, 8, 11, BS EN/EN55035,BS EN/EN61000-6-1,BS EN/EN61204-3, light industry level, EAC TP TC 020

OTHERS

MTBF
2780.8K hrs min. Telcordia SR-332 (Bellcore) ; 236.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
22.5*90*100mm (W*H*D)
PACKING
0.17Kg; 72pcs/13.2Kg/1.04CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

MDR-20-15 Mechanical Specification
Mechanical Specification
MDR-20-15 Block Diagram
Block Diagram
MDR-20-15 Application of DC OK Active Signal
Application of DC OK Active Signal
MDR-20-15 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the MDR-20-15 for 15V equipment in a control cabinet?

Yes, it is suitable for control cabinet applications that require 15V DC up to 1.34A. With a 20W rating and DIN rail format, it fits lighter-load industrial power distribution inside enclosures.

Is the MDR-20-15 appropriate for PLC or industrial automation systems that use 15V DC?

It can be a fit for PLC or automation subsystems that specifically require 15V DC and draw no more than 1.34A. The ultra slim 22.5 mm profile is useful where DIN rail space is tight.

Can this 15V DIN rail power supply be used for building management panels?

Yes, it can be used in building management panels where the controls or interface devices are designed for 15V DC and stay within 20W. The 85-264VAC input range also gives flexibility for standard AC-fed panel installations.

How does the MDR-20-15 compare with other MDR series options?

Within the MDR-20 series, the MDR-20-15 delivers 15V at up to 1.34A (20W). The other models on the same datasheet are the MDR-20-5 (5V, 15W, 3A), MDR-20-12 (12V, 20W, 1.67A) and MDR-20-24 (24V, 24W, 1A), all sharing the same 22.5 mm wide DIN rail housing.

Is the MDR-20-15 meant for exposed locations or enclosed industrial panels?

This model is better suited to protected industrial panels and control enclosures than exposed locations. Its rated operating temperature range is -20°C to +70°C with output derating at higher temperatures per the derating curve, so the enclosure should remain within that range.
