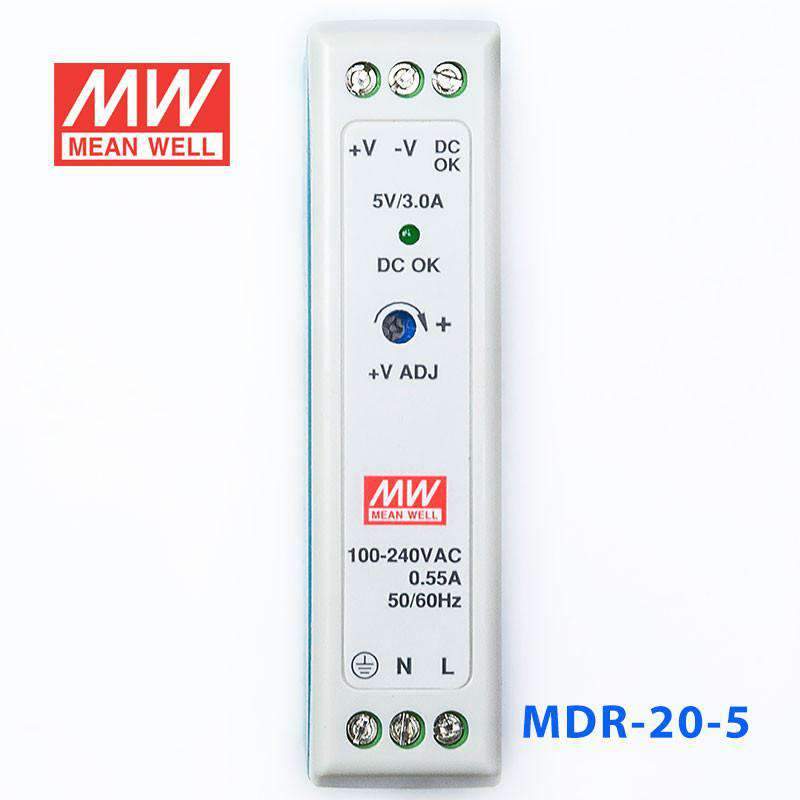

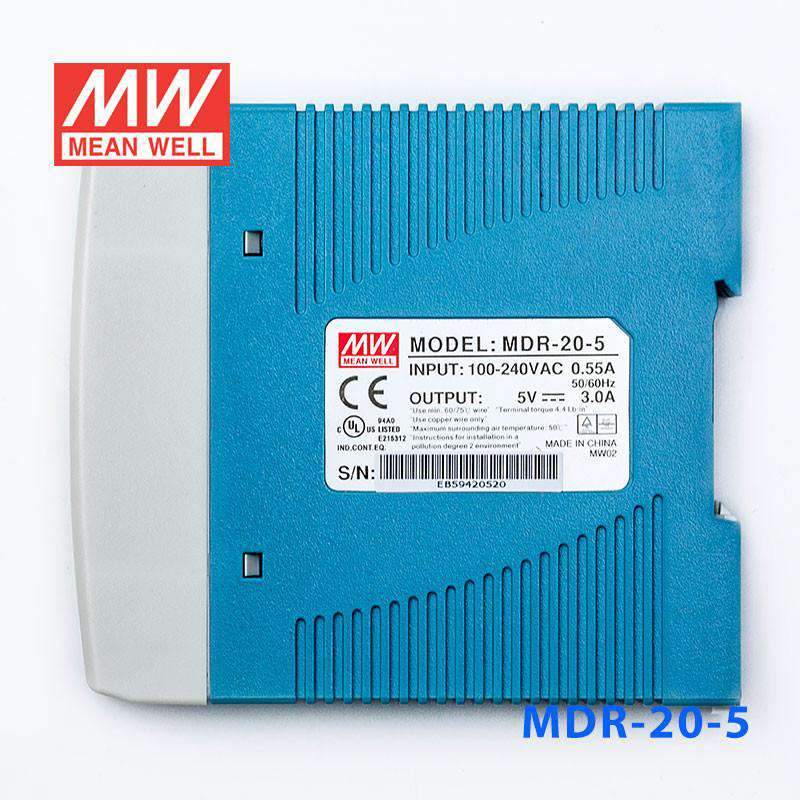

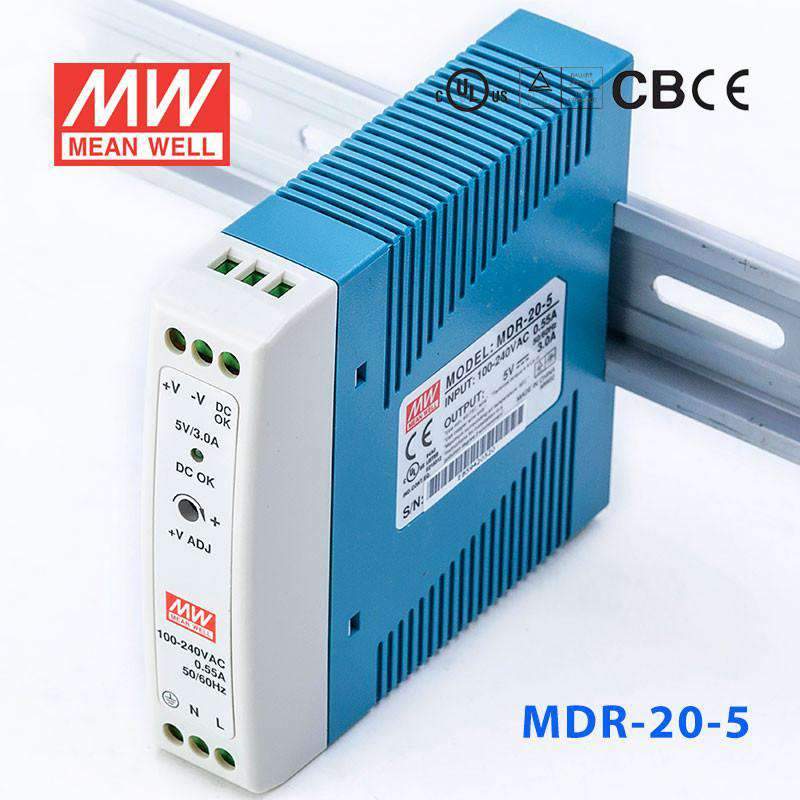

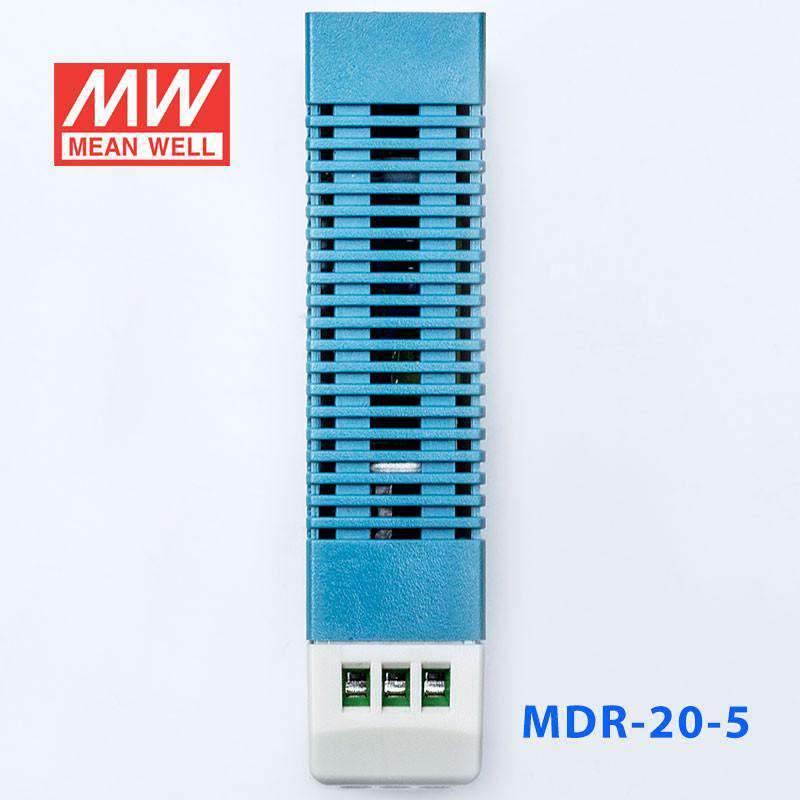

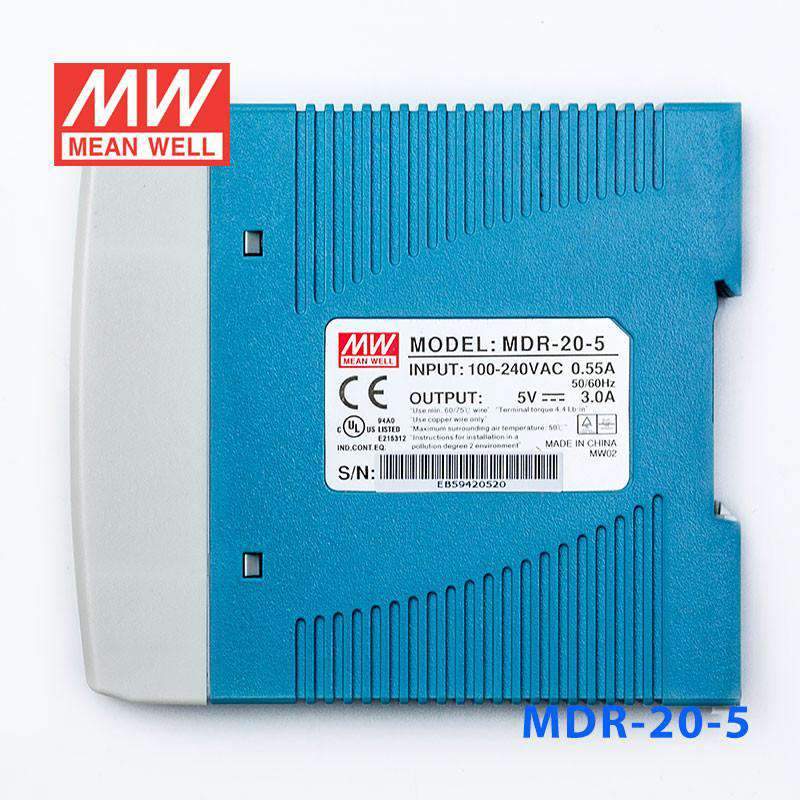

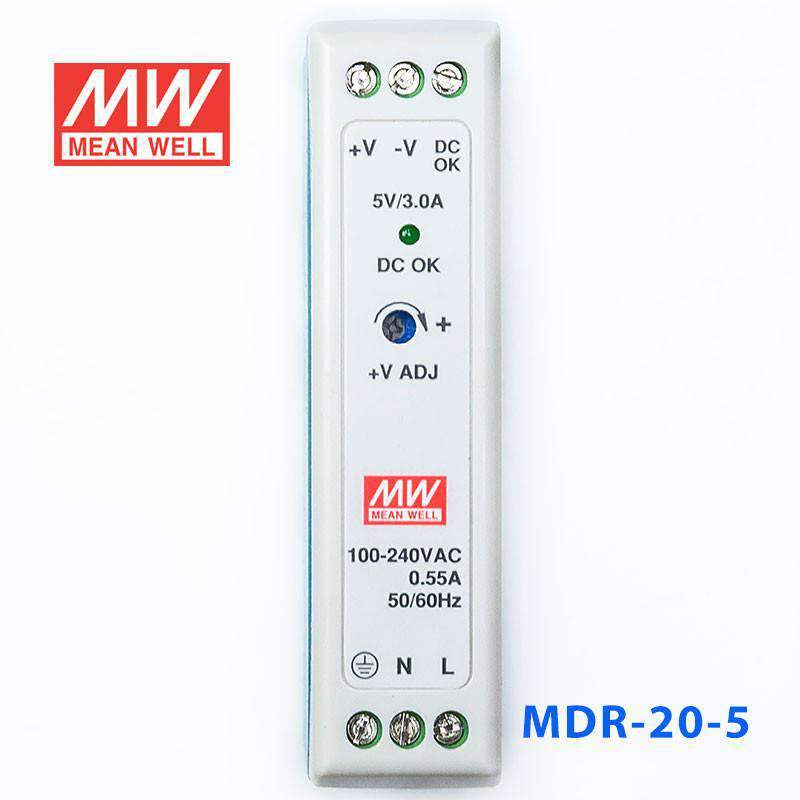

Mean Well MDR-20-5 Single Output Industrial Power Supply 20W 5V 3A - DIN Rail

ultra slimbuilt-in active PFC function
SKU MDR-20-5
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 4 in this family

MDR-20-5
In stock
|

Overview

MDR-20-5 is the 5V output model of this series: rated current 3A, rated power 15W, typical efficiency 76%.

Features

  • Universal AC input/Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection

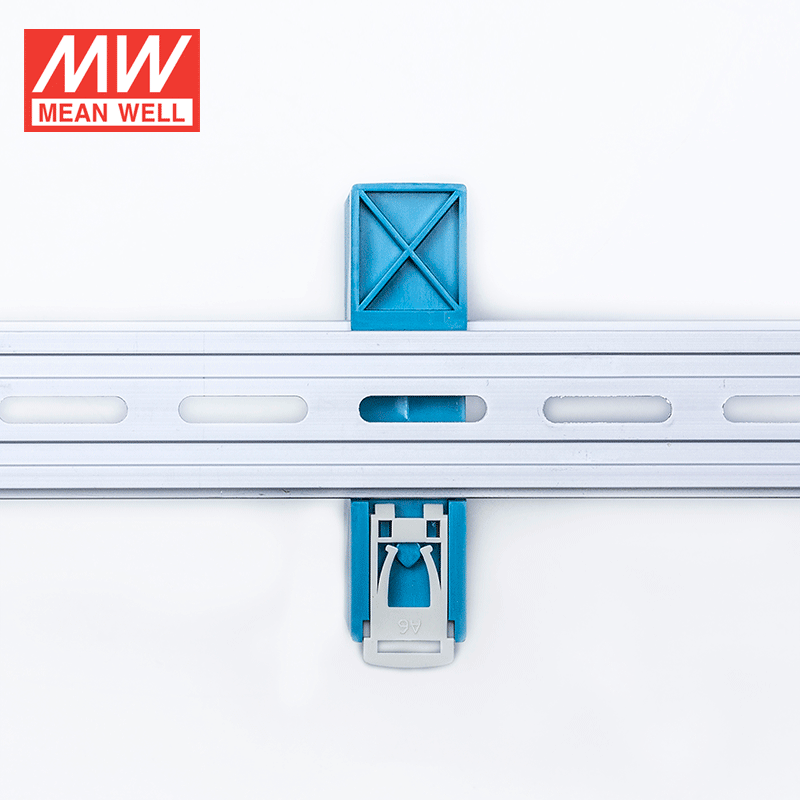

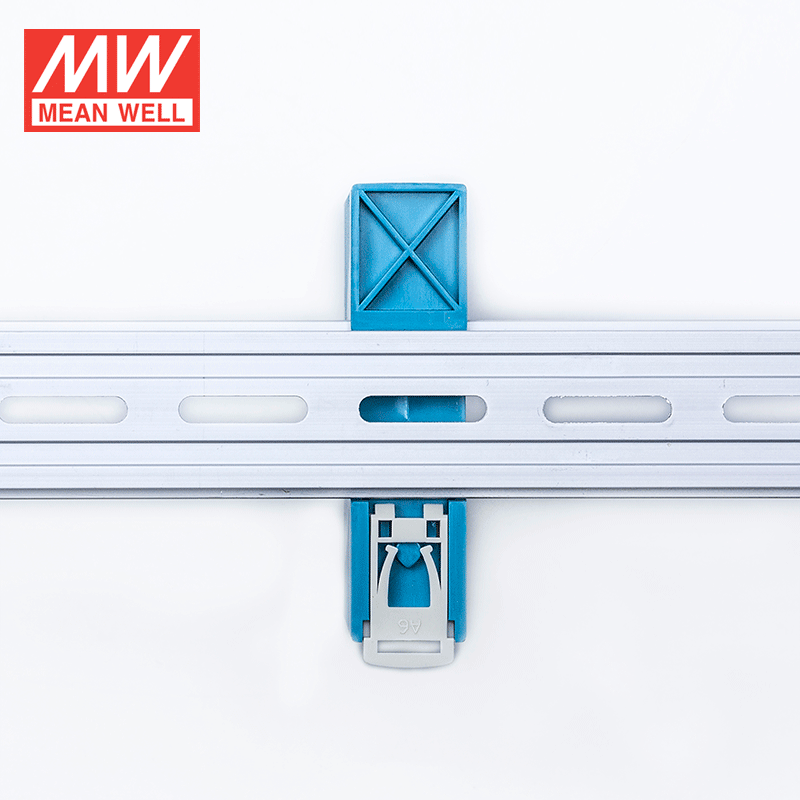

  • Can be installed on DIN rail TS-35/7.5 or 15
  • Built in DC OK active signal
  • LED indicator for power on
  • No load power consumption<0.75W
  • 100% full load burn-in test
  • 3 years warranty

Specifications

MDR-20-5Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE
5V
RATED CURRENT
3A
CURRENT RANGE
0 ~ 3A
RATED POWER
15W
RIPPLE & NOISE (max.)Note.2
80mVp-p
VOLTAGE ADJ. RANGE
4.75 ~ 5.5V
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±1.0%
LOAD REGULATION
±1.0%
SETUP, RISE TIMENote.5
500ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
50ms/230VAC 20ms/115VAC at full load

INPUT

VOLTAGE RANGE
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
76%
AC CURRENT (Typ.)
0.55A/115VAC 0.35A/230VAC
INRUSH CURRENT (Typ.)
COLD START 20A/115VAC 40A/230VAC
LEAKAGE CURRENT
<1mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 160% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
5.75 ~ 6.75V Protection type : Shut down o/p voltage, re-power on to recover

FUNCTION

DC OK ACTIVE SIGNAL (max.)
3.75 ~ 6V / 50mA

ENVIRONMENT

WORKING TEMP.
-20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6

SAFETY & EMC (Note 4)

SAFETY STANDARDS
Ul508, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS15598-1, AS/NZS 62368.1 , IS13252(Part1)/IEC60950-1 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS15936 Class B
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2, 3, 4, 5, 6, 8, 11, BS EN/EN55035,BS EN/EN61000-6-1,BS EN/EN61204-3, light industry level, EAC TP TC 020

OTHERS

MTBF
2780.8K hrs min. Telcordia SR-332 (Bellcore) ; 236.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
22.5*90*100mm (W*H*D)
PACKING
0.17Kg; 72pcs/13.2Kg/1.04CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

MDR-20-5 Mechanical Specification
Mechanical Specification
MDR-20-5 Block Diagram
Block Diagram
MDR-20-5 Application of DC OK Active Signal
Application of DC OK Active Signal
MDR-20-5 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the MDR-20-5 for 5V control electronics in an industrial panel?

Yes, it is suitable for industrial panel electronics that require 5V DC up to 3A. Its 15W output makes it a fit for lower-power 5V control loads mounted on DIN rail inside an enclosure.

Is the MDR-20-5 appropriate for PLC support circuits or interface boards that need 5V DC?

It can be used where PLC support circuits, interface boards, or other automation electronics require 5V DC and the total draw stays within 3A. The ultra slim 22.5 mm profile helps conserve DIN rail space in compact cabinets.

Can this 5V DIN rail power supply be used in building management control cabinets?

Yes, it can be used in building management control cabinets when the 5V devices stay within the 15W output rating. The 85-264VAC input also allows it to be fed from a wide standard AC input range.

How does the MDR-20-5 compare with other 5V MDR models?

This datasheet covers the MDR-20 series, in which the MDR-20-5 is the only 5V model, rated 15W and 3A. The other versions are the MDR-20-12 (12V, 20W, 1.67A), MDR-20-15 (15V, 20W, 1.34A) and MDR-20-24 (24V, 24W, 1A), all in the same 22.5 mm wide DIN rail housing.

Is the MDR-20-5 meant for open environments or enclosed control cabinets?

This model is best used inside protected control cabinets and enclosures rather than exposed locations. Its operating temperature range is -20°C to +70°C with output derating at higher temperatures per the derating curve, so enclosure conditions should stay within that range.
