Mean Well MDS03F-05 Medical Grade DC/DC Converter 3W - 9-36V input, 5Voutput 600mA

5V3WDC/DCMedical Grade

SKU MDS03F-05

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

MDS03F-05 is the 5V output model of this series: rated power 3W, typical efficiency 80%.

MDS03 and MDD03 series are 3W isolated and regulated module type medical grade DC-DC converter with DIP 24 package. It features international standard pins, a high efficiency up to 81%, wide working temperature range -40~+90℃, 6KVDC or 4.2KVAC I/P-O/P high isolation voltage, compliance with IEC60601-1 medical standard, continuous-mode short circuit protection, etc. The models account for different input voltage 9~36V and 18~75V 4:1 wide input range, and various output voltage, 5V/12V/15V for single output and ±5V/±12V/±15V for dual output. Which are suitable for medical systems, ultra low leakage current.

Features

DIP 24 package with international standard pinout
4:1 wide input range
Low patient leakage current <5μA
Wide operating temperature range -40 ~ +90℃
Medical safety approved (2xMOPP) according to IEC60601-1
Protections: Short circuit (Continuous) / Overload / UVLO
6KVDC or 4.2KVAC high I/O isolation (Reinforced isolation)
3 years warranty

Specifications

MDS03F-05Specifications from the official datasheet (2025-07-28 edition)

INPUT

INPUT VOLTAGE (RANGE): Normal 12V,24V (9 ~ 36V)
INPUT CURRENT NO LOAD: 20mA
INPUT CURRENT FULL LOAD: 320mA
VOLTAGE RANGE: 9 ~ 36Vdc ,
SURGE VOLTAGE (100ms max.): F models : 50Vdc ; G models : 100Vdc
FILTER: Pi type
PROTECTION (Typ.): Fuse recommended. F models: 2A slow-blow Type, G models: 1A slow-blow Type

OUTPUT

OUTPUT VOLTAGE: 5V
OUTPUT CURRENT: 0 ~ 600mA
EFFICIENCY (TYP.): 80%
CAPACITOR LOAD (MAX.)^{* For each output}: 330μF
VOLTAGE ACCURACY: ±2%
RATED POWER: 3W
RIPPLE & NOISE^Note.2: 150mVp-p
LINE REGULATION^Note.3: ±0.5%
LOAD REGULATION^Note.4: ±0.5%
SWITCHING FREQUENCY (Typ.): 250KHz

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery
OVERLOAD: 110 ~ 250% rated output power Protection type : Recovers automatically after fault condition is removed
UNDER VOLTAGE LOCKOUT Start-up voltage: 8.8Vdc
UNDER VOLTAGE LOCKOUT Shutdown voltage: 8Vdc

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +90℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +105℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.05% / ℃ (0 ~ 71℃)
SOLDERING TEMPERATURE: 1.5mm from case of 3 ~ 5sec./265℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.5)

SAFETY STANDARDS: IEC60601-1(LVD) 3rd edition, EAC TP TC 020/2011(EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE: I/P-O/P:6KVDC or 4.2KVAC
ISOLATION RESISTANCE: I/P-O/P:1000M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION LEVEL: Primary-secondary: 2xMOPP when system input voltage is with 250VAC, 50/60Hz
ISOLATION CAPACITANCE (Typ.): 20pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55011 N/A
Radiated BS EN/EN55011 Class A without external components
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 ±15KV air
Radiated Susceptibility BS EN/EN61000-4-3 10V/m
EFT/Bursts BS EN/EN61000-4-4 ±2KV
Surge BS EN/EN61000-4-5 ±2KV Line-Line
Conducted BS EN/EN61000-4-6 10Vrms(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 30A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55011	N/A
Radiated	BS EN/EN55011	Class A without external components

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	±15KV air
Radiated Susceptibility	BS EN/EN61000-4-3	10V/m
EFT/Bursts	BS EN/EN61000-4-4	±2KV
Surge	BS EN/EN61000-4-5	±2KV Line-Line
Conducted	BS EN/EN61000-4-6	10Vrms(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	30A/m

OTHERS

MTBF: >454Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 31.8*20.3*12.2mm (1.25*0.8*0.48 inch)
CASE MATERIAL: UL94V-0 plastic case

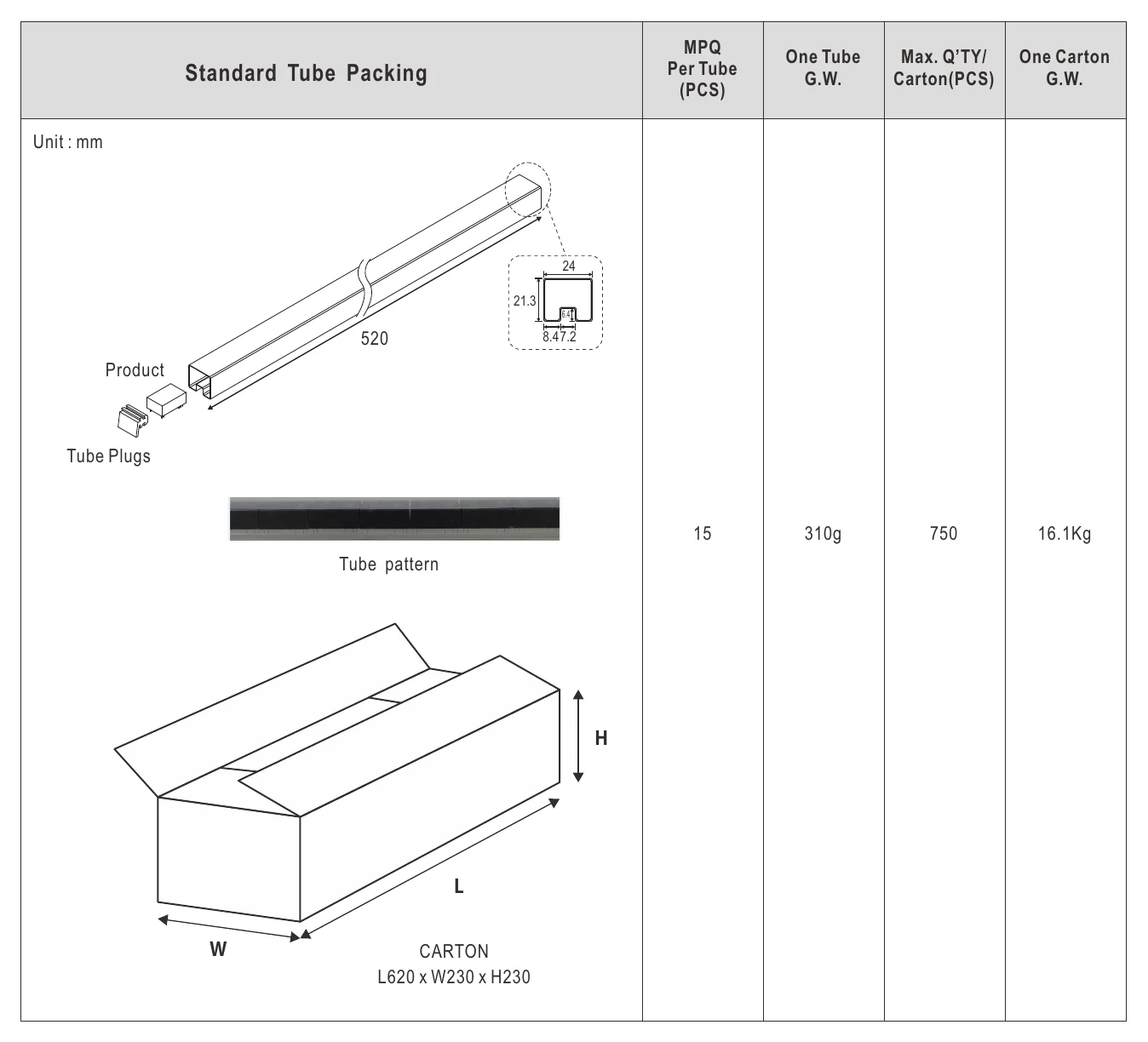

PACKING: 17g ; 15pcs/per tube, 750pcs/50 tube max./carton

Test conditions and notes5

1.All parameters are specified at normal input(F: 12Vdc, G: 24Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load for MDD03.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

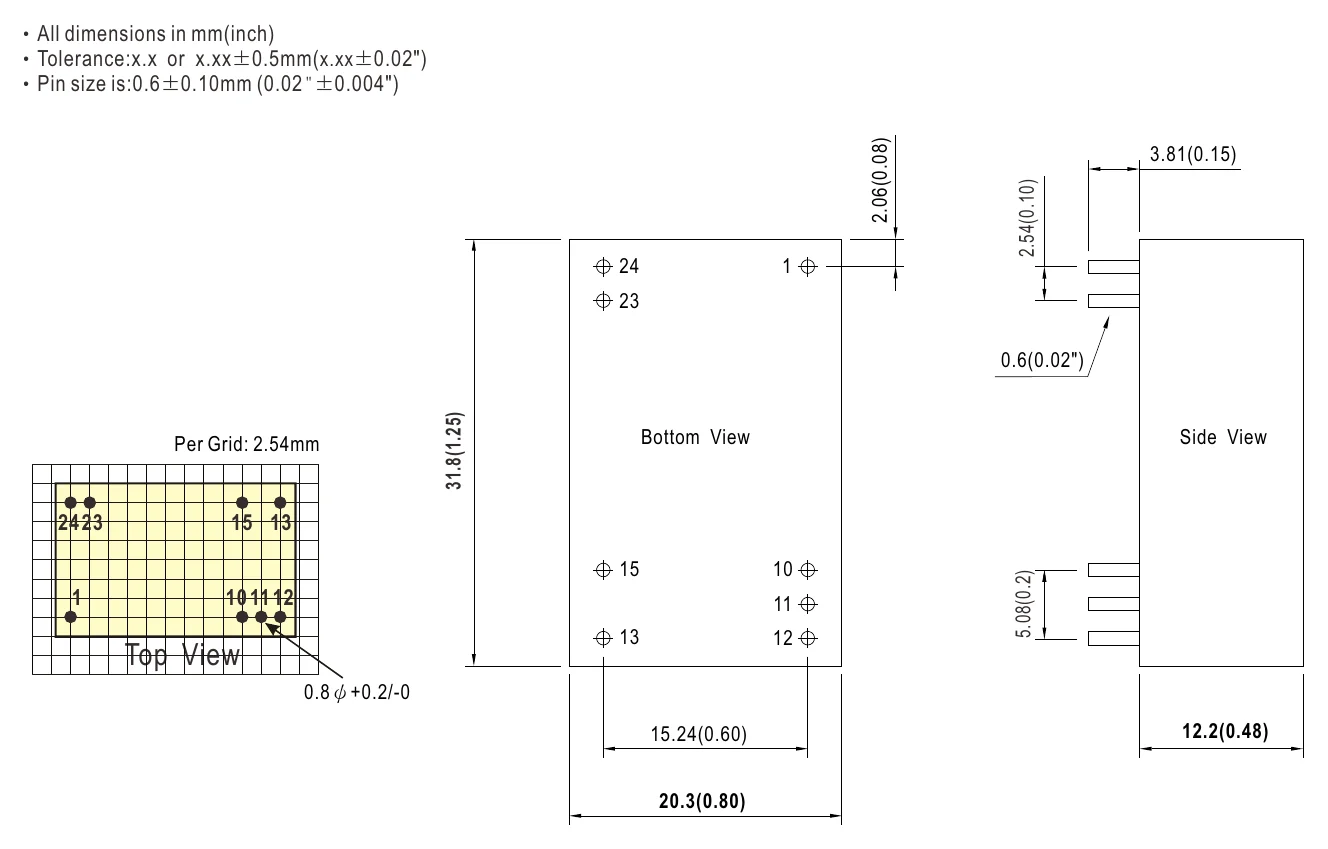

MDS03F-05 Mechanical Specification — Mechanical Specification

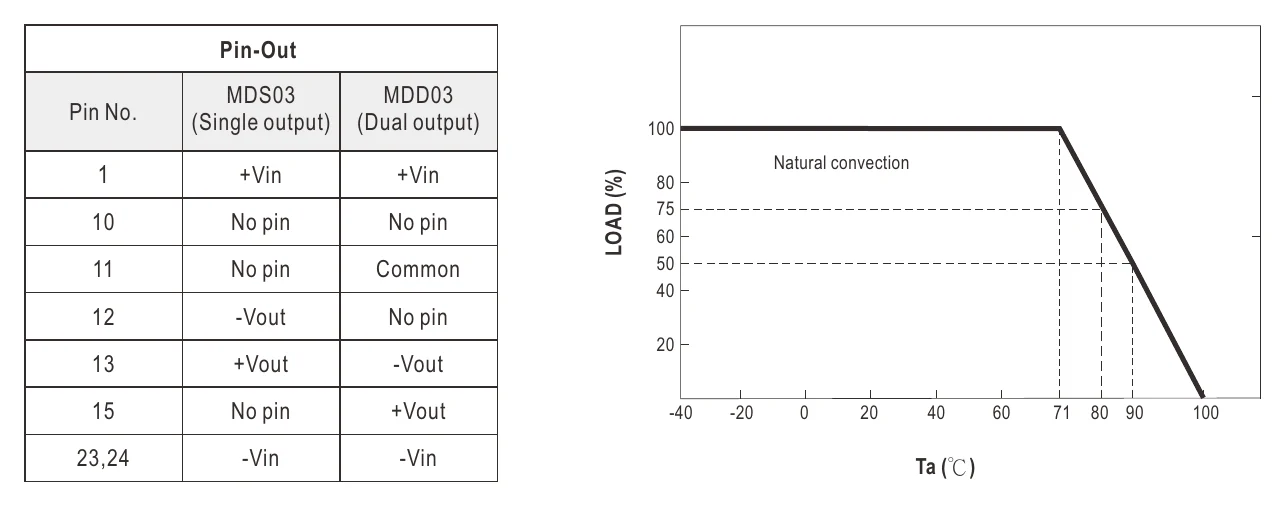

MDS03F-05 Plug Assignment — Plug Assignment

MDS03F-05 MDS03 & MDD03 series — MDS03 & MDD03 series

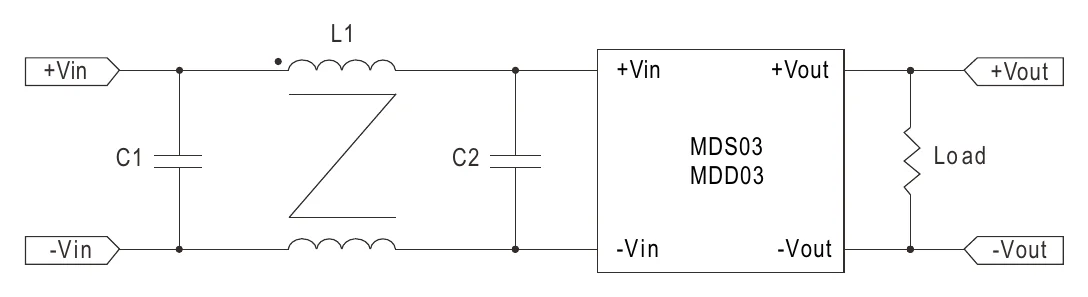

MDS03F-05 MDS03 & MDD03 series (2) — MDS03 & MDD03 series (2)

Typical applications

Downloads

Certificates2

Mean Well MDS(D)03-MDS(D)06-CE-dec Certificate PDF Download

Mean Well MDD-MDS03-06-UK-dec Certificate PDF Download

Test reports1

Mean Well MDS03F-05 Test Report PDF Download

FAQ

Can I use the MDS03F-05 for 5V logic power in medical or laboratory electronics?

Yes, this medical-grade DC-DC converter provides a constant 5V output from a 9-36VDC input range. With a 3W rating and 0.6A output current, it is suited to low-power 5V electronics rather than larger 5V loads.

Is the MDS03F-05 a fit for embedded controllers in portable diagnostic or monitoring equipment?

It can fit embedded medical or lab designs that need a regulated 5V rail and operate from a wide 9-36VDC input range. The compact 31.8 x 20.3 x 12.2 mm housing helps in tightly packed equipment layouts.

Can this converter be used for 5V support rails in industrial instruments or communication modules?

Yes, it is appropriate for low-power support circuits that require constant 5V output and stay within the 3W limit. The 0.017 kg weight also suits compact instrument assemblies where size and mass matter.

Is the MDS03F-05 suitable for outdoor use or demanding temperature conditions?

The operating temperature range is -40C to +90C, with load derating at higher temperatures per the derating curve, which supports very cold and very hot environments. No IP rating is listed in the supplied specs, so outdoor or water-exposed use is not confirmed here.

How does the MDS03F-05 compare with the other MDS03F models?

The listed MDS03F family members are all 3W medical-grade DC-DC converters with the same 9-36VDC input range. The differences shown are 5V at 0.6A for this model, 12V at 0.25A for MDS03F-12, and 15V at 0.2A for MDS03F-15.
