Mean Well

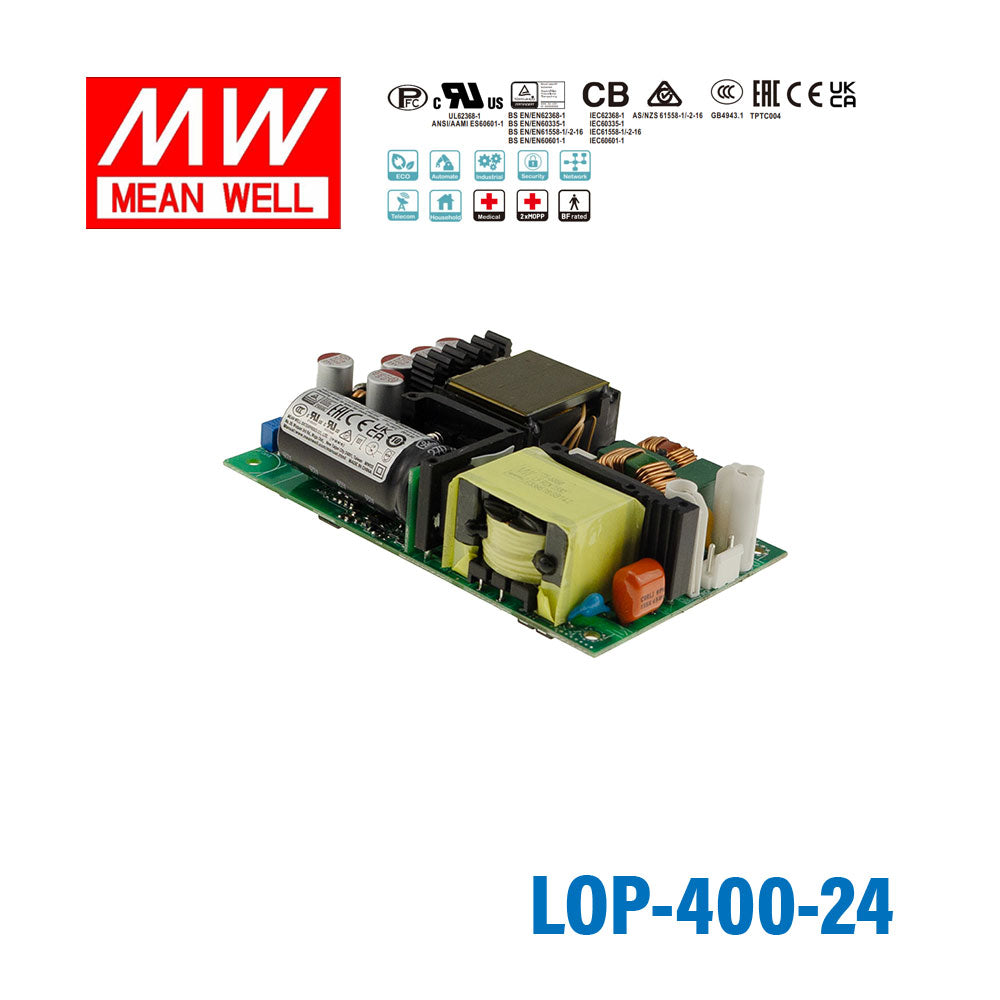

Mean Well LOP-400-24 400W 5"×3" Low Profile Open Frame Power Supply 24V 10.5A

conventional 250W400W if using fanhigh frequency up to 94%
SKU LOP-400-24
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
|

The Mean Well LOP-400-24 is a 400W low-profile open-frame power supply delivering 24V DC at up to 10.5A. Its slim board-level format is intended for building into equipment where height is the limiting dimension, and it cools by free-air convection.

Accepting 80~264VAC universal input with built-in active PFC, the LOP-400-24 operates from -40°C to 80°C and carries CB, CCC, CE, EAC, TÜV and UL approvals. Protection against overload, over-voltage and over-temperature is included, and it is backed by a 3-year warranty.

Key Features

  • ✓MEAN WELL Patent Number: ZL 202223277512.1
  • ✓5"x3" compact size with low profile (27.5mm)
  • ✓80~264Vac input with PFC, No load power consumption <0.5W
  • ✓Global certificates in multi-fields
  • ✓150% peak load @ 3s
  • ✓250W convection, 400W with FAN 23CFM forced-cooled
  • ✓suitable for Class I or Class II installations
  • ✓Overvoltage category III (OVC III)
  • ✓-40 ~+80°C wide range operation temperature
  • ✓High efficiency up to 95%
  • ✓Protections: Short circuit / Overload / Over voltage / Over temperature
  • ✓Extremely low leakage current, 2 x MOPP, suitable for BF medical applications
  • ✓Operating altitude up to 5000 meters
  • ✓Built-in 12V/0.5A for external FAN
  • ✓3 years warranty
