Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

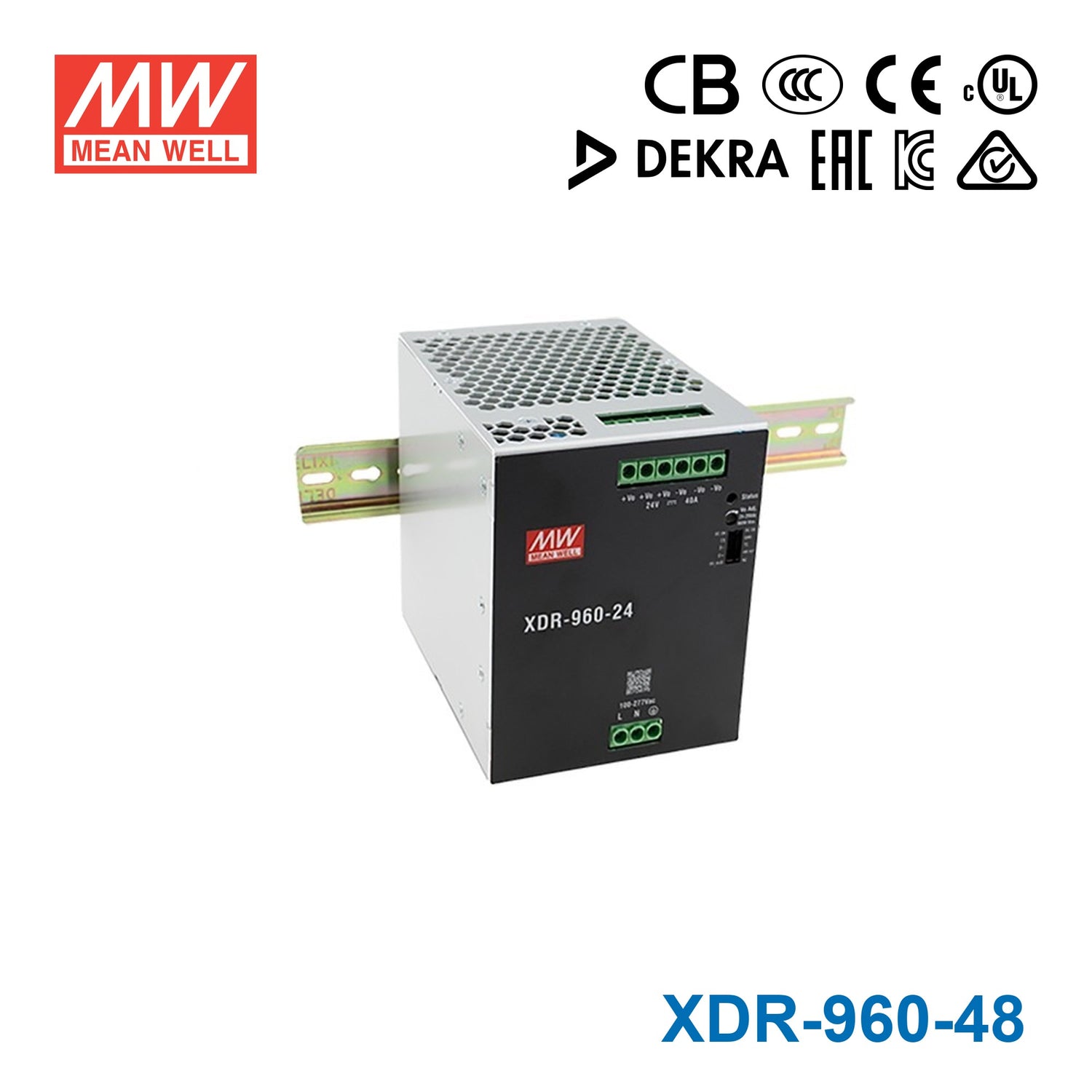

Mean Well XDR-960-48 High-End Ultra Slim Industrial Din Rail Power Supply 960W 48V 20A

Q: What is the Mean Well XDR-960-48 used for?

The XDR-960-48 is a 960W industrial DIN rail power supply for systems that require a regulated 48V DC output. It is suited to high-power industrial control, automation, and DC power distribution applications where a slim DIN rail form factor is needed.

Q: What output voltage and current does the XDR-960-48 provide?

This model provides a 48V DC output with a rated current of 20A. Its total rated power is 960W.

Q: How wide is the XDR-960-48 DIN rail power supply?

The XDR-960-48 has a 96mm width. That slim profile is a key feature for industrial panels where available rail space is limited.

Q: What input voltage range does the XDR-960-48 support?

The product description lists an 85 to 305Vac input range. It also notes that 277Vac is available, making this model suitable for a broad range of AC supply environments.

Q: Can the XDR-960-48 support peak loads?

Yes. The listed features include 200% peak power capability and 600% transient peak current capability, which can help support demanding industrial loads with short-duration peaks.

Q: Can multiple XDR-960-48 power supplies be used for higher power systems?

The XDR-960-48 includes built-in active current sharing for parallel operation. The product description states support up to 3840W in a 3+1 configuration.

Q: What certifications or approvals are listed for the XDR-960-48?

The listed features include global certificates for ITE 62368-1, Industrial 61558-1/-2-16, and 61010. The description also lists Marine DNV GL type, SEMI47, and CID2 HazLoc approvals.

Q: What operating temperature range is listed for this model?

The XDR-960-48 has a listed operating temperature range from -40°C to 85°C. This wide range supports use in demanding industrial environments.

Q: Does the XDR-960-48 include communication features?

Yes. The product description lists a MODBus communication interface for control, setting, and monitoring functions.

Q: What warranty period applies to the XDR-960-48?

The listed warranty period for the XDR-960-48 is 5 years. This is specific to the product data provided for this model.

96mm widthhigh efficiency up to 96%200% peak power capability600% transient peak current capabilityparallel operation up to 3840WMODBus communicationinrush current

SKU:

XDR-960-48

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

Key Features

✓85~305Vac input range (277Vac available)
✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV (GL type), SEMI47, CID2 HazLoc approved
✓96mm width
✓High efficiency up to 96% and no-load power dissipation 1.5W~6.7W by R.C.
✓200% peak power capability
✓600% transient peak current capability
✓Built-in active current sharing for parallel operation up to 3840W (3+1)
✓MODBus communication interface for control, setting, and monitoring
✓Built-in constant current limiting circuit
✓Protections: Short circuit / Overload / Over voltage / Over temperature
✓Fanless design, cooling by free air convection
✓Over voltage category III (OVC III)
✓-40°~+85°C wide range operation temperature (>+60°C derating)
✓Operating altitude up to 5000 meters
✓Built-in remote ON/OFF control and DC OK relay contact
✓Inrush current <10~23A
✓Tool free terminal block (LA Type)
✓Conformal coating
✓Can be installed on DIN rail TS-35/7.5 or 15
✓Optional GL type bracket for wall/panel mounting
✓5 years warranty

Frequently Asked Questions

What is the Mean Well XDR-960-48 used for?

The XDR-960-48 is a 960W industrial DIN rail power supply for systems that require a regulated 48V DC output. It is suited to high-power industrial control, automation, and DC power distribution applications where a slim DIN rail form factor is needed.

What output voltage and current does the XDR-960-48 provide?

This model provides a 48V DC output with a rated current of 20A. Its total rated power is 960W.

How wide is the XDR-960-48 DIN rail power supply?

The XDR-960-48 has a 96mm width. That slim profile is a key feature for industrial panels where available rail space is limited.

What input voltage range does the XDR-960-48 support?

The product description lists an 85 to 305Vac input range. It also notes that 277Vac is available, making this model suitable for a broad range of AC supply environments.

Can the XDR-960-48 support peak loads?

Yes. The listed features include 200% peak power capability and 600% transient peak current capability, which can help support demanding industrial loads with short-duration peaks.

Can multiple XDR-960-48 power supplies be used for higher power systems?

The XDR-960-48 includes built-in active current sharing for parallel operation. The product description states support up to 3840W in a 3+1 configuration.

What certifications or approvals are listed for the XDR-960-48?

The listed features include global certificates for ITE 62368-1, Industrial 61558-1/-2-16, and 61010. The description also lists Marine DNV GL type, SEMI47, and CID2 HazLoc approvals.

What operating temperature range is listed for this model?

The XDR-960-48 has a listed operating temperature range from -40°C to 85°C. This wide range supports use in demanding industrial environments.

Does the XDR-960-48 include communication features?

Yes. The product description lists a MODBus communication interface for control, setting, and monitoring functions.

What warranty period applies to the XDR-960-48?

The listed warranty period for the XDR-960-48 is 5 years. This is specific to the product data provided for this model.
