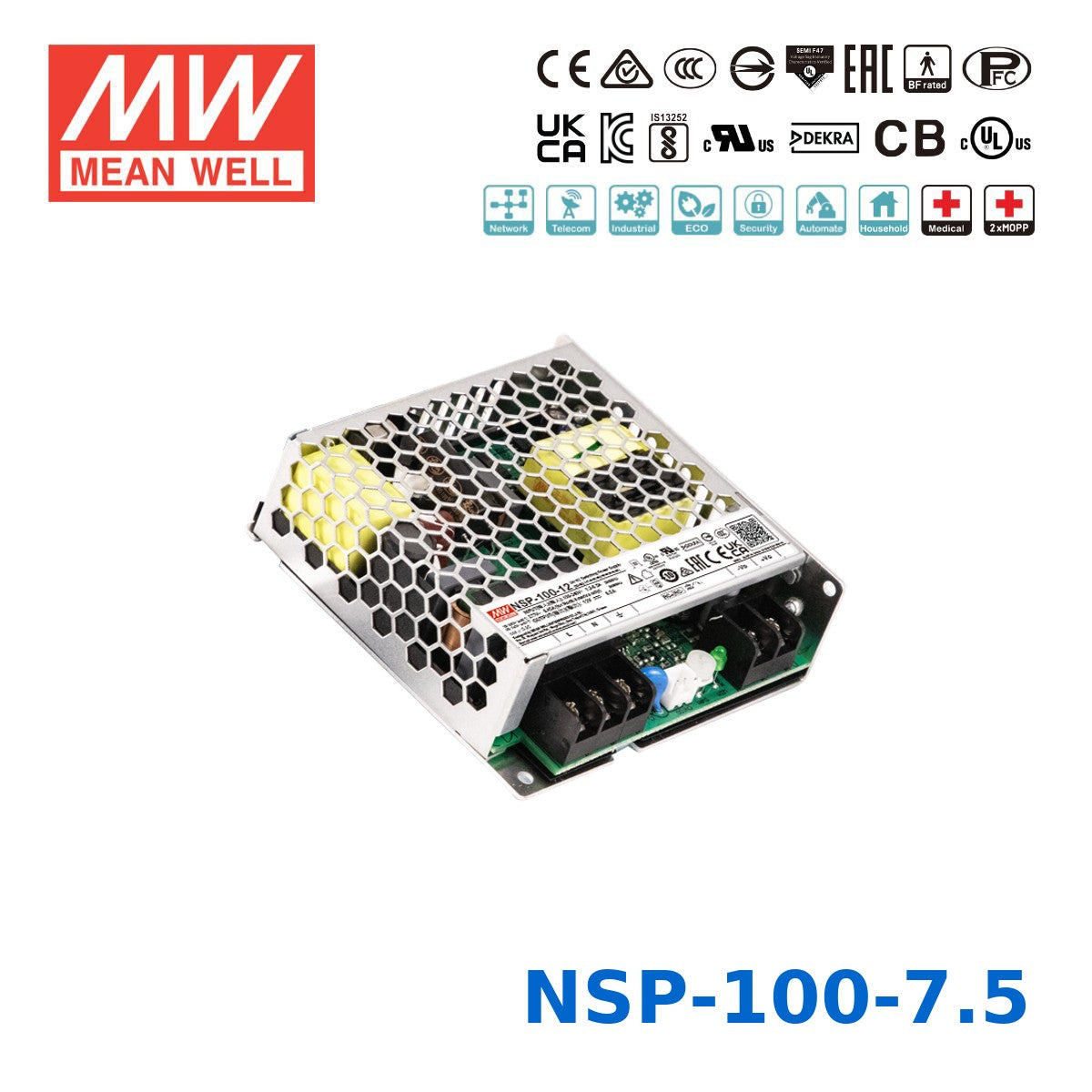

Mean Well 100.5W High Reliable Multi-Industries Power Supply 7.5V 1...
Log in to see priceThe MEAN WELL NSP-100 series is a 100W high-reliability AC/DC enclosed power supply designed for multi-industry applications, including industrial automation, telecommunications, security systems, and medical devices. Featuring a universal 85–305VAC input with active PFC and efficiency up to 92%, it delivers stable power performance with ultra-low standby consumption below 0.5W. The fanless design and compact 99×97×30 mm form factor enable reliable operation from -40°C to +85°C. With 200% peak power capability, remote ON/OFF control, and comprehensive protections, the NSP-100 series ensures long-term performance under demanding conditions while complying with IEC/EN/UL 62368-1, 60601-1 (BF rated, 2×MOPP), and other global safety standards.
Key Features
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating100.5 Watt
-
Output Voltage7.5 Volt
-
Rated Current13.4 Ampere
-
Input Voltage85V~305V
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length9.9 cm
-
Width9.7 cm
-
Height3 cm
-
Weight0.3 kg
::specification::
Frequently Asked Questions
What output does the Mean Well NSP-100-7.5 provide?
The NSP-100-7.5 is a 100.5W enclosed AC/DC power supply with a 7.5V DC output and a rated current of 13.4A. It is designed for applications that need a stable low-voltage, high-current power source in a compact enclosed format.
What types of applications is the NSP-100-7.5 designed for?
This model is intended for high-reliability use across multiple industries, including industrial automation, telecommunications, security systems, and medical devices. Its feature set and safety certifications make it suitable for demanding equipment where long-term reliability matters.
Can the NSP-100-7.5 operate in harsh temperature conditions?
Yes. The unit is rated for operation from -40°C to +85°C, with derating above +60°C. That wide temperature range makes it a strong fit for industrial environments where ambient conditions can vary significantly.
What makes the NSP-100-7.5 a high-reliability power supply?
The NSP-100-7.5 combines active PFC, efficiency up to 92%, a fanless design, conformal coating, and comprehensive protection functions. It also supports 200% peak power for up to 5 seconds and carries a 5-year warranty, which helps distinguish it for demanding long-life applications.
Is the NSP-100-7.5 suitable for medical or safety-sensitive equipment?
This model includes medical-related compliance details such as IEC/EN/UL 60601-1, BF rating, and 2×MOPP support. It also features very low leakage current below 350µA, which is relevant for medical and other safety-sensitive applications.
What input range does the NSP-100-7.5 support?
The power supply accepts a universal 85-305VAC input range and also supports 120-431VDC input. This broad input range makes it easier to use the same model across different regions and power environments.
Is the NSP-100-7.5 compact enough for space-constrained equipment?
Yes. The unit measures 99 × 97 × 30 mm and weighs about 0.3 kg, so it is relatively compact for a 100W-class enclosed supply. Its fanless construction also helps in designs where low noise and reduced maintenance are important.
