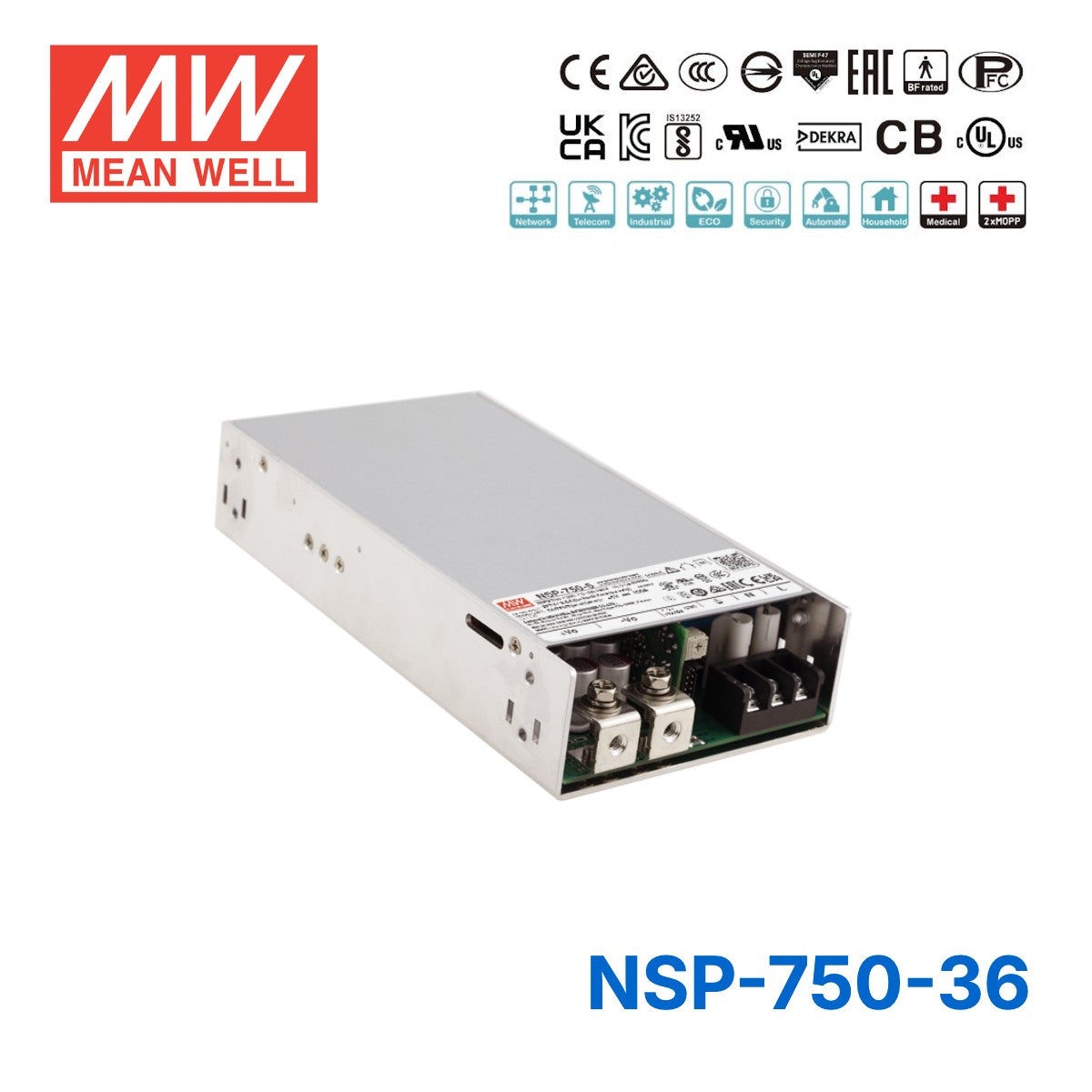

Mean Well 752.4W High Reliable Multi-Industries Power Supply 36V 20.9A

Q: What are the main output specifications of the Mean Well NSP-750-36?

The NSP-750-36 provides a nominal 36V DC output at 20.9A, with a rated power of 752.4W. It is part of Mean Well's high-reliability NSP-750 series for demanding industrial and commercial applications.

Q: What types of applications is the NSP-750-36 designed for?

This model is intended for multi-industry use, including industrial automation, medical equipment, telecommunications, PoE power sourcing, mechanical equipment, and home automation systems. Its feature set is aimed at applications that need high reliability, monitoring support, and strong environmental performance.

Q: Does the NSP-750-36 support a wide input range for global use?

Yes. The NSP-750-36 accepts a universal 85-305VAC input range, and it also supports 120-431VDC input. That makes it suitable for a wide range of international and industrial power environments.

Q: How efficient is the Mean Well NSP-750-36?

The NSP-750 series delivers efficiency up to 95%, depending on the model and operating conditions. It also has very low no-load power consumption, specified at under 0.75-1W depending on model, which helps reduce standby energy use.

Q: Is the NSP-750-36 suitable for harsh or high-temperature environments?

Yes. This power supply is rated for operation from -40°C to +85°C, with derating above +60°C. It also uses a conformal coated PCB and forced-air cooling with a temperature-controlled DC fan to support demanding environments.

Q: What protection and monitoring features does the NSP-750-36 include?

The NSP-750-36 includes protection for short circuit, overload, overvoltage, and overtemperature conditions. It also provides constant current limiting, a DC OK signal for status monitoring, remote ON/OFF capability, remote sense, and auxiliary outputs.

Q: Is the NSP-750-36 appropriate for medical or safety-critical equipment?

It is designed with medical and high-reliability use in mind, including 2xMOPP medical safety compliance and leakage current below 350uA. The series is certified to standards including IEC/EN/UL 62368-1 and IEC/EN 60601-1, which is relevant for many professional and regulated applications.

Q: What makes the NSP-750-36 different from a standard enclosed power supply?

Compared with a basic enclosed PSU, the NSP-750-36 is built for higher reliability and broader application coverage. It combines universal input, up to 95% efficiency, 200% peak power for 5 seconds, medical approvals, monitoring signals, and operation at altitudes up to 5000 meters.

no load power consumption

SKU NSP-750-36

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The MEAN WELL NSP-750 series is a 750W high-reliability AC/DC enclosed power supply engineered for industrial, medical, automation, telecommunications, PoE power sourcing, mechanical equipment, and home automation applications. With a universal 85–305VAC input and built-in active PFC, it delivers up to 95% efficiency and extremely low no-load power consumption under 0.75–1W depending on model. The compact 199×105×41 mm design incorporates forced-air cooling with a built-in temperature-controlled DC fan and supports 200% peak power capability for up to 5 seconds. The NSP-750 series features constant current limiting, wide operating temperature from –40°C to +85°C, remote ON/OFF, remote sense, auxiliary outputs (5V/12V), and a DC OK signal for system monitoring. With extremely low leakage current (<350µA), 2×MOPP medical safety approval, and certifications across ITE, medical, household, industrial, and energy-conversion standards, it offers robust performance for demanding multi-industry applications and high-altitude installations up to 5000 meters.

Key Features

Frequently Asked Questions

What are the main output specifications of the Mean Well NSP-750-36?

The NSP-750-36 provides a nominal 36V DC output at 20.9A, with a rated power of 752.4W. It is part of Mean Well's high-reliability NSP-750 series for demanding industrial and commercial applications.

What types of applications is the NSP-750-36 designed for?

This model is intended for multi-industry use, including industrial automation, medical equipment, telecommunications, PoE power sourcing, mechanical equipment, and home automation systems. Its feature set is aimed at applications that need high reliability, monitoring support, and strong environmental performance.

Does the NSP-750-36 support a wide input range for global use?

Yes. The NSP-750-36 accepts a universal 85-305VAC input range, and it also supports 120-431VDC input. That makes it suitable for a wide range of international and industrial power environments.

How efficient is the Mean Well NSP-750-36?

The NSP-750 series delivers efficiency up to 95%, depending on the model and operating conditions. It also has very low no-load power consumption, specified at under 0.75-1W depending on model, which helps reduce standby energy use.

Is the NSP-750-36 suitable for harsh or high-temperature environments?

Yes. This power supply is rated for operation from -40°C to +85°C, with derating above +60°C. It also uses a conformal coated PCB and forced-air cooling with a temperature-controlled DC fan to support demanding environments.

What protection and monitoring features does the NSP-750-36 include?

The NSP-750-36 includes protection for short circuit, overload, overvoltage, and overtemperature conditions. It also provides constant current limiting, a DC OK signal for status monitoring, remote ON/OFF capability, remote sense, and auxiliary outputs.

Is the NSP-750-36 appropriate for medical or safety-critical equipment?

It is designed with medical and high-reliability use in mind, including 2xMOPP medical safety compliance and leakage current below 350uA. The series is certified to standards including IEC/EN/UL 62368-1 and IEC/EN 60601-1, which is relevant for many professional and regulated applications.

What makes the NSP-750-36 different from a standard enclosed power supply?

Compared with a basic enclosed PSU, the NSP-750-36 is built for higher reliability and broader application coverage. It combines universal input, up to 95% efficiency, 200% peak power for 5 seconds, medical approvals, monitoring signals, and operation at altitudes up to 5000 meters.
