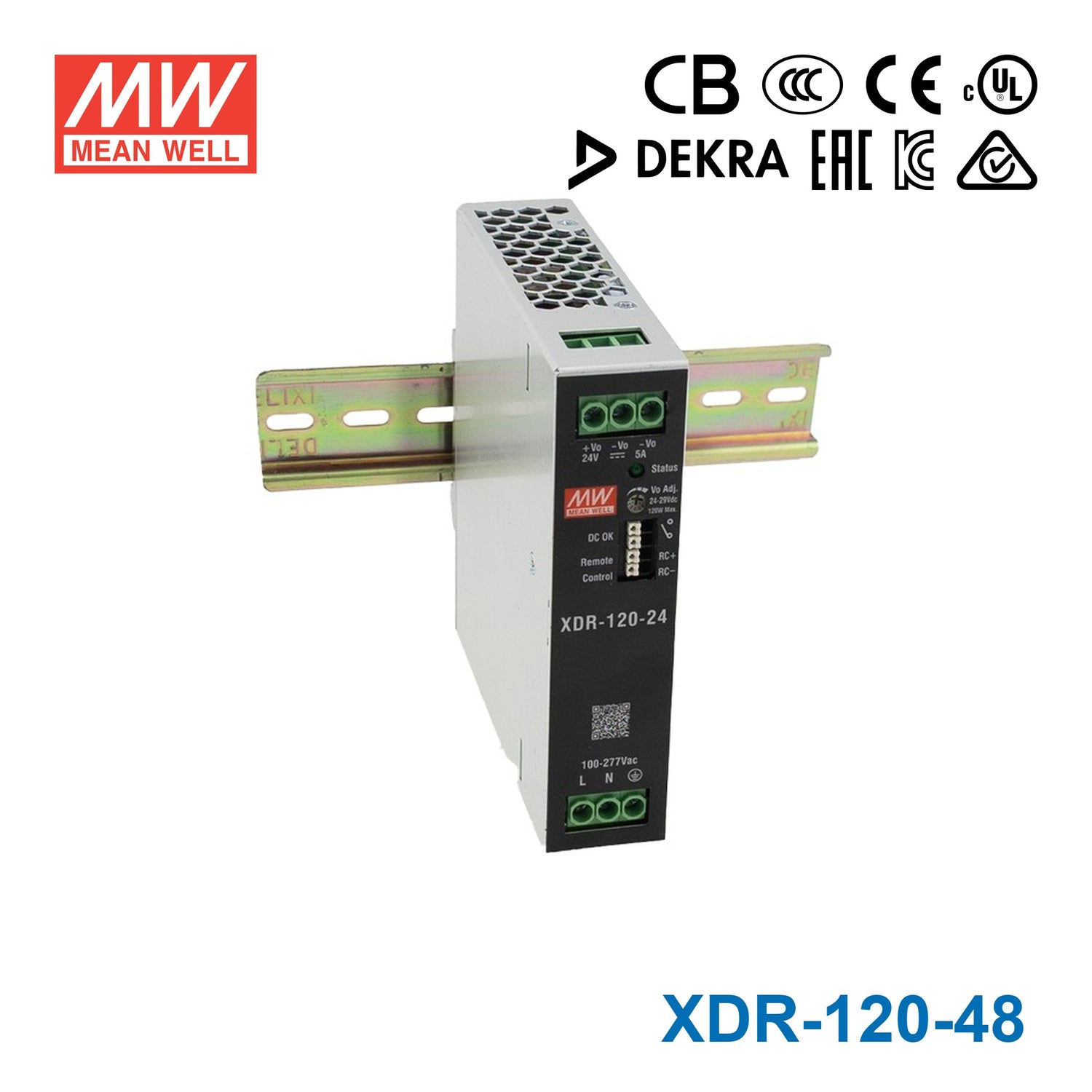

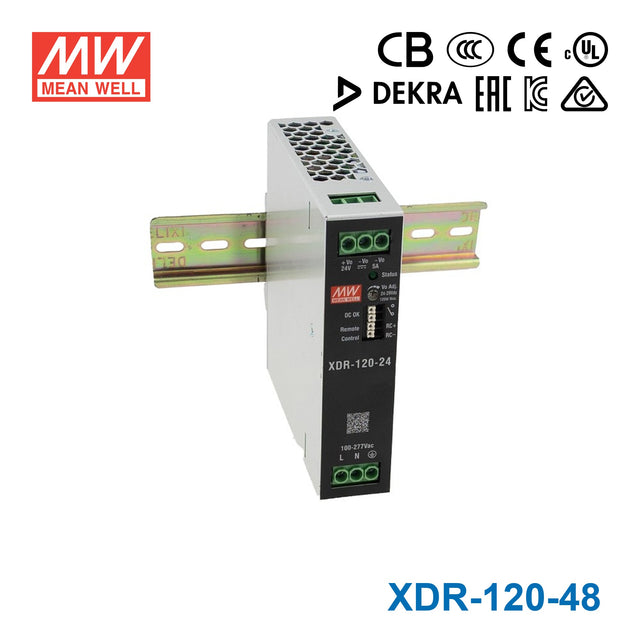

Mean Well XDR-120-48 High-End Ultra Slim Industrial Din Rail Power Supply 120W 48V 2.5A
30mm ultra slimhigh efficiency up to 94%200% peak power capability600% transient peak current capabilityultra low inrush current
SKU
XDR-120-48
Log in to see price
Trade pricing & online ordering for account holders
|
Notify me when it's back in stock
Mean Well XDR-120-48 High-End Ultra Slim Industrial Din Rail Power ...
Log in to see priceKey Features
- ✓85~305Vac input range (277Vac available)
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV, SEMI47, CID2 HazLoc approved
- ✓30mm ultra slim width
- ✓High efficiency up to 94% and no-load power dissipation 0.9W~2W by R.C.
- ✓200% peak power capability
- ✓600% transient peak current capability
- ✓Built-in constant current limiting circuit
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Over voltage category III (OVC III)
- ✓-40°~+85°C wide range operation temperature (>+60°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in remote ON/OFF control and DC OK relay contact
- ✓Ultra low inrush current <6~15A
- ✓Tool free terminal block (LA Type)
- ✓Conformal coating
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓5 years warranty
-
BrandMean Well
-
Input Voltage85V~305V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC,RCM
-
Operating Temperature-40°C~85°C
-
Length11.6 cm
-
Width3 cm
-
Height12.52 cm
-
Weight0.6 kg
