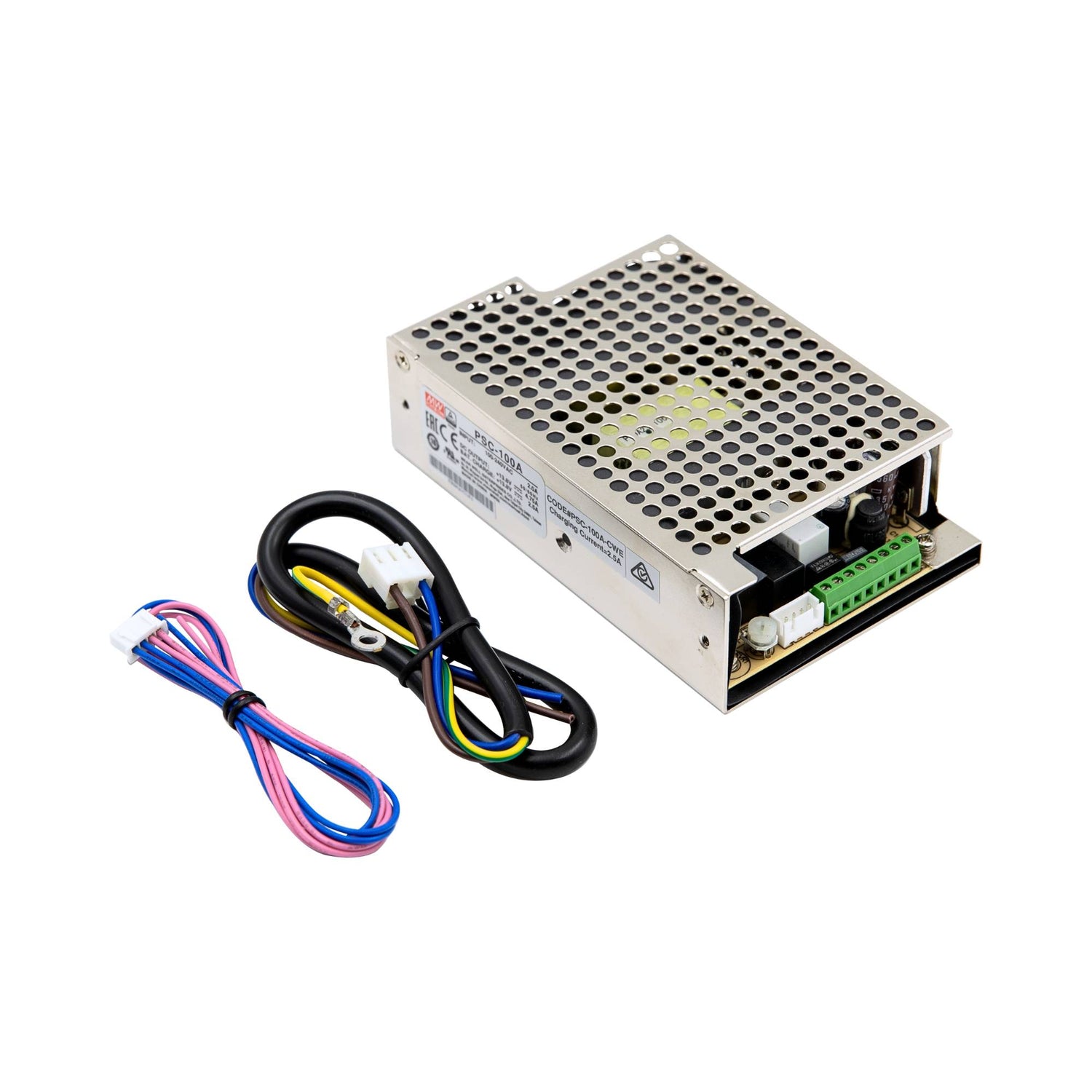

Mean Well PSC-100A-CWE Battery Chargers 100.05W 13.8V 4.75A - PFC

with UPS functionwith input and output cables

SKU PSC-100A-CWE

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The PSC-100A-CWE is a 100.5W Mean Well power supply (input: 90~264VAC, operating temperature: -20~+70°C).

Key Features

✓ Input voltage: 90~264VAC
✓ Output voltage (max): 13.8V
✓ Rated output current: 4.75A
✓ Operating temperature: -20~+70°C
✓ Safety certifications: CB, CE, EAC, TÜV, UL
✓ 2 year warranty

Frequently Asked Questions

What is the Mean Well PSC-100A-CWE designed for?

The PSC-100A-CWE is a 100.05W battery charger power supply intended for security and backup power applications. Its UPS-related feature set and relay signal outputs for AC OK and battery low make it suitable for systems that need battery-backed DC power and status monitoring.

What are the main electrical ratings of the PSC-100A-CWE?

This model provides a 13.8V DC output with a rated current of 4.75A and a power rating of 100.05W. It also supports universal AC input with a specified input range of 90 to 264VAC, or 127 to 370VDC.

Does the PSC-100A-CWE include power factor correction (PFC)?

Yes. The product name identifies this version as a PFC model, which is relevant for buyers comparing variants in commercial and industrial environments. If PFC is a project requirement, this model is positioned accordingly.

What protection features are included on this model?

The PSC-100A-CWE includes protection for short circuit, overload, and over voltage. It also includes battery low protection and battery reverse polarity protection by fuse, which is useful in battery-backed power applications.

Can this power supply be used in demanding temperature conditions?

This model is specified for operation from -20°C to 70°C. That range makes it a practical option for many indoor industrial and security enclosure environments, provided the overall system is designed within those limits.

What monitoring or status signals does the PSC-100A-CWE provide?

The unit includes relay contact signal outputs for AC OK and battery low status. These signals can help integrators monitor power condition and battery state within larger security or backup power systems.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	Battery Voltage
Mean Well PSC-100A-C Battery Chargers 100.05W 13.8V 4.75A - PFC	100.05W	13.8V	4.75A	13.8V	View
