Overview

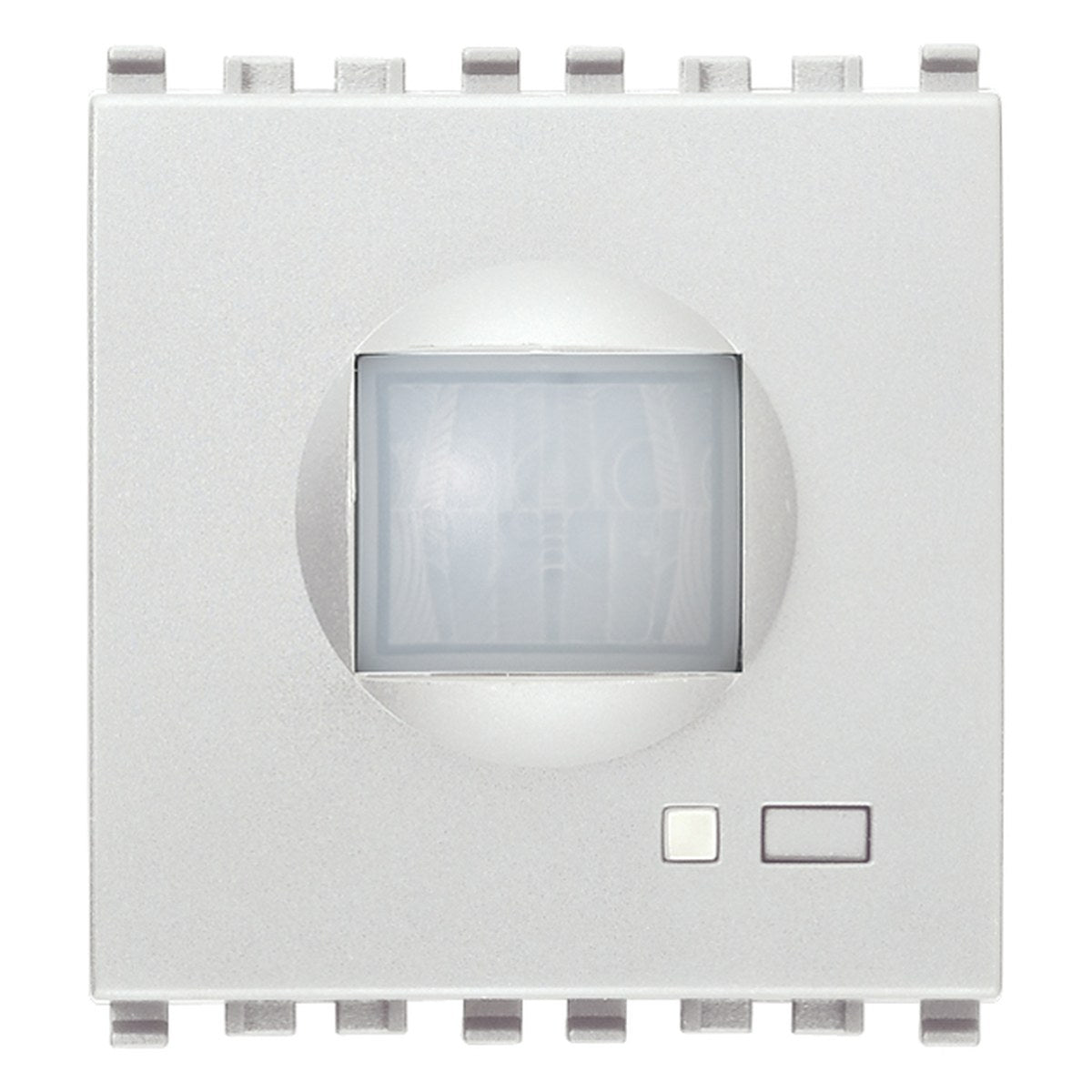

VM-20485.N is Vimar EIKON 20485.N, IR motion detector Next.
Passive infrared motion detector, Next - 2 modules
Specifications
Technical data
- Product type
- Movement sensor for bus system
- Bus system KNX
- No
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Radio frequency bidirectional
- No
- Model
- Movement sensor
- Mounting method
- Flush-mounted
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Lacquered
- Surface finishing
- Matt
- Colour
- Silver
- RAL-number (similar)
- 9022
- Transparent
- No
- With bus connection
- Yes
- Substation input
- No
- Creep-under protection
- No
- Operation mode switch
- No
- Animal zone
- No
- Staircase light controller
- No
- Response value luminosity adjustable
- Yes
- Teach-function for response value luminosity
- No
- Switch-off delay self-learning
- No
- DALI-2 certified
- No
- Optimum mounting height
- 1.2 m
- Max. reach frontally
- 10 m
- Detection angle vertical
- 0 - 36
- Detection angle horizontal
- 0 - 112
- Number of channels
- 1
- Min. switch-on time
- 10 s
- Max. duty cycle
- 250 min

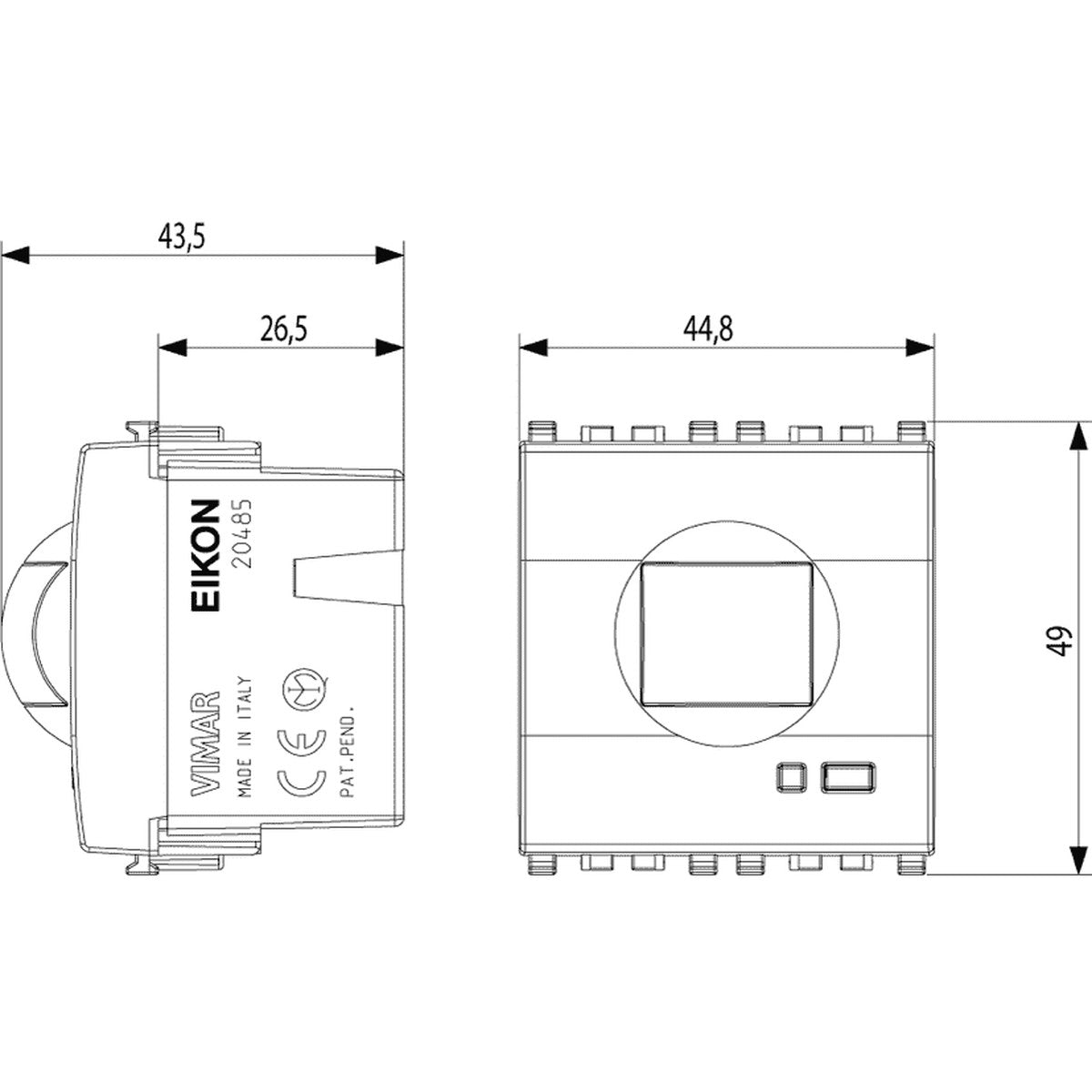

- Width
- 44.8 mm
- Height
- 49 mm
- Depth
- 43.5 mm
- Built-in width
- 44.8 mm
- Built-in depth
- 26.5 mm
- Built-in length
- 49 mm
- Min. depth of built-in installation box
- 30 mm
Packaging
- EAN
- 8007352287471
- Packed size (cm)
- 11.2 × 9.6 × 9.8
- Packed weight
- 119.27 g
Certifications
- Certifications
- CE marking (EU), WEEE Directive, UK PSTI compliance

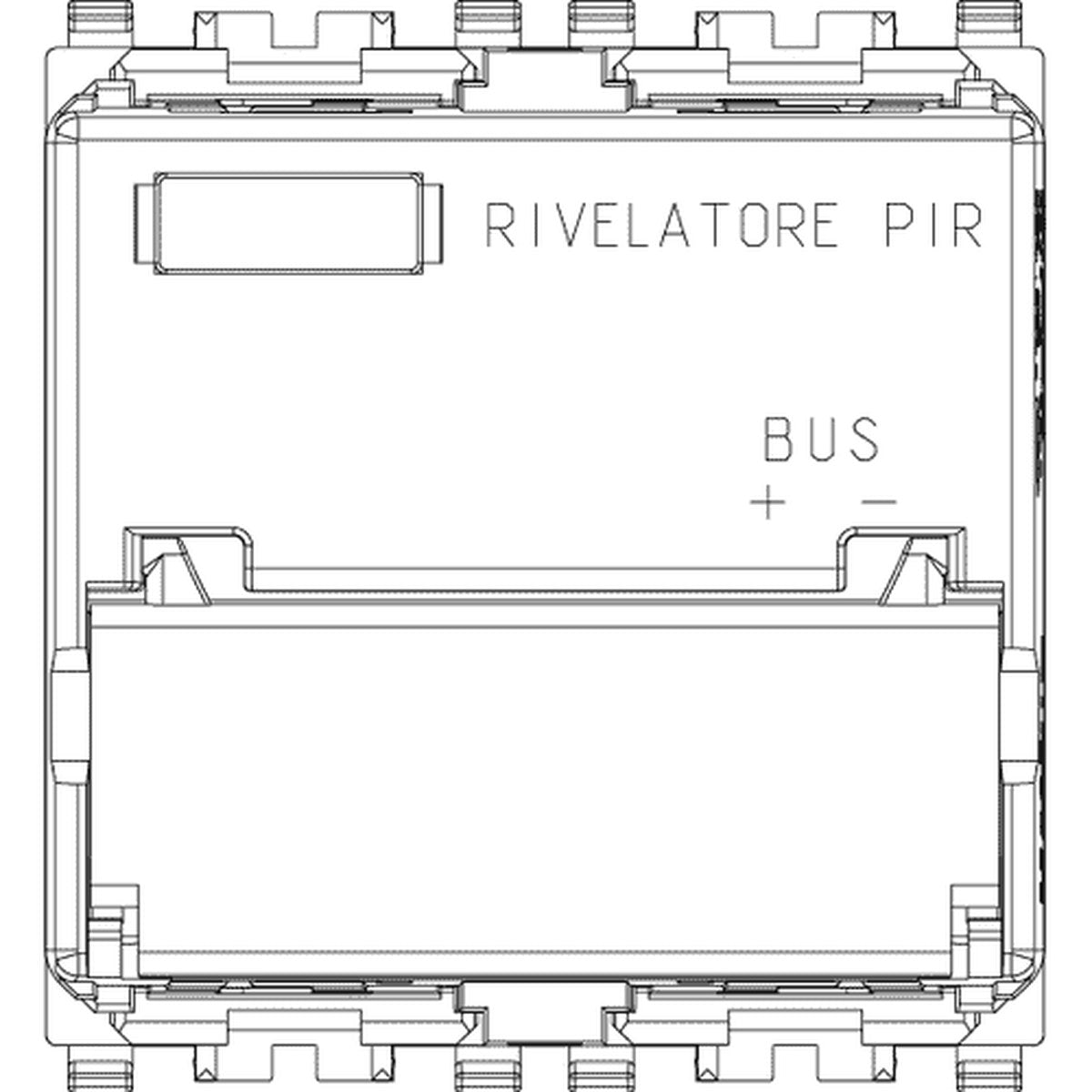

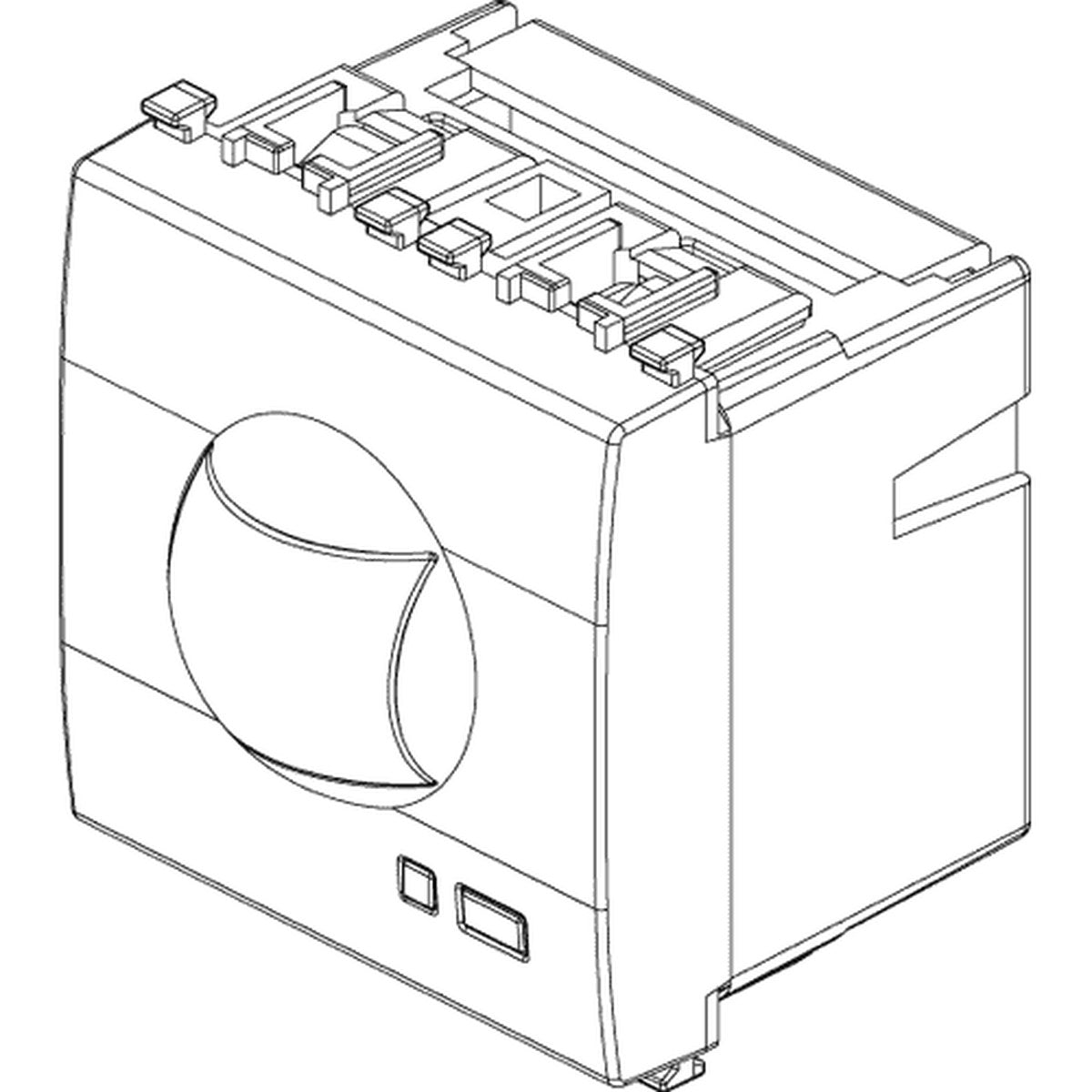

Technical drawings
Downloads
Datasheet1
Certificates6
Catalogues15
FAQ
What is the VM-20485.N used for?
The VM-20485.N is a passive infrared motion detector for the Vimar Eikon Exé switch accessory module range. It is suited for projects that need motion detection in a coordinated silver Eikon Exé finish.
Which product range is this motion detector part of?
This model belongs to the Vimar Eikon Exé range and is categorized as a switch accessory module. It is intended for use where Eikon Exé modules and matching design finishes are specified.
What finish does the VM-20485.N have?
The VM-20485.N has a silver finish. This makes it a suitable choice for Eikon Exé projects where a silver accessory module is required.
What temperature range is this motion detector rated for?
This model is specified for temperatures from -20 °C to 50 °C. That range should be checked against the conditions of the intended project location.
What is the warranty period for the VM-20485.N?
The VM-20485.N has a 3 year warranty period. This warranty information applies specifically to the product data provided for this SKU.
How much does this motion detector weigh?
The VM-20485.N weighs 0.1189 kg. This can help with product handling, procurement records, and project documentation.
