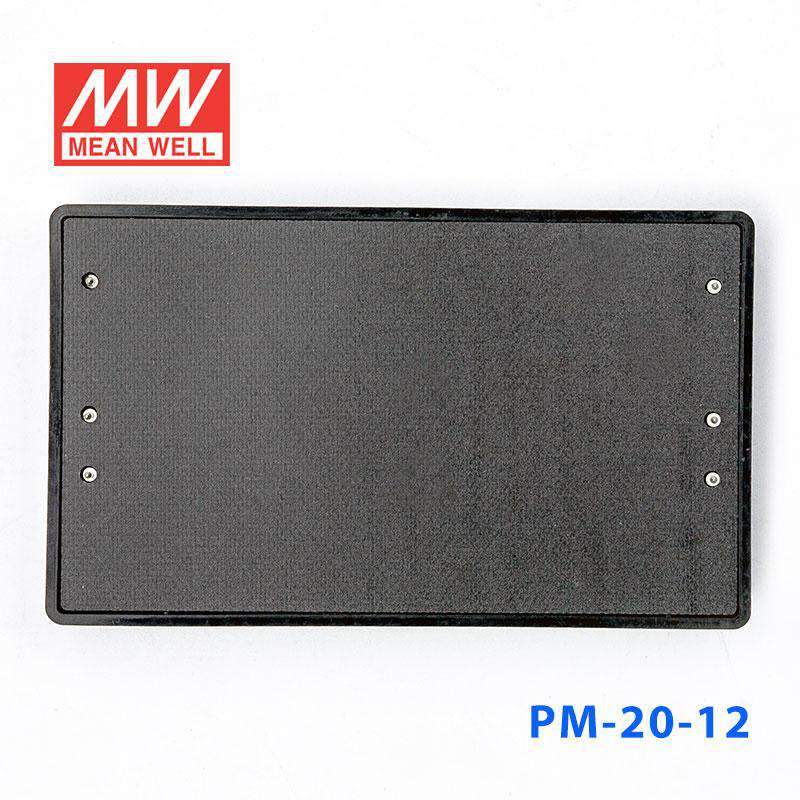

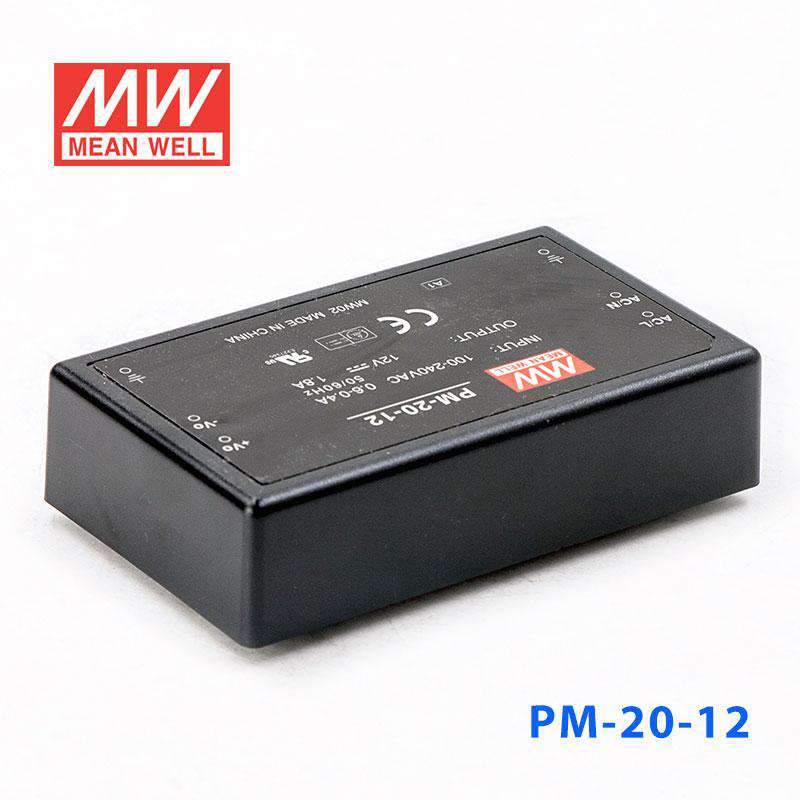

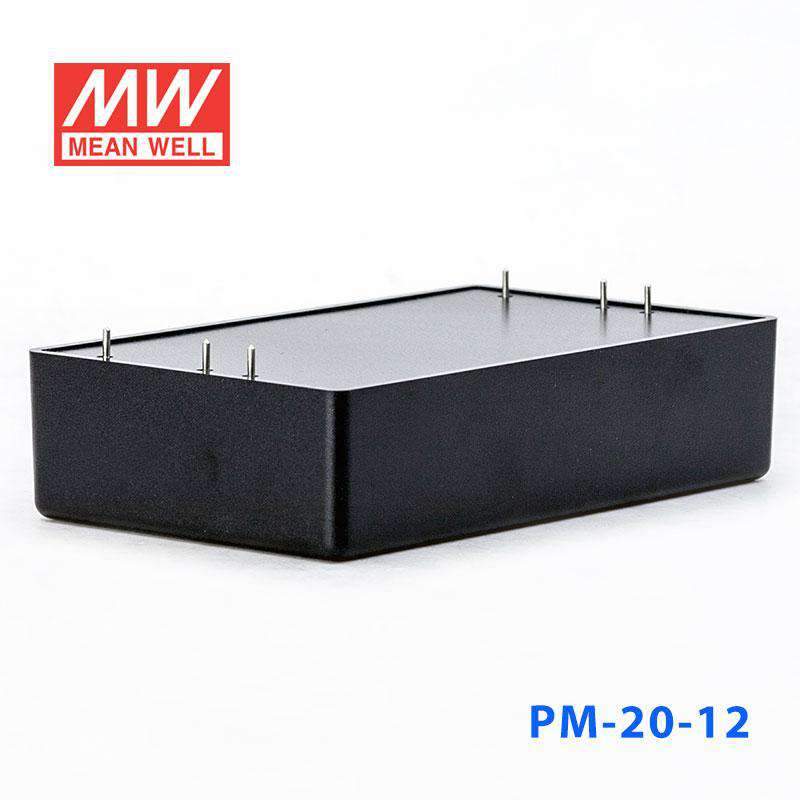

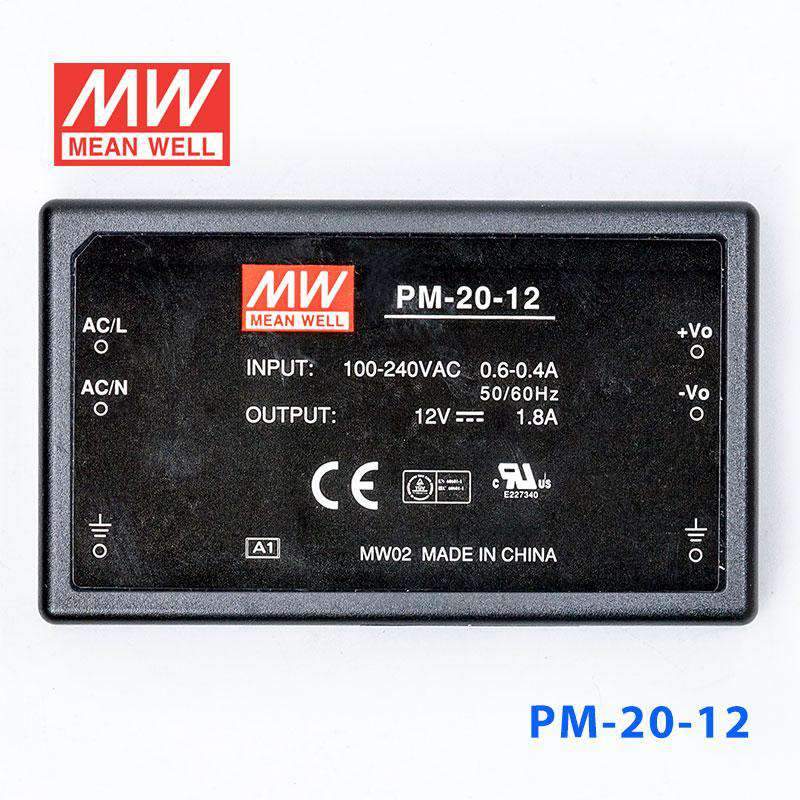

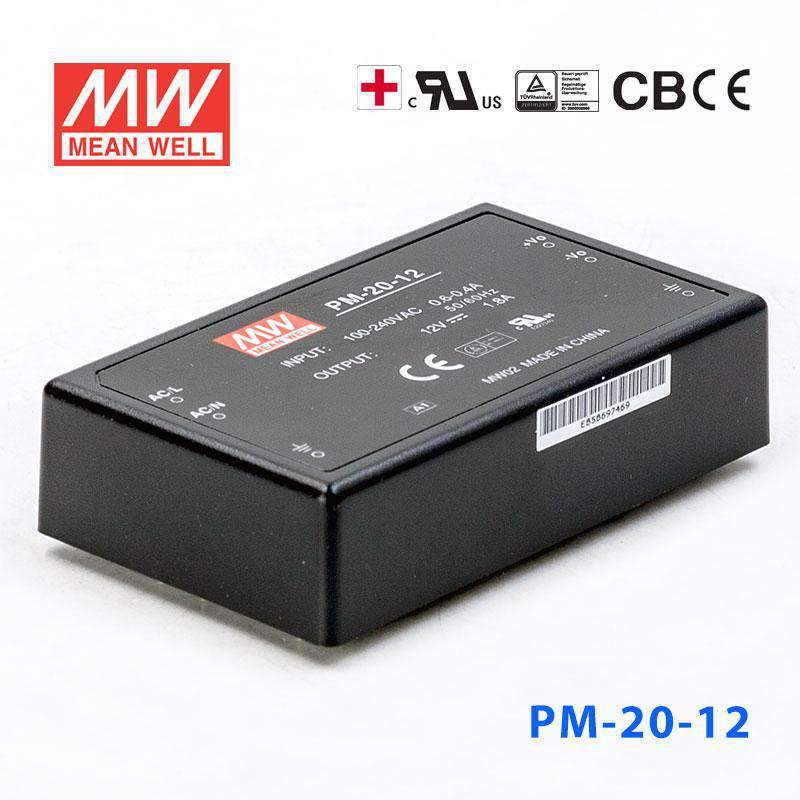

Mean Well PM-20-12 Power Supply 20W 12V
Log in to see priceFeatures
- Universal AC input / Full range
- Protections:Short circuit/Over load/Over voltage
- Ultra-miniature size, light weight
- Cooling by free air convection
- Isolation class II
- UL60601-1/IEC60601-1/EN60601-1 medical safety approved
- No load power consumption<0.5W
- 100% full load burn-in test
- Fixed switching frequency at 67KHz
- High reliability
- 3 years warranty
-
BrandMean Well
-
SeriesPM Series
-
Power Rating21.6 Watt
-
Output Voltage12 Volt
-
Rated Current1.8 Ampere
-
Input Voltage85V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty3 Year
-
Length9.4 cm
-
Width5.6 cm
-
Height2.27 cm
-
Weight0.18 kg
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other PM-20 Models
3 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well PM-20-5 Power Supply 20W 5V | 22W | 5V | 4.4A | View |
| Mean Well PM-20-3.3 Power Supply 20W 3.3V | 14.85W | 3.3V | 4.5A | View |
| Mean Well PM-20-24 Power Supply 20W 24V | 22.08W | 24V | 0.92A | View |
