Can I use the PSD-45B-24 for a 24V PLC or automation subsystem on an 18-36VAC source?

Yes, this converter provides a constant 24V output from an 18-36VAC input range. It is suitable for 24V automation loads that stay within 45W and 1.88A.

Is the PSD-45B-24 a fit for 24V sensors, transmitters, or industrial communication hardware?

It can work well for 24V field and communication devices that need constant-voltage power and have a total demand no higher than 1.88A. The power limit for the unit is 45W.

Would the PSD-45B-24 support a compact 24V HMI or control interface assembly?

Yes, if the assembly is designed for 24V input and its total consumption stays within 45W. The higher power level versus a 30W 24V model gives this version up to 1.88A of output current.

Can this model be used for 24V equipment in battery-backed or mobile industrial systems?

It can be considered where the available source is within 18-36VAC and the downstream equipment needs 24V constant-voltage output. The sizing limits are 24V, 1.88A, and 45W.

Is the PSD-45B-24 suitable for outdoor panels or exposed environments?

The stated operating temperature range is -10°C to +60°C. Because no IP rating is provided, the specs do not establish suitability for outdoor exposure, water ingress, or high-dust locations.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

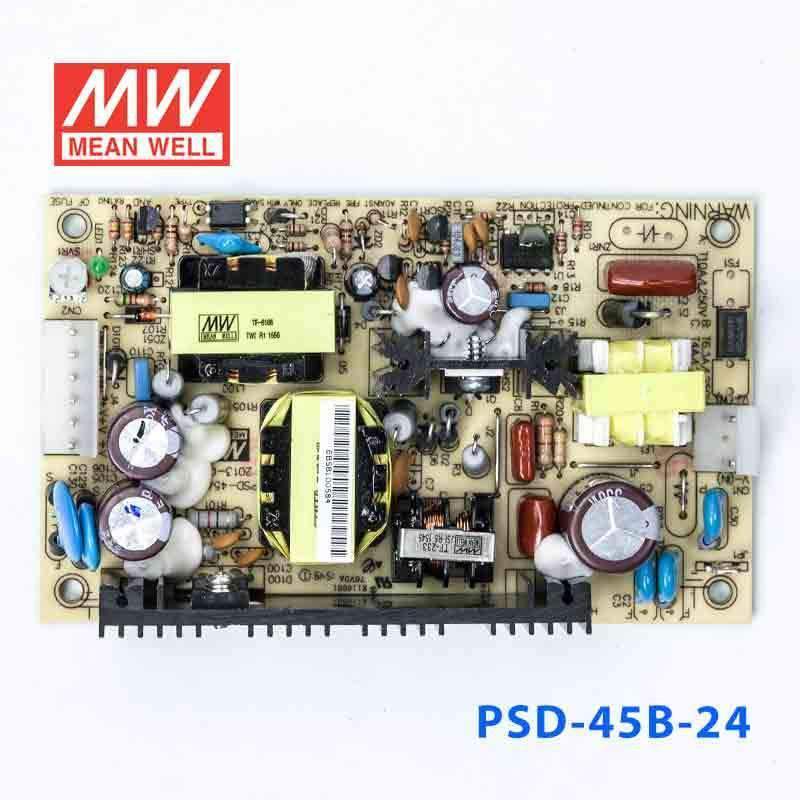

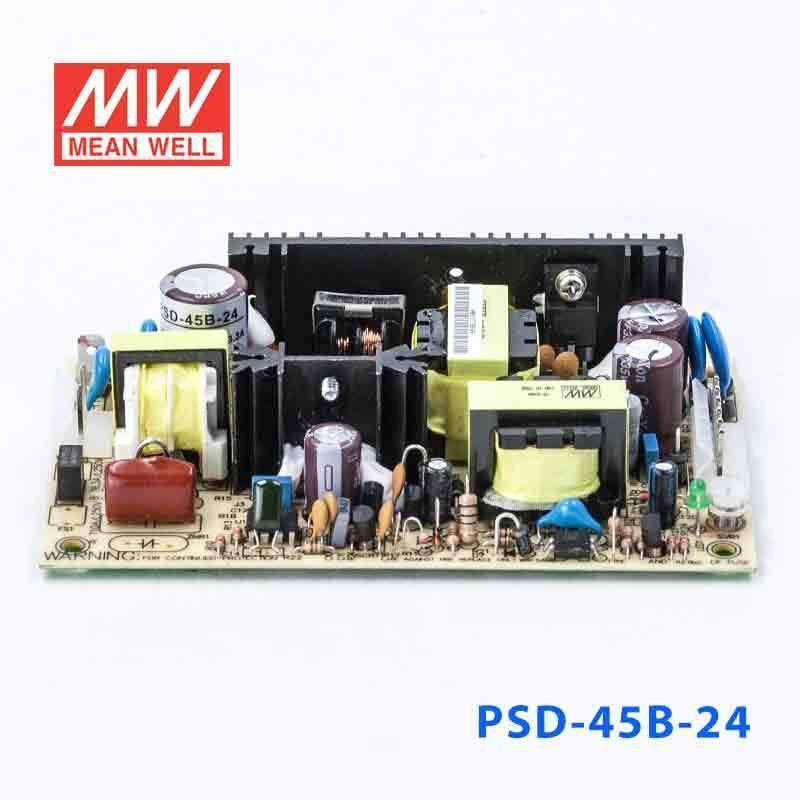

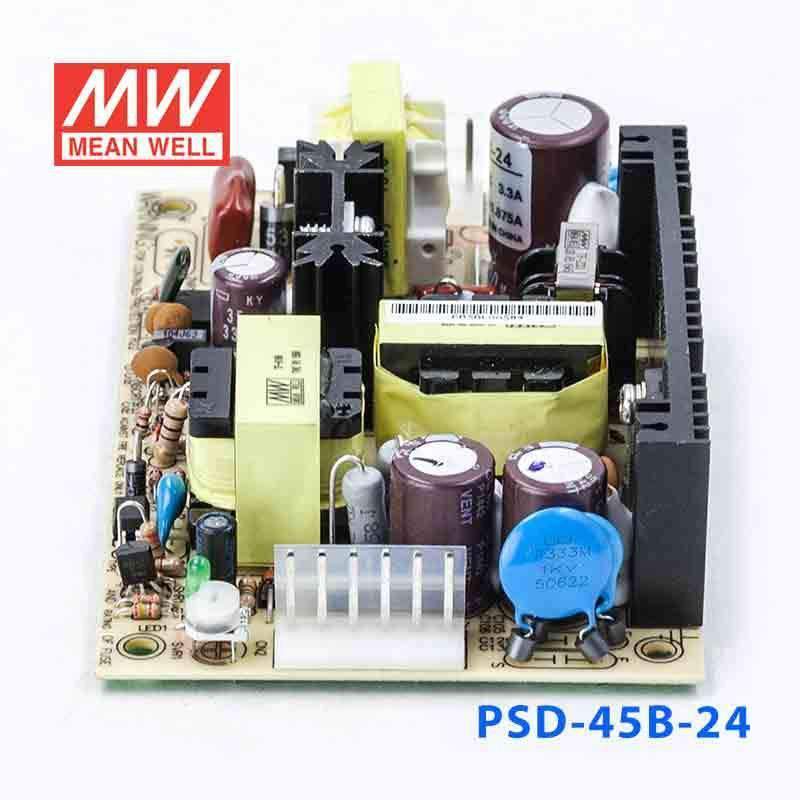

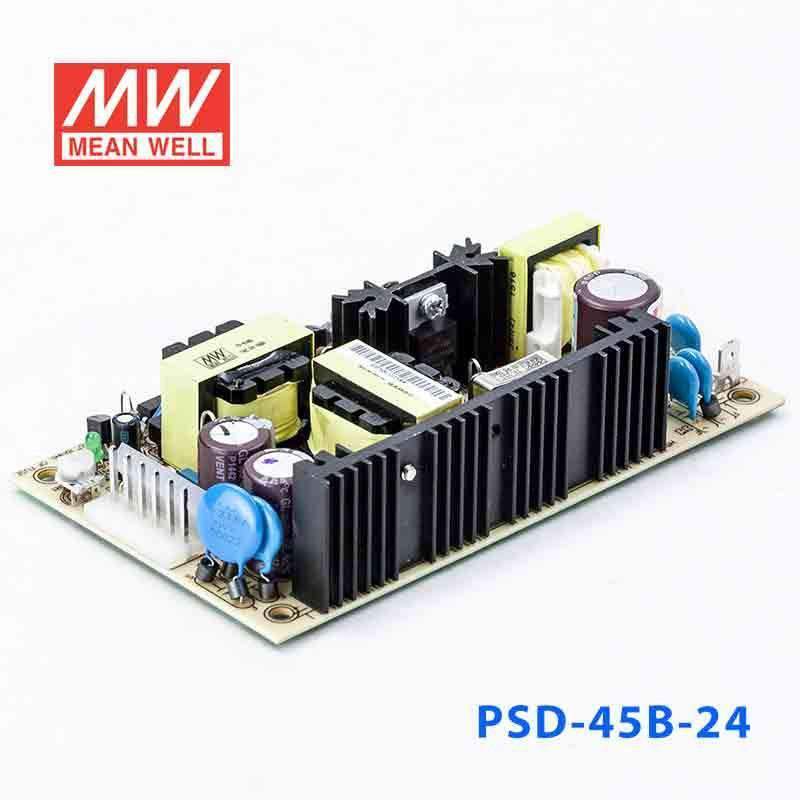

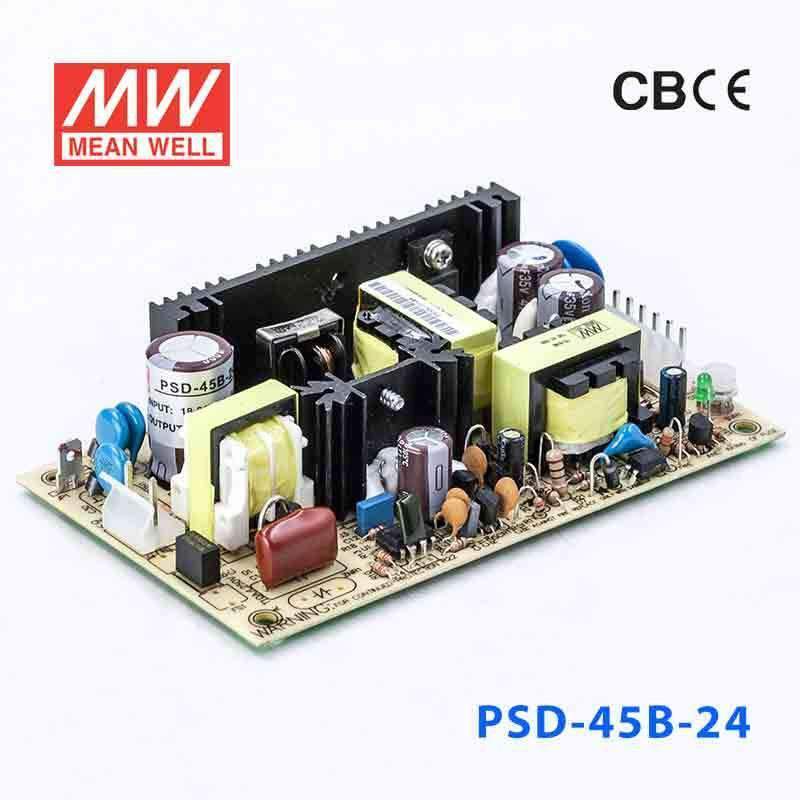

Mean Well PSD-45B-24 DC-DC Converter - 45W - 18~36V in 24V out 1.875A

2:1 wide input range1.5~2KVAC isolation by models

SKU:

PSD-45B-24

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The PSD-45B is a 45W Mean Well power converter (input range: 9.2~18VDC).

Key Features

✓ Input voltage range: 9.2~18VDC
✓ 1.5KVAC reinforced I/O isolation
✓ Protections: Over voltage
✓ Safety approvals: TUV EN62368-1 , EAC TP TC 004
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well PSD-45B-5 DC-DC Converter - 45W - 18~36V in 5V out 9A	45W	5V	9A	Indoor	View
Mean Well PSD-45B-12 DC-DC Converter - 45W - 18~36V in 12V out 3.75A	45W	12V	3.75A	Indoor	View
