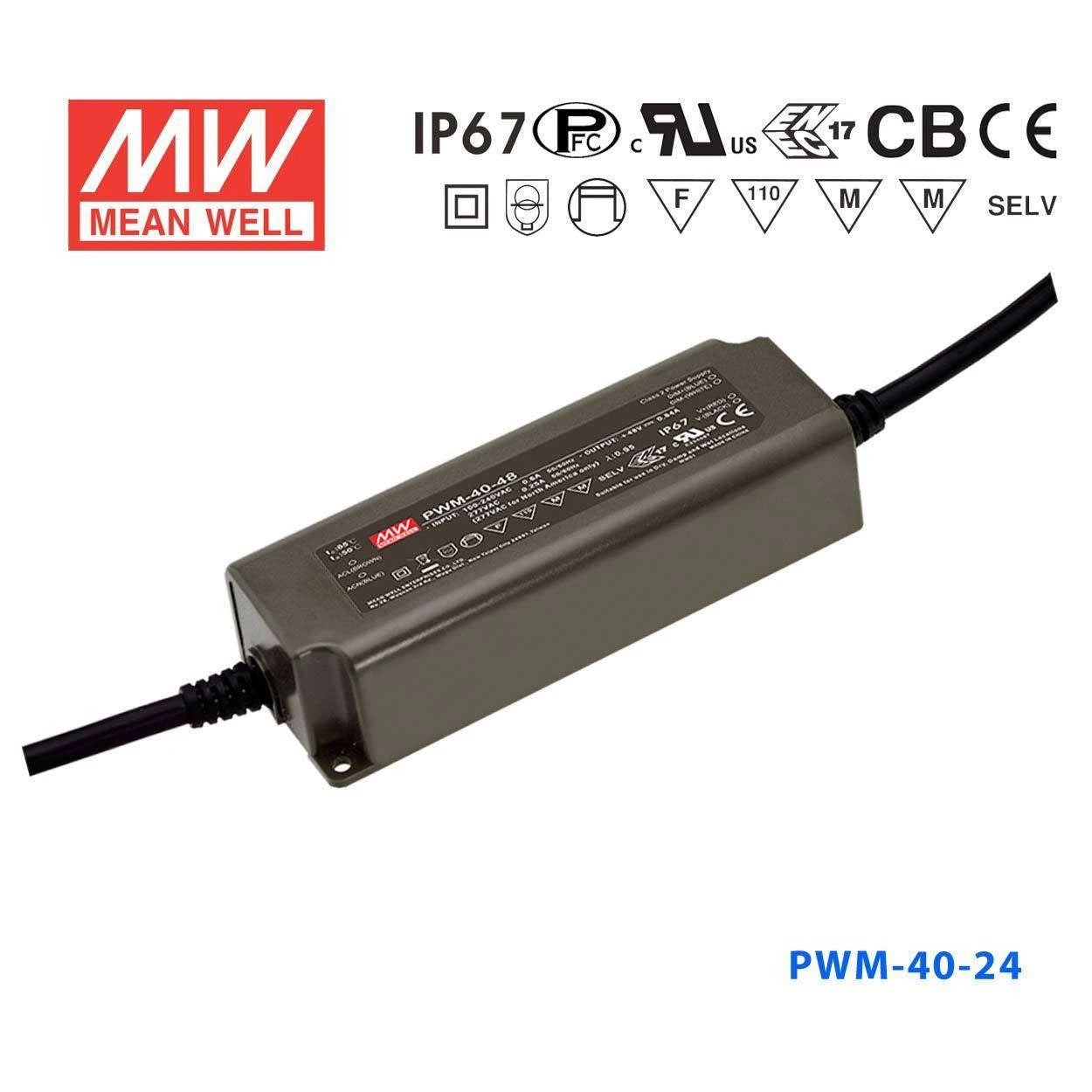

Mean Well PWM-40-24 Power Supply 40W 24V - Dimmable 1.67A

PWM style outputfully isolated plastic caseIP67Class II design without FGbuilt-in 3 in 1 dimming

SKU PWM-40-24

Log in to see price Trade pricing & online ordering for account holders

Select model — 7 in this family

PWM-40-24

PWM-40-24 Fixed output In stock

PWM-60-24 Dimmable Low stock

PWM-60-24DA DALI Backorder

PWM-60-24DA2 DALI2 In stock

PWM-90-24 Dimmable In stock

PWM-90-24DA DALI Backorder

PWM-90-24DA2 DALI2 In stock

Product variants

Notify me when it's back in stock

The PWM-40 is a 40W Mean Well AC-DC constant voltage LED driver (input: 90~305VAC, output: 24V, operating temperature: -40~+85°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 24V
✓ Rated output current: 1.67A

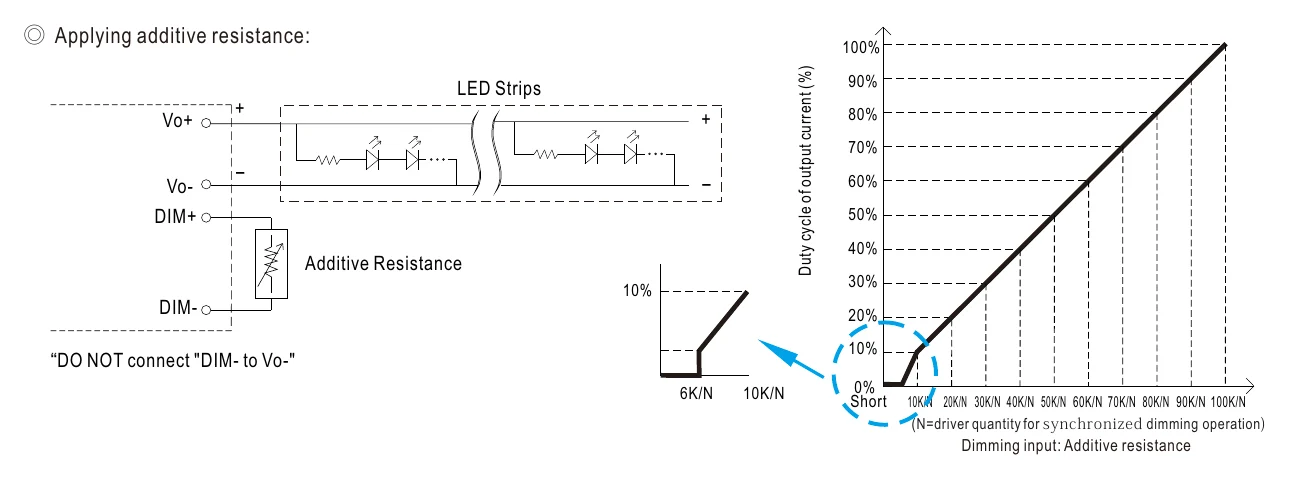

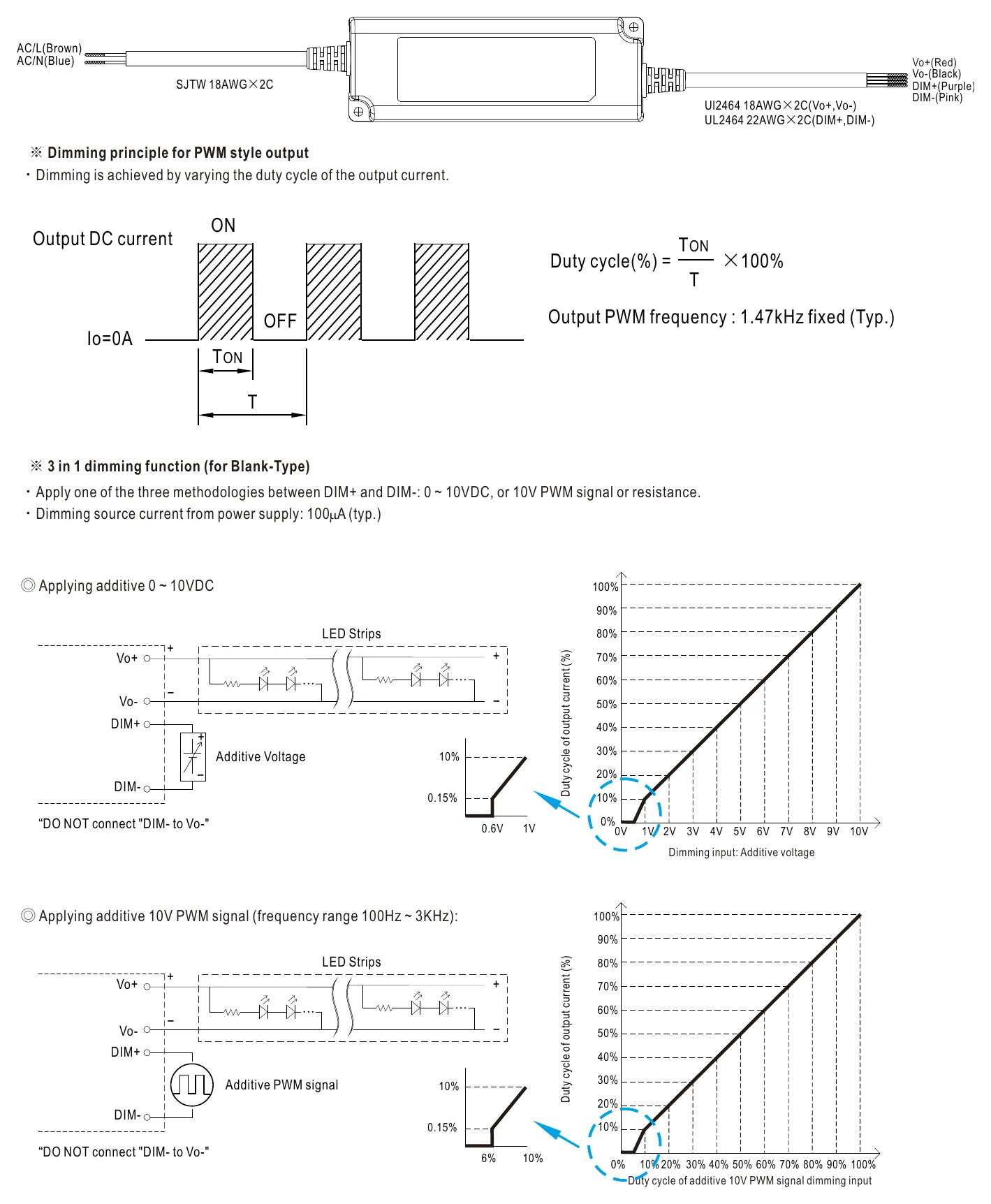

✓ 3-in-1 dimming (0–10V / PWM / resistance)
✓ Class II design — no earth connection required
✓ Ingress protection: IP67

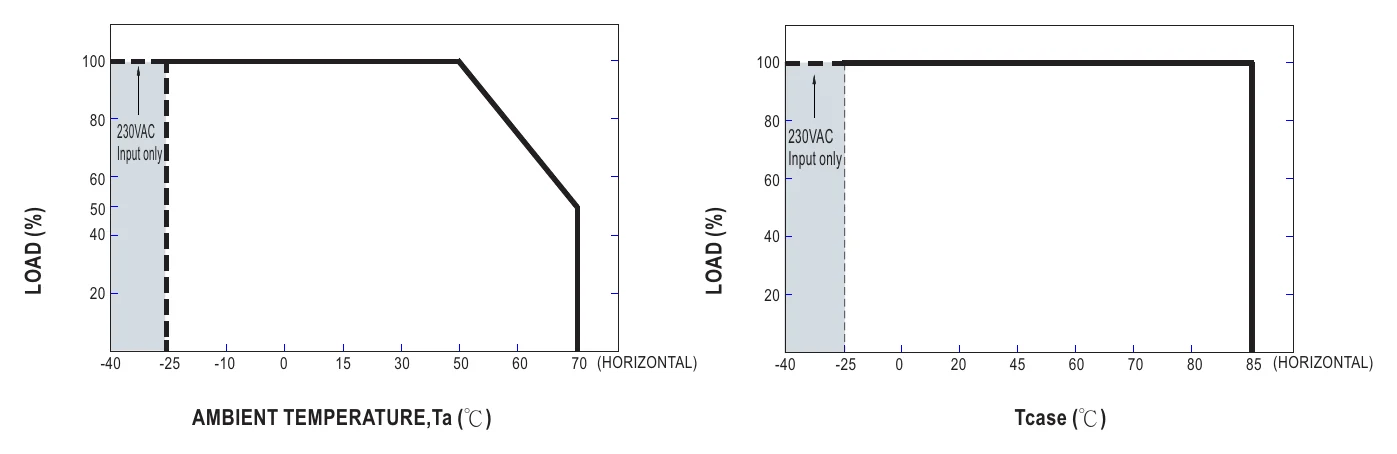

✓ Operating temperature: -40~+85°C
✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
✓ 5 year warranty

Frequently Asked Questions

Can the PWM-40-24 power 24V LED strips in an outdoor installation?

Yes. The PWM-40-24 carries an IP67 rating, making it suitable for outdoor and wet-location use where moisture exposure is expected. Its -40°C to +85°C operating range supports installation in most outdoor environments year-round.

How many meters of 24V LED strip can the PWM-40-24 support?

The PWM-40-24 supplies a maximum of 40W at 24V. Divide 40W by your strip's power consumption per meter — for example, a 14W/m strip allows approximately 2.8 meters. Always verify your strip's actual rated watts per meter before sizing the run.

Is the PWM-40-24 a good fit for dimmable 24V under-cabinet or display lighting?

Yes. The built-in 3-in-1 dimming supports 0–10V analog, PWM signal, and resistance control, allowing smooth brightness adjustment for 24V under-cabinet lighting and display case applications. The 40W output is adequate for short or medium strip runs in these settings.

Can I install the PWM-40-24 in a non-metallic or sealed junction box?

Yes. The Class II design without a functional earth ground (FG) connection and the fully isolated plastic case allow installation in non-metallic enclosures and sealed junction boxes without a grounding conductor.

Is the PWM-40-24 suitable for powering 24V LED architectural accent lighting on a building facade?

Yes. The IP67 waterproof rating and wide operating temperature range of -40°C to +85°C make the PWM-40-24 appropriate for facade-mounted 24V LED accent lighting exposed to rain and temperature extremes. Its 40W capacity can drive short runs of high-efficiency accent strip.

What dimming protocols does the PWM-40-24 support compared to the DA and KN variants?

The PWM-40-24 uses built-in 3-in-1 dimming (0–10V, PWM signal, and resistance). The DA suffix models add DALI protocol support, the DA2 suffix adds DALI-2 support, and the KN suffix adds KNX protocol support without requiring a separate KNX-DALI gateway. All variants in the 40W range share the same 40W output.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well PWM-40-48 Power Supply 40W 48V - Dimmable 840mA	40W	48V	0.84A	IP67	View
Mean Well PWM-40-36 Power Supply 40W 36V - Dimmable 1.12A	40W	36V	1.12A	IP67	View
Mean Well PWM-40-12 Power Supply 40W 12V - Dimmable 3.34A	40W	12V	3.34A	IP67	View
