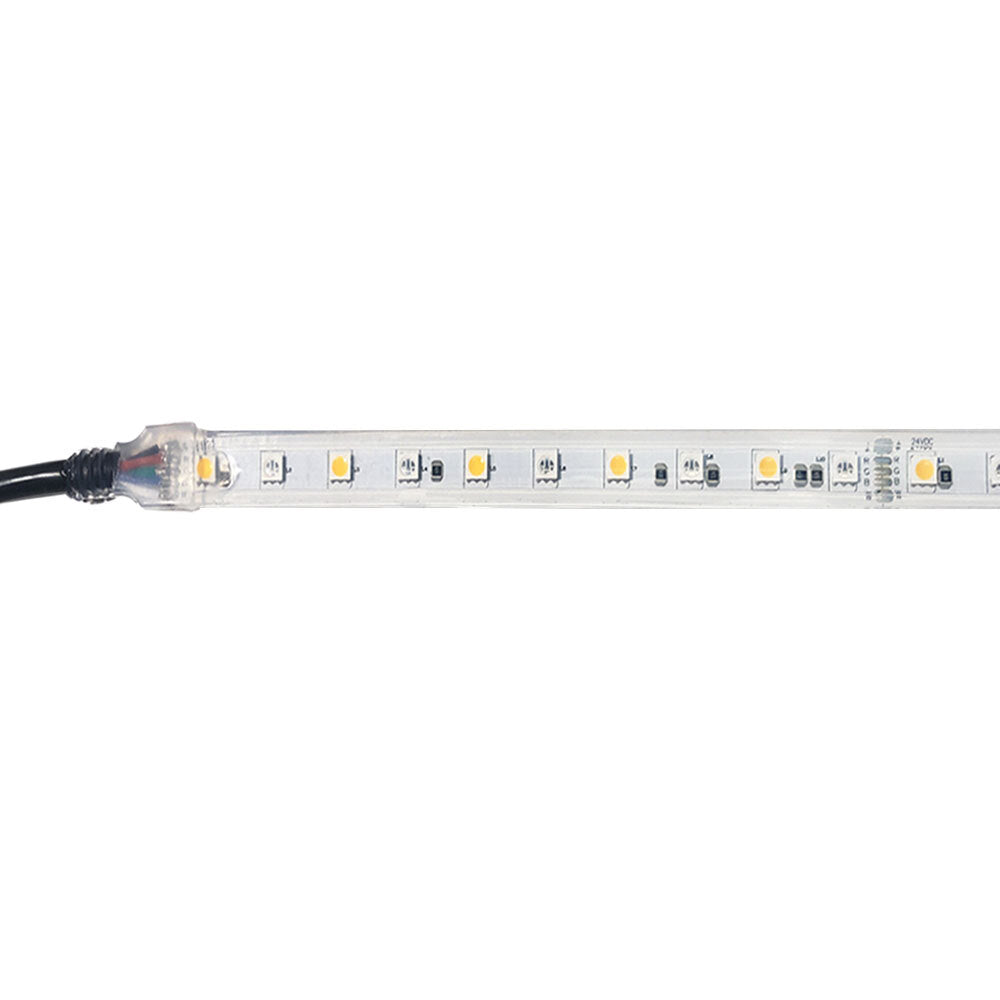

ILLUMAX LED Strip RAINBOW+ Series RGBWW - Waterproof IP68
Log in to see priceOverview
5050-030302468SCX-RGBWW is a 24V DC iLLUMAX RAINBOW+ LED strip: rgb+ww, 60LEDs/m, 14.4W/m, 1000 Lumens/m.
Specifications
Specifications
- Power Rating
- 14.4W/m
- Input Voltage
- 24V DC
- LED Density
- 60LEDs/m
- Roll Size
- 5m
- Cutting Length
- 100mm / 165mm
- Max Run
- 5m
- Beam angle
- 120°
- Width
- 13mm
- Lifetime
- 50,000 hours@25°C
- Connections
- 200mm Wire P1J Female Connector (5m roll only)
- Mounting
- Mounting Clips
- Warranty
- 2 Years
- Light colour
- RGB+WW
- Cutting Length
- 165mm
- Luminous flux
- 1000 Lumens/m
- IP Rating
- IP68
Technical drawings
Downloads
FAQ
What type of lighting does the ILLUMAX RAINBOW+ Series RGBWW strip provide?
This model combines RGB color output with warm white light at 3000K. It is designed for projects that need both colorful effects and a more conventional warm white appearance from the same strip. The rated brightness is 1000 lumens.
Is this LED strip suitable for outdoor or wet-location use?
Yes. This strip is rated IP68, which makes it appropriate for demanding environments where strong water resistance is required. It is also specified for operation in ambient temperatures from -10°C to 50°C.
What are the electrical requirements for this LED strip?
The ILLUMAX RAINBOW+ Series RGBWW operates on 24V DC and has a power rating of 14.4W per meter. Those specifications make it suitable for low-voltage commercial and architectural lighting designs that need consistent strip performance. A driver is not included with this model.
Can this strip be dimmed?
Yes, dimming is listed as optional for this model. That means the strip is intended for applications where adjustable light levels may be needed, depending on the control approach used in the project. The product itself does not include a driver.
What kinds of projects is this strip best suited for?
This model is well suited to accent and decorative lighting where both color-changing effects and warm white illumination are useful. Typical B2B uses include exterior linear highlights, interior feature lighting, and other architectural strip-light applications. Its IP68 rating makes it especially relevant for projects exposed to moisture.
What are the main physical and cutting specifications of this strip?
The strip is 14 mm wide and has a cutting length of 167 mm. It uses a 30+30 LEDs per meter configuration and has a 120-degree beam angle. Mounting clips are included in the package.
Does this product include a driver, and what is the warranty period?
No, the driver is not included with this LED strip. The stated warranty period for this model is 2 years. Its rated lifetime is 50,000 hours.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other Illumax Rainbow+ Series Models
2 other models| Model | Power | LED Density | Cuttable | IP Rating | |
|---|---|---|---|---|---|
| ILLUMAX LED Strip RAINBOW+ Series | 14.4W | 60LEDs/m | 100mm | IP20 | View |
| ILLUMAX LED Strip RAINBOW+ Series - Waterproof IP68 | 14.4W | 60LEDs/m | 100mm | IP68 | View |
