Archilight

Archilight Lattice Wash 10 Downlight 20W

SKU KC-010180A10-2700K-B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 10 variants

KC-010180A10-2700K-B
LED Colour
Finish Colour
10 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
Available to order
|

Overview

Recessed Downlight

Specifications

Archilight Lattice Wash 10 Downlight 20WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKULED ColourFinish Colour
KC-010180A10-4000K-BNatural White 4000KBlack
KC-010180A10-4000K-WNatural White 4000KWhite
KC-010180A10-5000K-BCool White 5000KBlack
KC-010180A10-5000K-WCool White 5000KWhite
KC-010180A10-RGBW-BRGB+WW MulticolourBlack
KC-010180A10-RGBW-WRGB+WW MulticolourWhite

Specifications

Input
230VAC
Power rating
20W
Beam angle
Wall Washer
Brightness
960 lm
Efficacy
≥48 lm/W
Colour render index(CRI)
≥90
Colour temperature
2700K / 3000K / 4000K / 5000K
UGR
<19
IP level
IP20
Temperature range
-25°C~50°C
Dimming control
Dimmable (Dimmer Optional)
Tiltable
Fixed
Mounting
Recessed
Driver
Driver Included
Warranty
5 years
Lifetime
50,000hrs
Material
Aluminum

Certifications & ratings

Certification marks
CE, CB, TÜV, CCC, SAA, IC-F

Technical drawings

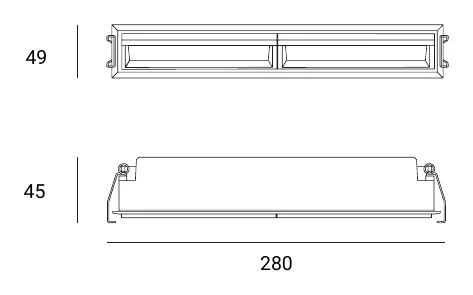

Archilight Lattice Wash 10 Downlight 20W Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is the Archilight Lattice Wash 10 Downlight 20W designed for?

This model is a linear wall washer downlight intended to highlight vertical surfaces such as feature walls, artwork, and photos. Its compact, near-invisible form suits modern interior spaces that need subtle accent lighting rather than a standard general downlight effect.

What light output and colour quality can I expect across the Lattice Wash 10 family?

All variants in this family are rated at 20W and deliver 1200 lumens. They also share a CRI of 90, which makes them suitable for applications where accurate colour presentation matters.

What colour temperature options are available in this product family?

The family is available in 2700K, 3000K, 4000K, and 5000K fixed white options, plus RGBW variants. This gives buyers a choice between warmer, neutral, cooler, or colour-changing lighting depending on the project requirement.

What finish options are available for the Archilight Lattice Wash 10 Downlight 20W?

This parent family is offered in both black and white finishes. The finish choice is available across the listed light colour variants, making it easier to match different ceiling and interior design schemes.

Is the driver included, and is this downlight dimmable?

The child variant data shows that the driver is included across the full family. The range is also listed as dimmable optional, so dimming capability depends on selecting a compatible dimming setup for the project.

What are the physical dimensions and cut-out requirements for this family?

The parent model dimensions are 280 mm long, 45 mm wide, and 49 mm high, with a weight of 0.7 kg. Across the child variants, the cut-out range is listed as 37 mm minimum by 273 mm maximum.

Is this downlight suitable for long-term commercial interior use?

This family is positioned for interior lighting applications and combines a 50,000-hour rated lifetime with a 5-year warranty. Those shared specifications make it relevant for commercial and professional projects that prioritize durability and reduced maintenance intervals.
