Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Archilight

Archilight Lattice Wash 5 Ac Dimmable Downlight 10W

SKU KC-010180A05-2700K-B-TDM
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 8 variants

KC-010180A05-2700K-B-TDM
LED Colour
Finish Colour
8 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
Available to order
|

Overview

Recessed Ac Dimmable Downlight

Specifications

Archilight Lattice Wash 5 Ac Dimmable Downlight 10WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKULED ColourFinish Colour
KC-010180A05-2700K-B-TDMWarm White 2700KBlack
KC-010180A05-2700K-W-TDMWarm White 2700KWhite
KC-010180A05-3000K-B-TDMWarm White 3000KBlack
KC-010180A05-3000K-W-TDMWarm White 3000KWhite
KC-010180A05-4000K-B-TDMNatural White 4000KBlack
KC-010180A05-4000K-W-TDMNatural White 4000KWhite
KC-010180A05-5000K-B-TDMCool White 5000KBlack
KC-010180A05-5000K-W-TDMCool White 5000KWhite

Specifications

Input
230VAC
Power rating
10W
Beam angle
Wall Washer
Brightness
430lm
Efficacy
≥43 lm/W
Colour render index(CRI)
≥90
UGR
<19
IP level
IP20
Temperature range
-25°C~50°C
Dimming control
Dimmable (Dimmer Optional)
Tiltable
Fixed
Mounting
Recessed
Driver
Driver Included
Warranty
5 years
Lifetime
50,000hrs
Material
Aluminum

Certifications & ratings

Certification marks
CE, CB, TÜV, CCC, SAA, IC-F

Technical drawings

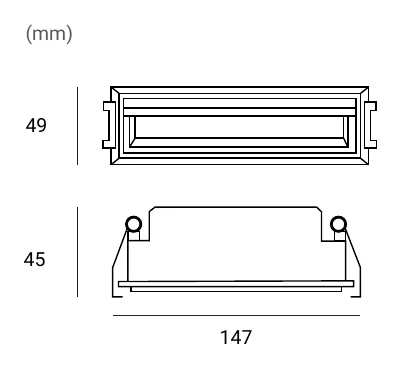

Archilight Lattice Wash 5 Ac Dimmable Downlight 10W Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is the Archilight Lattice Wash 5 AC Dimmable Downlight 10W designed for?

This model is a compact linear wall washer downlight intended to highlight vertical surfaces such as feature walls, artwork, and framed photos. Its near-invisible styling suits modern interior projects that want a subtle architectural lighting effect rather than a standard general downlight look.

What makes this downlight different from a standard recessed downlight?

The Lattice Wash 5 uses a wall washer beam pattern instead of a conventional wide spotlight or general downlight beam. That makes it better suited to washing light across a wall surface and bringing out textures, finishes, and displayed objects.

What variant options are available in this product family?

This parent family is offered in four colour temperatures: 2700K, 3000K, 4000K, and 5000K. It is also available in black or white finishes, while the main performance specifications remain consistent across the variants shown.

What are the key performance specifications across the family?

All listed variants are 10W dimmable downlights with a driver included, 600 lm output, and CRI 90. The family is rated for a 50,000-hour lifetime and includes a 5-year warranty.

Is this a dimmable downlight?

Yes, the full parent family is specified as dimmable. The child variants shown all carry the same dimmable designation, so dimming is a family-wide feature rather than a variant-specific one.

What cut-out size should this product family suit?

Across the variants provided, the cut-out range is listed as 37 mm minimum to 140 mm maximum. Buyers should use that range when assessing whether this family matches the intended recessed opening requirements.

Is the Lattice Wash 5 intended for quality colour rendering?

Yes, this family has a CRI of 90, which supports accurate and vivid colour presentation. That makes it suitable for spaces where wall finishes, artwork, or decorative features need to look natural and well defined.

What are the product dimensions for the parent model?

The parent product model is listed at 147 mm long, 45 mm wide, and 49 mm high, with a weight of 0.5 kg. These dimensions describe the overall family format and help position it as a compact recessed architectural lighting option.
