Archilight

Archilight Lattice Wash 5 Downlight 10W

SKU KC-010180A05-2700K-B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 8 variants

KC-010180A05-2700K-B
LED Colour
Finish Colour
8 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
Available to order
|

Overview

Recessed Downlight

Specifications

Archilight Lattice Wash 5 Downlight 10WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKULED ColourFinish Colour
KC-010180A05-2700K-BWarm White 2700KBlack
KC-010180A05-2700K-WWarm White 2700KWhite
KC-010180A05-3000K-BWarm White 3000KBlack
KC-010180A05-3000K-WWarm White 3000KWhite
KC-010180A05-4000K-BNatural White 4000KBlack
KC-010180A05-4000K-WNatural White 4000KWhite
KC-010180A05-5000K-BCool White 5000KBlack
KC-010180A05-5000K-WCool White 5000KWhite

Specifications

Input
230VAC
Power rating
10W
Beam angle
Wall Washer
Brightness
430lm
Efficacy
≥43 lm/W
Colour render index(CRI)
≥90
UGR
<19
IP level
IP20
Temperature range
-25°C~50°C
Dimming control
Dimmable (Dimmer Optional)
Tiltable
Fixed
Mounting
Recessed
Driver
Driver Included
Warranty
5 years
Lifetime
50,000hrs
Material
Aluminum

Certifications & ratings

Certification marks
CE, CB, TÜV, CCC, SAA, IC-F

Technical drawings

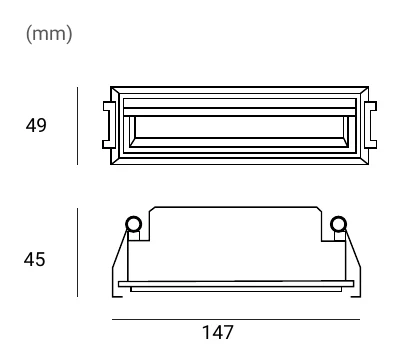

Archilight Lattice Wash 5 Downlight 10W Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is the Archilight Lattice Wash 5 Downlight 10W designed for?

This model is a compact linear wall washer downlight intended to highlight vertical surfaces such as feature walls, artwork, paintings, and photos. Its near-invisible form factor suits modern interior spaces where a subtle architectural lighting effect is preferred.

What are the main performance specifications across the Lattice Wash 5 family?

All variants in this family use 10W of power, deliver 600 lumens, and have a CRI of 90 for strong colour accuracy. The range also carries a rated lifetime of 50,000 hours and a 5-year warranty.

What colour temperature options are available in this product family?

The parent family is available in 2700K, 3000K, 4000K, and 5000K options. This gives buyers a choice from warmer ambient tones through to cooler, cleaner light depending on the project look and application.

Are there different finish options for the Lattice Wash 5 Downlight 10W?

Yes, this family is offered in both black and white finishes. The core performance specifications remain the same across both finish options, so the choice is mainly visual.

Is the Archilight Lattice Wash 5 Downlight dimmable?

The product family is listed as dimmable optional, with the driver included. That means dimming capability is available for the range, but buyers should confirm the exact dimming setup required for their project before specifying.

What cut-out range does this downlight family support?

Based on the child variants, the family supports a cut-out range from 37 mm to 140 mm. This makes it suitable for projects where the recess dimensions need to align with that opening range.

Is this downlight suitable for projects where colour accuracy matters?

Yes, the Lattice Wash 5 family has a CRI of 90, which is well suited to applications where the true appearance of wall finishes, artwork, or displayed materials is important. That makes it a strong fit for interior commercial and architectural environments focused on presentation quality.
