Mean Well SCW08W8-03 DC-DC Converter - 8W 9~75V DC in 3.3V out 10mA

8:1(9~75VDC) ultra-wide input rangeno minimum load required3KVdc I/O isolation

SKU SCW08W8-03

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

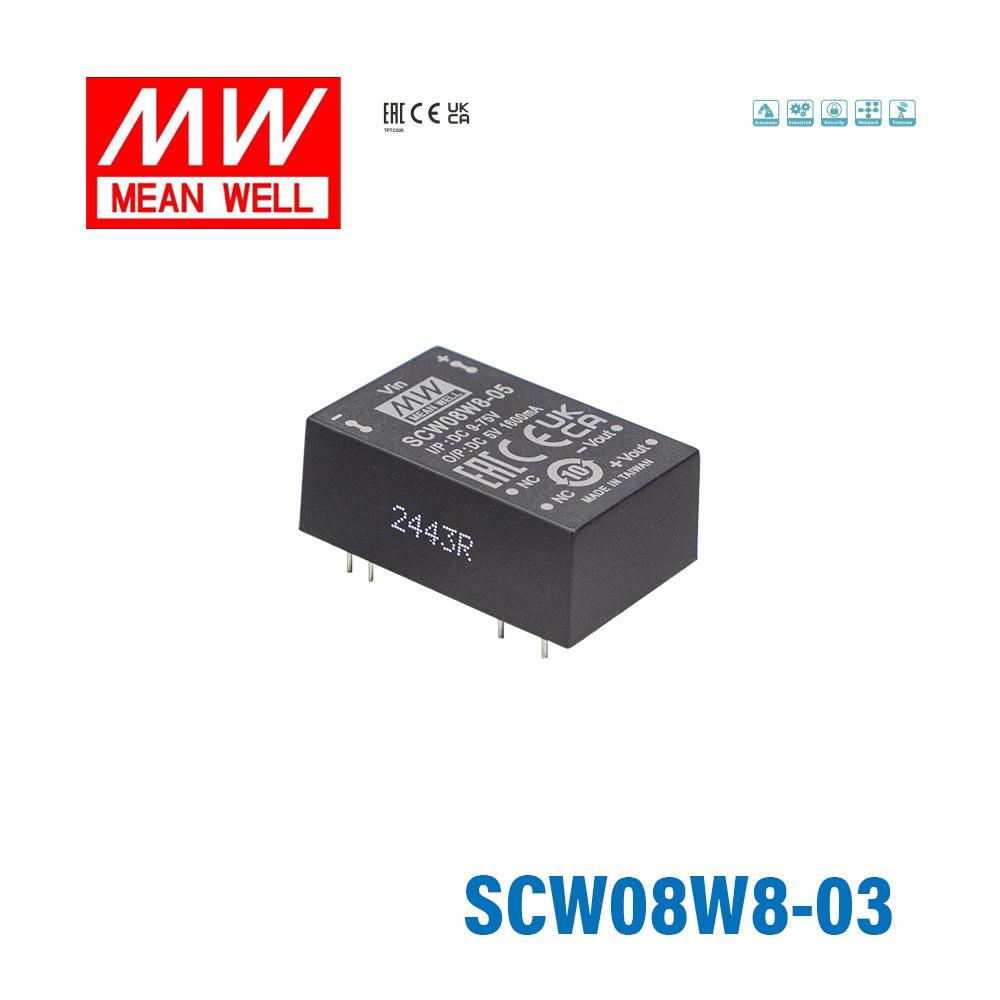

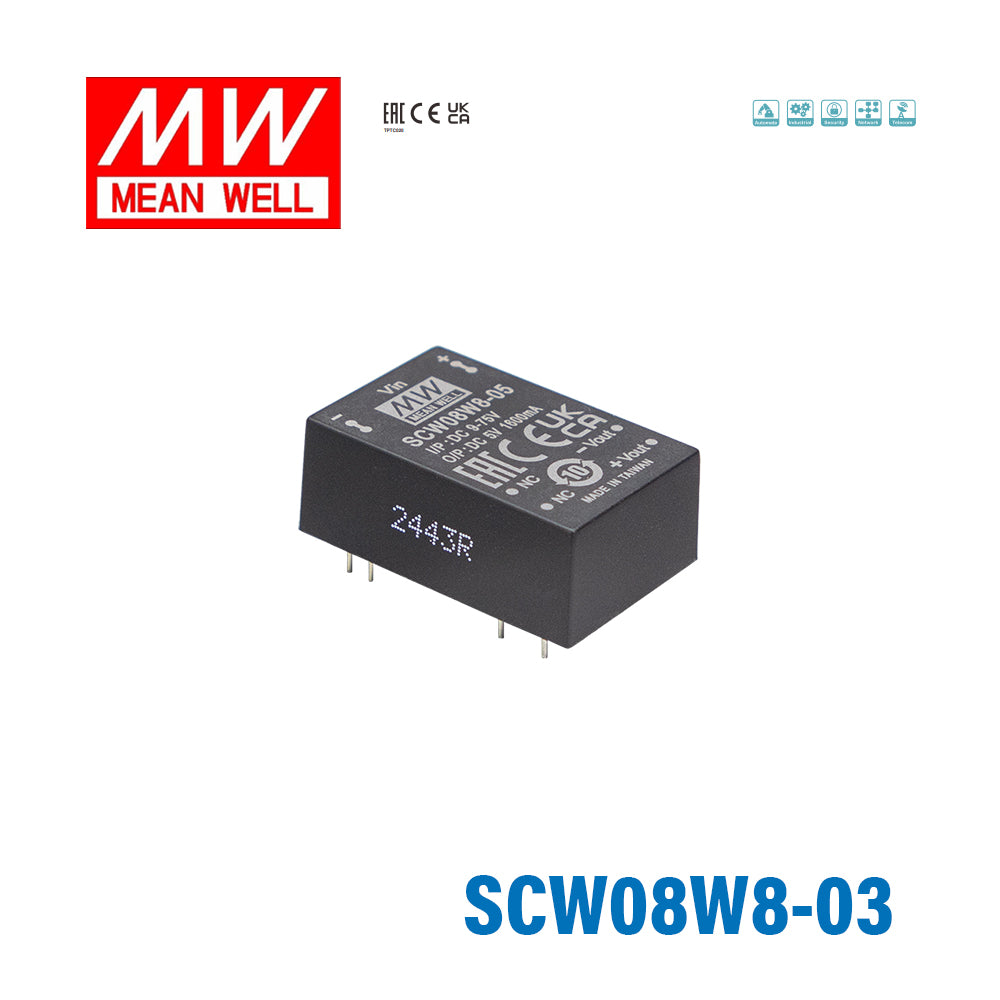

The Mean Well SCW08W8-03 is an 8W isolated and regulated DC-DC converter in a DIP-24 package, supplying 3.3V DC. Its ultra-wide 9~75VDC input spans a broad range in a single part number, simplifying designs that must tolerate an unstable or widely-varying DC supply.

Rated from -40°C to 90°C with free-air convection cooling, it includes short circuit, overload and over-voltage protection and carries CE and EAC approvals. Backed by a 3-year warranty.

Key Features

✓DIP24 package with industry standard pinout
✓8:1(9-75Vdc) ultra-wide input range
✓Operating temperature range -40 - +90℃
✓No minimum load required
✓Comply to BS EN/EN55032 radiated Class A without additional components
✓High efficiency up to 86%
✓Protections: Short circuit (Continuous) / Overload / Over voltage / UVLO
✓Remote ON/OFF control (Optional)
✓3KVdc I/O isolation
✓3 years warrantyGeneral Specification:
