Mean Well SD-500L-48 DC-DC Converter - 500W - 19~72V in 48V out 10.5A

4:1 wide input range1.5~2KVAC isolation by models12V/0.25A auxiliary outputbuilt-in remote ON/OFF control and remote sense
SKU SD-500L-48
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

SD-500L-48 is the 48V output model of this series: rated current 10.5A, rated power 504W, typical efficiency 89%.

Features

  • DC input active surge current limiting
  • Wide 4:1~2:1 DC input range (24V: 19~72VDC, 96V:72~144VDC)
  • Protections: Short circuit / Overload / Over voltage / Over temperature / Input polarity(by fuse)
  • 2000VAC I/O Isolation
  • Forced air cooling by built-in DC fan with fan speed control function
  • Output OK Signal
  • Built-in remote ON-OFF control
  • Built-in remote sense function
  • 3 years warranty

Specifications

SD-500L-48Specifications from the official datasheet (2020-07-17 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE
48V
RATED CURRENT
10.5A
CURRENT RANGE
0 ~ 10.5A
RATED POWER
504W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGE
46 ~ 60V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
500ms, 50ms at full load

INPUT

VOLTAGE RANGENote.5
19 ~ 72VDC
EFFICIENCY (Typ.)
89%
DC CURRENT (Typ.)
24.2A/19VDC 24.8A/24VDC 12A/48VDC
CURRENT (AT NO LOAD)
Max. 0.2A/48VDC
INRUSH CURRENT (Typ.)
60A/48VDC

PROTECTION

OVERLOAD
105 ~ 125% rated output power Protection type : Constant current limiting, shut down o/p voltage after about 5 sec., re-power on to recover
OVER VOLTAGE
62 ~ 68V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

REMOTE ON/OFF CONTROL
Please refer to function manual
OUTPUT OK SIGNAL
Open collector signal low when PSU turns on, max. sink current :10mA

ENVIRONMENT

WORKING TEMP.
-20 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.02%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
IEC62368-1,TUV EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to EN55032 (CISPR32) Class B, EAC TP TC 020
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,6,8, light industry level, criteria A, EAC TP TC 020

OTHERS

MTBF
196.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
215*115*50mm (L*W*H)
PACKING
1.15Kg; 12pcs/14.8Kg/0.9CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 48, 96VDC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
  5. 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
  6. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

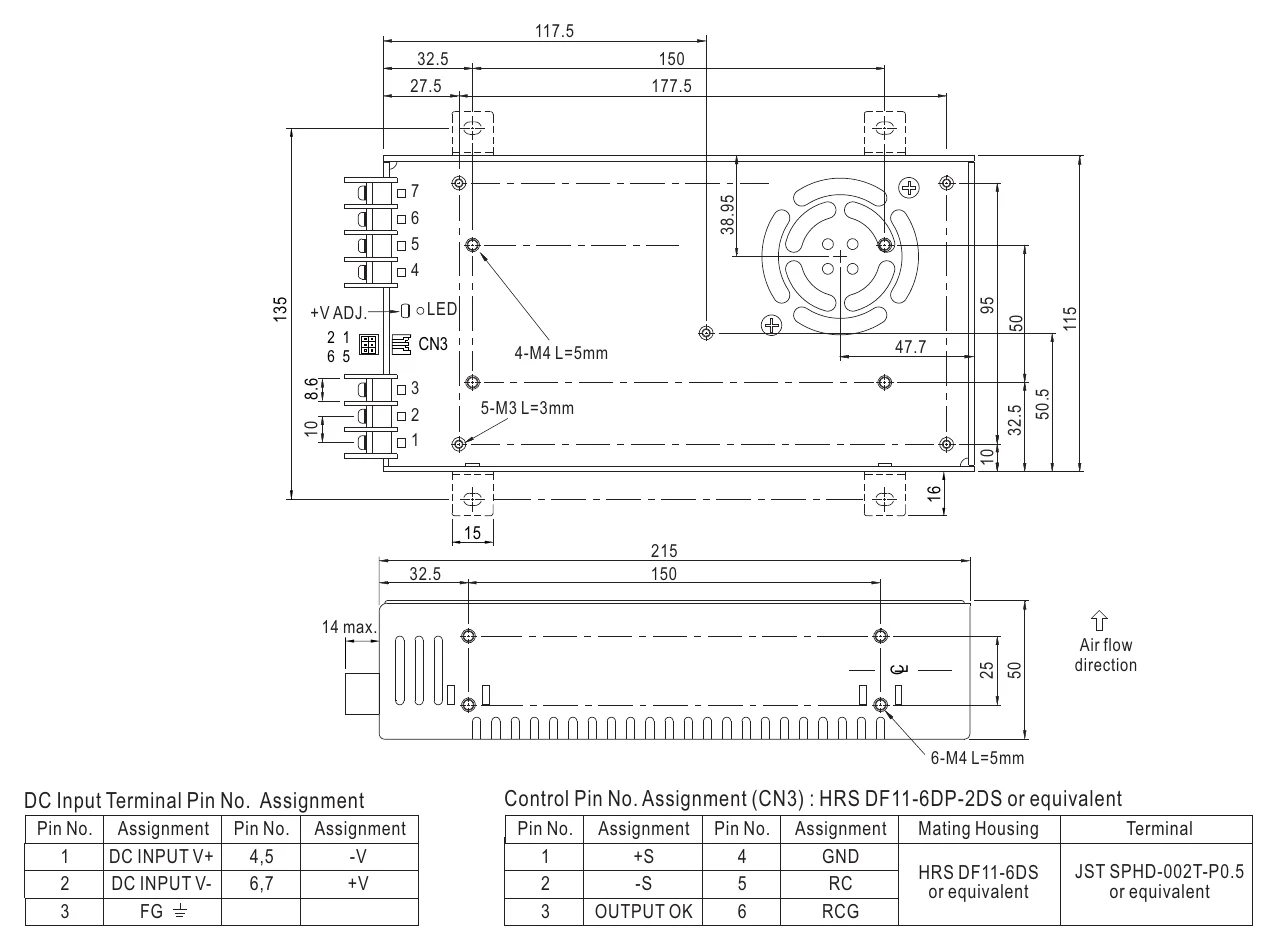

SD-500L-48 Mechanical Specification
Mechanical Specification

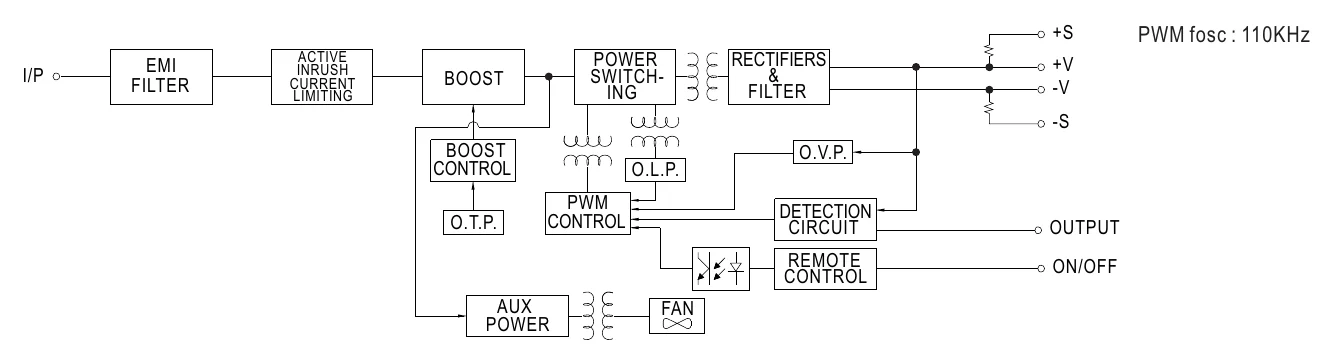

SD-500L-48 Block Diagram
Block Diagram

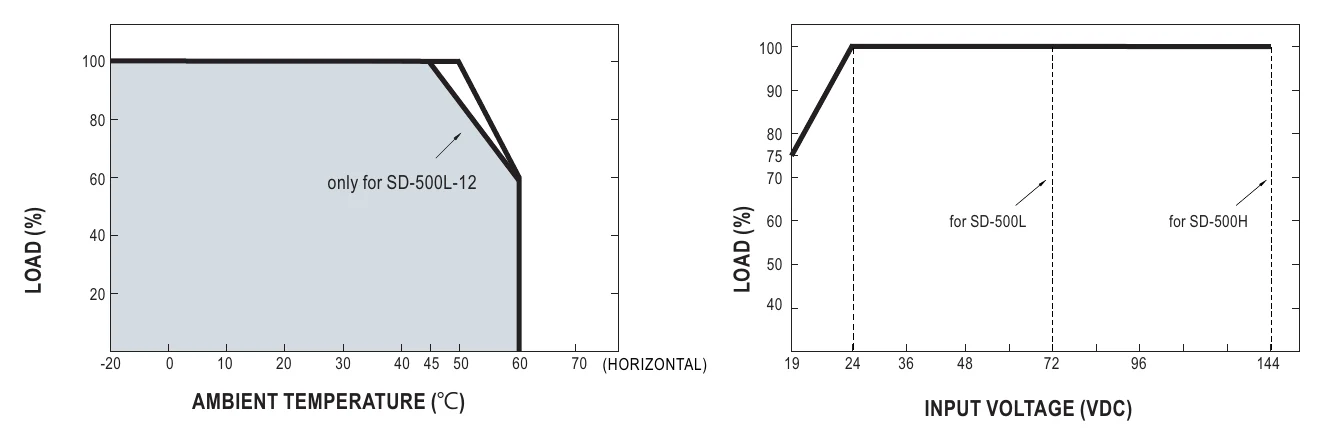

SD-500L-48 Derating Curve
Derating Curve

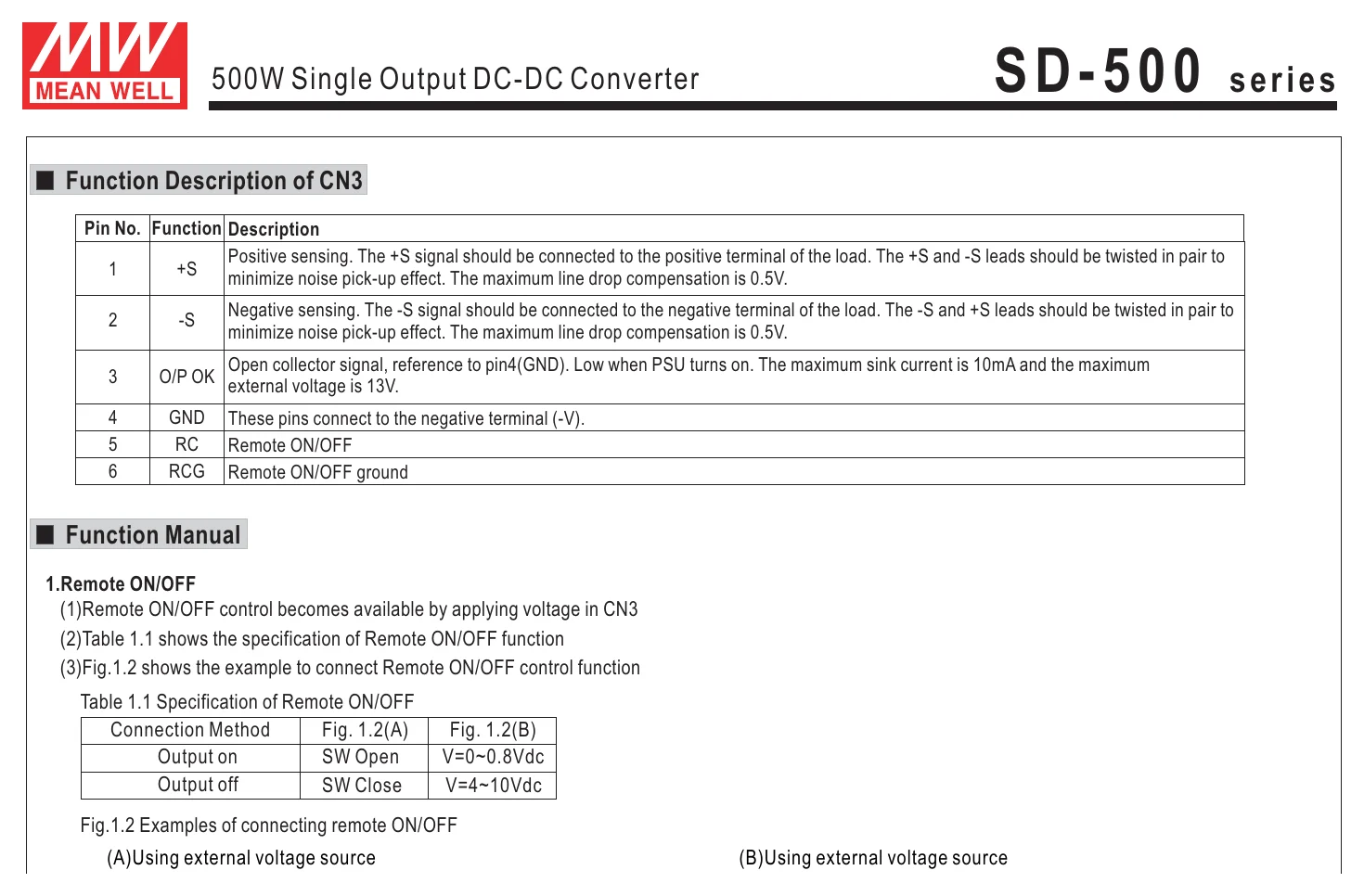

SD-500L-48 S D - 5 0 0 series
S D - 5 0 0 series

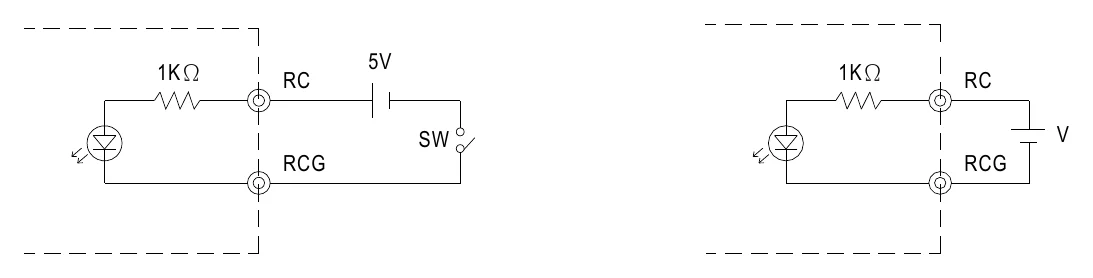

SD-500L-48 S D - 5 0 0 series (2)
S D - 5 0 0 series (2)

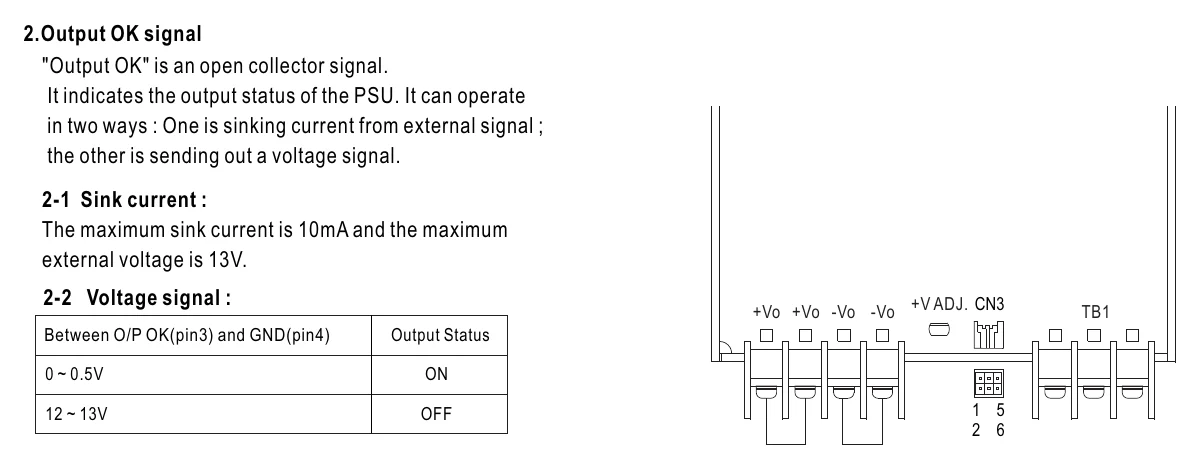

SD-500L-48 2.Output OK signal
2.Output OK signal

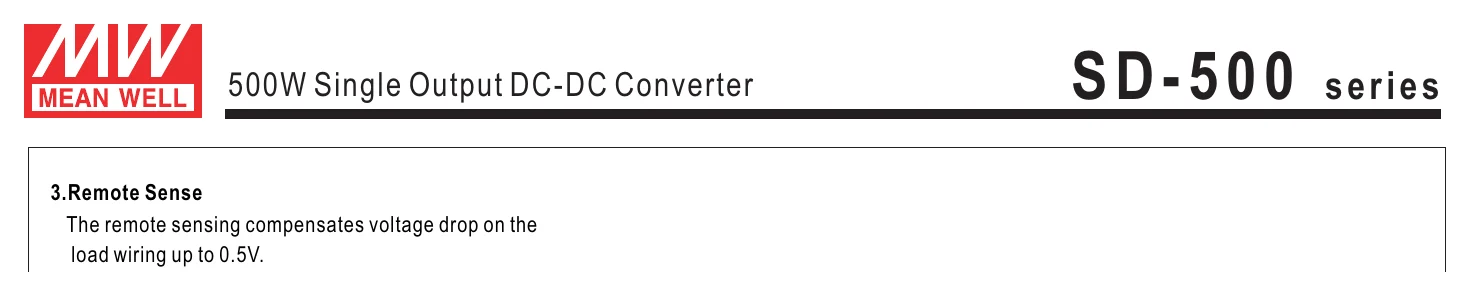

SD-500L-48 S D - 5 0 0 series
S D - 5 0 0 series

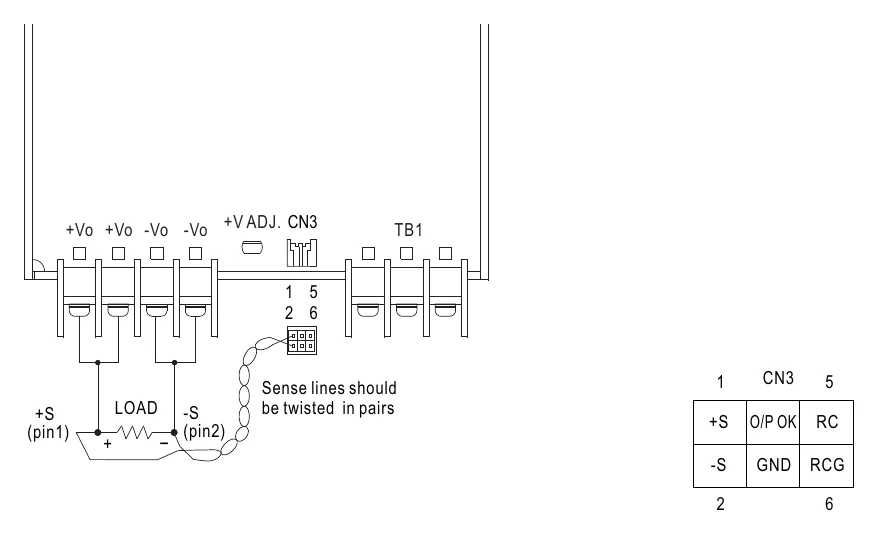

SD-500L-48 +Vo +Vo -Vo -Vo +V ADJ. CN3
+Vo +Vo -Vo -Vo +V ADJ. CN3

Downloads

FAQ

Can I use the SD-500L-48 for 48V industrial networking or control equipment?

Yes, if the equipment requires constant 48V DC and the total load stays within 10.5A and 504W. The converter accepts a 19-72V input range and delivers regulated 48V output for higher-voltage DC systems.

Is the SD-500L-48 suitable for 48V embedded or edge-computing platforms?

It can be used where the platform is designed for a constant 48V input and the source is within the 19-72V range. With 504W output capacity, it fits higher-power 48V embedded and industrial electronics applications.

Can this converter power 48V automation devices from a variable DC source?

Yes, for automation loads that need regulated 48V DC up to 10.5A. The 4:1 wide input range supports source variation across 19-72V while maintaining constant-voltage output.

Can the SD-500L-48 be used in communications equipment with a 48V DC architecture?

It is a fit for communications or control equipment designed around 48V DC, as long as the total demand does not exceed 504W. The listed remote ON/OFF control and remote sense features are also relevant in supervised equipment systems.

How does the SD-500L-48 compare with the other SD-500L models?

The SD-500L-48 is rated for 504W at 48V and 10.5A. The SD-500L-12 is 480W at 12V and 40A, and the SD-500L-24 is 504W at 24V and 21A. All three share the 19-72V input range, 215.0 × 115.0 × 50.0 mm dimensions, 1.15 kg weight, and -20°C to +60°C operating range.

Is the SD-500L-48 rated for outdoor environments?

The provided specs list an operating temperature range of -20°C to +60°C. They do not list an IP rating, so the supplied data does not confirm outdoor or water-exposed use without an additional protective enclosure.
