Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

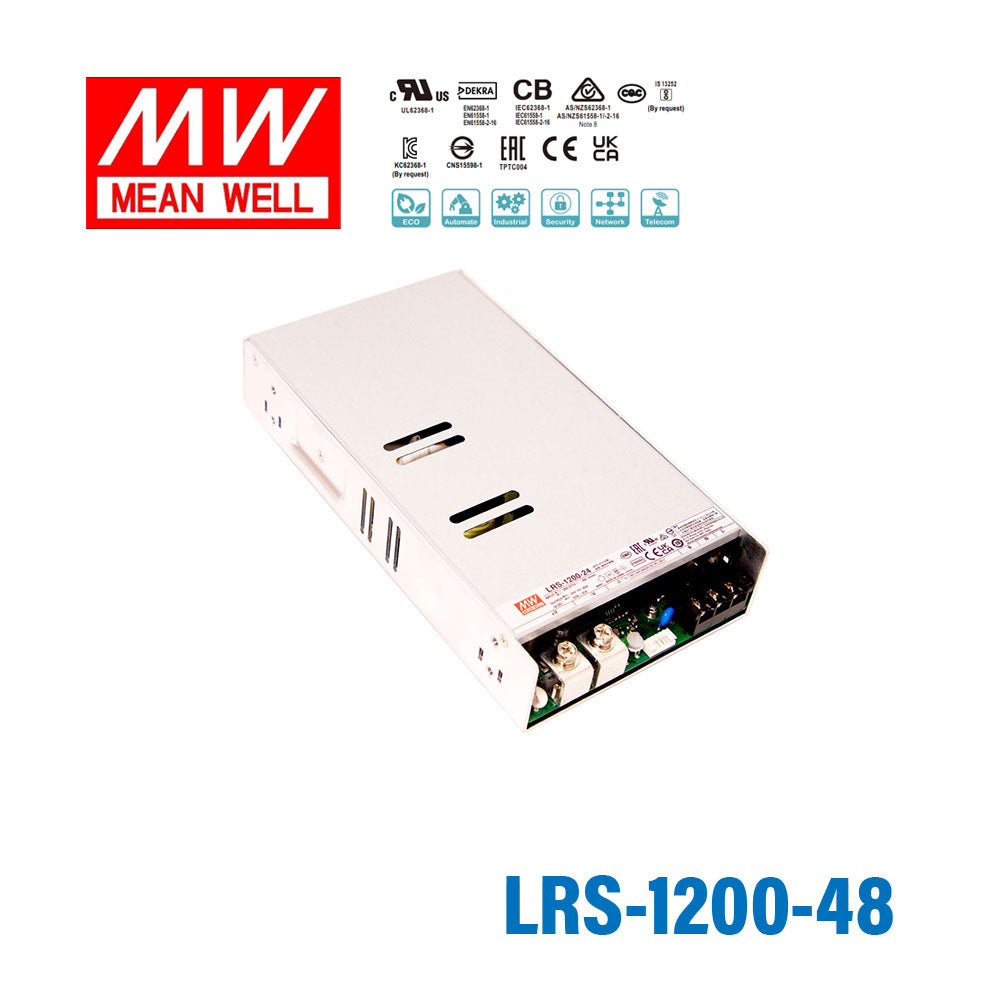

Mean Well LRS-1200-48 Enclosed Power supply 1200W 48V 25A

AC input 180~305Vaccompact size with low profile150% peak power 5sconformal coating

SKU LRS-1200-48

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The Mean Well LRS-1200-48 is a 1,200W enclosed switching power supply delivering 48V DC at up to 25A. Its slim enclosed case suits panel and cabinet mounting where depth is limited.

It runs from 180~305VAC single-phase input across a -30°C to 70°C range, cools by free-air convection and carries CB, CE, CQC, DEKRA, EAC, KC and UL approvals, and includes short circuit, overload, over-voltage and over-temperature protection. Backed by a 3-year warranty.

Key Features

✓AC input 180~305Vac input
✓Global certificates in multi-fields (ITE 62368-1, Industrial 61558-1/-2-16)
✓Compact size with low profile (17W/inch³)
✓150% peak power @5s
✓High efficiency up to 94%
✓Built-in constant current limiting circuit
✓Protections: Short circuit / Overload / Over voltage / Over temperature
✓Forced air cooling, cooling fan speed control
✓Built-in DC OK/Remote Control/Remote Sense
✓-30~+70℃ wide range operation temperature
✓Over voltage category (OVC III)
✓Operating altitude up to 5000 meters
✓Conformal coating
✓3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well LRS-1200-12 Enclosed Power supply 1104W 12V 92A	1200W	12V	92A	View
Mean Well LRS-1200-36 Enclosed Power supply 1198.8W 36V 33.3A	1200W	36V	33.3A	View
Mean Well LRS-1200-24 Enclosed Power supply 1200W 24V 50A	1200W	24V	50A	View
