Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

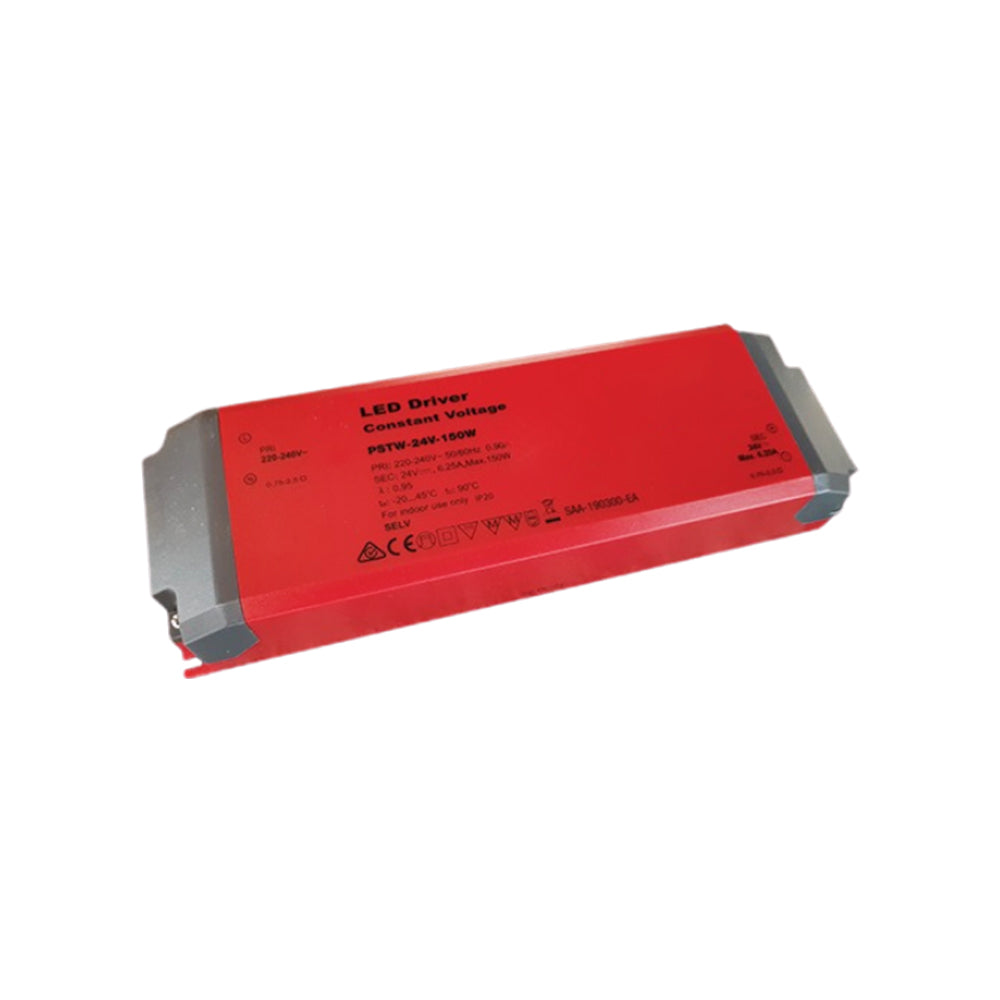

Thinkwise PSTW-24V-150W Power Supply - 150W 24V 6.25A - Large Screw Terminal

SKU:

PSTW-24V-150W

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

Features

A small interior power supply suitable for running led strip, steplights etc.
Wide load range
Large 6mm primary terminals for easy looping input cables.
Protection ..open circuit, short circuit, overload & over temperature.

Frequently Asked Questions

What is the output rating of the Thinkwise PSTW-24V-150W power supply?

This model is rated at 150W with a 24V output and a maximum rated current of 6.25A. Those published ratings make it suitable for constant-voltage 24V lighting loads within that power range.

What kinds of applications is the PSTW-24V-150W designed for?

The product description identifies it as a small interior power supply suitable for LED strip, step lights, and similar 24V constant-voltage lighting applications. It is aimed at indoor use where a 24V DC supply is required.

Does this power supply support dimming control?

No. The listed dimming control for this model is none, so it should be selected where a non-dimming 24V power supply is acceptable.

What protection features are included on the Thinkwise PSTW-24V-150W?

According to the product data, it includes protection for open circuit, short circuit, overload, and over temperature. These built-in protections help support more reliable operation in normal commercial lighting use.

What operating temperature range is specified for this model?

The specified ambient operating range is -20°C to 45°C. That makes it better suited to environments that stay within those temperature limits.

How does the PSTW-24V-150W compare with smaller 24V power supplies?

Its key difference is output capacity: this unit is rated for 150W at 24V and up to 6.25A. That makes it a better fit than lower-wattage 24V models when the lighting load requires more available power.

What warranty is provided for the Thinkwise PSTW-24V-150W?

This model is listed with a 3-year warranty period. That gives buyers a defined manufacturer-backed coverage term for the product.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Thinkwise PSTW-24V-75W Power Supply - 75W 24V 3.1A - Large Screw Terminal	75W	24V	3.1A	IP20	View
Thinkwise PSTW-24V-60W Power Supply - 60W 24V 2.5A - Large Screw Terminal	60W	24V	2.5A	IP20	View
Thinkwise PSTW-24V-50W Power Supply - 50W 24V 2.1A - Large Screw Terminal	50W	24V	2.1A	IP20	View
Thinkwise PSTW-24V-40W Power Supply - 40W 24V 1.7A - Large Screw Terminal	40W	24V	1.7A	IP20	View
Thinkwise PSTW-24V-20W Power Supply - 20W 24V 0.83A - Large Screw Terminal	20W	24V	0.83A	IP20	View
Thinkwise PSTW-24V-12W Power Supply - 12W 24V 0.5A - Large Screw Terminal	12W	24V	0.5A	IP20	View
Thinkwise PSTW-24V-100W Power Supply - 100W 24V 4.16A - Large Screw Terminal	100W	24V	4.16A	IP20	View
