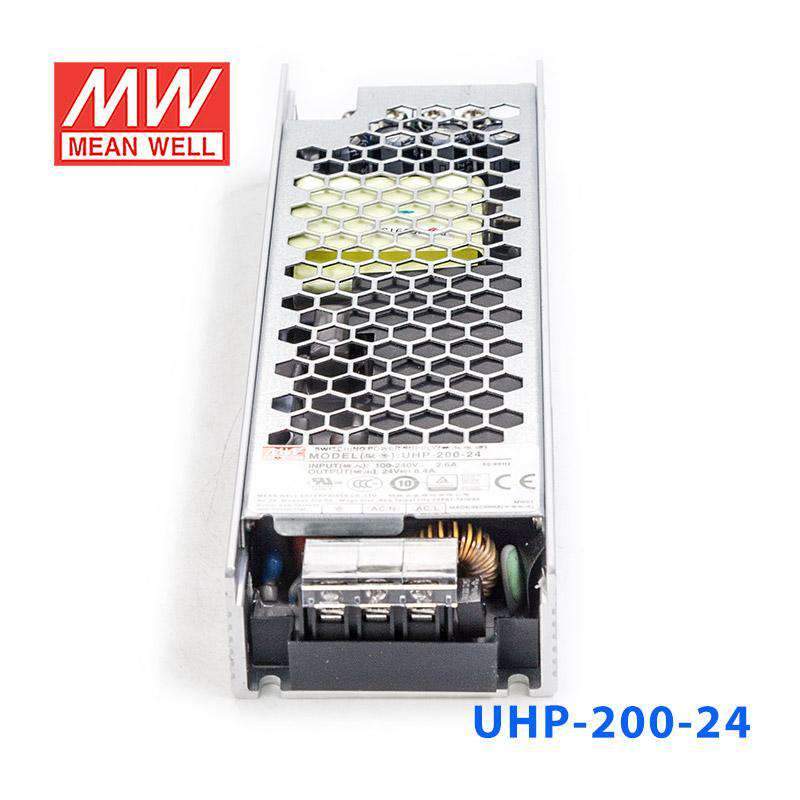

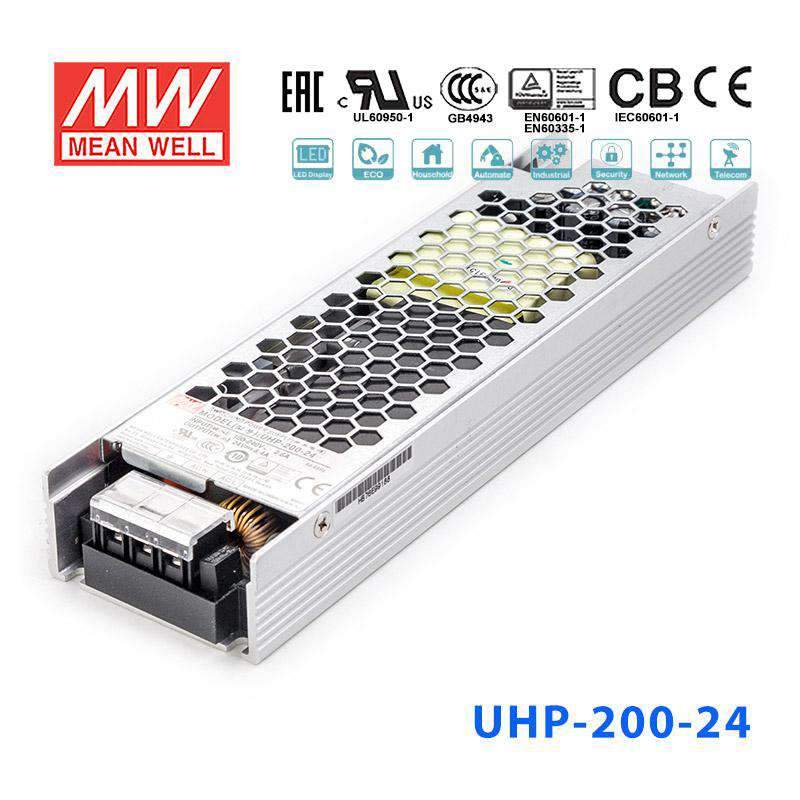

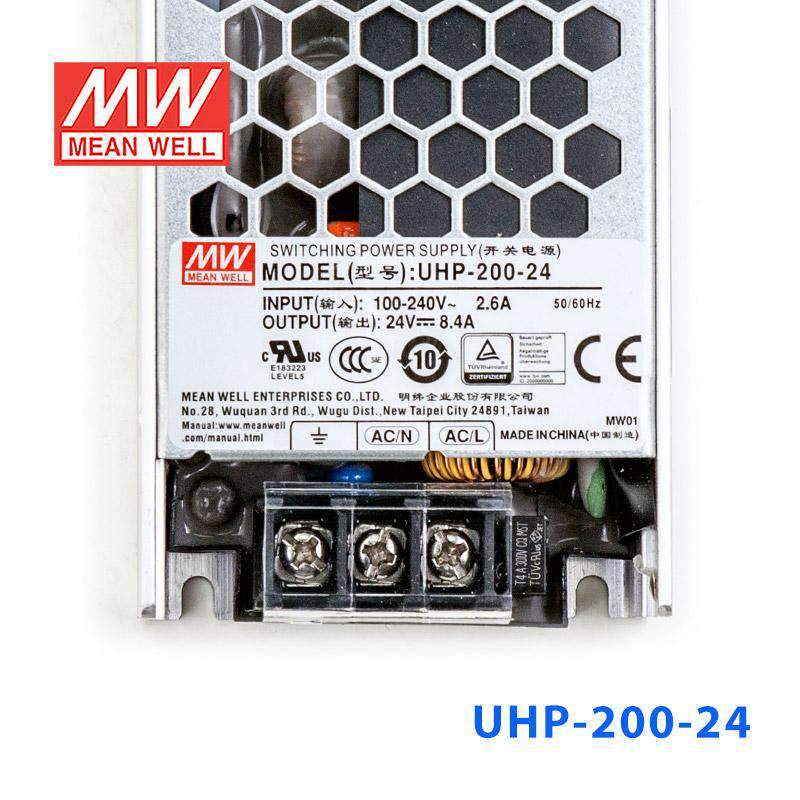

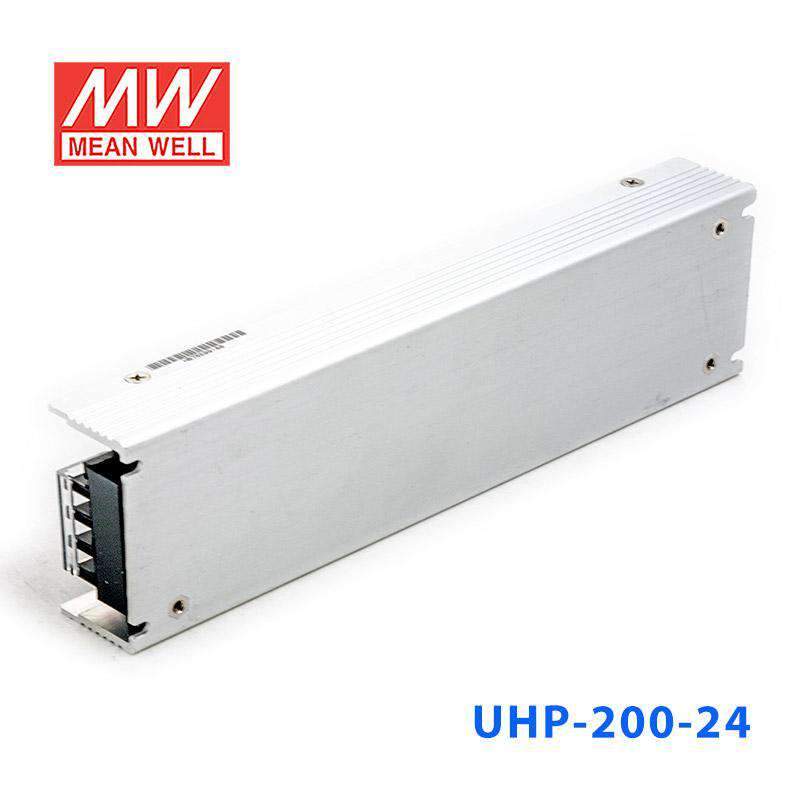

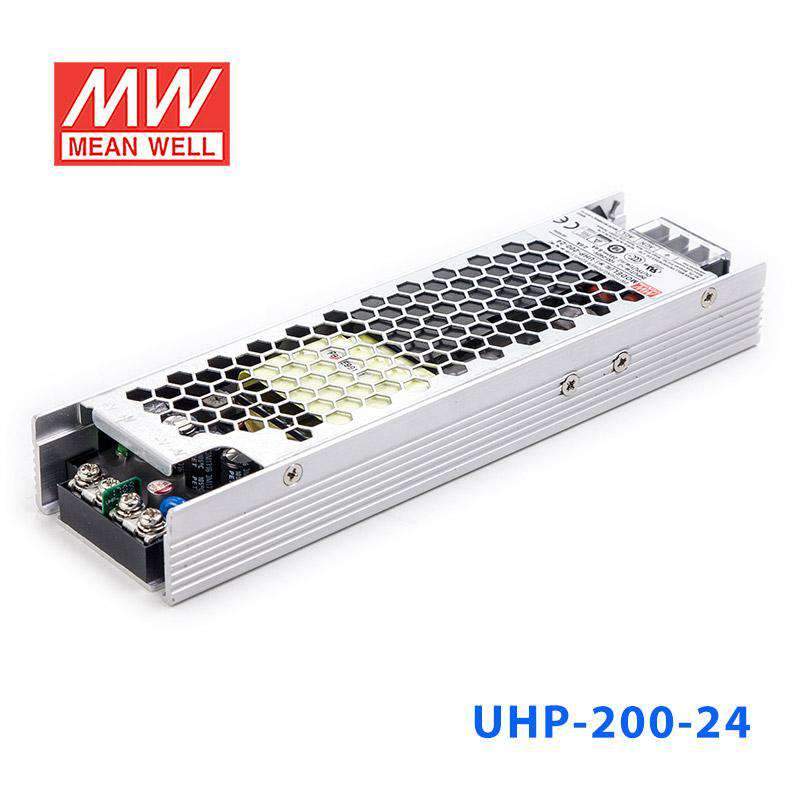

Mean Well UHP-200-24 Power Supply 201.6W 24V 8.4A

slim and low profilefanless design

SKU:

UHP-200-24

Log in to see price Trade pricing & online ordering for account holders

Select model — 7 in this family

UHP-200-24

UHP-200-24 200W 24V Low stock

UHP-350-24 350W 24V Low stock

UHP-500-24 500W 24V Backorder

UHP-750-24 750W 24V Backorder

UHP-1000-24 1000W 24V Low stock

UHP-1500-24 1500W 24V Backorder

UHP-2500-24 2500W 24V Backorder

Product variants

Notify me when it's back in stock

The UHP-200 is a 200W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+70℃).

Key Features

✓ Input voltage range: 90~264VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Wide operating temperature: -30~+70℃
✓ Protections: Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ DC OK relay contact output
✓ Safety approvals: UL60950-1,TUV EN60950-1,EN60335-1, CCC GB4943, EAC TP TC 004, BSMI CNS14336-1
✓ 3 years warranty

Frequently Asked Questions

Can I use the UHP-200-24 for a 24V PLC or industrial control panel?

Yes, this model is a constant voltage 24V power supply rated for 201.6W and 8.4A. That makes it a fit for 24V industrial control loads that stay within those output limits. Its slim 194.0 × 55.0 × 26.0 mm housing and fanless design also suit compact panel layouts.

Is the UHP-200-24 suitable for 24V automation sensors, relays, and I/O devices?

It can be used for 24V automation hardware when the combined load stays within 201.6W and 8.4A. The unit provides constant voltage output, which is appropriate for equipment designed for a regulated 24V DC source. Buyers should match the total device demand to the supply's 8.4A output current.

Can this 24V power supply run embedded or industrial 24V electronics in a space-limited enclosure?

Yes, the low-profile 194.0 × 55.0 × 26.0 mm form factor is aimed at installations where enclosure space is limited. The fanless design helps in applications that prefer a passive cooling approach. For embedded or industrial 24V electronics, the key limits are the 24V output, 201.6W power, and 8.4A current rating.

Can I use the UHP-200-24 for a 24V machine interface or automation accessory load?

This model is intended for 24V constant voltage loads up to 201.6W. It is suitable for machine interface, panel accessory, or automation support loads that require 24V DC and draw no more than 8.4A. The wide 90-264VAC input also helps when the AC source varies across common mains ranges.

What is the difference between the UHP-200 voltage options?

Within the standard UHP-200 range, the listed models are 132W at 3.3V and 40A, 168W at 4.2V and 40A, 200W at 5V and 40A, 200.4W at 12V and 16.7A, 201W at 15V and 13.4A, 201.6W at 24V and 8.4A, 201.6W at 36V and 5.6A, and 201.6W at 48V and 4.2A. The main difference is the output voltage and corresponding current rating, while all are in the same UHP-200 family.

Is the UHP-200-24 appropriate for outdoor or harsh-environment use?

The provided specs list an operating temperature range of -30°C to +70°C, so temperature capability is broad. However, no IP rating is provided in the supplied data, so outdoor exposure or washdown suitability is not established from these specs alone. It is better treated as a unit that needs an environment consistent with its documented ratings.
