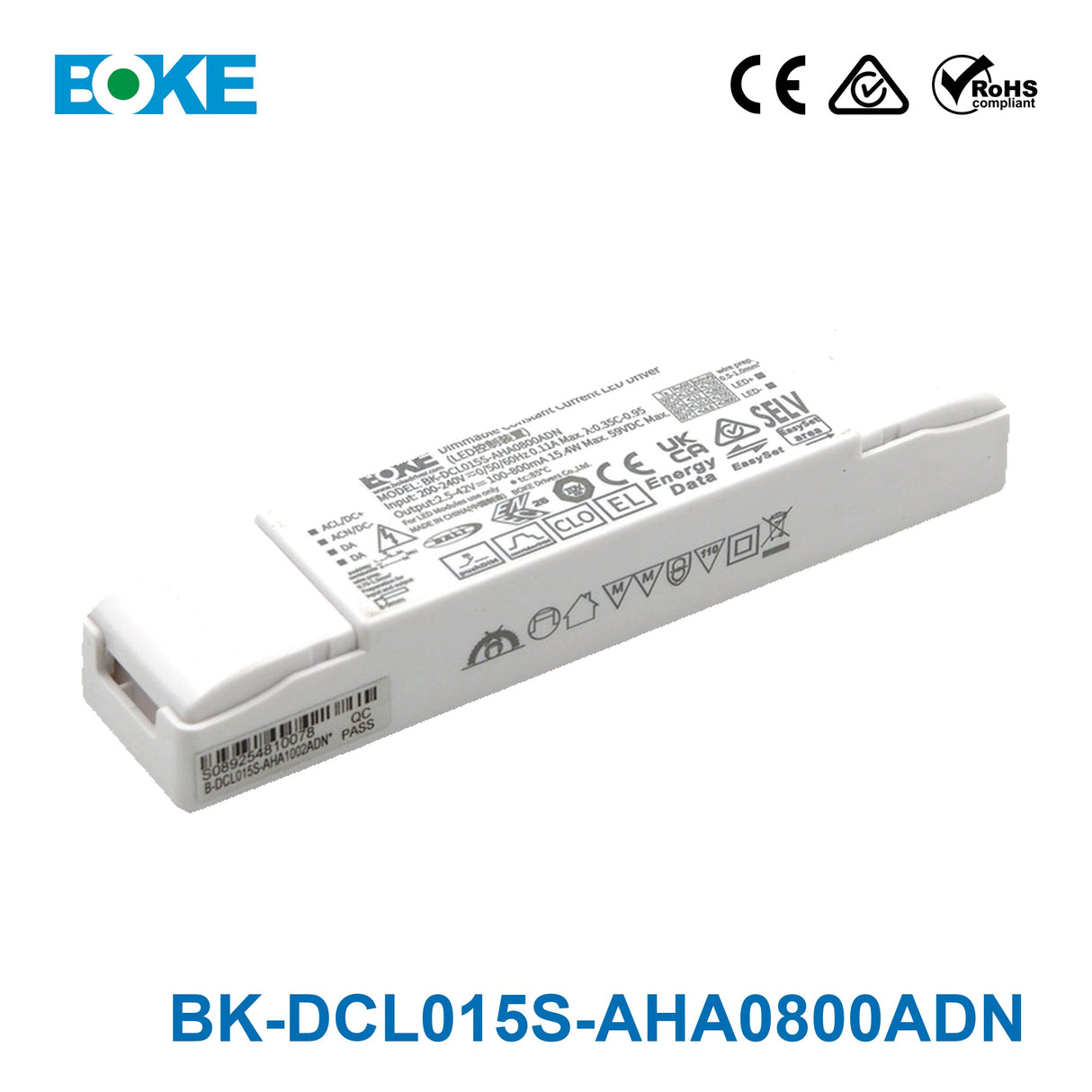

BOKE BK-DCL015S-AHA0800ADN 15W DALI-2 LED Driver
Log in to see priceOverview
BK-DCL015S-AHA0800ADN is the model of this series: typical efficiency 85% , see the electrical values below for details.
Features
- DALI-2(DALI-2 Dt6,part 251,252,253)
- Support DALI-2+pushDIM mode
- Slim shape design
- Support EnergyData function and energy-reporting reading(DALI Part 252)
- Support central emergency application
- Support luminaire data reading(DALI Part 251),support diagnostics-maintenance reading(DALI Part 253)
- Emergency lighting(EL)
- Support advanced functions such as corridorDIM,EL,CLO
- Constant light output function(CLO)
- The output current programming can be realized through the DALI interface or NFC interface
- Programming via DALI(EasySet)
- Soft dimming and flicker-free at any brightness
- Programming via NFC(EasySet)
- Using HPC patented technology, at any dimming level, the brightness of the lights is the same
- Standby power input<0.5W, meets the requirements of ErP certification
- High PF, high efficiency, low THD
- Screw-free and pressing type strain relief and easier to install
- Intelligent LED hot-plug protection function
- SELV and Class II design, suitable for use outside of the luminaires
- 5 year guarantee
Specifications
Product model
- Product model
- BK-DCL010S-AHA0700ADN
Output parameters
- Regulation method
- Constant Current
- Rated output current range
- 0.1-0.7A,see the operating window for details
- Rated output voltage range
- 2.5-42VDC,see the operating window for details
- Rated output power
- 10W Max,see the operating window for details
- Output current adjustment
- EasySet Programming
- Output current ripple(typ.)
- ±5%(100Hz)
- Output current accuracy
- ±5%
- Linear regulation
- ±5%
- Load regulation
- ±5%
- No load output voltage
- 59VDC
- Flicker-free(typ.)
- Flickering percent(IEEE 1789)=0.161%(100Hz), Flicker index(IEEE 1789)=0.001(100Hz), Pst LM = 0.025, SVM = 0.004
Input parameters
- Rated input voltage range
- 200-240VAC/DC
- Input voltage range
- 180-264VAC/DC
- Input votage shock
- <380 V AC
- Input current
- <0.08A (Rated input voltage)
- Input frequency
- 0/50/60Hz
- Input PF/Input DF(typ.)
- PF: 0.92, DF: 0.94
- Input THD(typ.)
- 17% , see the electrical values below for details
- Efficiency(typ.)
- 85% , see the electrical values below for details
- In-rush current(typ.)
- 0.785A peak, 41us duration (50% Ipeak)
- Start/Switchover/Turn off(typ.)
- 0.75s (AC start), 0.75s (DC start), 0.3s (AC/DC switchover), 0.5s (Turn off)
- Switching cycles
- > 100,000 switching cycles
- Power consumption(typ.)
- Full load: 11.8W, Stand-by: <0.5W
Safety
- Withstand voltage
- I/P-O/P(LED):3750V AC, I/P-DALI: 1500V AC, O/P-DALI: 1500V AC.
- Mains surge capability
- L-N: 1KV (Performance criterion: B)
- Leakage current(typ.)
- 0.47mA
- Isolation resistance
- 100MΩ/500Vdc/25℃/70%RH
Control interface
- DALI dimming port
- 9.5-22.5V (typ. 16V), 1.8mA
- pushDIM dimming port
- 180-264V, 47-63Hz
- 1-10V 3in1 dimming port
- N/A
- Auxiliary power supply
- N/A
- Dimming range
- 0.1-100%(minimum current:0.7mA)
- Dimming drive mode
- AM+PWM(<10%)
Emergency support
- Central emergency system
- Supported (only supports dimming normal in DC input)
- Self-contained emergency
- Supported
Environment & Life time
- Operating temperature
- Ta=-20-50/60℃
- Case temperature
- Tc=85℃
- Operating humidity
- 5-85% RH, non-condensing
- Storage temp./humidity
- -40-80℃, 5-85% RH, non-condensing
- IP grade
- IP20
- MTBF
- 500,000H, MIL-HDBK-217F (25℃)
- Life-time
- Nominal life-time up to 100,000 h, see the description below for details
- Vibration resistant
- 10~500Hz, 5G, 12min./1cycle, 72min. each along X,Y,Z axes
- Acoustic Noise
- <25dB (30cm, Normal operation)
- Environmental protection
- RoHS
Others
- Dimension
- L129*W29.5*H20mm
Certifications and standards
- Certification
- CE, ENEC, UKCA, RCM, DALI-2, CCC, EL
- Safety
- GB/T 19510.1,GB/T 19510.213, EN61347-1, EN61347-2-13, EN62384
- EMC
- GB/T 17743, GB17625.1, EN55015, EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
- DALI-2
- IEC 62386-101(DALI-2), IEC 62386-102(DALI-2), IEC 62386-207(DALI-2), DALI part251,252,253
- EL
- Compatible IEC 61347-2- 13 Annex J, compatible with EN 60598-2-22 and EN 50172
- RF
- N/A
Certifications & ratings
- Marked features
- Energy Data, CLO
Technical drawings
Typical applications
- LED indoor lighting
- LED office lighting
- LED commercial lighting
Downloads
Datasheet1
FAQ
What is this product used for?
It is a constant current LED driver designed for indoor lighting applications, supporting DALI-2 and pushDIM control.
What are the input and output specifications?
It accepts 180-264VAC/DC input and provides a constant current output of 0.1-0.7A with a voltage range of 2.5-42VDC, up to 10W maximum.
How do I dim the lights?
You can use the DALI-2 port or the pushDIM port. The dimming range is 0.1-100% using AM+PWM drive mode.
What are the dimensions and mounting requirements?
The unit measures 129mm x 29.5mm x 20mm. It is an IP20 rated device, so it must be installed in a dry, indoor location.
What is the operating temperature range?
The ambient operating temperature is -20°C to 50°C, or up to 60°C depending on the specific installation conditions.
Which safety standards does it meet?
It is certified with CE, ENEC, UKCA, RCM, CCC, and DALI-2, complying with EN61347-1 and EN61347-2-13 safety standards.
What is the expected lifetime?
The nominal life-time is up to 100,000 hours, with an MTBF of 500,000 hours at 25°C.
