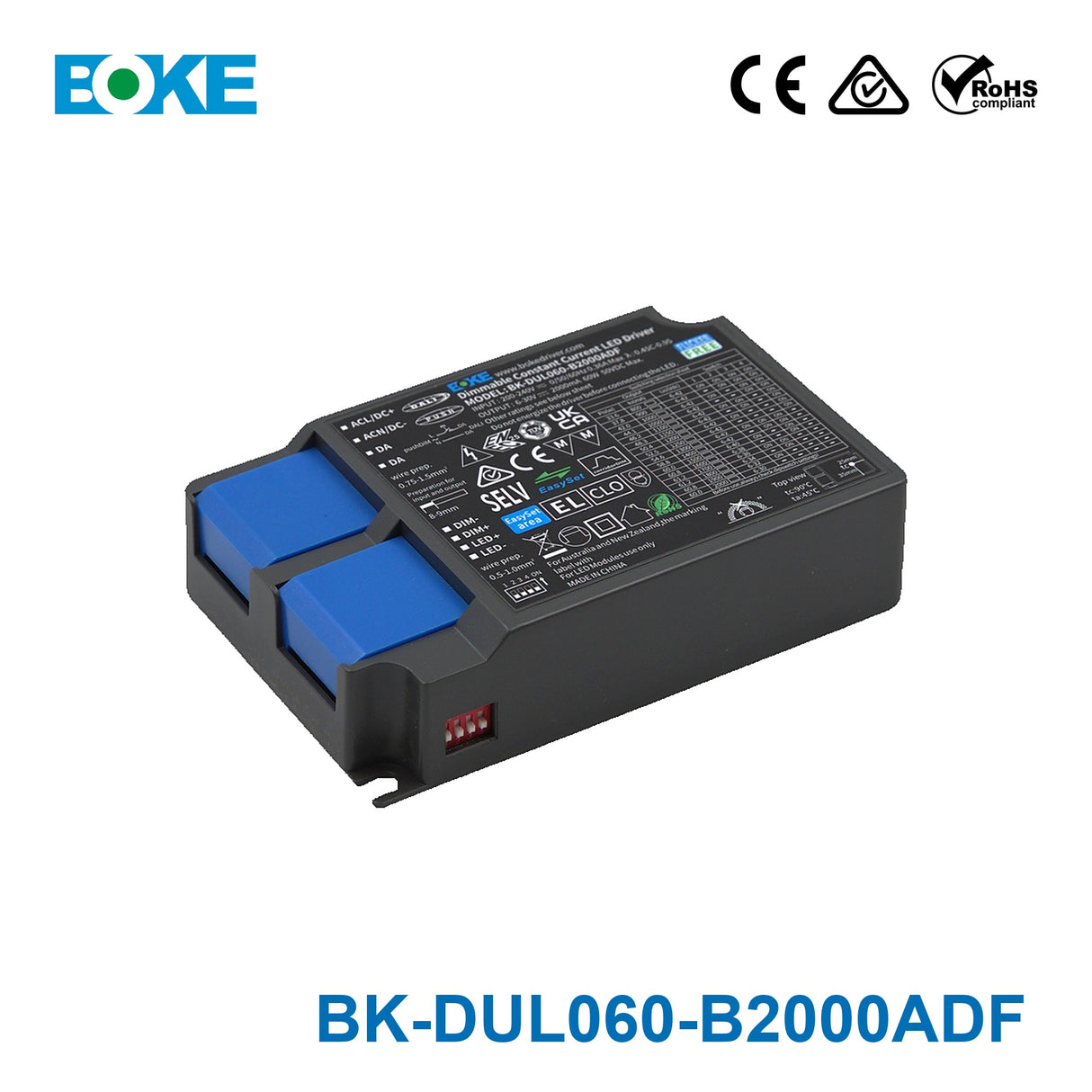

BOKE BK-DUL060-B2000ADF 60W DALI-2 LED Driver

0.80–2.00A via DIP switchDALI-2push dim and 1-10V/PWMflicker-freeCLO and corridor dimNFC setting

SKU BK-DUL060-B2000ADF

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

BK-DUL060-B2000ADF is the model of this series: typical efficiency 85% ,see the electrical values below for details.

Features

Support DALI-2+pushDIM+1-10V/10V PWM/Rx dimming mode
Support advanced functions such as corridorDIM,EL, CLO
The output current programming can be realized through the DALI interface and the NFC interface
Multi-level current output can be realized by DIP-switch
Soft dimming and flicker-free at any brightness, meets the new requirements of ErP certification
Using HPC patented technology, at any dimming level, the brightness of the lights is the same
Dimming range 1~100%, output current accuracy 2%
Standby power input<0.5W, meets the requirements of ErP certification
High PF, high efficiency, low THD
Screw-free and pressing type strain relief, supports thicker cables and is easier to install
Intelligent LED hot-plug protection function
SELV and Class II design, suitable for use outside of the luminaires
Compliance with CE,ENEC,UKCA,RCM,CCC,DALI-2 and other certifications
IP20 protection grade, indoor use
Nominal life-time up to 100,000 h
5-year guarantee

Specifications

BK-DUL060-B2000ADFSpecifications from the official datasheetDownload datasheet PDF

Output parameters

Regulation method: Constant Current
Rated output current range: 0.1-0.35A (see DIP-switch for details)
Rated output voltage range: 6-42VDC (see DIP-switch for details)
Rated output power: 11W Max (see DIP-switch for details)
Output current adjustment: DIP S.W(10 levels)
Output current ripple LF: ±2%
Output current accuracy: ±2%
Linear regulation: ±1%
Load regulation: ±1%
No load output voltage: 50VDC
Flicker-free(typ.): Flickering percent(IEEE 1789)=0.193%(100Hz), Flicker index(IEEE 1789)=0.001(100Hz), Pst LM = 0.000, SVM = 0.004 (tested on panel lights)

Input parameters

Rated input voltage range: 200-240VAC / 200-240VDC
Input voltage range: 180-264VAC / 180-264VDC
Input votage shock: <380 V AC
Input current: <0.07A (Rated input voltage)
Input frequency: 0/50/60Hz
Input PF/Input DF(typ.): PF: 0.96, DF: 0.96 (see electrical values below for details)
Input THD(typ.): 9% (see electrical values below for details)
Efficiency(typ.): 85% (see electrical values below for details)
In-rush current(typ.): 3.79A peak, 170us duration (50% Ipeak) (see description below for details)
Start/Switchover/Turn off(typ.): 0.7s (AC start), 0.7s (DC start), 0.3s (AC/DC switchover), 0.5s (Turn off)
Switching cycles: > 100,000 switching cycles
Power consumption(typ.): Full load(Pin): 12.9W, No load(Pno): N/A, On stand-by(Psb): <0.5W, Network stand-by(Pnet): N/A

Safety

Withstand voltage: I/P-O/P(LED): 3750V AC, I/P-DALI: 1500V AC, O/P-DALI: 1500V AC
Mains surge capability: L-N: 2KV (Performance criterion: A) (90°/270°, 5 times each with an interval of 60s)
Leakage current(typ.): 0.31mA
Isolation resistance: I/P-O/P: 100MΩ/500Vdc/25℃/70% RH

Control interface

DALI dimming port: Voltage range: 9.5-22.5V (typical 16V), interface current consumption: 1.8mA
pushDIM dimming port: Voltage range: 180-264V, 47/63Hz
1-10V dimming port(Non-isolated): Voltage range: 0-10V, Maximum output current: ≤0.3mA
Auxiliary power supply: N/A
Dimming range: 1-100%
Dimming drive mode: AM+PWM (<20%)

Emergency support

Central emergency system: Supported
Self-contained emergency: Supported

Environment & Life time

Operating temperature: Ta = -20 to 60℃
Case temperature: Tc=90℃
Operating humidity: 5-85% RH, not condensed
Storage temp./humidity: -40 to 80℃, 5-85% RH, not condensed
IP grade: IP20
MTBF: 500,000H, MIL-HDBK-217F (25℃)
Life-time: Nominal life-time up to 100,000 h (see description below for details)
Vibration resistant: 10~500Hz, 5G, 12min./1cycle, period for 72min. each along X, Y, Z axes
Acoustic Noise: <25dB (30cm, Normal operation)
Environmental protection: RoHS

Others

Dimension: L123.5*W79.5*H31mm

Certifications and standards

Compliance certifications: CE, ENEC, UKCA, RCM, CCC, EL, DALI-2
Safety: EN61347-1, EN61347-2-13, EN62384
EMC: EN55015, EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
DALI-2: IEC 62386-101 (DALI-2), IEC 62386-102 (DALI-2), IEC 62386-207 (DALI-2)
EL: Compatible IEC 61347-2-13 Annex J, compatible with EN 60598-2-22 and EN 50172
RF: N/A

Certifications & ratings

Marked features: 0/1...10VDC, PWM signal, R0...100KΩ, EasySet, corridorDIM, CLO

Technical drawings

BK-DUL060-B2000ADF Electrical values — Electrical values

BK-DUL060-B2000ADF THD vs. Load — THD vs. Load

BK-DUL060-B2000ADF Expected life-time — Expected life-time

BK-DUL060-B2000ADF --It means that this channel is OFF. — --It means that this channel is OFF.

BK-DUL060-B2000ADF Wiring diagram — Wiring diagram

BK-DUL060-B2000ADF Switch to the DALI dimming mode — Switch to the DALI dimming mode

BK-DUL060-B2000ADF Outputcurrent(%) — Outputcurrent(%)

BK-DUL060-B2000ADF pushDIM dimming application — pushDIM dimming application

BK-DUL060-B2000ADF 1-10V/10VPWMdimmingapplication — 1-10V/10VPWMdimmingapplication

BK-DUL060-B2000ADF Switchtothe1-10V/10VPWMdimmingmode — Switchtothe1-10V/10VPWMdimmingmode

BK-DUL060-B2000ADF 100Kpotentiometerdimmingapplication — 100Kpotentiometerdimmingapplication

BK-DUL060-B2000ADF Dimmingcurve — Dimmingcurve

Typical applications

LED indoor lighting
LED office lighting
LED commercial lighting

Downloads

Datasheet1

BK-DUL060-B2000ADF datasheetBK_DUL060_B2000ADF.pdf PDF Download

FAQ

What is this driver used for?

It is a constant current LED driver designed for indoor lighting applications, supporting DALI, pushDIM, and 1-10V dimming control.

What are the output voltage and current ratings?

The output voltage range is 6-42VDC and the output current range is 0.1-0.35A, adjustable via DIP switches. The maximum output power is 11W.

What is the input voltage range?

It accepts 180-264VAC or 180-264VDC input at 0/50/60Hz, with a typical power factor of 0.96.

How does the dimming work?

It supports 1-100% dimming via DALI, pushDIM, or 1-10V interfaces. The drive mode is AM+PWM for levels below 20%.

What is the IP rating and operating temperature?

The unit has an IP20 rating, making it suitable for indoor use only. The operating temperature range is -20 to 60°C.

Which certifications does it have?

It is certified with CE, ENEC, UKCA, RCM, CCC, EL, and DALI-2 standards.

What is the expected lifetime?

The nominal life-time is up to 100,000 hours, with an MTBF of 500,000 hours at 25°C.
