Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

Vimar Eikon 1P 16AX 1-Way Switch Grey

1P NO 16A Grey
SKU VM-20001
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-20001 is Vimar EIKON 20001, 1P 16AX 1-way switch grey.

1P 16 AX 250 V~ 1-way switch, lightable, replaceable button, grey. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

Specifications

VM-20001Specifications from the official datasheet

Technical data

Product type
Installation switch
Wiring system
Switch 1-pole
Operating method
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7024
Label space/information surface
Yes
Lighting
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
16 A
Monitoring contact
No
Connection type
Screwed terminal
Washing machine switch
No
Device width
22.3 mm
Device height
49 mm
Device depth
36.1 mm
Built-in depth
25 mm

Packaging

EAN
8007352250826
Packed size (cm)
4.1 Γ— 2.8 Γ— 5.3
Packed weight
25.93 g
Pieces per box
50

Certifications

Certifications
CE marking (EU), TISI (Thailand), IMQ (Italy), PSE (Japan), SNI-SUCOFINDO Indonesia, RCM (Australia), TSE (Turkey), ISI (India), CCC (China), NOM (Mexico), Product Environm. Profile, IQC (Argentina), RoHS UAE, INMETRO (Brazil), SASO (Saudi Arabia), WEEE Directive

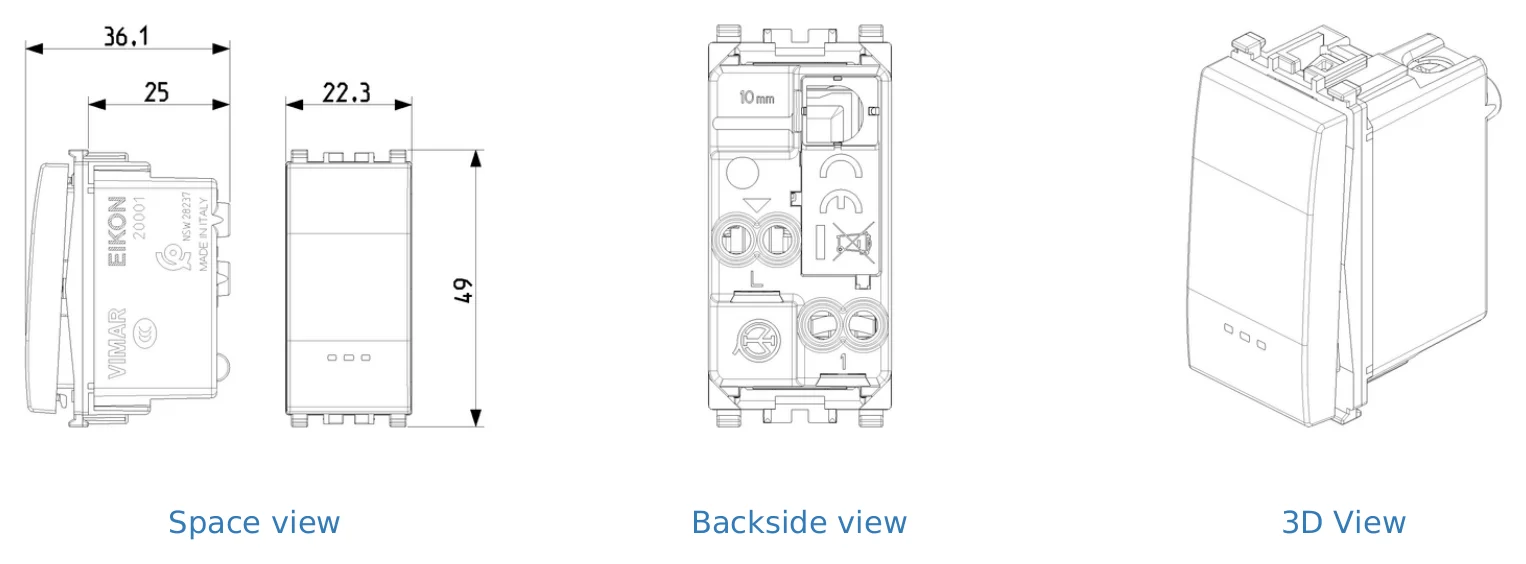

Technical drawings

VM-20001 Drawings
Drawings

Downloads

FAQ

What is the rated current of the Vimar VM-20001 switch?

The Vimar VM-20001 is rated at 16AX. This makes it a 1-pole, 1-way switch intended for applications that match that rating.

What type of product is the Vimar Eikon VM-20001?

The VM-20001 is a Vimar Eikon ExΓ© switch module. It is described as a 1P 16AX 1-way switch in a grey finish.

Is this switch part of the Vimar Eikon ExΓ© range?

Yes. The product belongs to the Vimar Eikon ExΓ© switch and dimmer categories and is intended for use within that product family.

What operating temperature range is specified for this switch?

The VM-20001 has a specified temperature range from -20 Β°C to 50 Β°C. This range should be checked against the conditions of the intended project environment.

What colour and weight is the Vimar VM-20001?

This model has a grey finish. Its listed weight is 0.0259 kg, making it a lightweight switch module.

What warranty period is listed for the VM-20001?

The listed warranty period for the Vimar VM-20001 is 3 years. Warranty handling may depend on the seller, region, and project purchase terms.
