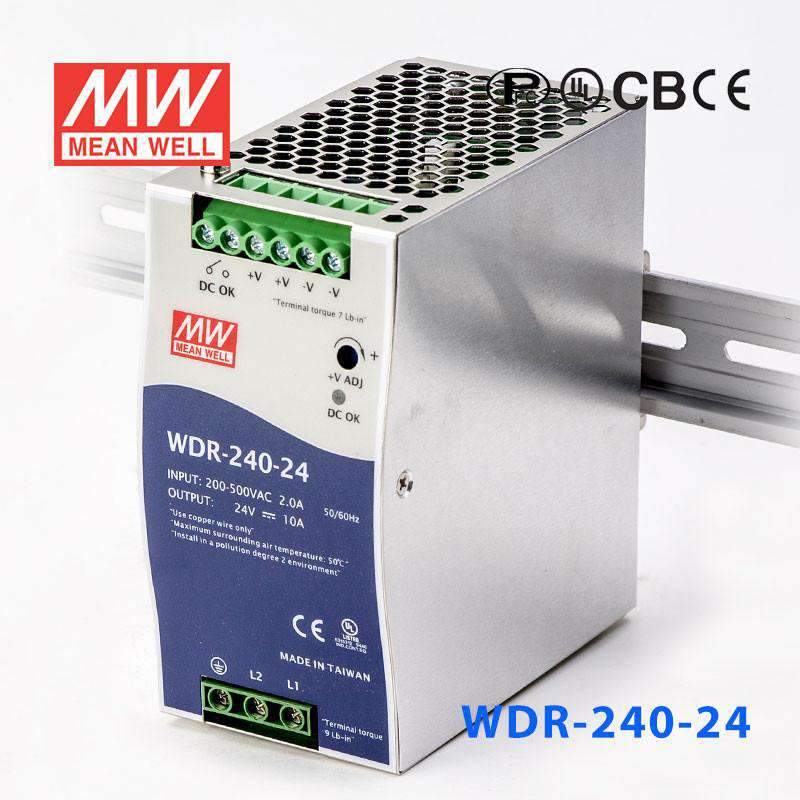

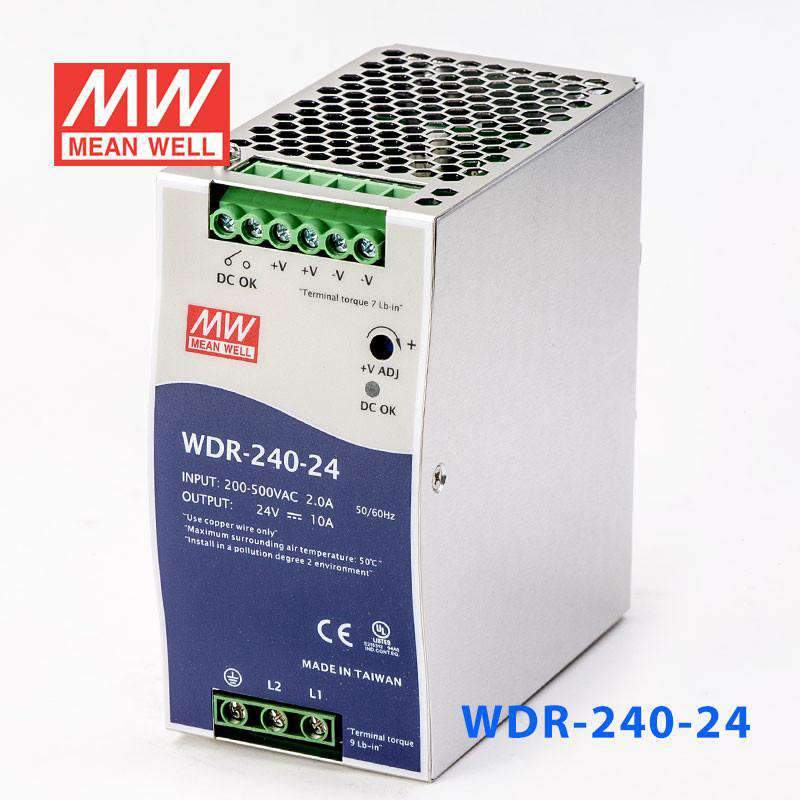

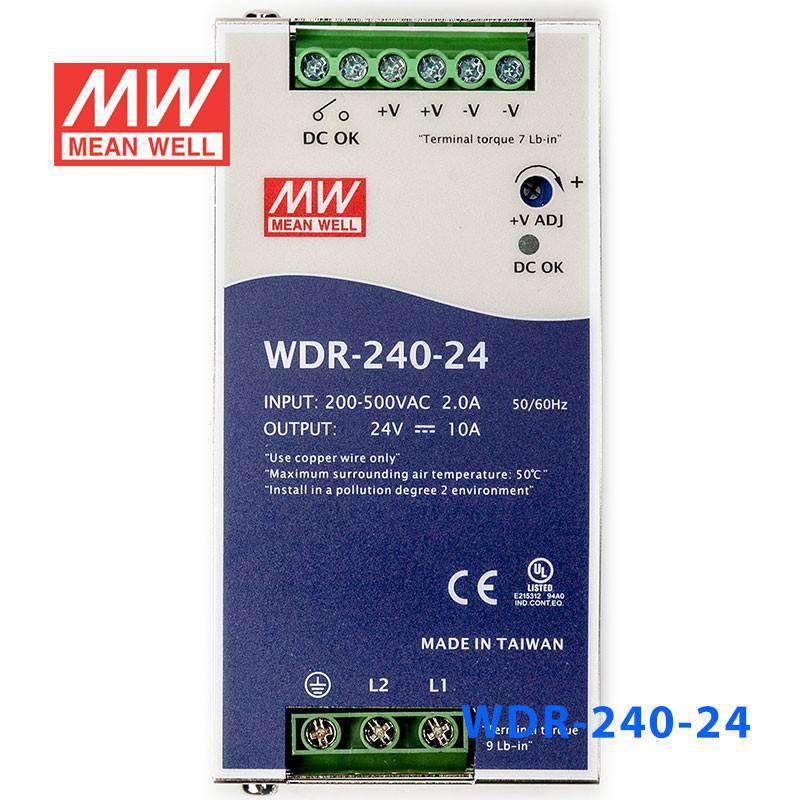

Mean Well WDR-240-24 Single Output Industrial Power Supply 240W 24V 10A - DIN Rail

metal caseslim size1&2 phase180~550VAC wide inputhigh efficiency up to 93%

SKU WDR-240-24

Log in to see price Trade pricing & online ordering for account holders

Select model — 4 in this family

WDR-240-24

WDR-60-24 60W 24V Low stock

WDR-120-24 120W 24V Backorder

WDR-240-24 240W 24V In stock

WDR-480-24 480W 24V In stock

Product variants

In stock

Overview

WDR-240-24 is the 24V output model of this series: rated current 10A, rated power 240W, typical efficiency 91%.

Features

Single and two phase wide input range 180~550VAC
Built-in active PFC circuit compliance to EN61000-3-2
High efficiency 91% and low power dissipation
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection

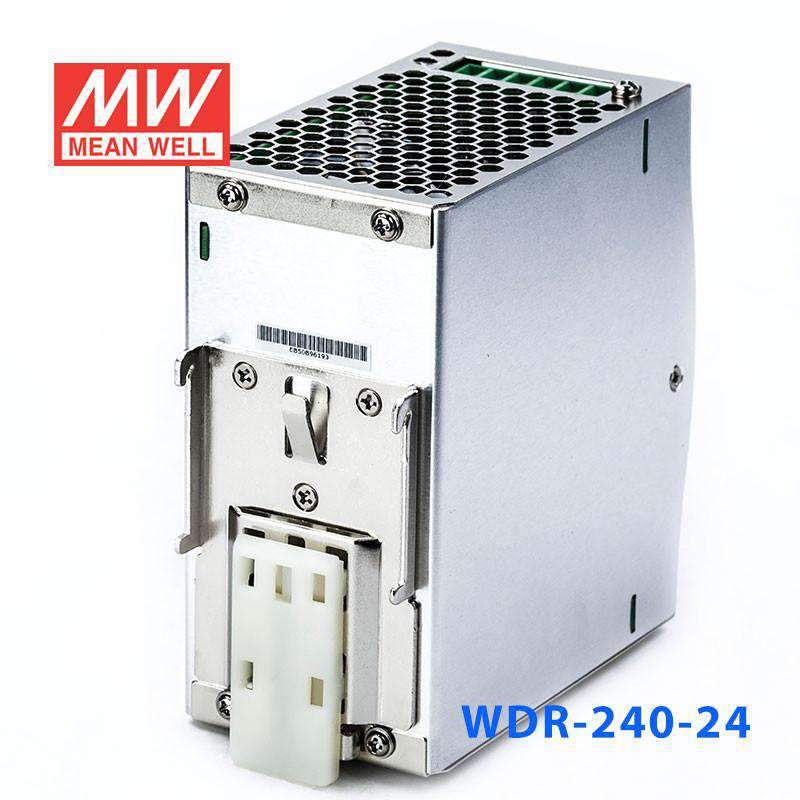

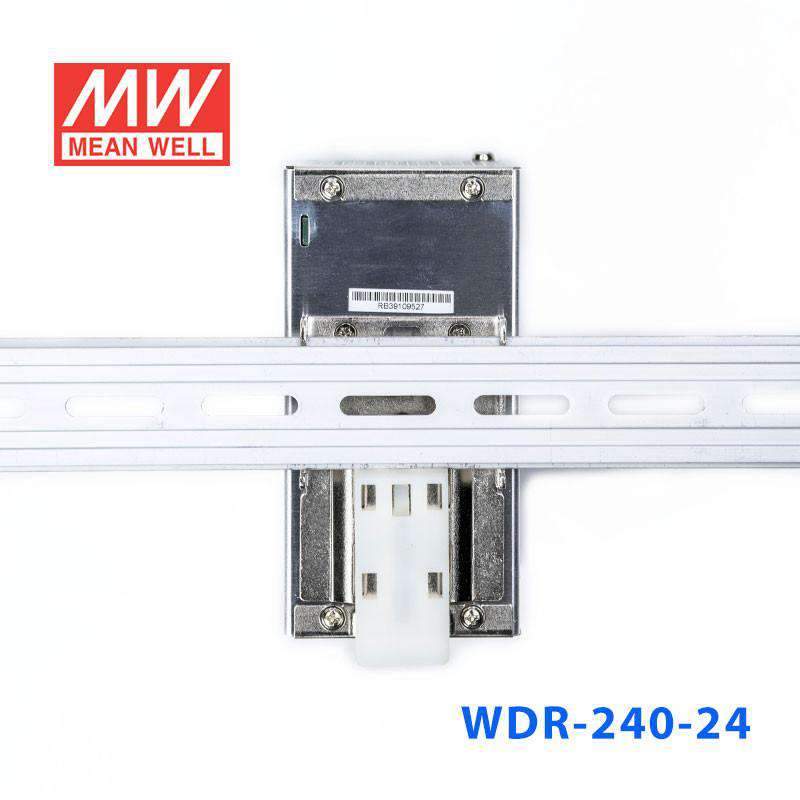

Can be installed on DIN rail TS-35/7.5 or 15
UL 508(industrial control equipment)approved
EN61000-6-2(EN50082-2) industrial immunity level
Built-in DC OK relay contact
100% full load burn-in test
3 years warranty

Specifications

WDR-240-24Specifications from the official datasheet (2015-10-29 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 10A
CURRENT RANGE: 0 ~ 10A
RATED POWER: 240W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 24 ~ 28V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 800ms, 150ms/400VAC 1500ms, 150ms/230VAC at full load
HOLD UP TIME (Typ.): 18ms / 400VAC 18ms / 230VAC at full load

INPUT

VOLTAGE RANGE^Note.6: 180 ~ 550VAC 254 ~ 780VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≥0.84/400VAC PF≥0.84/230VAC
EFFICIENCY (Typ.): 91%
AC CURRENT (Typ.): 1A/400VAC 2A/230VAC
INRUSH CURRENT (Typ.): COLD START 50A
LEAKAGE CURRENT: <3.5mA / 530VAC

PROTECTION

OVERLOAD: 105 ~ 130% rated output power Protection type : Constant current limiting, unit will shut down after 3 sec. , auto-recovery after 1 minute if the fault condition is removed
OVER VOLTAGE: 29 ~ 33V Protection type : Shut down o/p voltage, auto-recovery after 1 minute if the fault condition is removed
OVER TEMPERATURE: 90℃±5℃ (TSW) detect on heatsink of power switch Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

DC OK REALY CONTACT RATINGS (max.): 60Vdc/0.3A, 30Vdc/1A, 30Vac/0.5A resistive load

ENVIRONMENT

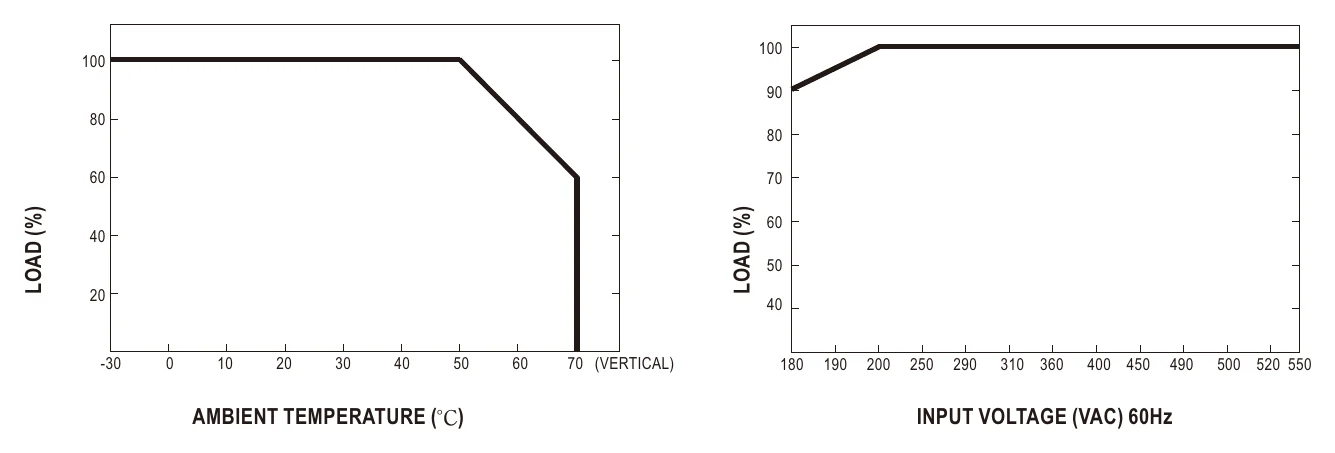

WORKING TEMP.^Note.5: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6

SAFETY & EMC

SAFETY STANDARDS: Ul508 approved, IEC60950-1 CB approved by SIQ, design refer to GL;(meet EN60204-1)
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level, criteria A approved

OTHERS

MTBF: 141.1K hrs min. MIL-HDBK-217F (25 )
DIMENSION: 63*125.2*113.5mm (W*H*D)
PACKING: 1.06Kg; 12pcs/13.7Kg/1.06CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 400VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
5. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
6. Derating may be needed under low input voltage. Please check the derating curve for more details.

Technical drawings

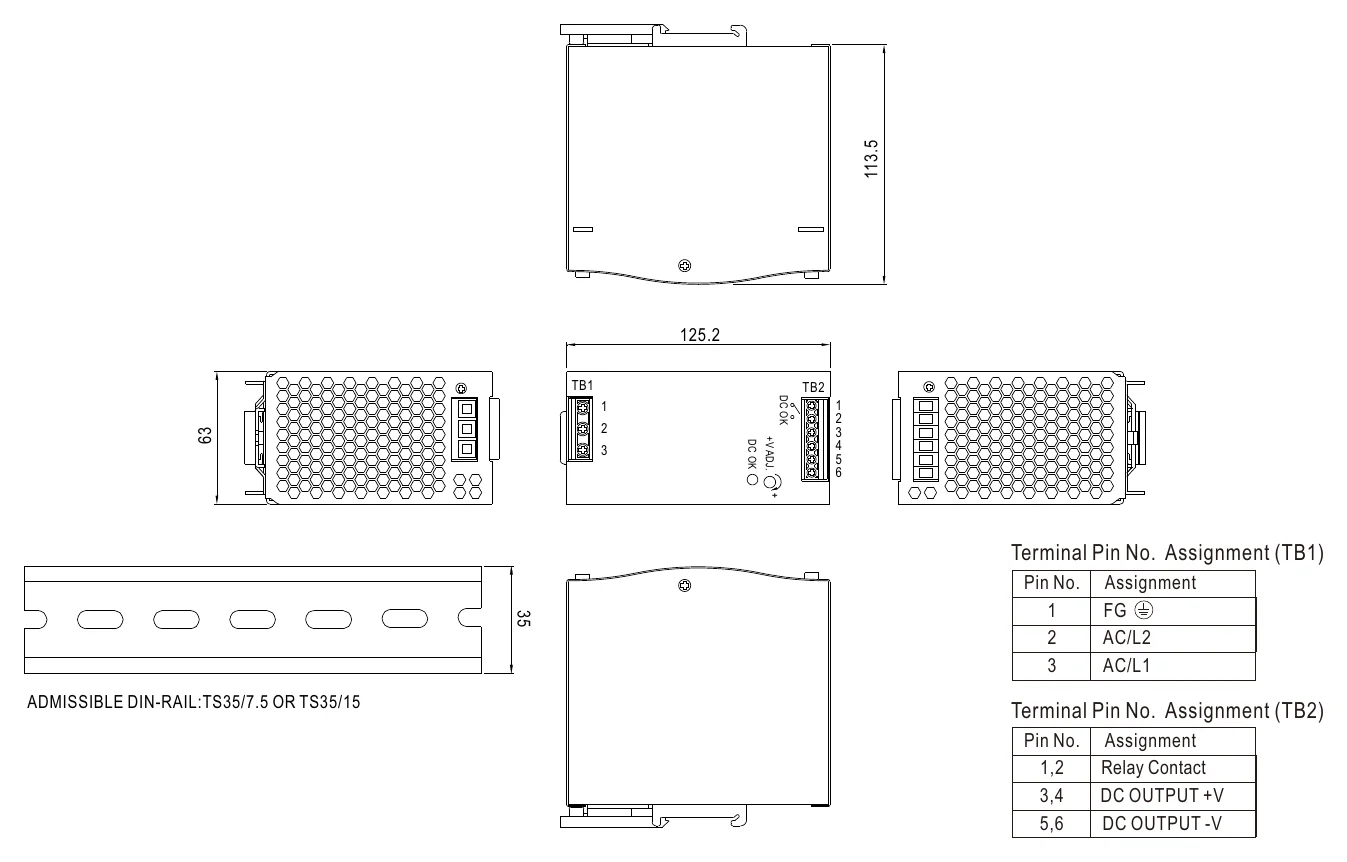

WDR-240-24 Mechanical Specification — Mechanical Specification

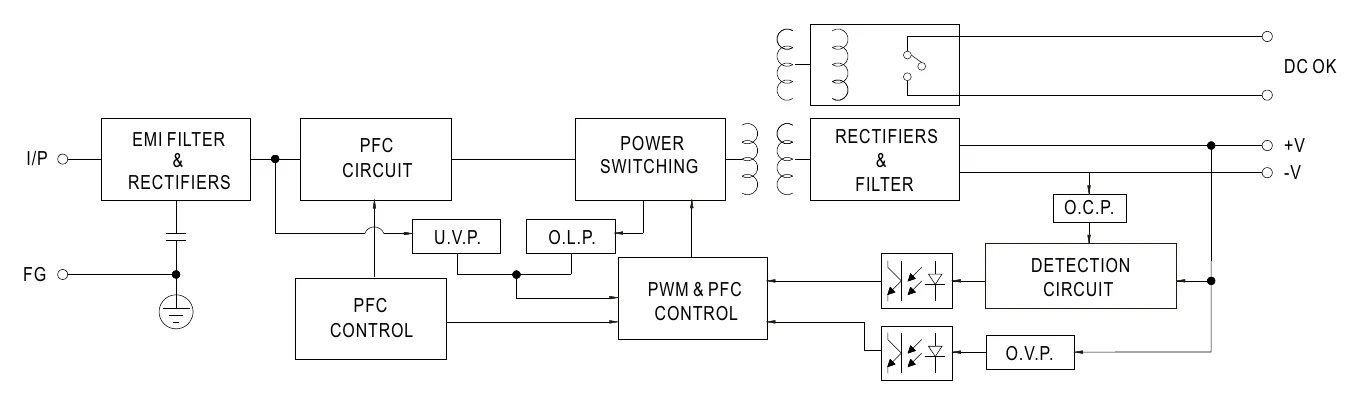

WDR-240-24 Block Diagram — Block Diagram

Downloads

Datasheet1

WDR-240-24 datasheetwdr_240_spec.pdf · 2015-10-29 edition PDF Download

Certificates3

CB Certificate (WDR-240)(EN) PDF Download

UL Certificate (WDR-240)(EN) PDF Download

EMC Certificate (WDR-240)(EN) PDF Download

Test reports1

Test Report (WDR-240-24)(EN) PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well DIN RAIL Catalog PDF Download

FAQ

Can I use the WDR-240-24 for a larger 24V PLC control cabinet?

Yes, this model is designed for 24V control panels that need more capacity, with a 240W output rating and 10A output current. It mounts on DIN rail and uses a 63.0 mm slim body relative to higher-capacity cabinet power supplies.

Is the WDR-240-24 suitable for 24V industrial automation loads in one enclosure?

It is a good fit for 24V industrial automation cabinets where multiple 24V loads are grouped and the total demand stays within 240W. The 180-550VAC wide input supports use with 1 phase and 2 phase input systems.

Can this be used in a 24V building management panel with several control devices?

Yes, this power supply can serve 24V building management and control enclosures that require up to 10A at 24V DC. Compared with the 120W version, it provides more output current while keeping the same 125.2 × 113.5 mm footprint.

Is the WDR-240-24 appropriate when cabinet temperatures drop below -25°C?

Yes, this model is rated for -30°C to +70°C operation, which extends lower than the 120W versions. That makes it suitable for protected control enclosures that may experience colder ambient conditions while still staying within the specified range.

What is the difference between the WDR-240-24 and other WDR DIN rail models?

The WDR family includes WDR-120-12 at 120W, 12V, 10A, WDR-120-24 at 120W, 24V, 5A, WDR-120-48 at 120W, 48V, 2.5A, WDR-240-24 at 240W, 24V, 10A, and WDR-240-48 at 240W, 48V, 5A. Larger models are WDR-480-24 at 480W, 24V, 20A and WDR-480-48 at 480W, 48V, 10A. Smaller models are WDR-60-12 at 60W, 12V, 5A, WDR-60-24 at 60W, 24V, 2.5A, WDR-60-48 at 60W, 48V, 1.25A, and WDR-60-5 at 50W, 5V, 10A.
